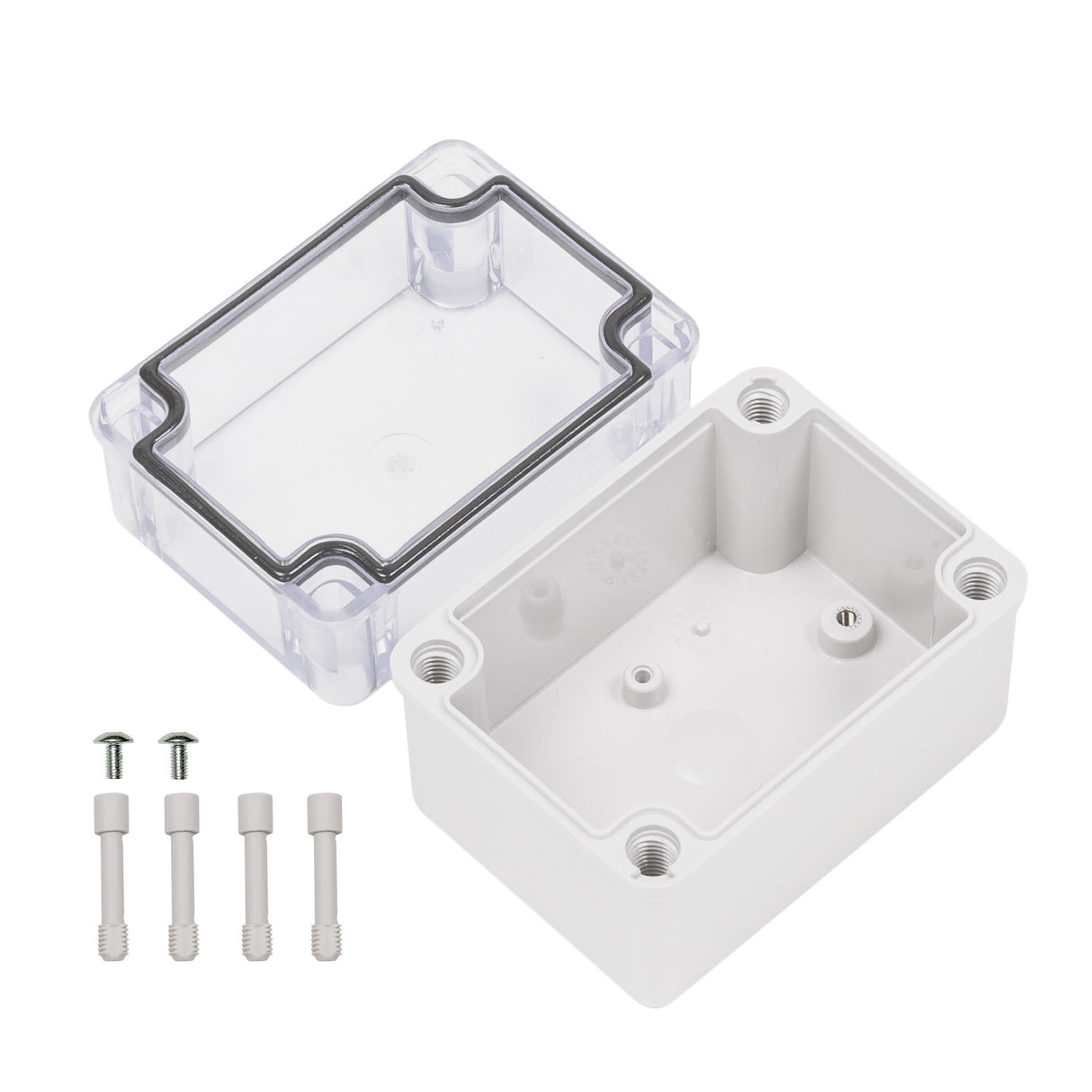

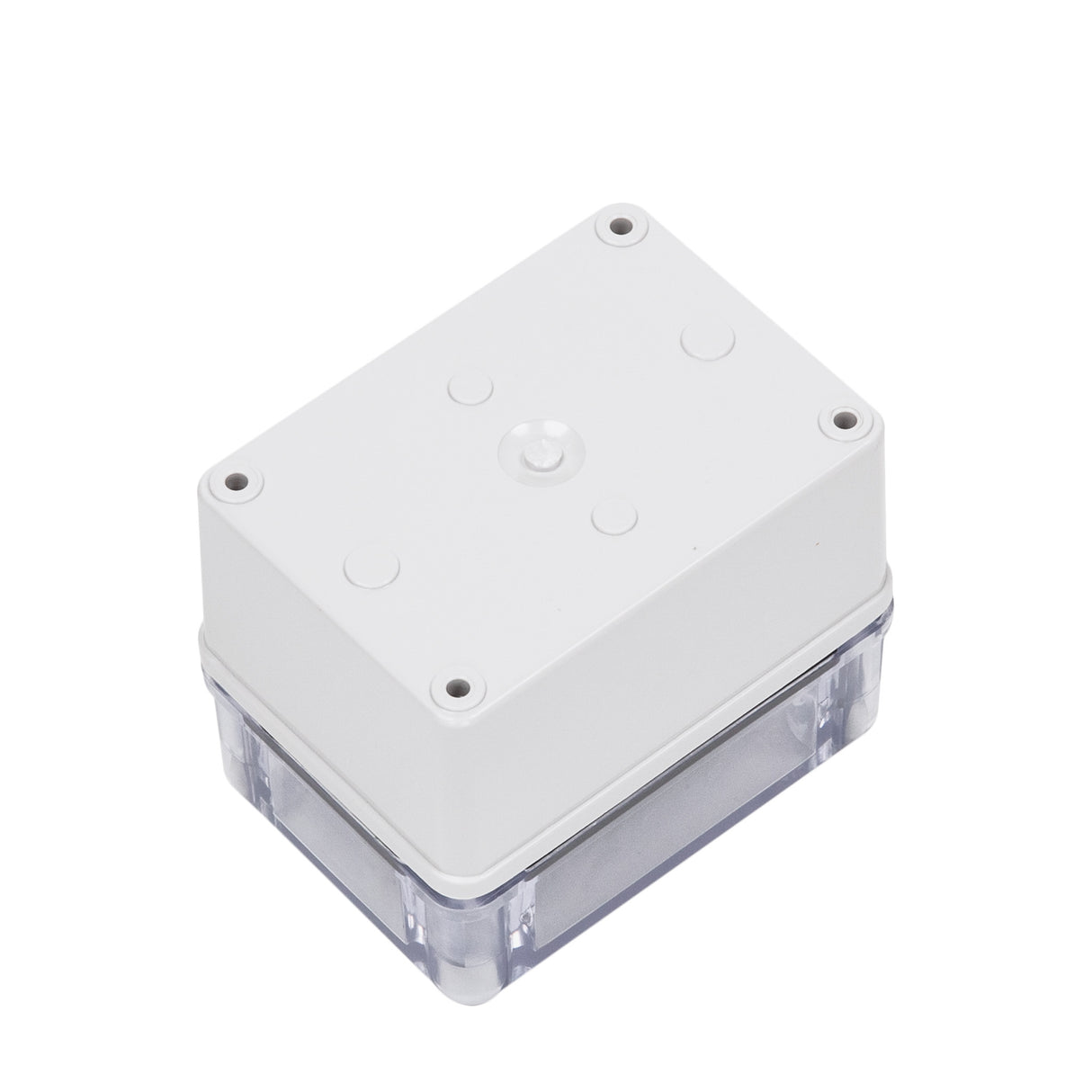

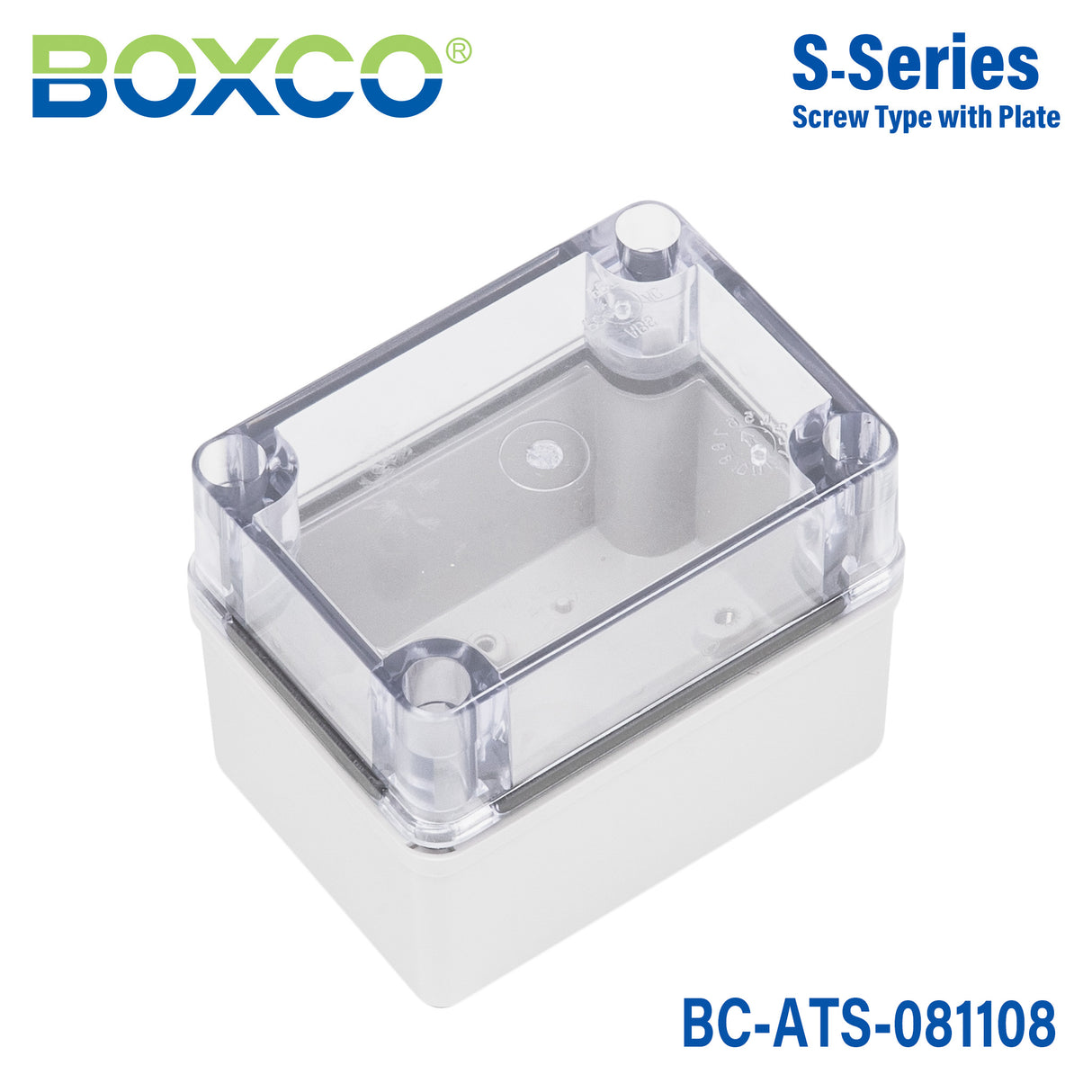

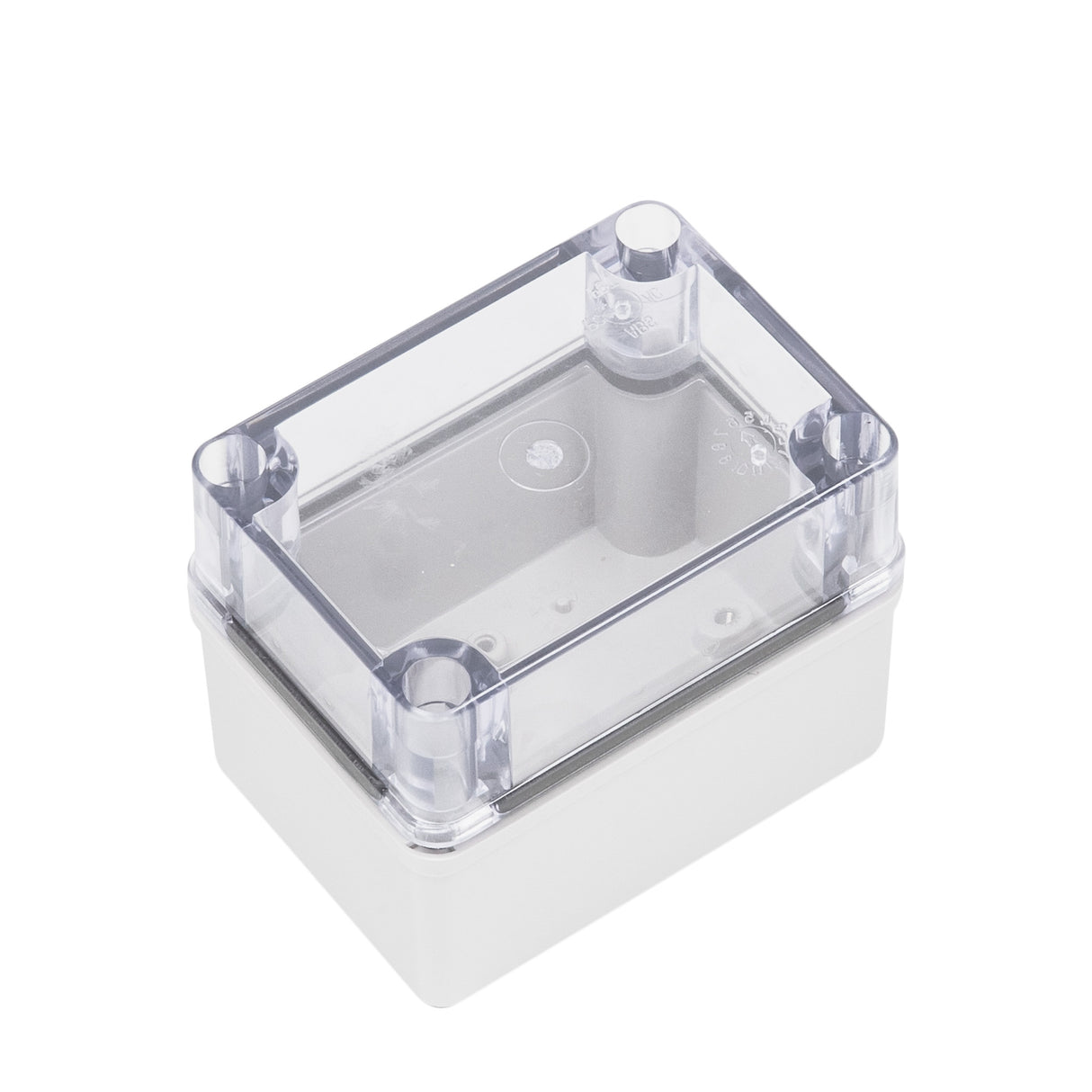

Boxco S-Series 3.15 x 4.33 x 3.35 Inches(80x110x85mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco S-Series 3.15 x 4.33 x 3.35 Inches(80x110x85mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height3.35 in
-
Weight0.47 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-ATS-081108 enclosure suited for?
This model is suited for protecting sensitive electronics and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its anti-static ABS construction, transparent cover, and compact 80 x 110 x 85 mm size make it a practical choice for enclosed monitoring, control, or instrumentation assemblies.
Can this plastic enclosure be used outdoors?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where protection against dust and water ingress is important.
What are the key protection and material specs for this enclosure?
This enclosure is made from ABS and has an IP67 ingress rating and IK08 impact rating. It is specified for operating temperatures from -40 C to 70 C and has a product weight of 0.214 kg.
Why choose the transparent cover version of this Boxco enclosure?
The transparent cover helps when internal indicators, displays, or visual inspections need to be checked without opening the enclosure. On this model, that visibility is combined with the screw-type cover design and the same IP67 and IK08 protective ratings listed for the enclosure.
What internal mounting features does the BC-ATS-081108 include?
This model includes mounting plate attachment points with brass inserted injection molding for securely fixing an internal mounting plate. It also includes pre-molded mounting screw nuts so DIN rail or other internal equipment can be fixed inside the enclosure body.
How does this enclosure help protect sensitive electronics?
The description specifies anti-static material to help protect sensitive electronic instruments from static electricity. It also notes high impact resistant construction and a precision-injected gasket designed to support strong waterproof and dust-proof performance.
