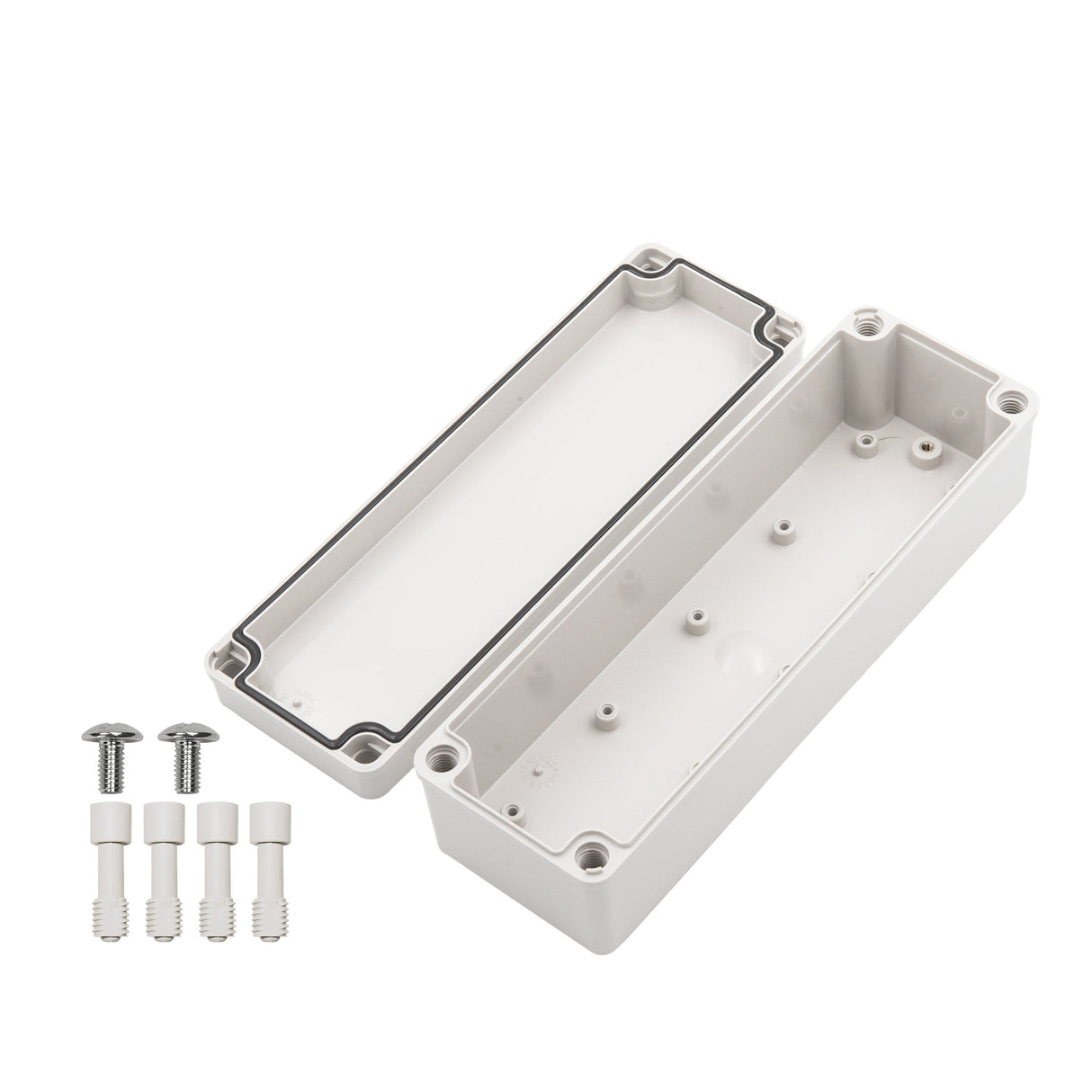

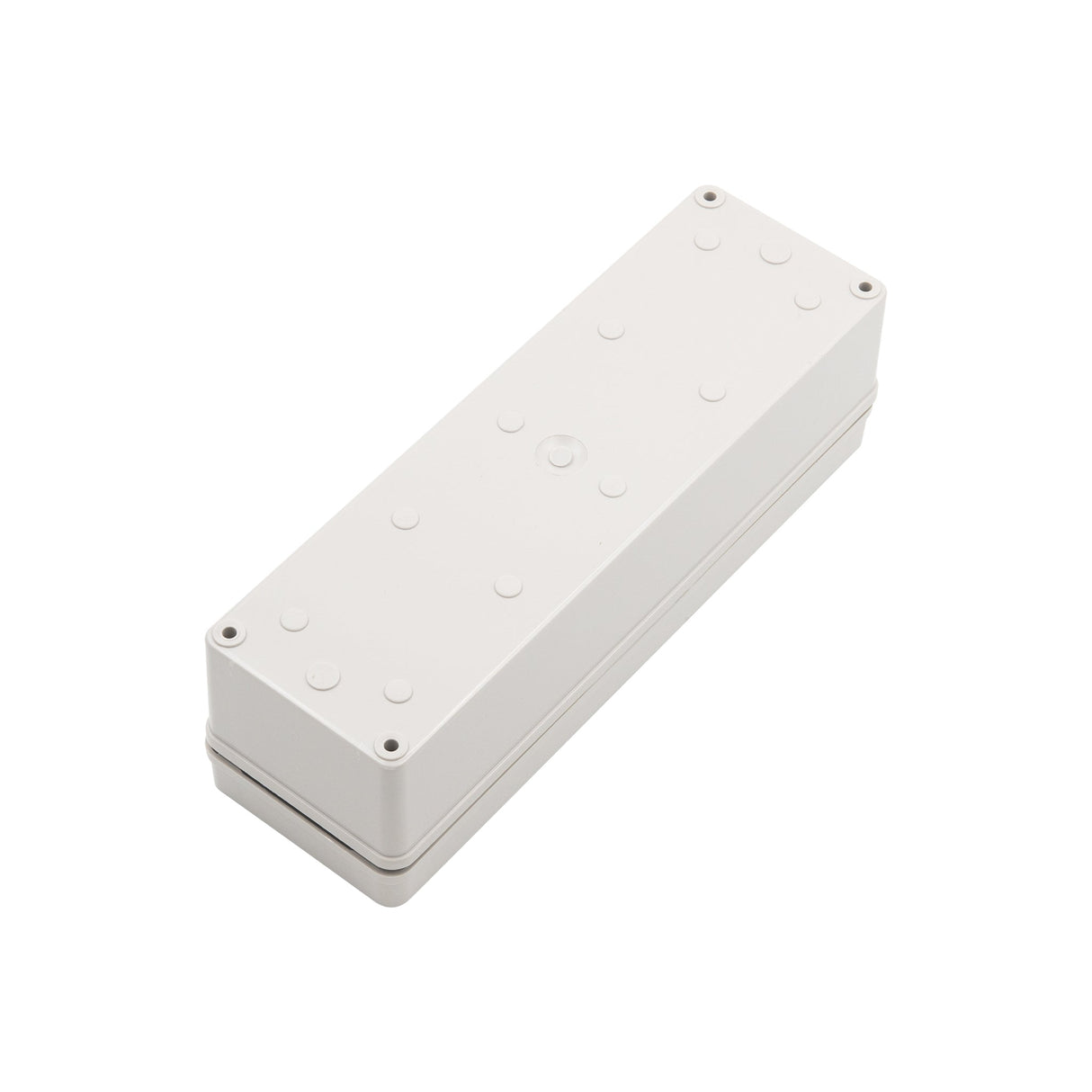

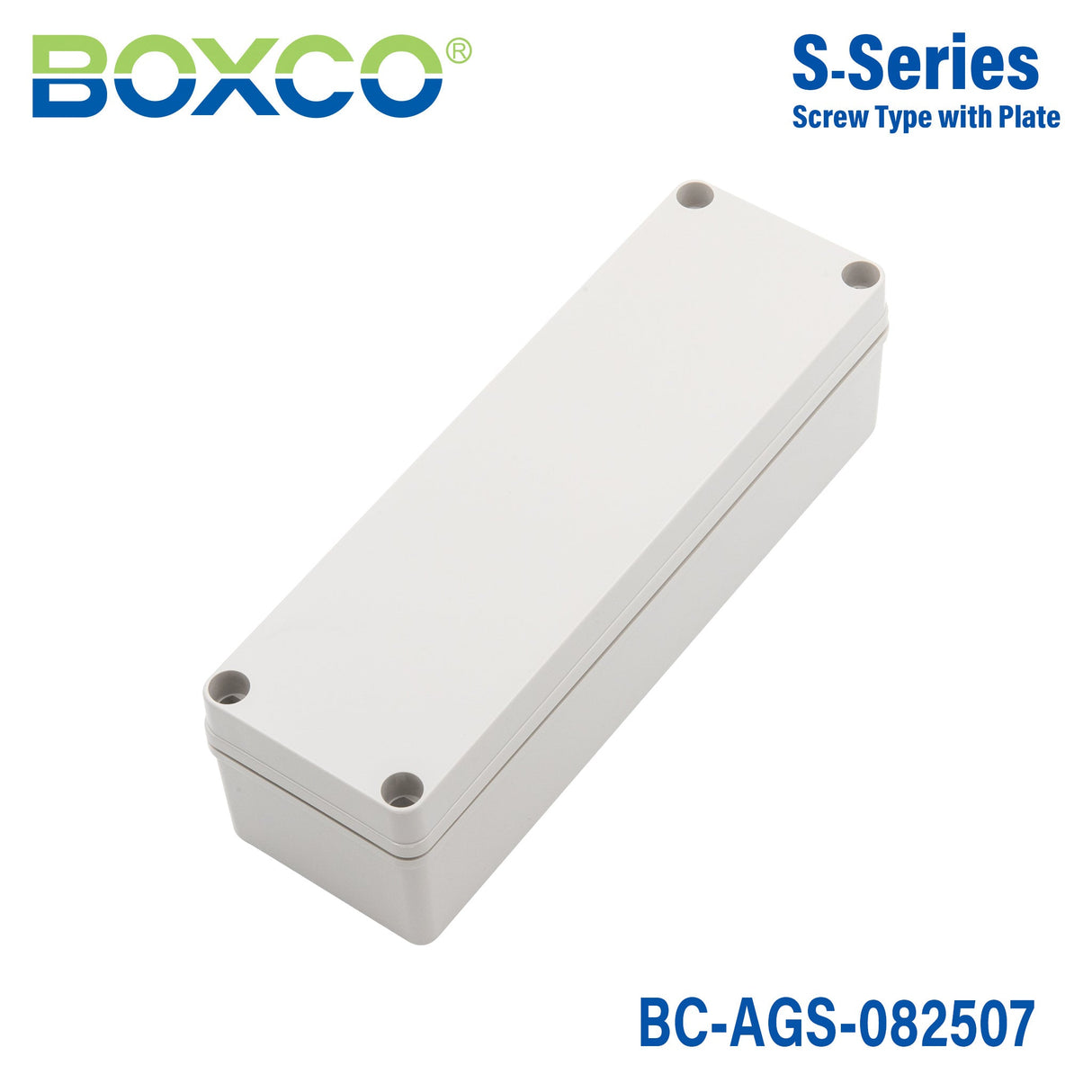

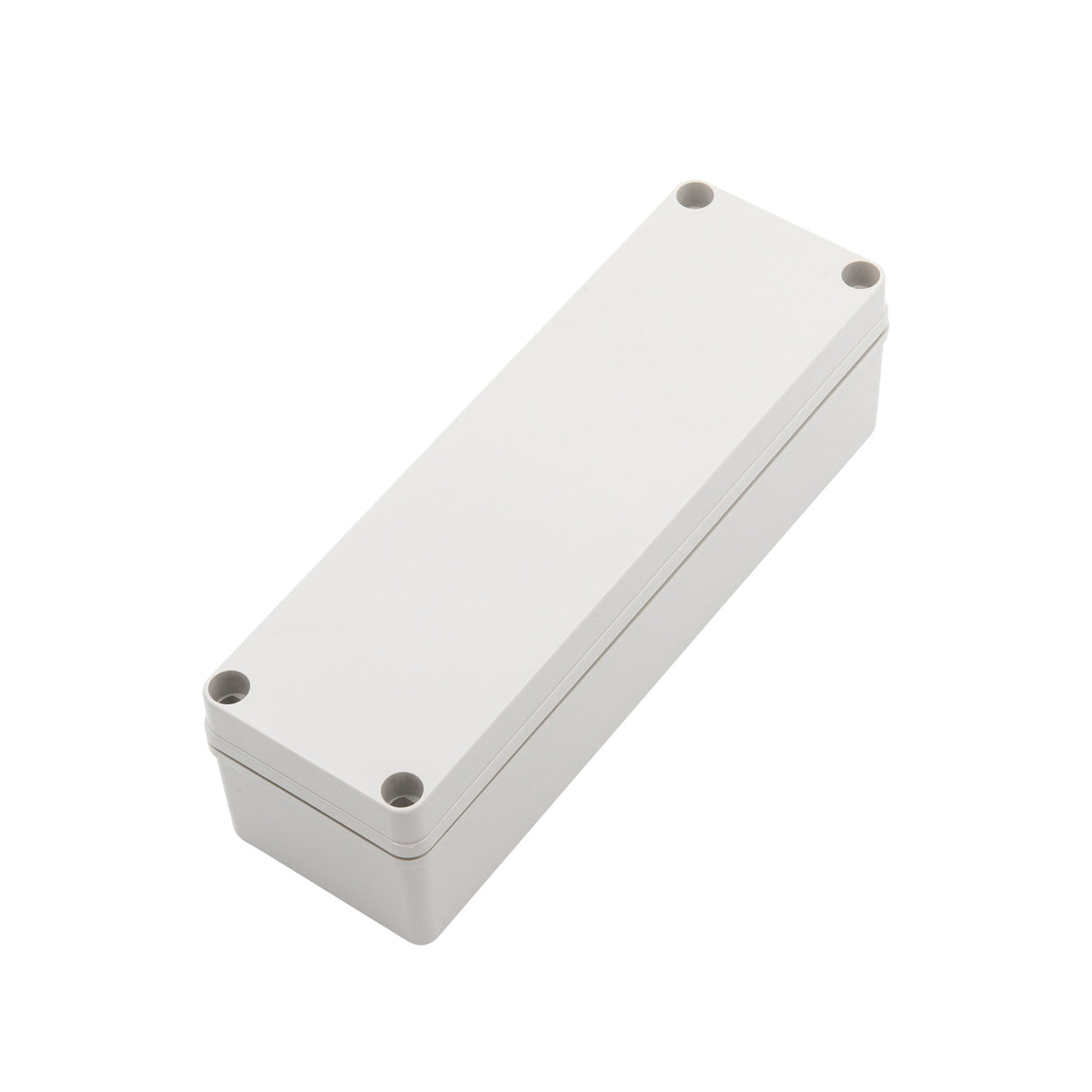

Boxco S-Series 3.15 x 9.84 x 2.76 Inches(80x250x70mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width9.84 in
-
Height2.76 in
-
Weight0.67 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-AGS-082507 enclosure?
This model is a screw-type plastic enclosure made from ABS with a grey cover. Its external size is 3.15 x 9.84 x 2.76 inches (80 x 250 x 70 mm), and it is rated IP67 for dust and water protection and IK08 for impact resistance. The listed weight is 0.304 kg and the warranty period is 1 year.
Is the BC-AGS-082507 suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added to help protect the enclosure during outdoor use and reduce visible color change over time. It is also designed to provide strong waterproof and dust-proof performance with its IP67 rating and gasketed construction.
What kind of applications is this enclosure typically used for?
This enclosure is intended for protecting electronics and industrial components that need a durable, sealed housing. It is especially relevant for outdoor or demanding environments where dust resistance, water resistance, and impact protection matter. The anti-static material also makes it suitable for applications involving sensitive electronic instruments.
How durable is this Boxco S-Series enclosure?
The BC-AGS-082507 is described as being made from high impact resistant material designed to withstand external impact and help prevent breakage during machining processes such as hole and press processing. It also carries an IK08 impact rating. In addition, the screw thread is formed during injection molding to improve cover fastening strength.
What temperature range can the BC-AGS-082507 handle?
This model has a listed operating temperature range of -40 °C to 70 °C. That makes it suitable for use across a wide range of cold and moderate heat conditions within that specified range. Buyers should verify their application stays within those limits.
Does this enclosure support internal accessories or equipment mounting?
Yes. The product description states that it includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also includes pre-molded mounting screw nuts to support DIN rail or other internal equipment mounting.
