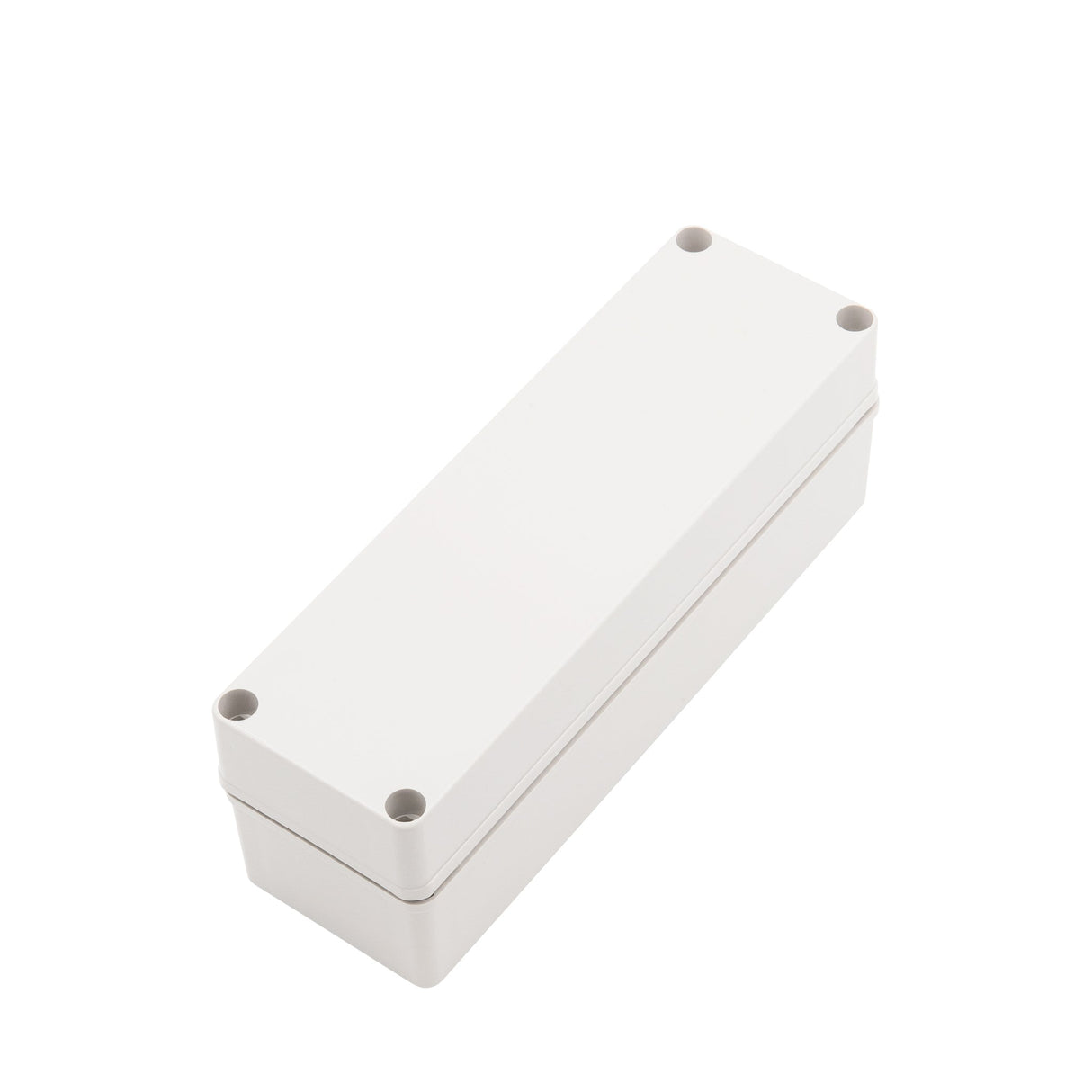

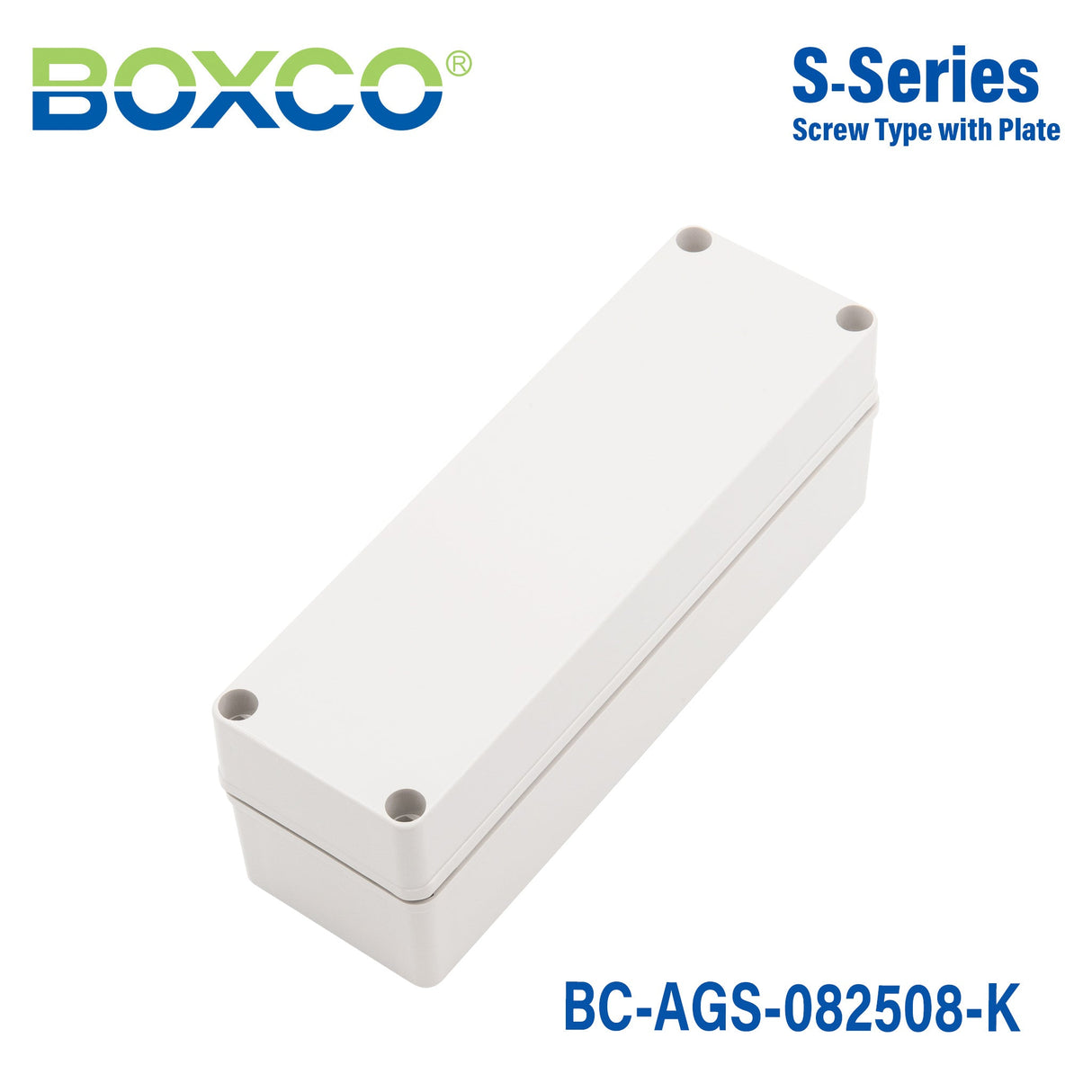

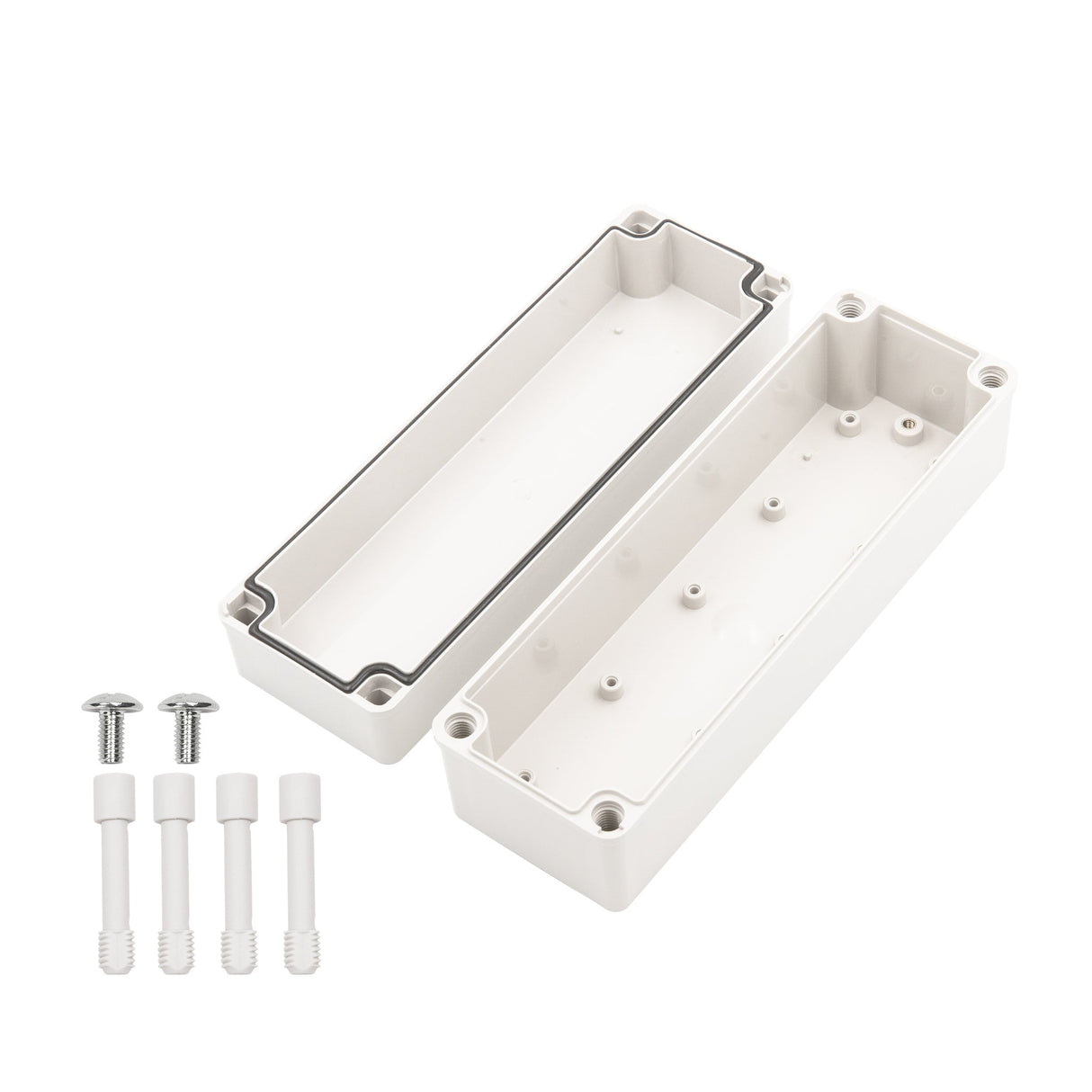

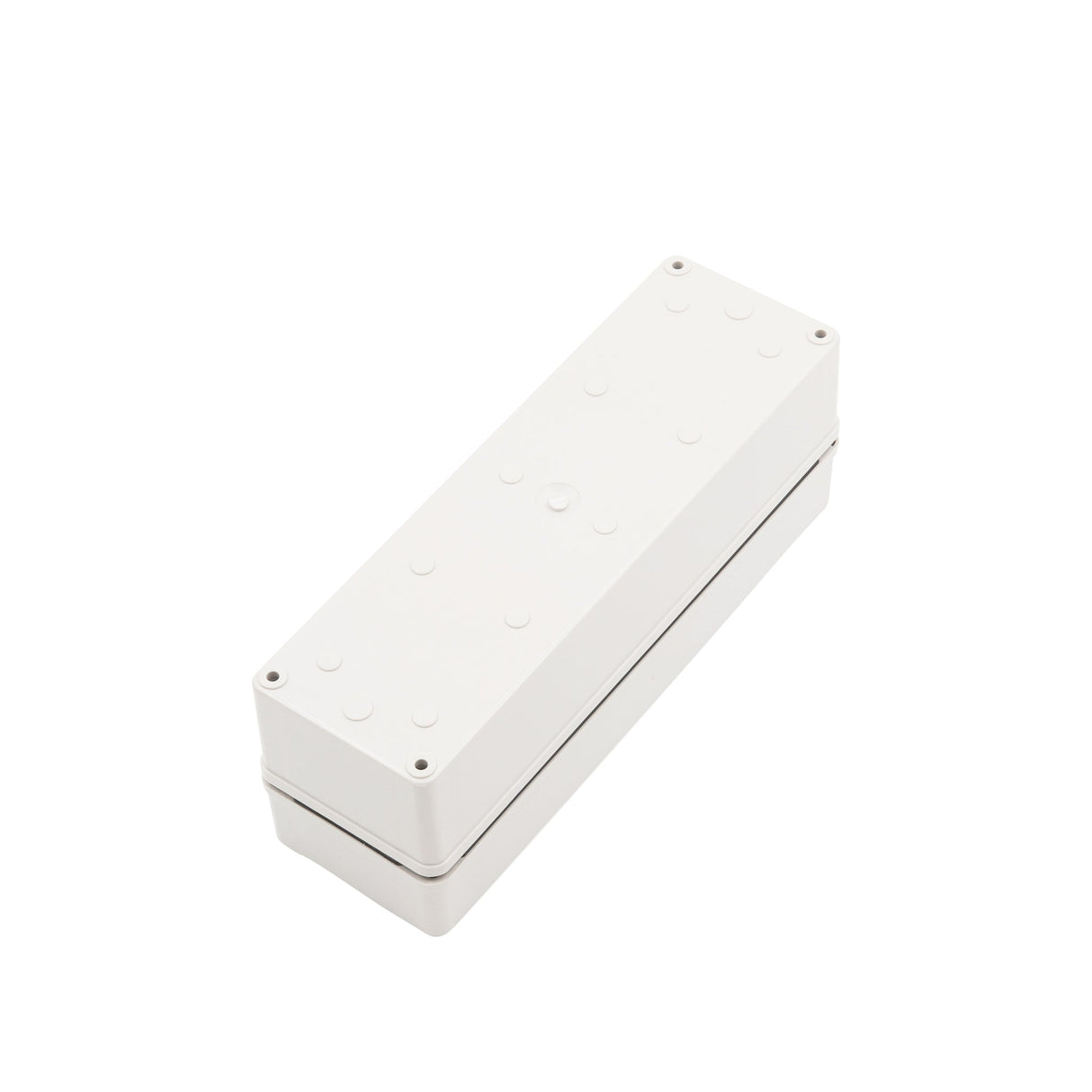

Boxco S-Series 3.15 x 9.84 x 3.35 Inches(80 x 250 x 85mm) Plastic E...
Features
- Screw type
- This series has a knock out base
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width9.84 in
-
Height3.35 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What is this Boxco S-Series enclosure used for?
This model is a plastic enclosure box intended for protecting components in industrial and commercial applications where a sealed housing is needed. Its screw-type design and enclosure form factor make it suitable for general-purpose equipment protection rather than open-exposure mounting without a housing.
What are the dimensions of this enclosure?
The Boxco S-Series BC-AGS-082508-K measures 3.15 x 9.84 x 3.35 inches, which is 80 x 250 x 85 mm. These dimensions make it a longer-format enclosure compared with compact junction-style boxes.
Is this enclosure suitable for wet or dusty environments?
Yes. This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. Buyers commonly look for this level of sealing when selecting an enclosure for demanding indoor or outdoor environments.
How impact-resistant is this plastic enclosure?
This model carries an IK08 impact rating. That gives it a defined level of mechanical impact resistance beyond a basic unrated plastic box, which can be useful in industrial and utility settings.
What material and cover style does this model use?
The enclosure is made of ABS plastic and comes with a grey cover. It is a screw-type enclosure, and the product description also notes that this series has a knock out base.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40°C to 70°C. That range supports use in both cold and warm environments within those limits.
