Boxco S-Series 3.94 x 3.94 x 3.94 Inches(100x100x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

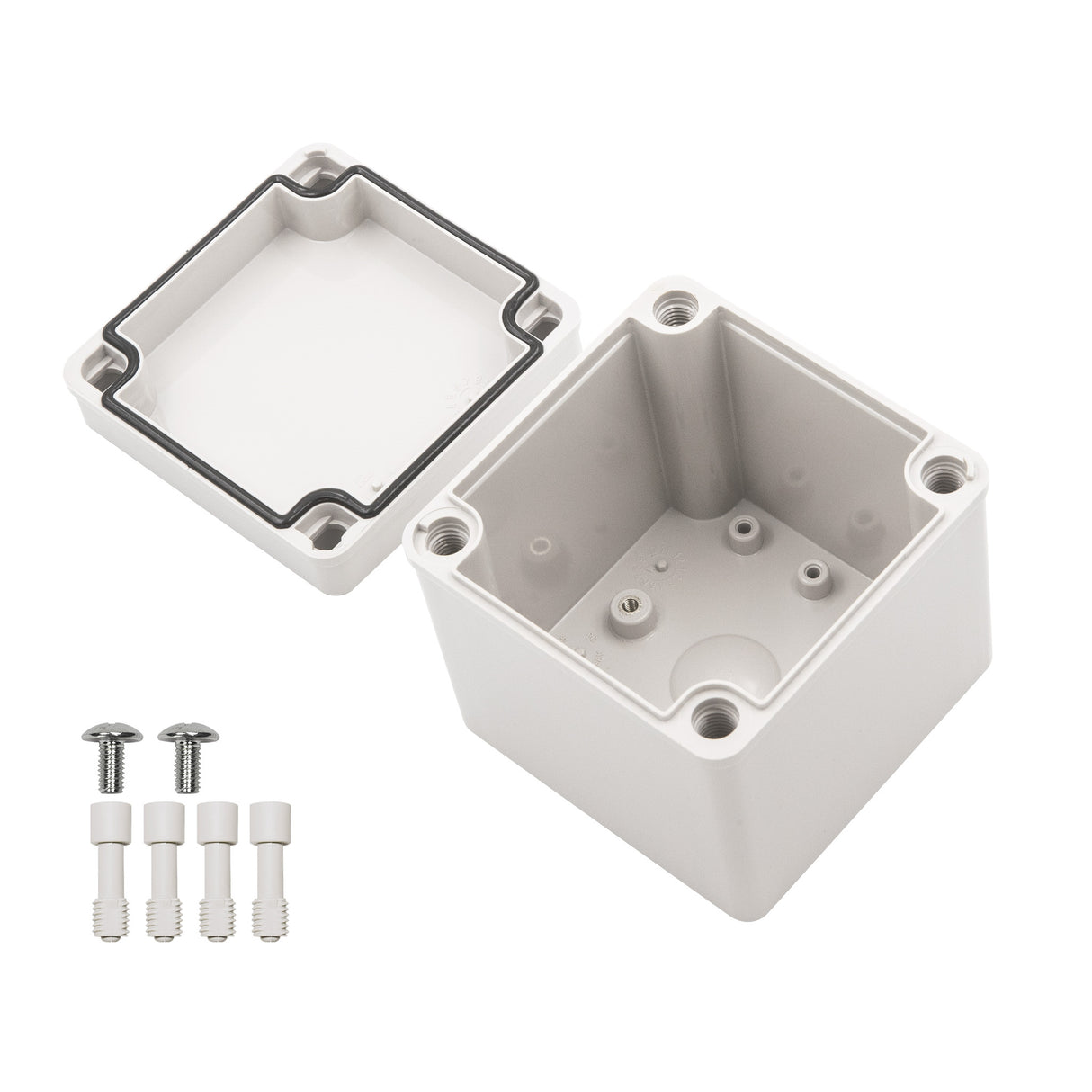

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.94 in
-
Width3.94 in
-
Height3.94 in
-
Weight0.56 lb
::specification::
Frequently Asked Questions
What applications is this enclosure suitable for?
This model is suited for protecting electronic equipment in industrial, commercial, and outdoor environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact rating, and UV-stabilized ABS construction make it a practical choice for control, monitoring, or junction applications that need protection from dust, water, and physical impact.
What are the key specifications of the Boxco S-Series 100x100x100mm enclosure?
This enclosure measures 3.94 x 3.94 x 3.94 inches (100 x 100 x 100 mm) and is made from ABS with a grey cover. It is rated IP67 for ingress protection, IK08 for impact resistance, weighs 0.254 kg, and has an operating temperature range of -40°C to 70°C.
Is this enclosure appropriate for outdoor use?
Yes, this Boxco S-Series enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes that only minor color changes are expected over long-term exposure, helping it maintain performance in outdoor environments.
How does this screw type enclosure help protect sensitive equipment?
The enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It also uses high impact resistant material and a gasket designed for strong waterproof and dust-proof performance, adding another layer of protection for enclosed components.
What makes this model different from a basic plastic box?
This model combines multiple protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization for outdoor exposure, and anti-static material for sensitive electronics. It also includes internal mounting plate attachment points, pre-molded mounting screw nuts, and molded cover bolt attachment points for a more robust enclosure design.
What environmental conditions can this enclosure handle?
This enclosure is specified for use from -40°C up to 70°C, which supports a wide range of operating conditions. Its IP67 rating indicates strong resistance to dust and water ingress, making it suitable for demanding indoor or outdoor environments.
