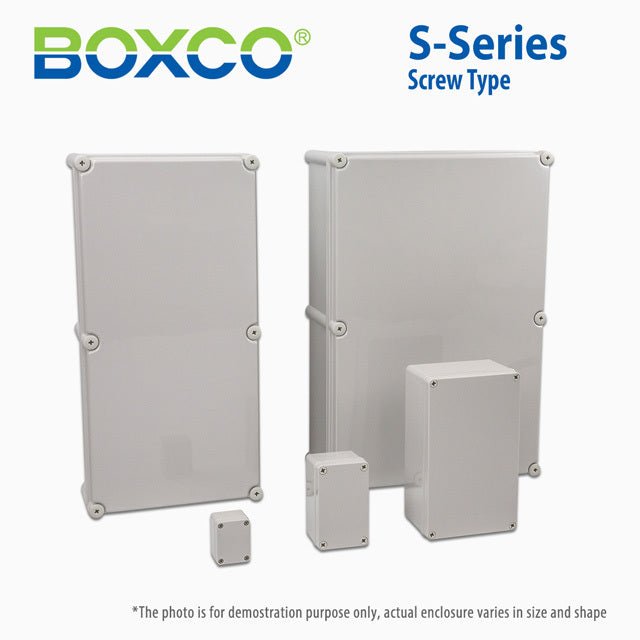

Boxco S-Series 3.94 x 7.28 x 2.76 Inches(100x185x70mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

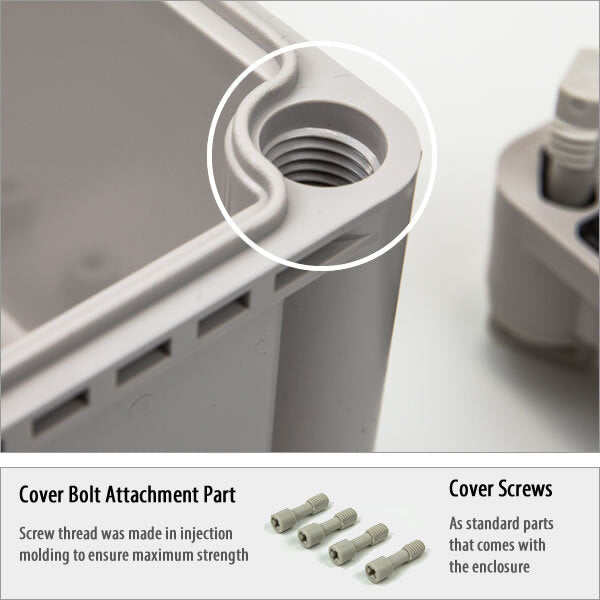

- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.94 in
-
Width7.28 in
-
Height2.76 in
-
Weight0.66 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 100x185x70mm plastic enclosure suited for?
This enclosure is designed for protecting electronic components and sensitive instruments in industrial or commercial environments. Its anti-static material and impact-resistant ABS construction make it a practical choice for control, monitoring, and protection uses where durability matters.
Is this enclosure suitable for outdoor environments?
Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and help reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in exposed environments.
What do the IP67 and IK08 ratings mean for this enclosure?
The IP67 rating indicates this model is built for high dust protection and resistance to water ingress. The IK08 rating indicates added protection against external mechanical impact, which supports use in harsher working environments.
What is this enclosure made from, and why does that matter?
This model is made from ABS and includes anti-static, high-impact-resistant material. That combination helps protect sensitive internal equipment from static electricity while also improving resistance to breakage during handling or modification.
What are the dimensions and operating temperature range of this model?
This enclosure measures 3.94 x 7.28 x 2.76 inches, which corresponds to 100 x 185 x 70 mm. It is rated for use from -40 degrees C to 70 degrees C, making it suitable for a wide range of industrial temperature conditions.
Does this enclosure support internal mounting hardware or accessories?
Yes. The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing items such as a DIN rail or other internal equipment. These built-in features help support organized component mounting inside the enclosure.
