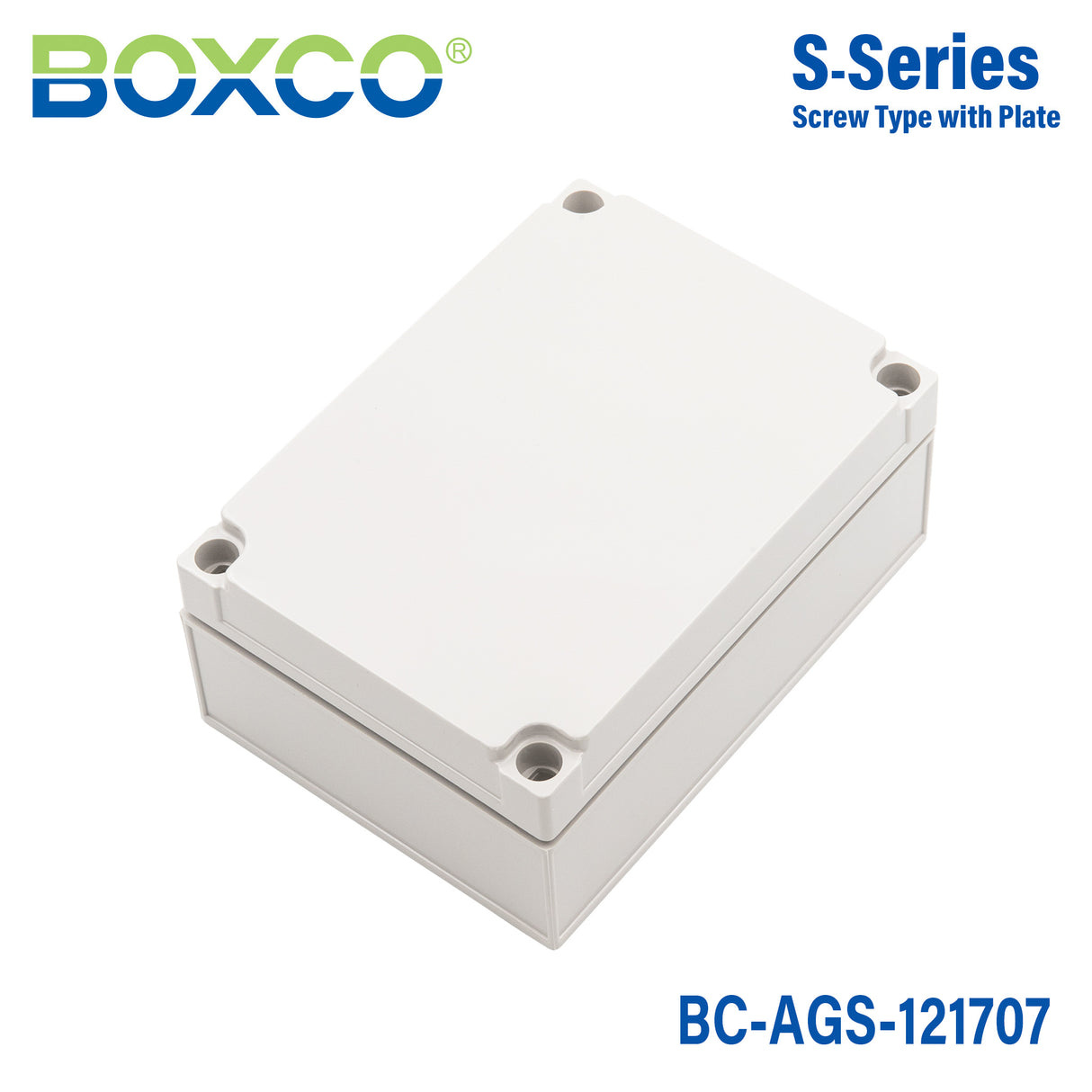

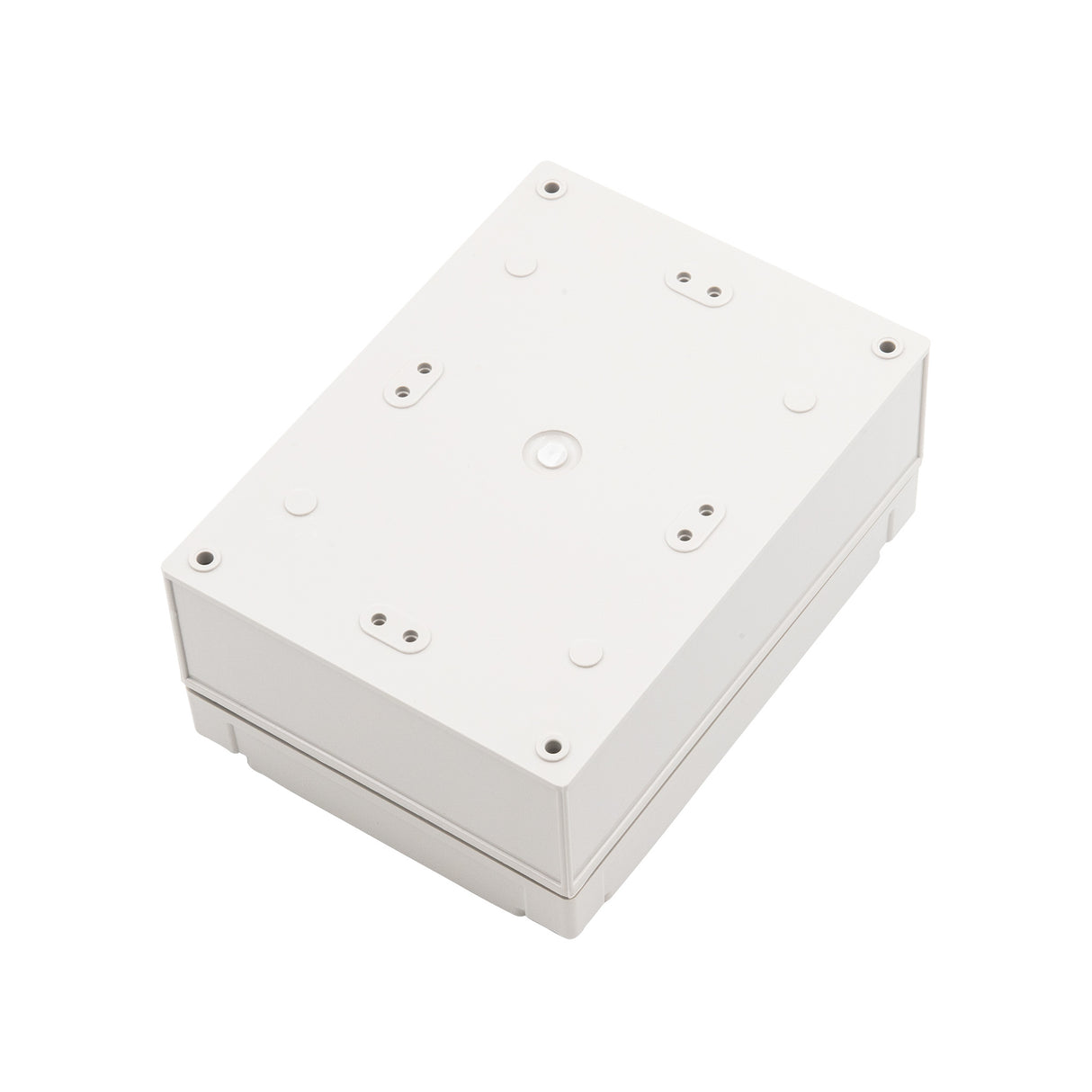

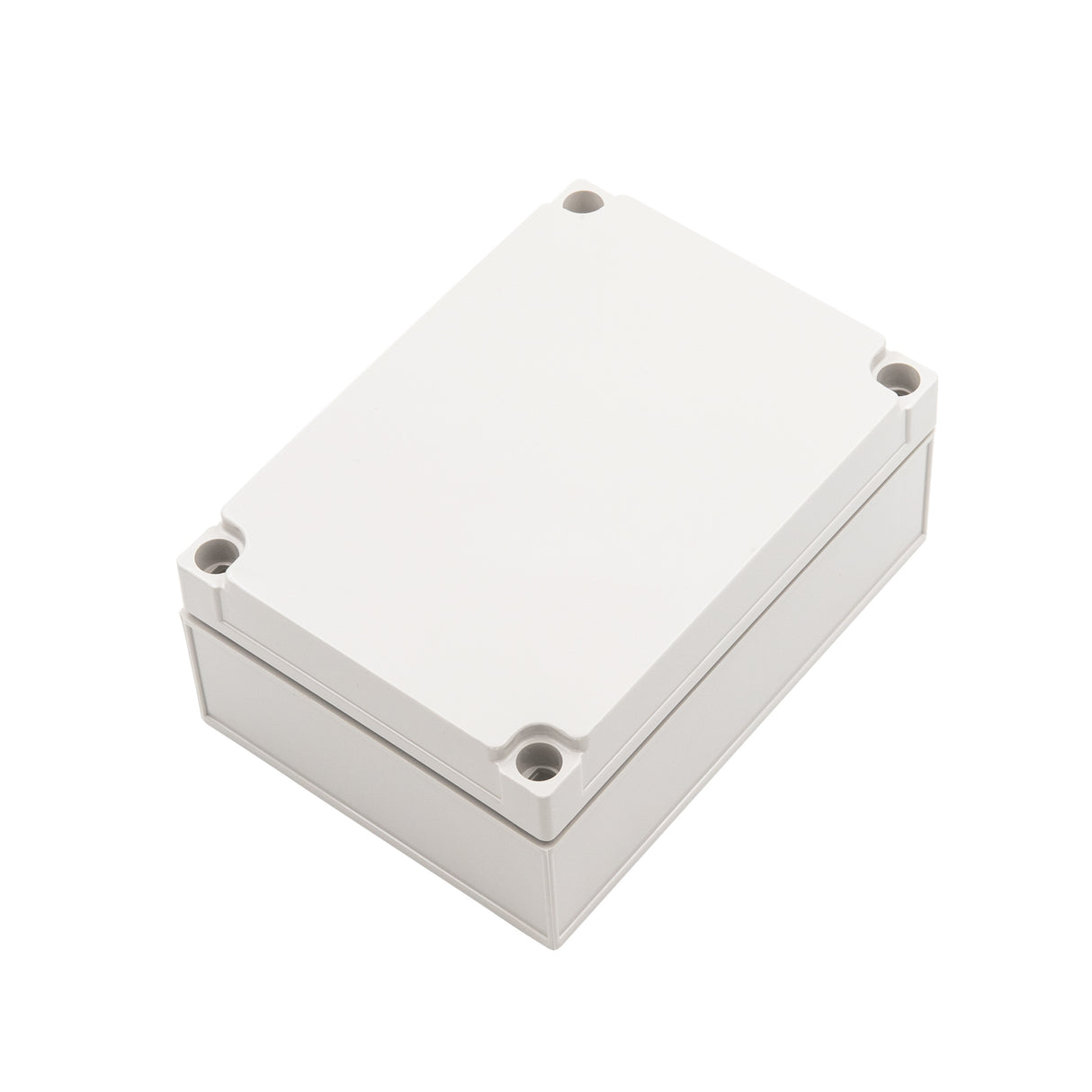

Boxco S-Series 4.92 x 6.89 x 2.95 Inches(125x175x75mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

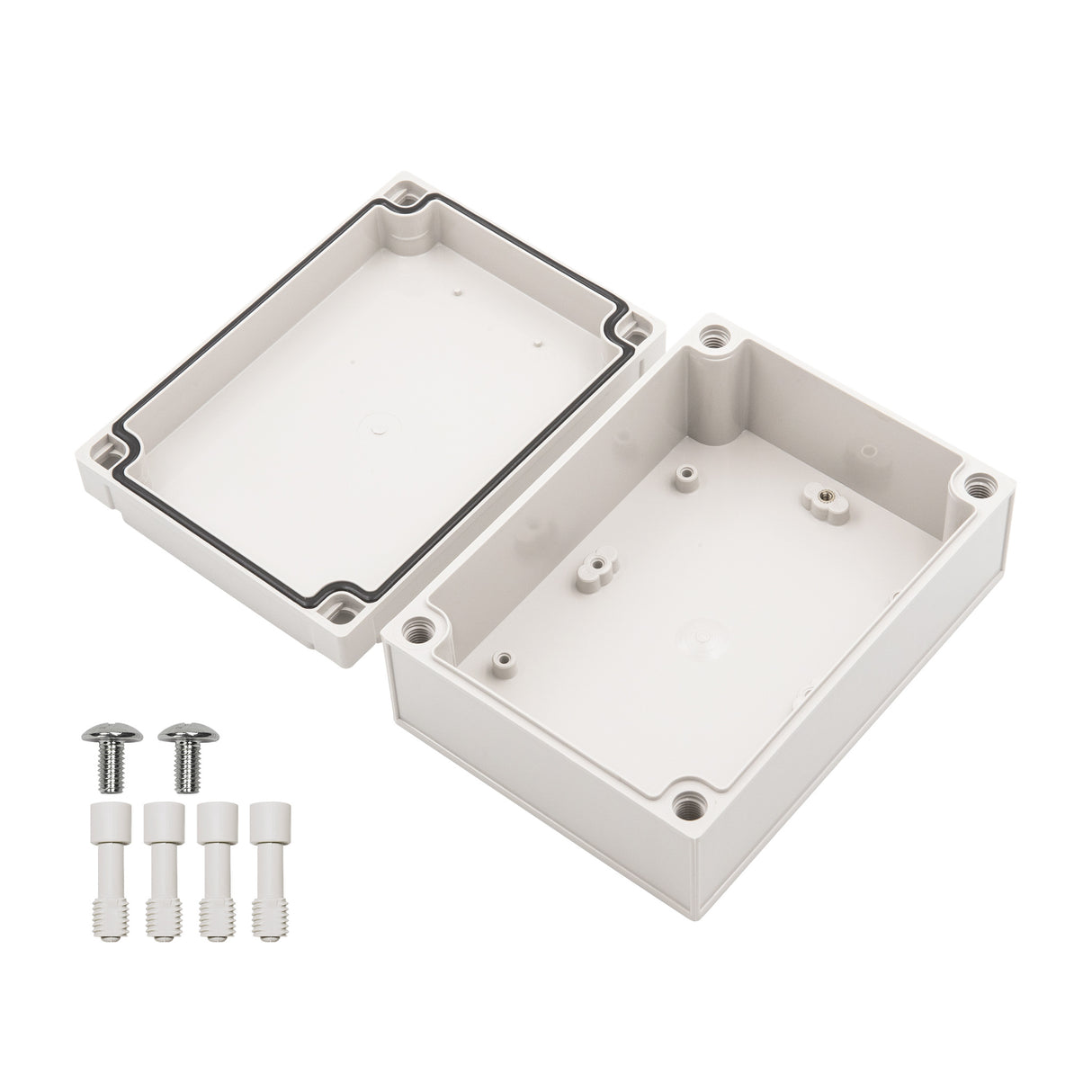

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length4.92 in
-
Width6.89 in
-
Height2.95 in
-
Weight0.8 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 125x175x75mm plastic enclosure suited for?
This enclosure is suited for protecting electronic and control components in industrial and commercial environments where dust and water resistance matter. Its ABS construction, IP67 rating, and IK08 impact resistance make it a practical choice for indoor use and many outdoor applications.
Is this enclosure suitable for outdoor environments?
Yes, this model is designed with an ultraviolet stabilizer to help protect the enclosure during outdoor use. The product description notes that only minor color changes are expected even after long-term exposure.
What are the key environmental and durability ratings for this enclosure?
This model is rated IP67 for protection against dust and water ingress and IK08 for impact resistance. It is specified for operating temperatures from -40 degrees C to 70 degrees C, which supports use in a wide range of demanding conditions.
What material is this Boxco enclosure made from?
This enclosure is made from ABS plastic and includes anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also described as high impact resistant for better durability during use and processing.
How large is this enclosure, and what does that mean for product selection?
This Boxco S-Series model measures 4.92 x 6.89 x 2.95 inches, or 125 x 175 x 75 mm. Buyers typically choose this size when they need a compact enclosure with enough internal space for protected components while keeping the overall footprint manageable.
Does this enclosure support mounting internal components securely?
Yes, the enclosure includes internal mounting plate attachment points with brass inserted injection molding to support heavier installed equipment. It also features pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail accessories.
