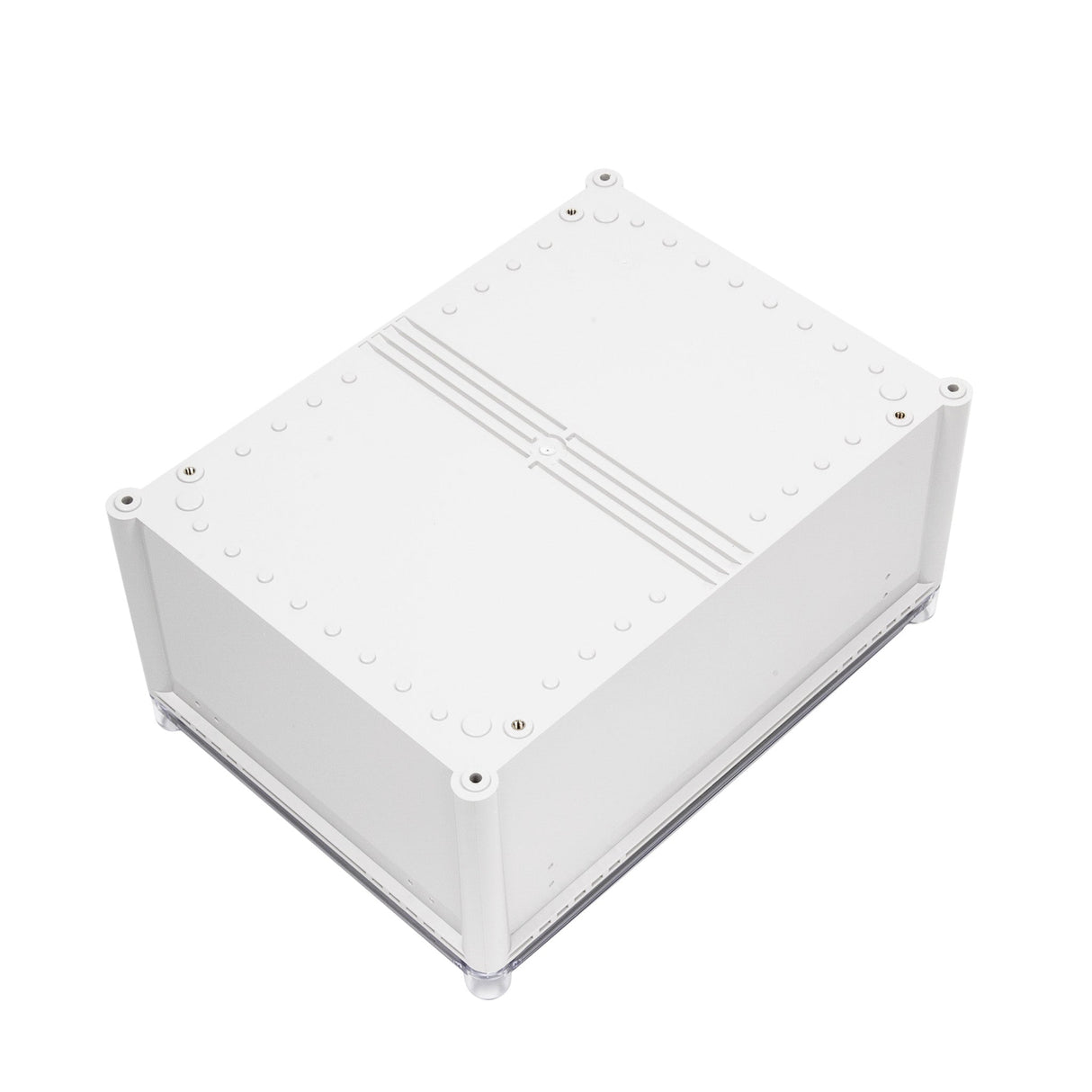

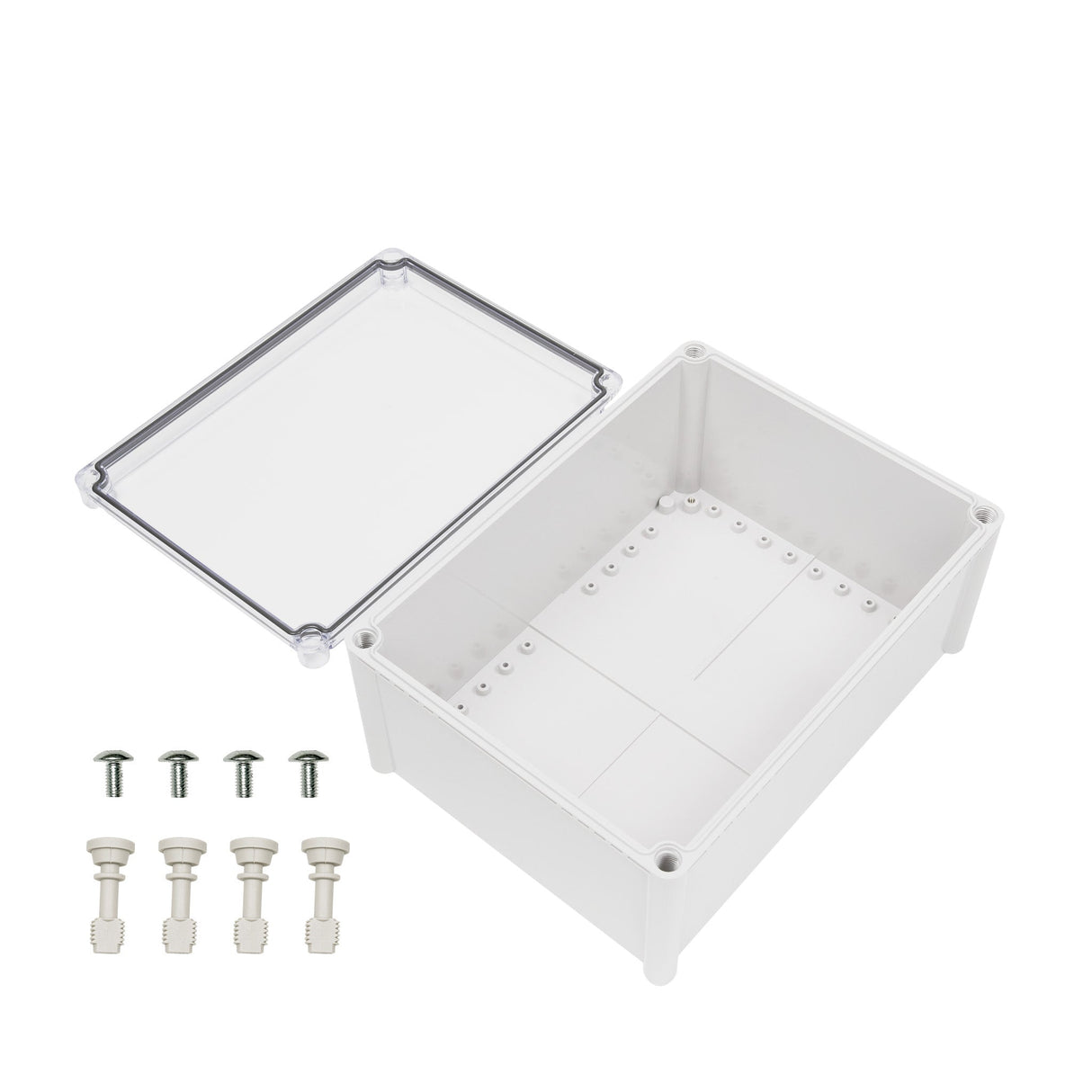

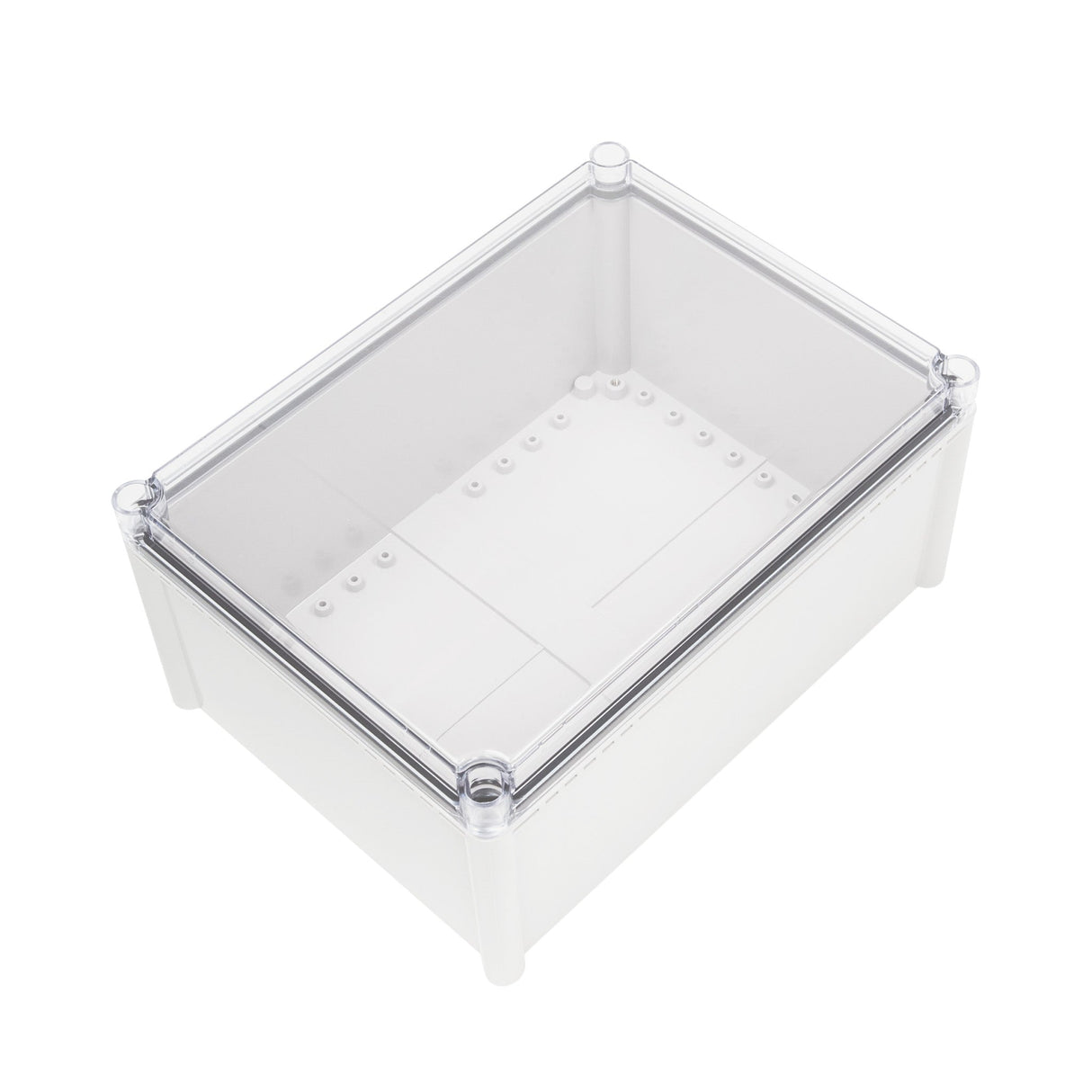

Boxco S-Series 5.91 x 5.91 x 3.94 Inches(150x150x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width5.91 in
-
Height3.94 in
-
Weight0.91 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-ATS-151510 enclosure?
This model is a screw-type plastic enclosure made from ABS with a transparent cover. Its external size is 5.91 x 5.91 x 3.94 inches (150 x 150 x 100 mm), and it is rated IP67 for dust and water protection and IK08 for impact resistance. The listed operating temperature range is -40 to 70 degrees C, and the weight is 0.414 kg.
Is the BC-ATS-151510 suitable for outdoor environments?
Yes, this enclosure is designed with an ultraviolet stabilizer to support outdoor use. The product description also notes that color change is minimized over long-term exposure. Its IP67 rating further supports use in demanding environments where dust and water resistance are important.
What kinds of equipment is this enclosure commonly used to protect?
This enclosure is intended for protecting electronic instruments and other components that need a sealed, impact-resistant housing. The anti-static material is particularly relevant for sensitive electronic equipment. Its internal mounting features also make it practical for organized industrial and commercial enclosure builds.
Does this enclosure support internal mounting accessories or hardware?
Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. According to the product details, these features help secure heavier internal equipment and support mounting items such as a DIN rail. That makes this model more adaptable than a basic empty box with no integrated mounting provisions.
How does the transparent cover affect the use of this enclosure?
The transparent cover allows visual inspection of internal indicators or components without opening the enclosure. That can be useful when monitoring equipment status while maintaining the enclosure's protective seal. It also differentiates this version from opaque-cover alternatives in the same general enclosure category.
How durable is the BC-ATS-151510 for industrial or commercial use?
This model is made from high impact resistant ABS and carries an IK08 impact rating. The product description also highlights reinforced screw-thread attachment points and a precision-injected gasket for dependable sealing performance. These features make it a strong choice for applications where mechanical durability and enclosure integrity matter.
