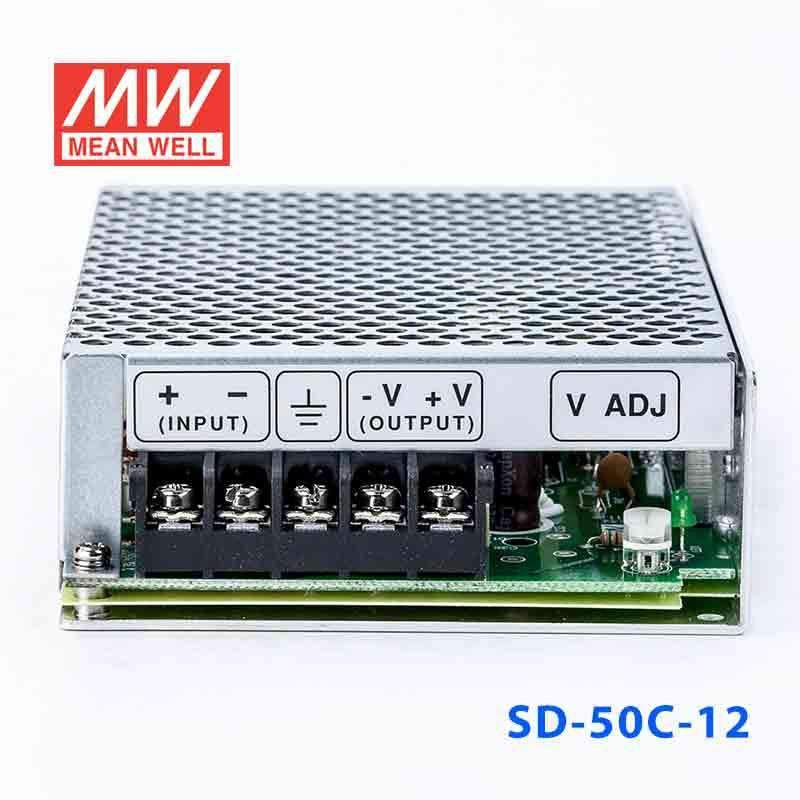

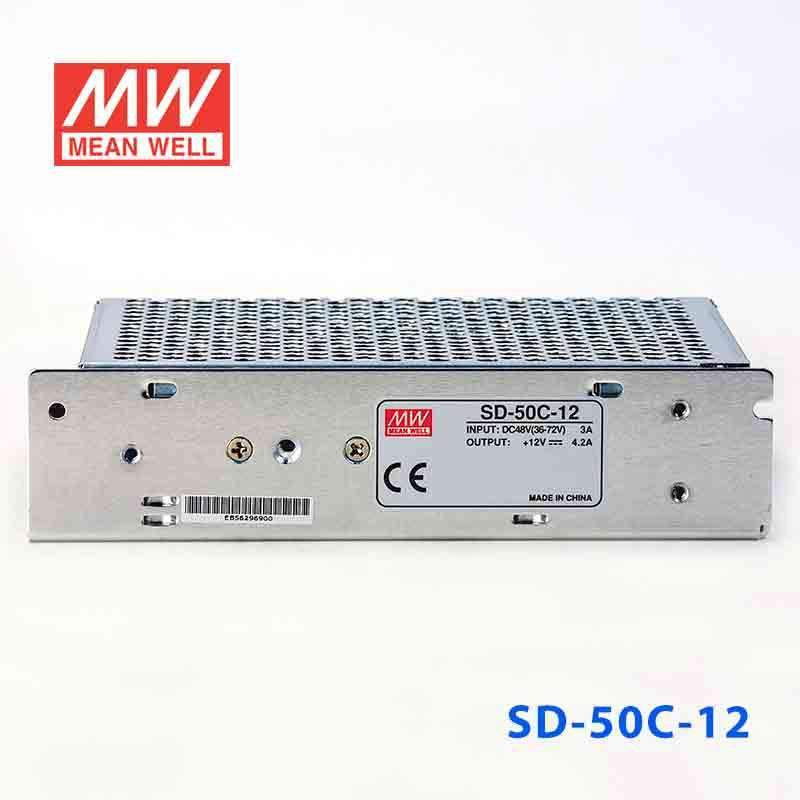

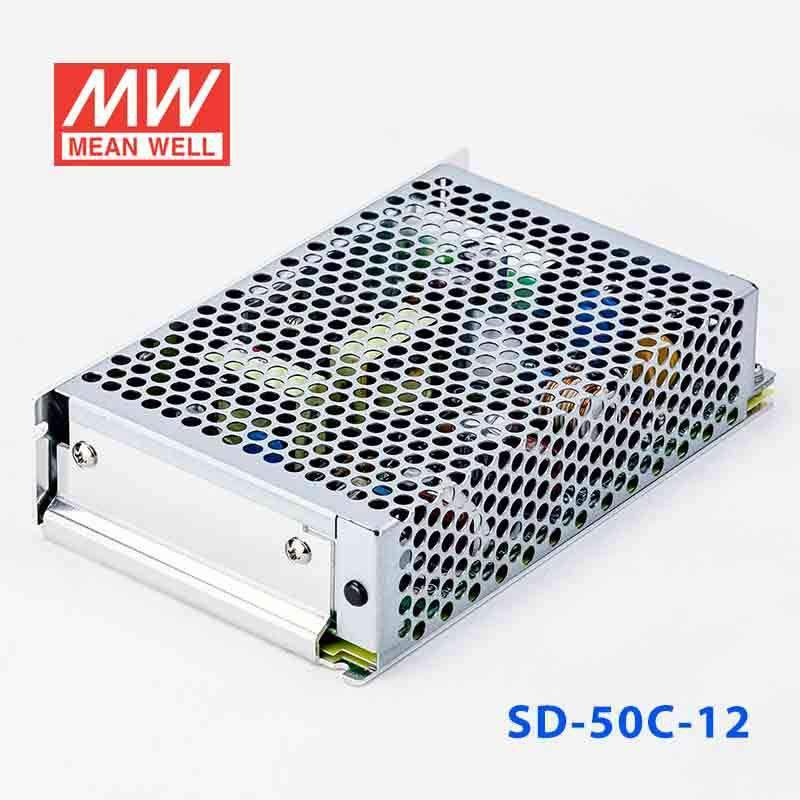

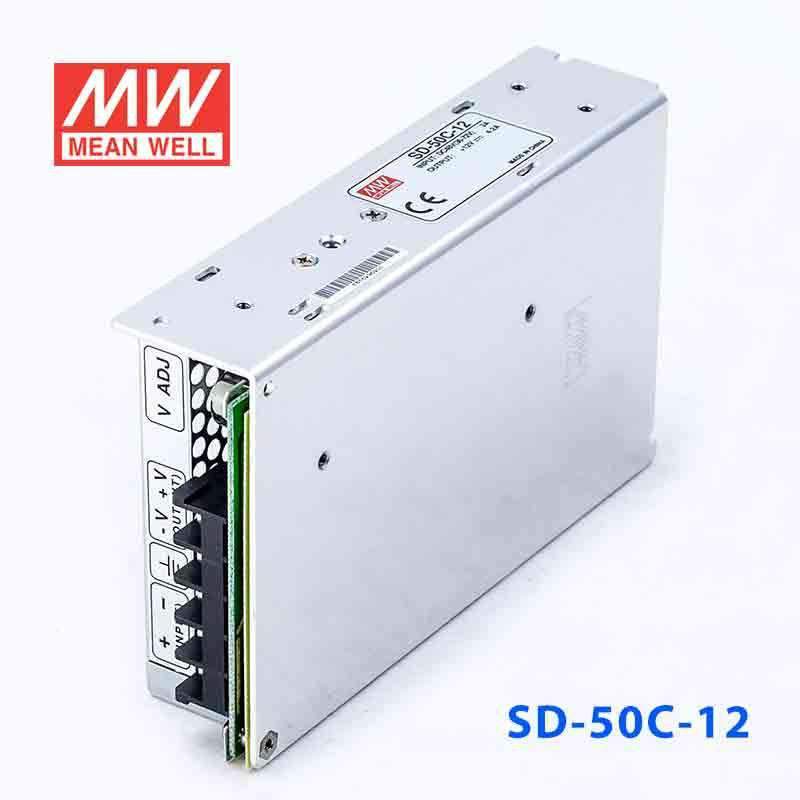

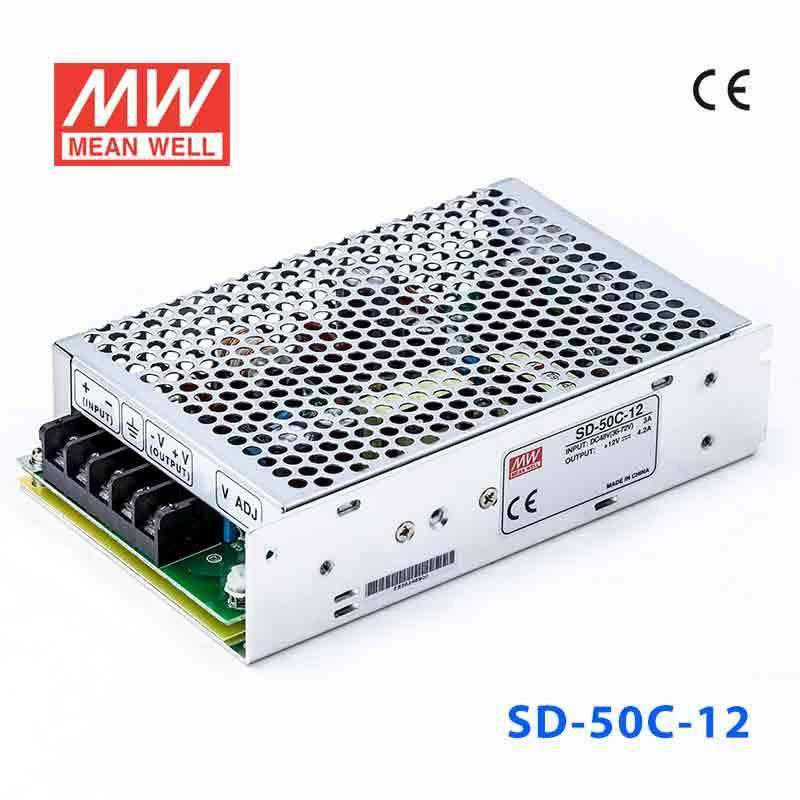

Mean Well SD-50C-12 DC-DC Converter - 50W - 36~72V in 12V out 4.2A
The SD-50C is a 50W Mean Well power converter.
Key Features
- ✓ DC output voltage adjustable ±10%
- ✓ 1.5KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating504 Watt
-
Output Voltage12 Volt
-
Rated Current4.2 Ampere
-
Input Voltage36V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length6.26 in
-
Width3.82 in
-
Height1.5 in
-
Weight1.06 lb
::specification::
Frequently Asked Questions
Can I use the SD-50C-12 to derive 12V control power from a 36-72V industrial source?
Yes, this model converts a 36-72V input to a 12V constant-voltage output. It is rated for 4.2A, so it fits 12V control loads that stay within that current limit.
Is the SD-50C-12 suitable for 12V embedded electronics in higher-voltage industrial systems?
It is intended for equipment that needs regulated 12V output up to 4.2A while operating from a 36-72V source. That makes it relevant where the available system voltage is higher than the required 12V load voltage.
Can this converter power 12V automation accessories in equipment that uses a 36-72V bus?
It can fit 12V automation accessories, panel devices, or interface hardware that need constant voltage and draw no more than 4.2A. The input side is specified for 36-72V.
Is the SD-50C-12 appropriate for outdoor installations?
The operating temperature is specified as -10C to +60C, which defines the thermal range. The listed specs do not provide an IP rating, so outdoor or weather-exposed suitability is not stated here.
How do the SD-50C-5, SD-50C-12, and SD-50C-24 differ?
They share the same 36-72V input range but have different outputs. SD-50C-5 is 5V at 10A, SD-50C-12 is 12V at 4.2A, and SD-50C-24 is 24V at 2.1A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-50C Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-50C-5 DC-DC Converter - 50W - 36~72V in 5V out 10A | 504W | 5V | 10A | Indoor | $31.00 | View |
| Mean Well SD-50C-24 DC-DC Converter - 50W - 36~72V in 24V out 2.1A | 50W | 24V | 2.1A | Indoor | $31.00 | View |
