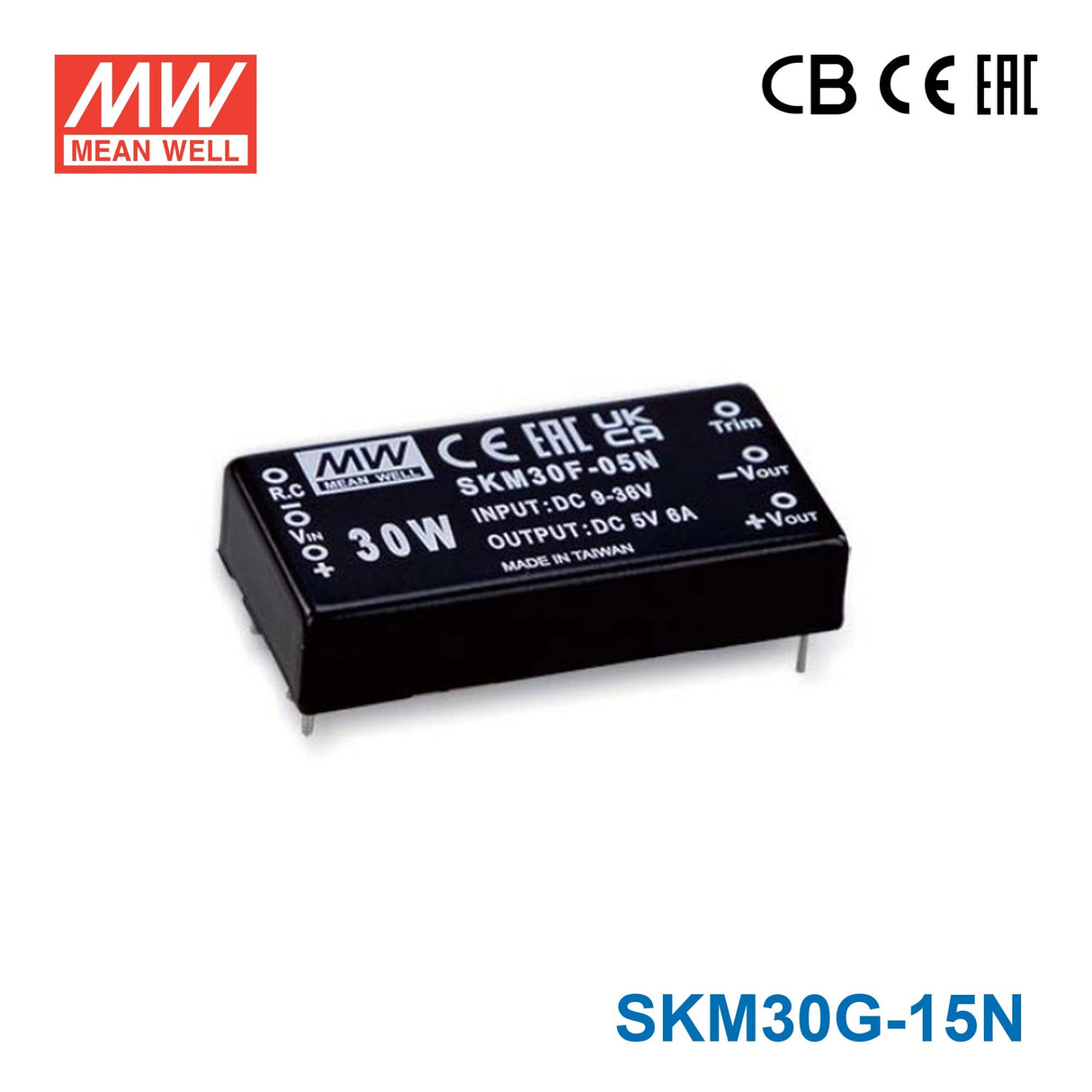

Mean Well SKM30G-15N 2"x1" Package DC-DC Converter 30W 15...
The SKM30G is a 30W Mean Well power converter (input range: 9~36Vdc).
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSKM-N Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current2 Ampere
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well SKM30G-15N?
The SKM30G-15N is a 30W single-output DC-DC converter rated for 15V DC output at up to 2A. It is designed in a compact 2" x 1" package and uses a 4:1 ultrawide input range. Mean Well also specifies up to 89% efficiency for this model.
Is the SKM30G-15N suitable for demanding temperature conditions?
This model is specified for operation from -40°C to +90°C. Mean Well states it can run from -40°C to +60°C without derating. That makes it a stronger fit for equipment exposed to wide ambient temperature swings than many basic board-mount converters.
What protection and isolation features does the SKM30G-15N include?
The SKM30G-15N includes protection for short circuit, overload, over temperature, and over voltage conditions. It also provides 3KVDC input-to-output isolation. Those features support use in designs that need a compact isolated DC-DC stage with built-in fault protection.
How does the SKM30G-15N compare with lower-power DC-DC converters?
The main differentiator is its 30W power rating combined with a fixed 15V, 2A single output. It also adds a 4:1 ultrawide input range, 3KVDC isolation, and remote ON/OFF with output trimming, which are not always available on simpler lower-power modules. Buyers typically choose this model when they need a compact converter with more operating flexibility and protection coverage.
What kinds of applications is the SKM30G-15N best suited for?
This model is best suited to embedded or industrial electronic designs that require an isolated 15V DC rail up to 2A in a compact footprint. Its 2" x 1" package, no minimum load requirement, and wide operating temperature range make it practical where board space and operating conditions are constrained. It is a product-level fit when the design calls specifically for a 30W, single-output 15V DC-DC converter.
Does the SKM30G-15N support remote control or output adjustment?
Yes. Mean Well specifies remote ON/OFF control and output trimming of plus or minus 10% for the SKM30G-15N. That gives designers some flexibility to fine-tune the output around the nominal 15V target without changing to a different model.
