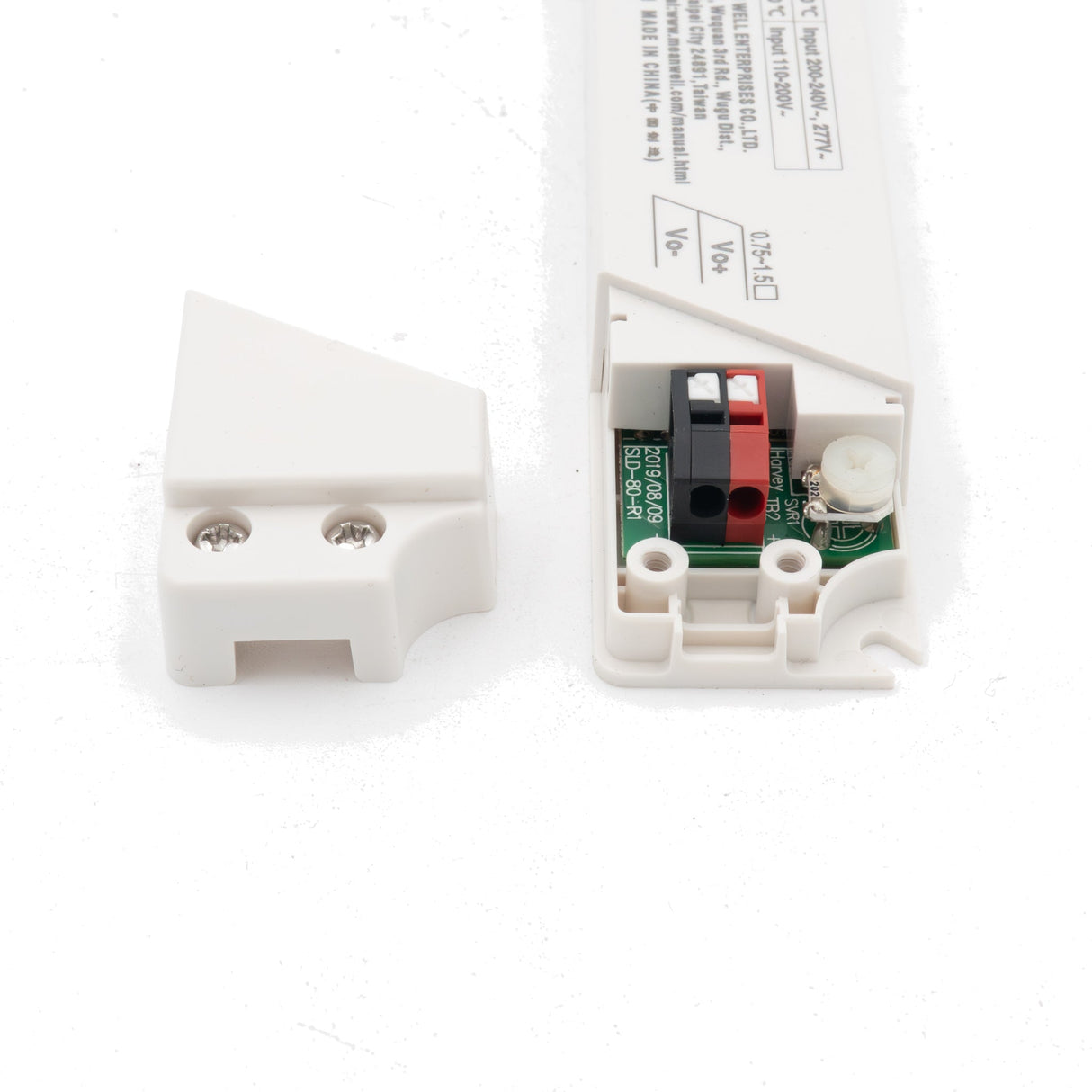

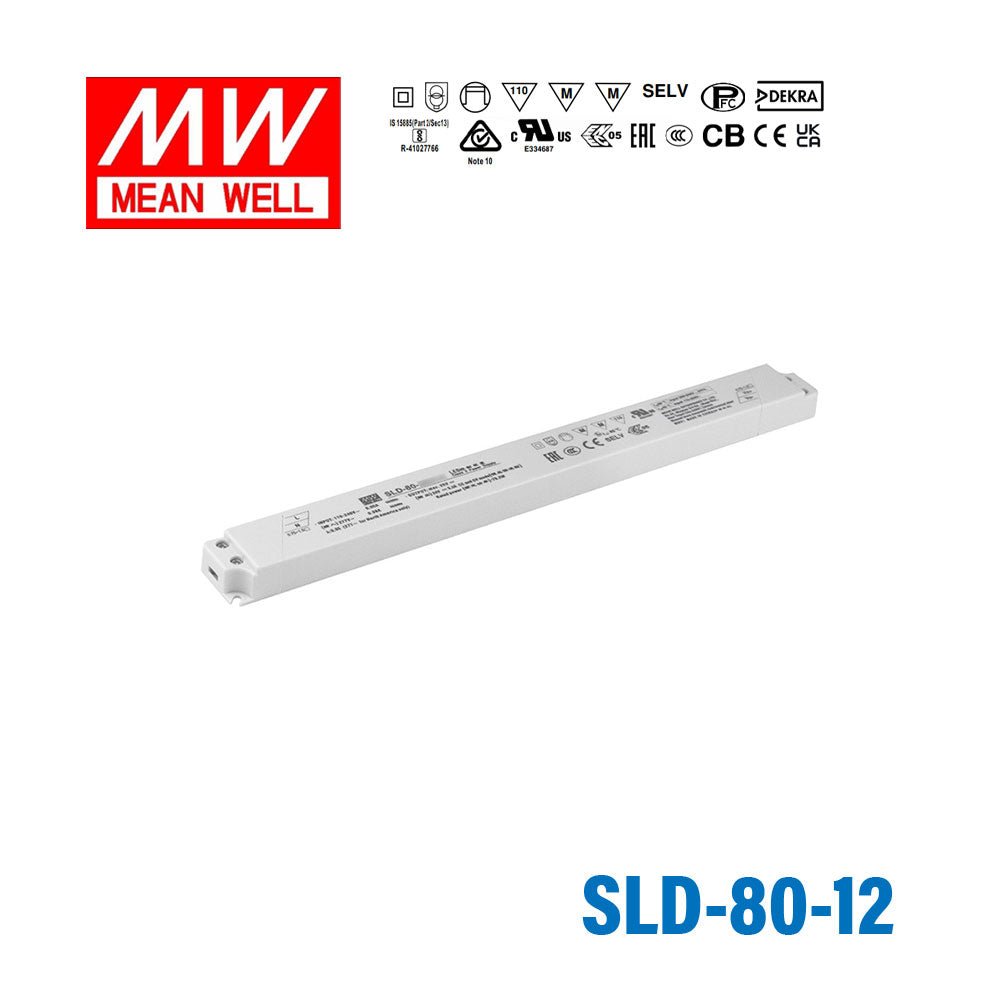

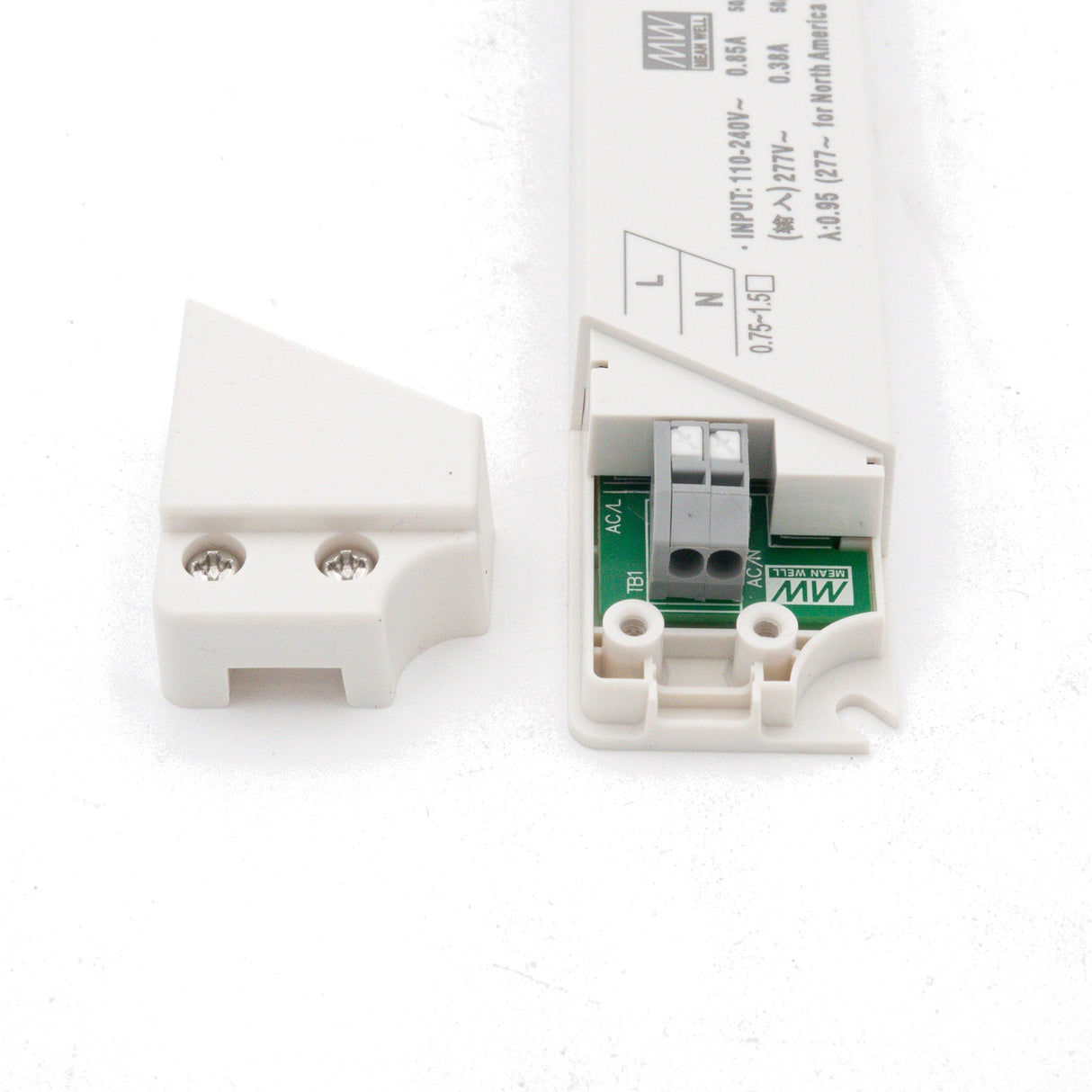

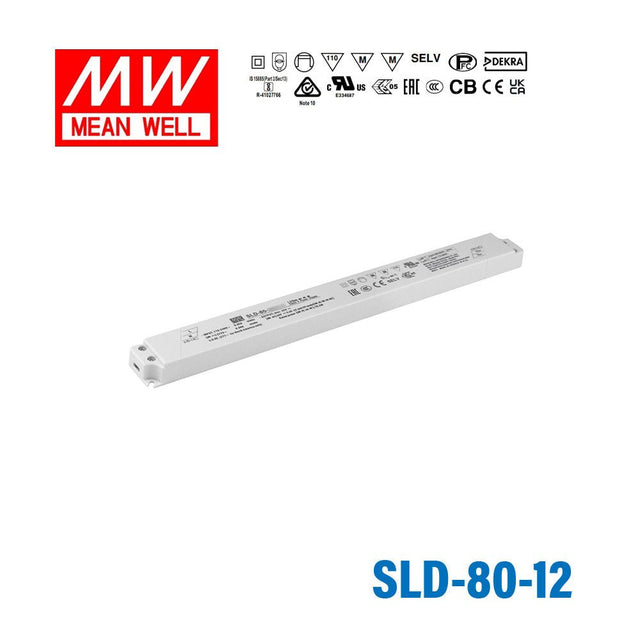

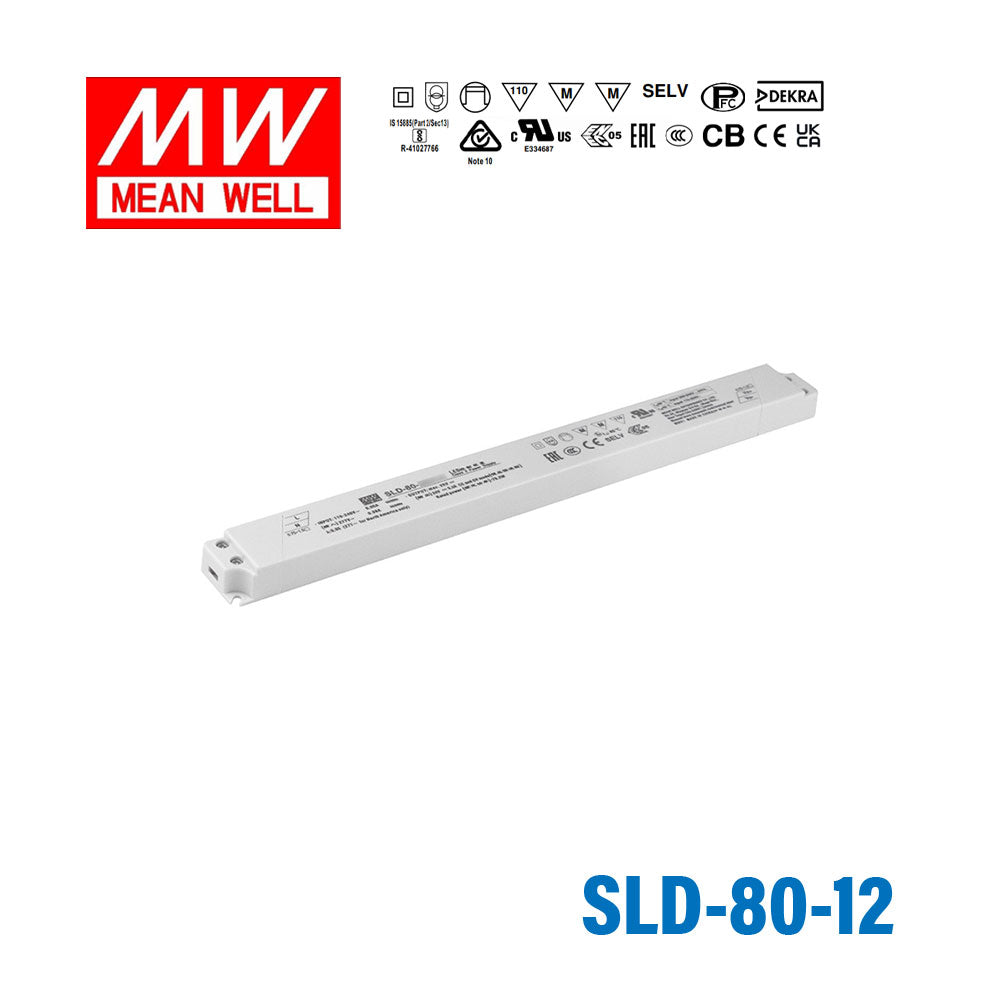

Mean Well SLD-80-12 Linear LED Driver 80W 12V 6600mA - Slim
The SLD-80 is a 80W Mean Well power converter (input range: 110~305VAC).
Key Features
- ✓ Input voltage range: 110~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.4 UL8750(type”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004, GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating80 Watt
-
Output Voltage12 Volt
-
Rated Current6 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length12.6 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
What type of LED driver is the Mean Well SLD-80-12?
The SLD-80-12 is an 80W linear LED driver rated for 12V output. This model is described as a constant voltage plus constant current design, which makes it part of Mean Well's slim-form SLD series.
What are the main electrical ratings of the SLD-80-12?
This model is rated for 80W total power with a 12V output. The product data lists a rated current of 6.0A, and the description also highlights a wide 110-305VAC input range with PFC function.
Is the SLD-80-12 a dimmable LED driver?
No. The product data for this specific model lists dimming control as none, so it is not presented as a dimmable version in this listing.
What kinds of applications is the SLD-80-12 best suited for?
This model is positioned as a 12V LED driver/power supply for LED lighting applications that need an 80W slim-form unit. Its narrow linear housing can make it a practical option where space is limited and a low-profile driver is preferred.
What environmental and operating range information is available for this model?
The product data lists a temperature range from -20°C to 90°C for this model. Buyers should use that published range when checking fit for the intended environment, especially for projects exposed to higher or lower ambient conditions.
How does the SLD-80-12 differ from a standard bulkier LED power supply?
The main differentiator called out for this model is its slim, linear housing design. Compared with more conventional larger-form power supplies, the SLD-80-12 is intended for applications where a narrower LED driver format is an advantage.
What warranty is offered for the Mean Well SLD-80-12?
This model includes a 3-year warranty according to the product data. That gives buyers a defined coverage period for this specific Mean Well LED driver.
