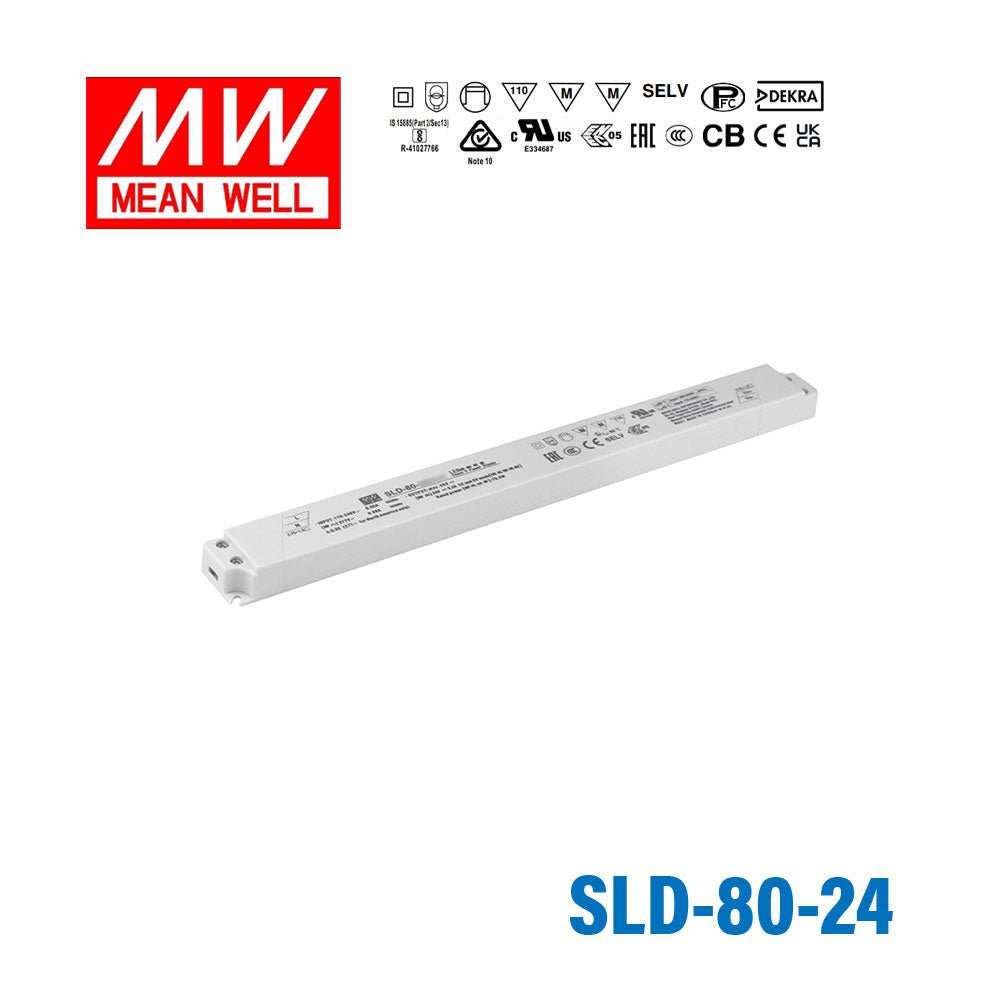

Mean Well SLD-80-24 Linear LED Driver 80W 24V 3300mA - Slim
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SLD-80-24 Linear LED Driver 80W 24V 3300mA - Slim
The SLD-80 is a 80W Mean Well power converter (input range: 110~305VAC).
Key Features
- ✓ Input voltage range: 110~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.4 UL8750(type”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004, GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating80 Watt
-
Output Voltage24 Volt
-
Rated Current3.3 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length12.6 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well SLD-80-24?
The SLD-80-24 is rated for 80W output at 24V with a rated current of 3.3A. Mean Well also describes this model as using constant voltage plus constant current mode output. This makes it a 24V LED driver intended for applications that need controlled LED power in this range.
What kinds of LED applications is the SLD-80-24 typically suited for?
This model is best suited to 24V LED lighting applications that need up to 80W of output capacity. Buyers often look at this type of slim LED driver for commercial or architectural lighting builds where a narrow housing is useful. The key fit criteria are the 24V output and the 3.3A rated current.
Does the Mean Well SLD-80-24 support dimming control?
No. The listed dimming control for this model is none. If your project requires dimming, this is an important limitation to confirm before choosing the SLD-80-24.
What input range does the SLD-80-24 support?
The SLD-80-24 supports a wide input range of 110-305VAC, and the general specification also lists 155-431VDC. The product description notes PFC function as part of the design. This wide input range can be useful for projects that need flexibility across different mains conditions.
What makes the SLD-80-24 different from bulkier LED drivers?
One of the distinguishing features of this model is its slim, linear housing design. Compared with larger form factors, it is aimed at applications where space efficiency matters without changing the core 24V, 80W, 3.3A output rating. That makes the physical profile a practical differentiator for this specific model.
Is the SLD-80-24 a good choice where low standby power is important?
It can be a good fit for projects that value low idle consumption because Mean Well lists no-load power consumption below 0.5W. That is a useful spec for buyers evaluating overall energy efficiency beyond active output performance. It adds to the appeal in commercial lighting applications where standby losses matter.
What warranty does the Mean Well SLD-80-24 include?
This model includes a 3-year warranty based on the provided product data. For B2B buyers, that gives a clear baseline for product support expectations. It is one of the model-specific differentiators worth checking alongside voltage, current, and housing style.
