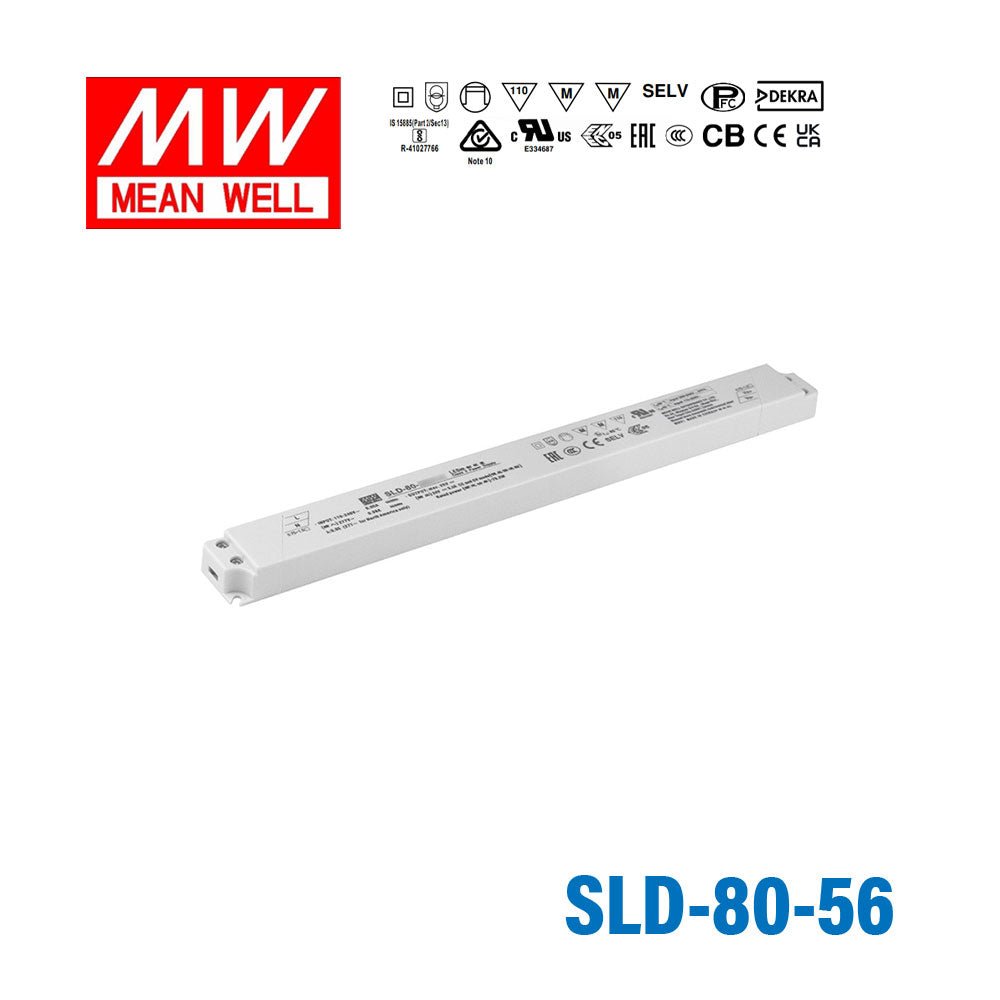

Mean Well SLD-80-56 Linear LED Driver 80W 56V 1400mA - Slim
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SLD-80-56 Linear LED Driver 80W 56V 1400mA - Slim
The SLD-80 is a 80W Mean Well power converter (input range: 110~305VAC).
Key Features
- ✓ Input voltage range: 110~305VAC
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.4 UL8750(type”HL”),CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13 independent, EN62384, EAC TP TC 004, GB19510.1,GB19510.14
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesSLD Series
-
Power Rating80 Watt
-
Output Voltage56 Volt
-
Rated Current1.4 Ampere
-
Input Voltage110V~305V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty3 Year
-
Length12.6 in
-
Width1.18 in
-
Height0.66 in
-
Weight0.45 lb
::specification::
Frequently Asked Questions
What are the main electrical ratings of the Mean Well SLD-80-56?
The SLD-80-56 is rated for 80W output with a 56V output voltage and 1.4A rated current. This model is designed as a linear LED driver with constant voltage plus constant current mode output. It is intended for applications that need those specific output values from a slim driver format.
What kind of LED applications is the SLD-80-56 best suited for?
This model is typically considered when a project needs a slim LED driver with 56V output and 1.4A rated current in an 80W class. Its linear housing design can be a practical fit where installation space is limited. Buyers usually compare it against other drivers by matching output voltage, current, and available space.
Does the Mean Well SLD-80-56 support dimming?
No. The listed dimming control for the SLD-80-56 is none. If dimming is required, this model should be compared against other LED drivers that explicitly include a dimming function.
What input range does the SLD-80-56 accept?
The product description lists a wide input range of 110-305VAC and also references 155-431VDC. That makes it suitable for buyers looking for broad input compatibility in commercial or industrial power environments. It also includes PFC according to the supplied description.
Is the SLD-80-56 suitable for demanding operating conditions?
The specified temperature range for this model is -20°C to 90°C. That makes it a stronger candidate for environments where temperature tolerance matters, provided the rest of the application requirements also match the product's ratings. The unit also carries a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SLD-80 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SLD-80-24 Linear LED Driver 80W 24V 3300mA - Slim | 80W | 24V | 3.3A | Indoor | $31.69 | View |
| Mean Well SLD-80-12 Linear LED Driver 80W 12V 6600mA - Slim | 80W | 12V | 6A | Indoor | $29.18 | View |
