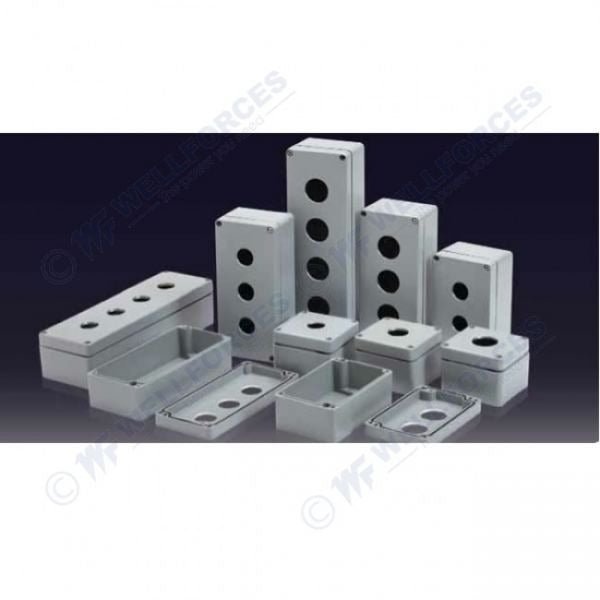

Boxco Push Button Box, 3.15 x 7.09 x 2.76 Inches(80 x 180 x 70mm) 3...
Boxco push button enclosures are made from ABS and polycarbonate material. It has 1-3 push button entries and molded knock outs in base for easy installation. This product does not require additional machining when installing 22, 25 or 30 push button and switches.
Features
- Screw type
- This series has a pre-cut hole on the cover
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,DIN,ROHS,TUV
-
Operating Temperature-40°C~85°C
-
Warranty1 Year
-
Length3.15 in
-
Width7.09 in
-
Height2.76 in
-
Weight1.1 lb
::specification::
Frequently Asked Questions
What is this Boxco push button box designed for?
This enclosure is designed for housing push buttons and switches in industrial or commercial control applications. This specific model has a 3-hole cover and is part of Boxco's push button enclosure line, so it is intended for setups that need multiple operator interface points in one compact box.
What are the dimensions of this enclosure?
This model measures 3.15 x 7.09 x 2.76 inches, which is 80 x 180 x 70 mm. That size gives it a narrow rectangular form factor suited to applications needing a longer enclosure body with three button positions.
How many push button openings does this model have?
This version has 3 pre-cut holes on the cover. It is built as a push button box, so the cover is already prepared rather than requiring separate machining for those button entry points.
What material is this Boxco enclosure made from?
This model is made from ABS, and it has a grey cover. The product description for the series also references ABS and polycarbonate materials, but this specific model is identified as ABS.
Is this enclosure suitable for wet or dusty environments?
Yes, this enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. That makes it a practical choice for demanding indoor or outdoor industrial environments where environmental sealing matters.
How durable is this enclosure against impact?
This model carries an IK08 impact rating. That means it is built for applications where the enclosure may be exposed to moderate mechanical impact in industrial settings.
What operating temperature range does this enclosure support?
The stated temperature range for this model is -40 degrees C to 85 degrees C. That range supports use in both very cold and high-heat environments, depending on the overall application requirements.
What types of push buttons is this enclosure compatible with?
According to the product description, this enclosure does not require additional machining when used with 22 mm, 25 mm, or 30 mm push buttons and switches. That makes it a good fit for buyers comparing enclosure options based on standard operator device sizes.
