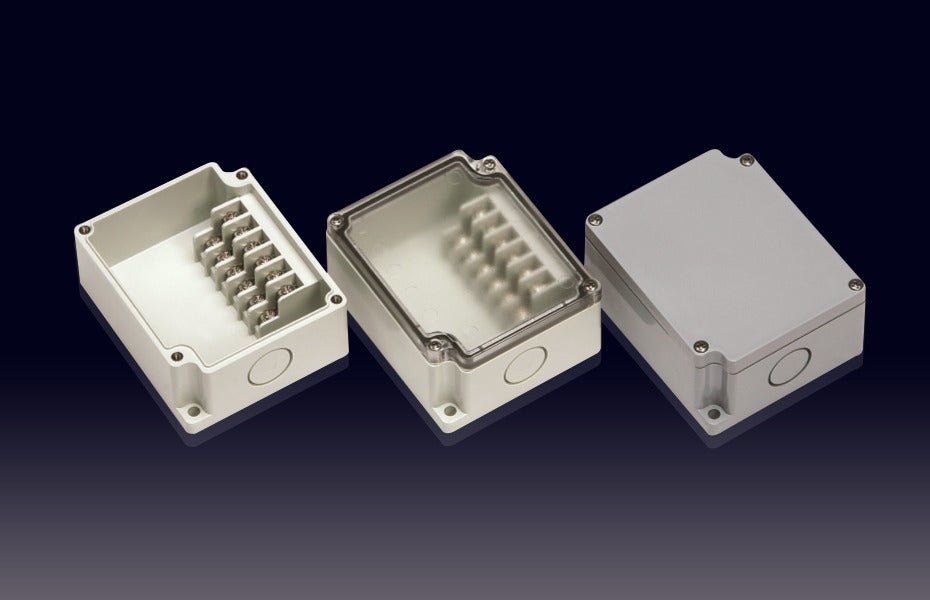

Boxco Terminal Box 6-pole 2.17 x 3.58 x 1.69 Inches(55 x 91 x 43mm)...
Boxco terminal boxes are made from flame-retardant material and have molded knockouts on each end. It integrated terminal blocks with different poles options.
-
BrandBoxco
-
SeriesBoxco Terminal Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length2.17 in
-
Width3.58 in
-
Height1.69 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the Boxco BC-AG-6P18H terminal box used for?
The BC-AG-6P18H is a compact terminal box intended for enclosing and protecting terminal block assemblies in industrial and commercial applications. Its integrated 6-pole terminal block design makes it suited for projects that need a small, enclosed terminal box rather than a general-purpose empty enclosure.
What are the key specifications of this Boxco terminal box?
This model measures 2.17 x 3.58 x 1.69 inches (55 x 91 x 43 mm) and includes a 6-pole terminal block. It is rated IP67 and IK08, uses ABS construction, and comes with a grey cover. The listed product weight is 0.0200 kg.
Is the BC-AG-6P18H suitable for dusty or wet environments?
This model carries an IP67 rating, which indicates a high level of protection against dust ingress and temporary immersion in water. That makes it a practical choice for environments where the enclosure may be exposed to dust or moisture, provided the overall application requirements match the product rating.
How durable is the Boxco BC-AG-6P18H enclosure?
The enclosure is rated IK08 for impact resistance and is made from flame-retardant ABS material. That combination supports use in applications where both physical protection and material durability matter. It is designed as a compact protective housing rather than a heavy-duty metal enclosure.
What temperature range can this terminal box handle?
The specified operating temperature range for the BC-AG-6P18H is -40°C to 70°C. This allows it to be considered for both low-temperature and moderately high-temperature environments within that stated range.
Does this model include any enclosure features that help with cable entry planning?
Yes. The product description states that Boxco terminal boxes have molded knockouts on each end. This is a built-in enclosure feature of the product family and can be useful when evaluating compatibility with your enclosure layout requirements.
