Mean Well SPV-150-12 power supply 150W 12V 12.5A
Notify me when it's back in stock
Your order will be processed within 24 hours

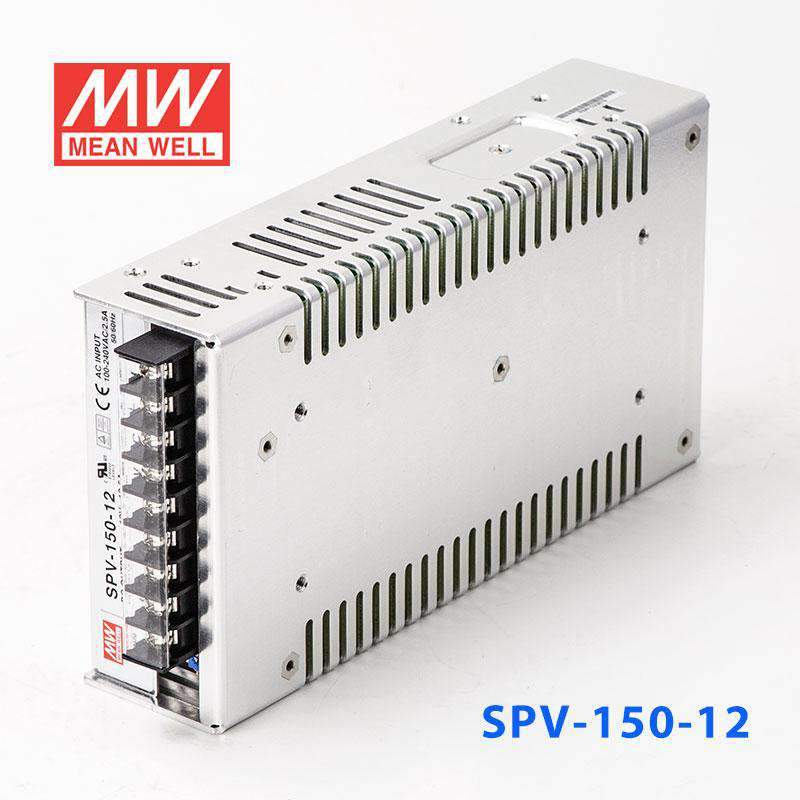

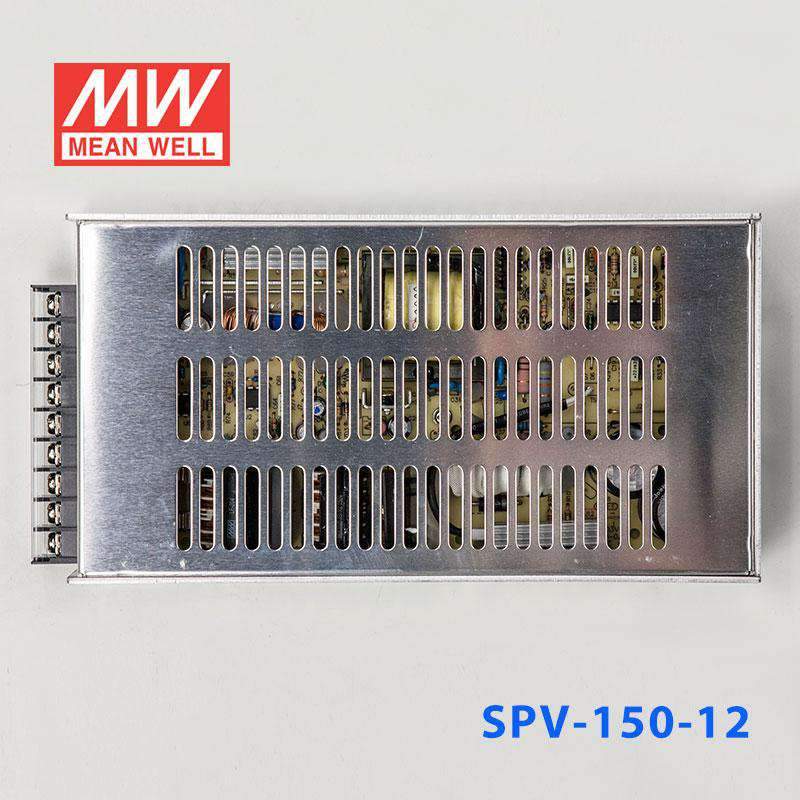

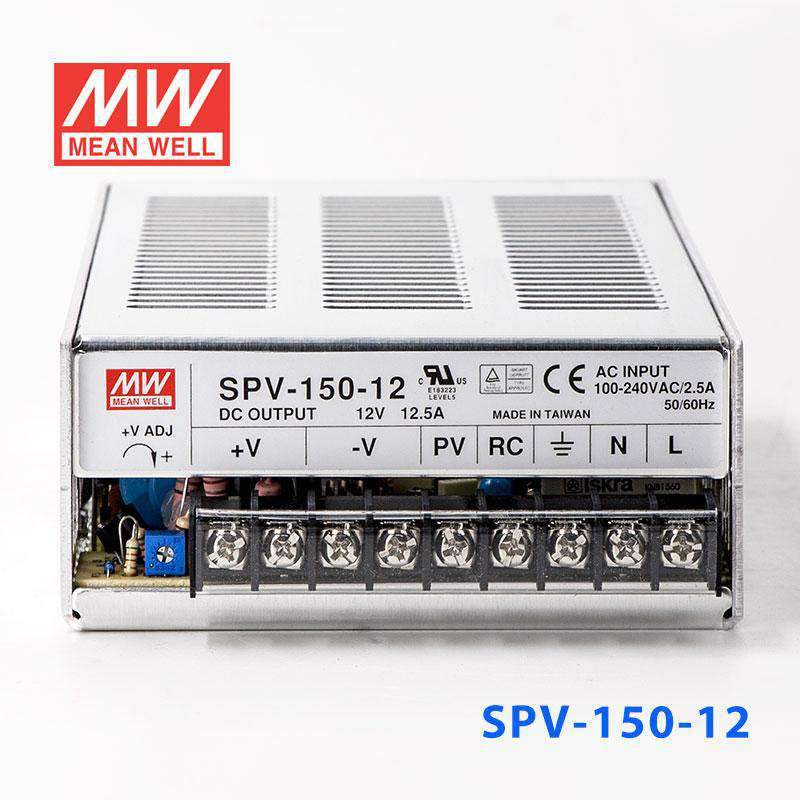

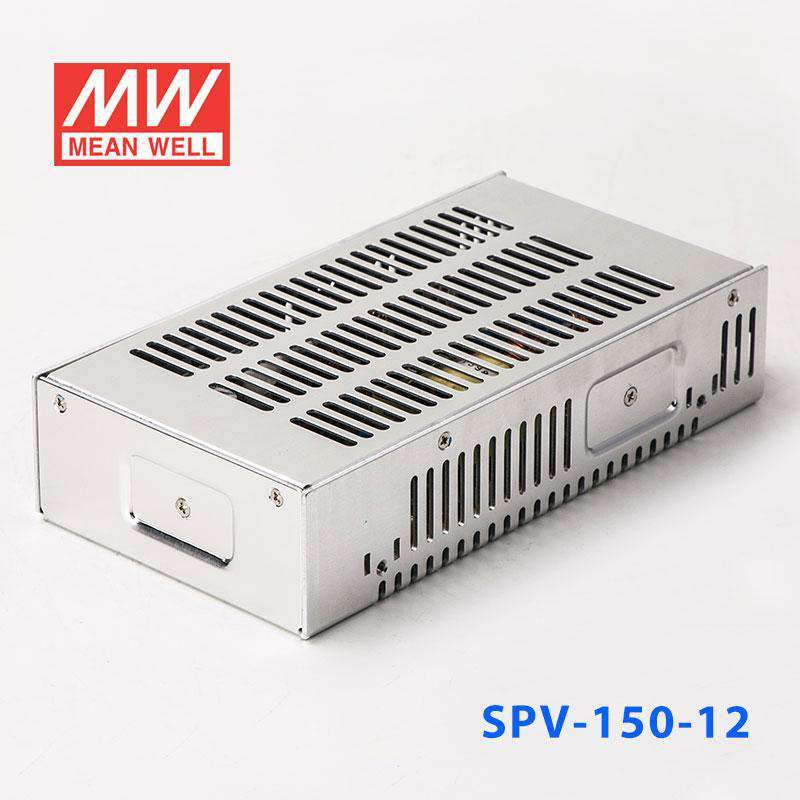

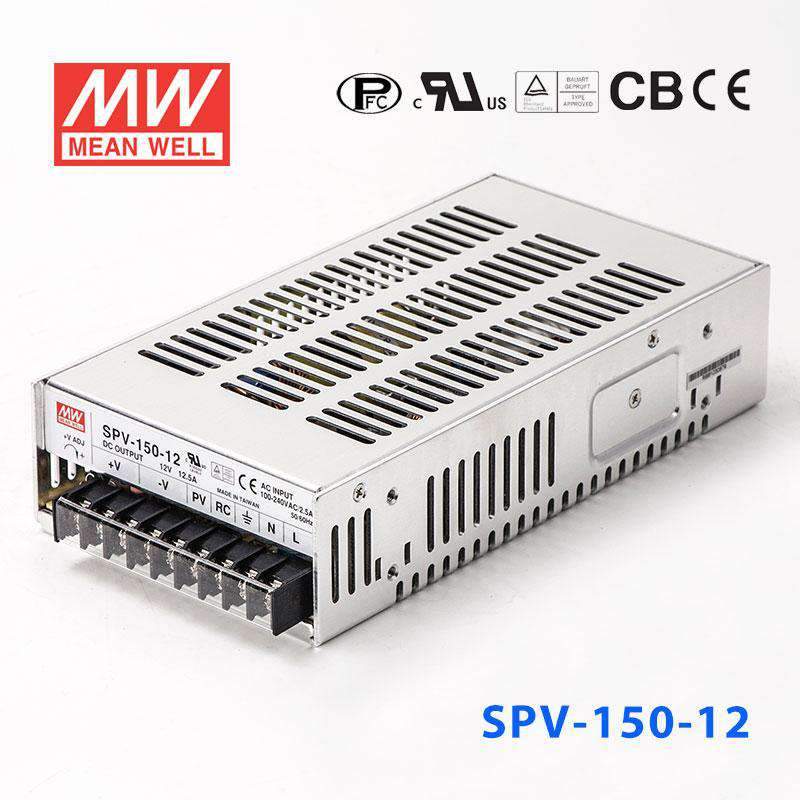

Mean Well SPV-150-12 power supply 150W 12V 12.5A
MEAN WELL SPV-150 Series Power Supplies are 150W switching power supplies with high efficiency, long life, and high reliability.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.94
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output voltage programmable from 20-110% by 1-5.5VDC external control signal
- ✓Built-in remote ON-OFF control
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPV Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SPV-150-12 for 12V industrial control panels or automation accessories?
Yes, it is suitable for 12V constant-voltage loads used in industrial control and automation systems. The unit provides 12V output at 12.5A with a total power rating of 150W.
Is the SPV-150-12 a fit for 12V LED signage or display lighting systems?
It can support 12V constant-voltage LED systems when the total load stays within 150W and 12.5A. The supply also accepts a wide 88-264VAC input range, which is useful across different AC power environments.
Can this power supply be used for 12V embedded or IT equipment that needs stable low-voltage power?
Yes, it is designed for constant-voltage 12V output and can power embedded or IT devices that match its 150W and 12.5A limits. The built-in active PFC function with PF>0.94 may also matter in systems where input power quality is specified.
Would the SPV-150-12 work for 12V security, communications, or monitoring hardware in commercial systems?
It is appropriate for 12V communications, monitoring, and security hardware that uses a constant-voltage supply and fits within 150W. The 88-264VAC input range and CE, EAC, TÜV, and UL certifications are relevant for commercial and industrial power environments.
Is the SPV-150-12 meant for outdoor use or only protected indoor locations?
The operating temperature range is -20°C to +65°C, so it can handle moderate temperature variation. No IP rating is listed, so the published specs do not indicate direct outdoor exposure or wet-location suitability without additional protection.
How does the SPV-150-12 compare with the related SPV family models?
Among the listed siblings, the SPV-150-12 is 150W, 12V, 12.5A; the SPV-150-24 is 150W, 24V, 6.25A; and the SPV-150-48 is 150W, 48V, 3.12A. The list also includes SPV-1500-12, SPV-1500-24, and SPV-1500-48 at 150W and 2.4V, plus SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
