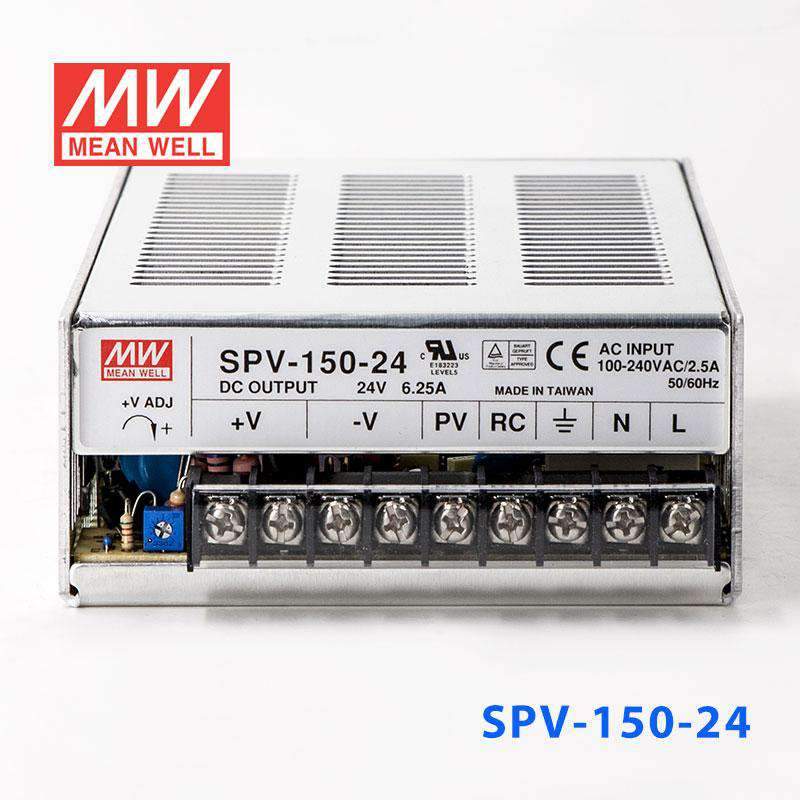

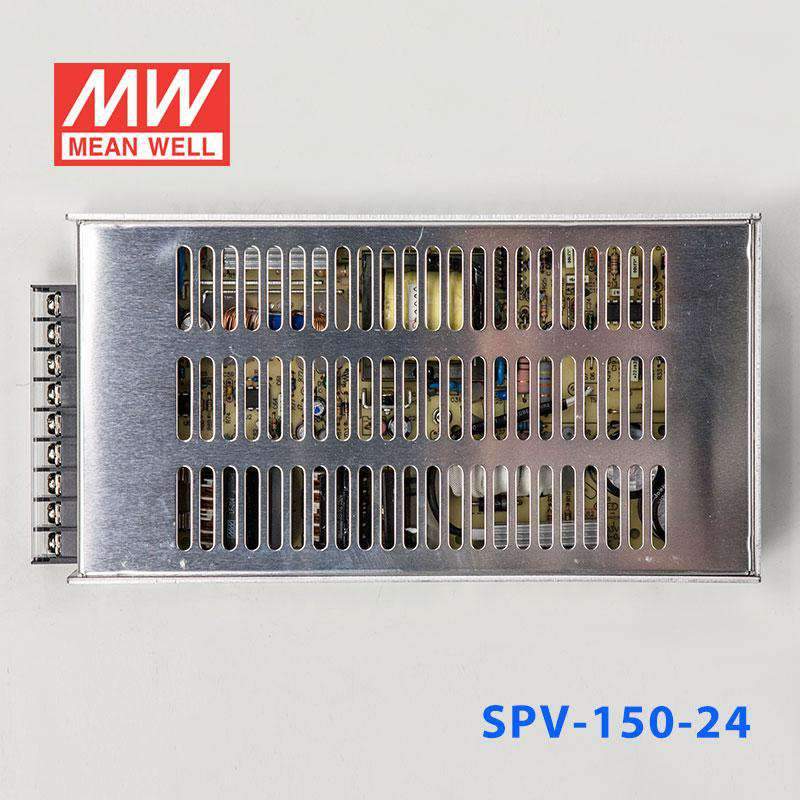

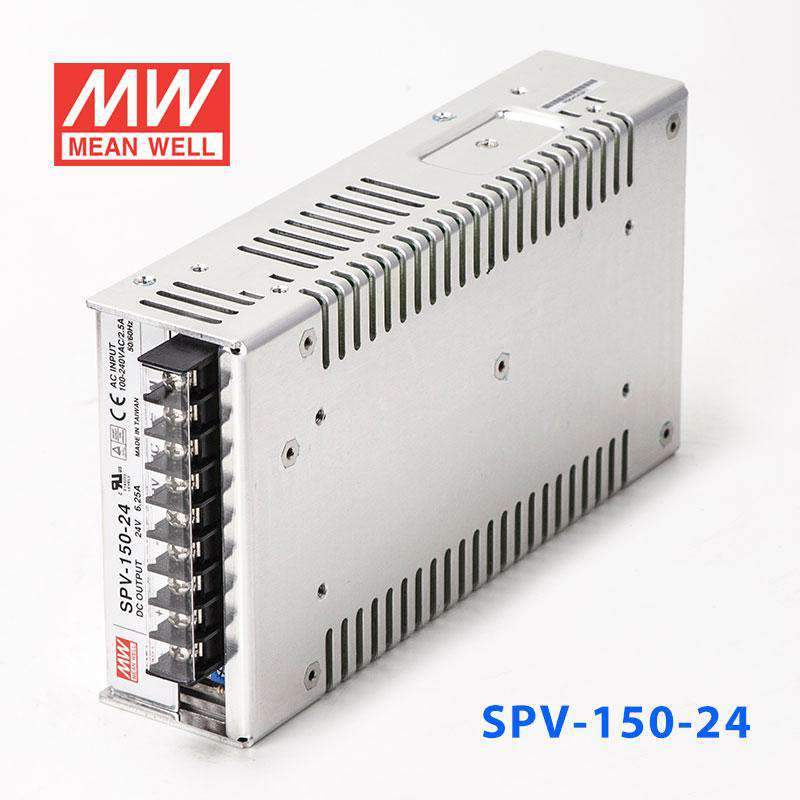

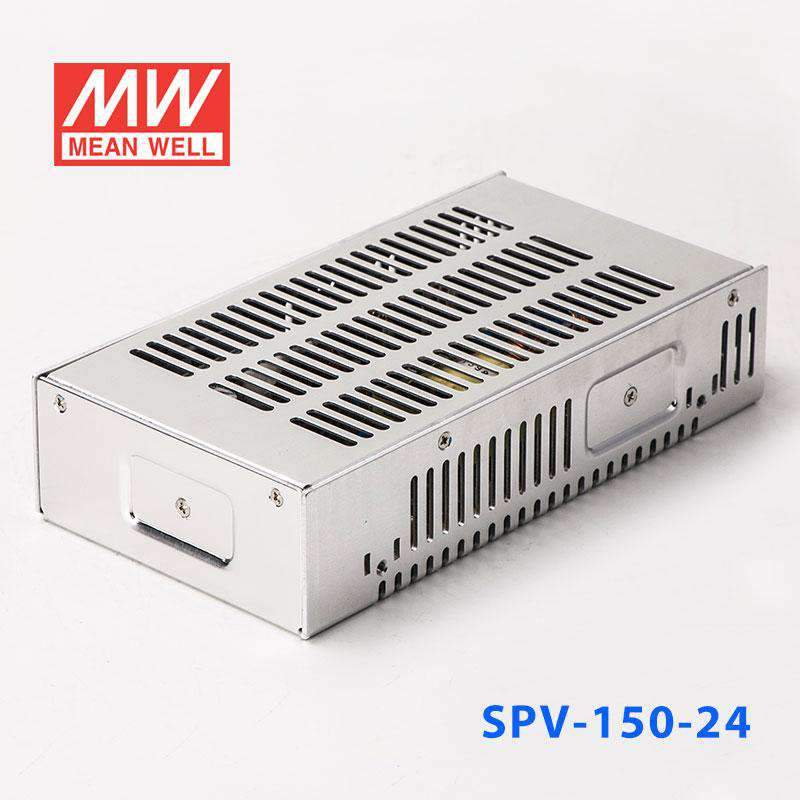

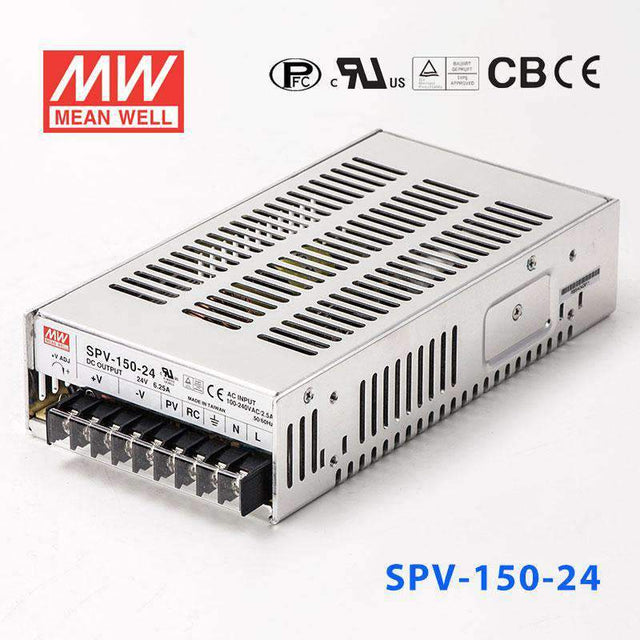

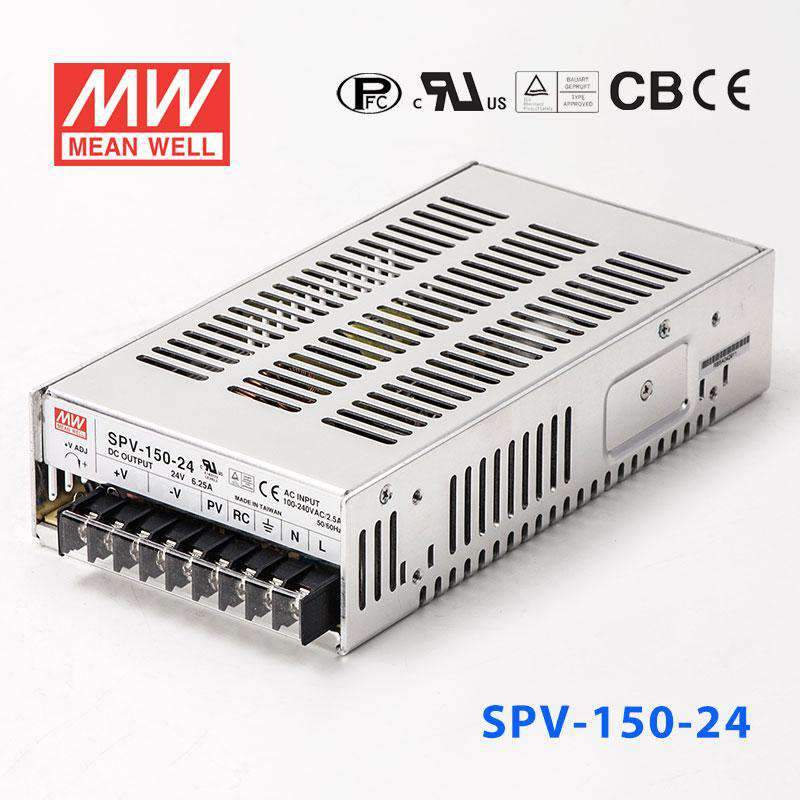

Mean Well SPV-150-24 power supply 150W 24V 6.25A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPV-150-24 power supply 150W 24V 6.25A
MEAN WELL SPV-150 Series Power Supplies are 150W switching power supplies with high efficiency, long life, and high reliability.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.94
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output voltage programmable from 20-110% by 1-5.5VDC external control signal
- ✓Built-in remote ON-OFF control
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPV Series
-
Power Rating150 Watt
-
Output Voltage24 Volt
-
Rated Current6.25 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SPV-150-24 for 24V PLC accessories, relays, or industrial control hardware?
Yes, it is suited to 24V constant-voltage industrial loads that stay within 150W and 6.25A. That makes it a practical choice for many PLC-related accessories, relays, and control devices built around 24V systems.
Is the SPV-150-24 appropriate for 24V automation sensors, actuators, or interface devices?
It can power 24V automation devices that require constant-voltage input and fit inside the unit's 150W capacity. The rated output is 24V at 6.25A, and the input range is 88-264VAC.
Can this model be used for 24V LED or signage applications?
Yes, it is intended for 24V constant-voltage loads, so it can be used for 24V LED and signage systems within 150W and 6.25A. It also includes output voltage programmability from 20%~110% by a 1~5.5VDC external control signal.
Would the SPV-150-24 fit telecommunications or embedded systems that distribute 24V DC?
It is a reasonable fit for telecom or embedded equipment that expects a regulated 24V constant-voltage source. The supply delivers up to 150W, supports 88-264VAC input, and includes active PFC with PF>0.94.
Can the SPV-150-24 be used in outdoor cabinets or exposed environments?
The temperature specification is -20°C to +65°C, so the unit is rated for a defined operating range. Because no IP rating is provided, the published specs do not confirm suitability for exposed outdoor, washdown, or dust-heavy conditions without an enclosure.
What are the main differences between the SPV-150-24 and its sibling models?
In the 150W group, the SPV-150-12 is 12V and 12.5A, the SPV-150-24 is 24V and 6.25A, and the SPV-150-48 is 48V and 3.12A. The sibling list also includes SPV-1500-12, SPV-1500-24, and SPV-1500-48 at 150W and 2.4V, plus SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
