Mean Well SPV-150-48 power supply 150W 48V 3.125A
Notify me when it's back in stock
Your order will be processed within 24 hours

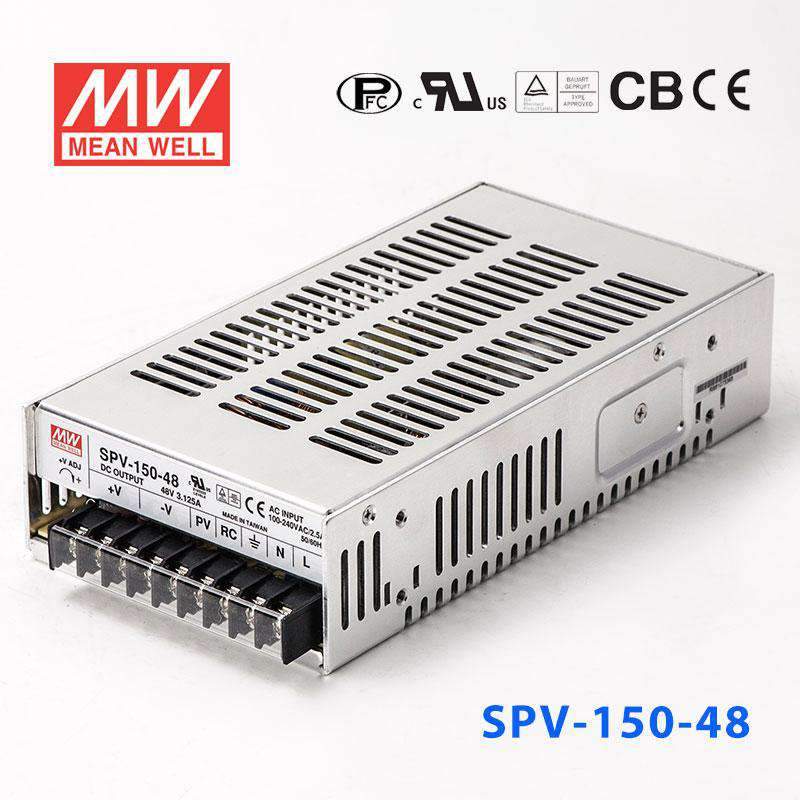

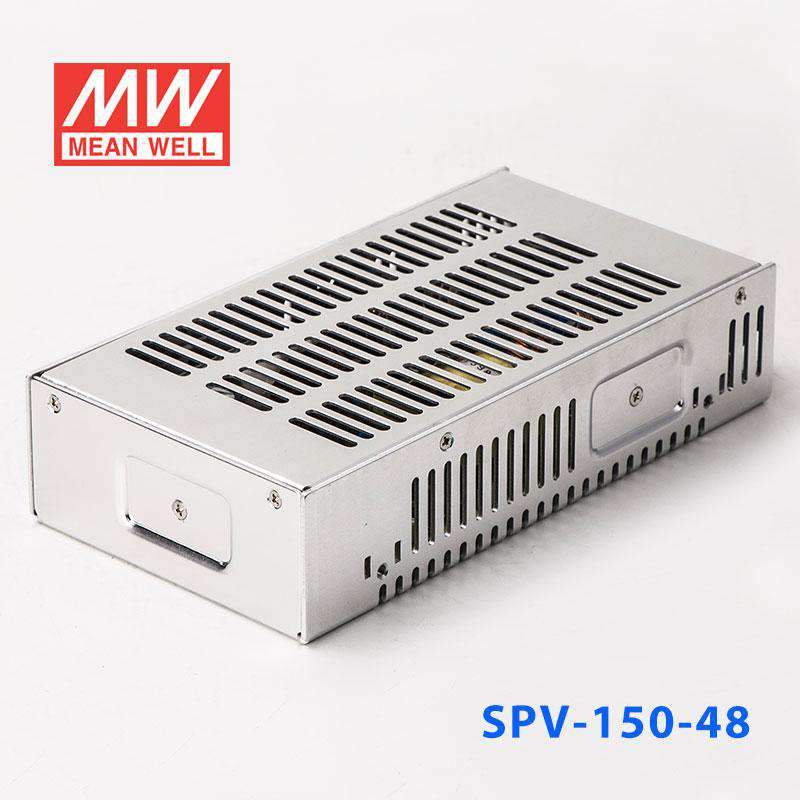

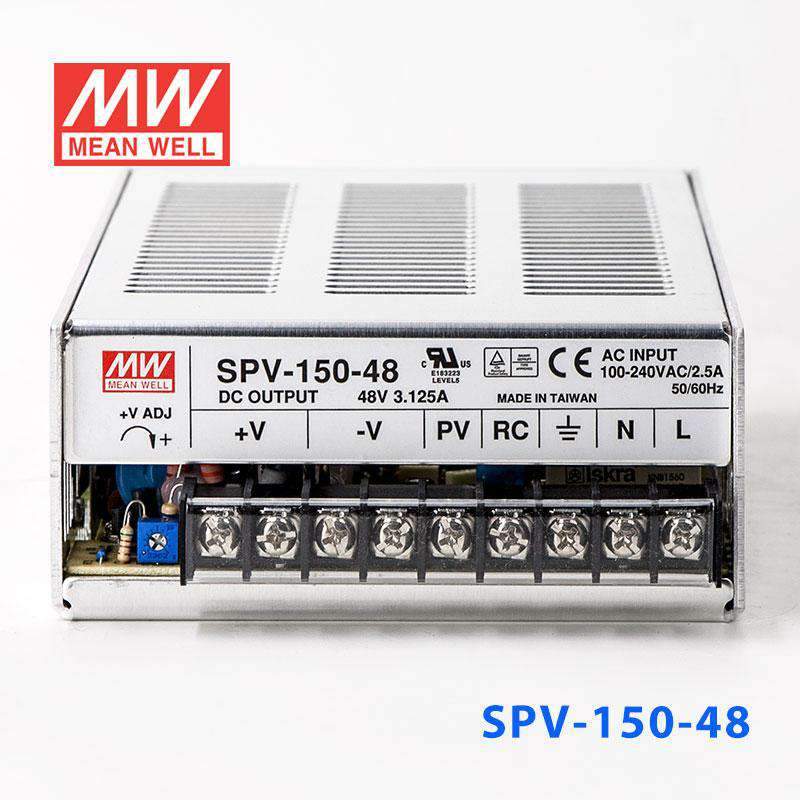

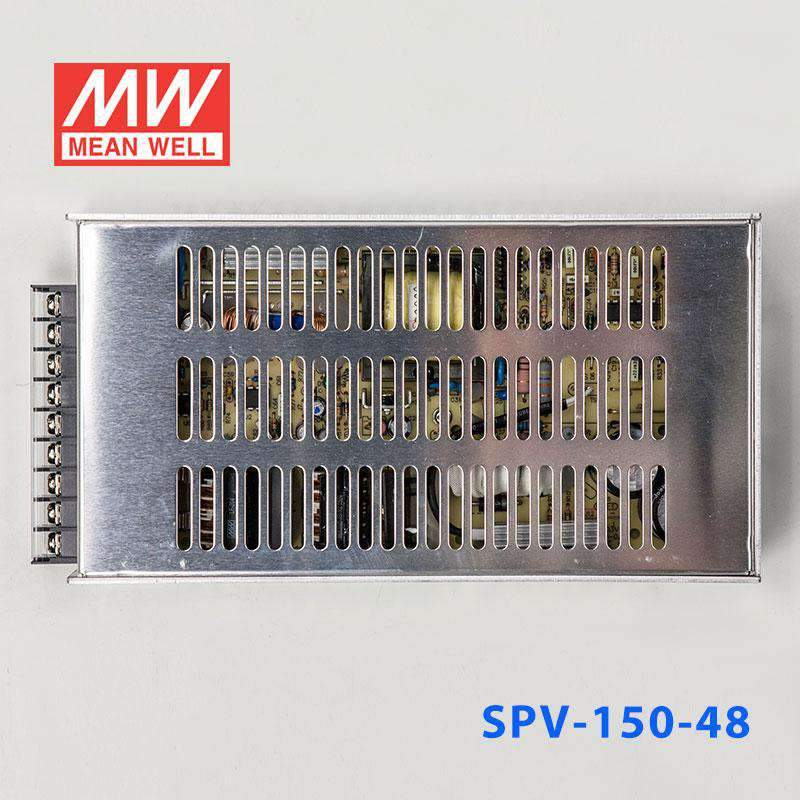

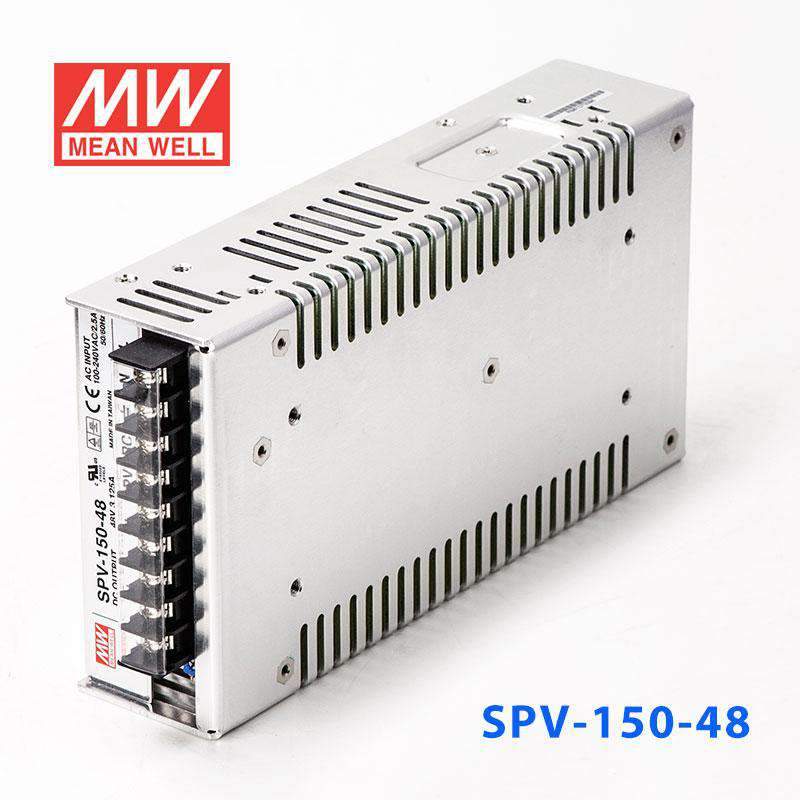

Mean Well SPV-150-48 power supply 150W 48V 3.125A
MEAN WELL SPV-150 Series Power Supplies are 150W switching power supplies with high efficiency, long life, and high reliability.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.94
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Cooling by free air convection
- ✓Output voltage programmable from 20-110% by 1-5.5VDC external control signal
- ✓Built-in remote ON-OFF control
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPV Series
-
Power Rating150 Watt
-
Output Voltage48 Volt
-
Rated Current3.12 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SPV-150-48 for 48V industrial networking or telecom equipment?
Yes, it is suitable for 48V constant-voltage equipment that stays within 150W and 3.12A. That makes it relevant for telecom and industrial networking hardware designed around a 48V DC bus.
Is the SPV-150-48 a good option for 48V automation or control systems?
It can support 48V automation or control loads that need constant-voltage output and fit within 150W. The unit delivers 48V at 3.12A and accepts 88-264VAC input.
Can this model power 48V LED or commercial lighting equipment?
It can be used for 48V constant-voltage lighting or LED systems as long as the total demand remains within 150W and 3.12A. The supply also offers output voltage programmability from 20%~110% using a 1~5.5VDC external control signal.
Would the SPV-150-48 fit embedded or communications hardware that needs regulated 48V DC?
Yes, it is intended for applications that require a regulated 48V constant-voltage source rather than lower-voltage rails. Certifications listed are CE, EAC, TÜV, and UL, and the model includes active PFC with PF>0.94.
Is the SPV-150-48 suitable for outdoor exposure or temperature-variable enclosures?
Its operating range is -20°C to +65°C, so it is specified for a defined temperature window. No IP rating is listed, which means the published data does not confirm direct outdoor exposure or water-resistant use.
How does the SPV-150-48 differ from other SPV power supplies in the same family?
The listed 150W variants are SPV-150-12 at 12V and 12.5A, SPV-150-24 at 24V and 6.25A, and SPV-150-48 at 48V and 3.12A. Other siblings shown are SPV-1500-12, SPV-1500-24, and SPV-1500-48 at 150W and 2.4V, plus SPV-300-12 at 300W, 12V, 25A, SPV-300-24 at 300W, 24V, 12.5A, and SPV-300-48 at 300W, 48V, 6.25A.
