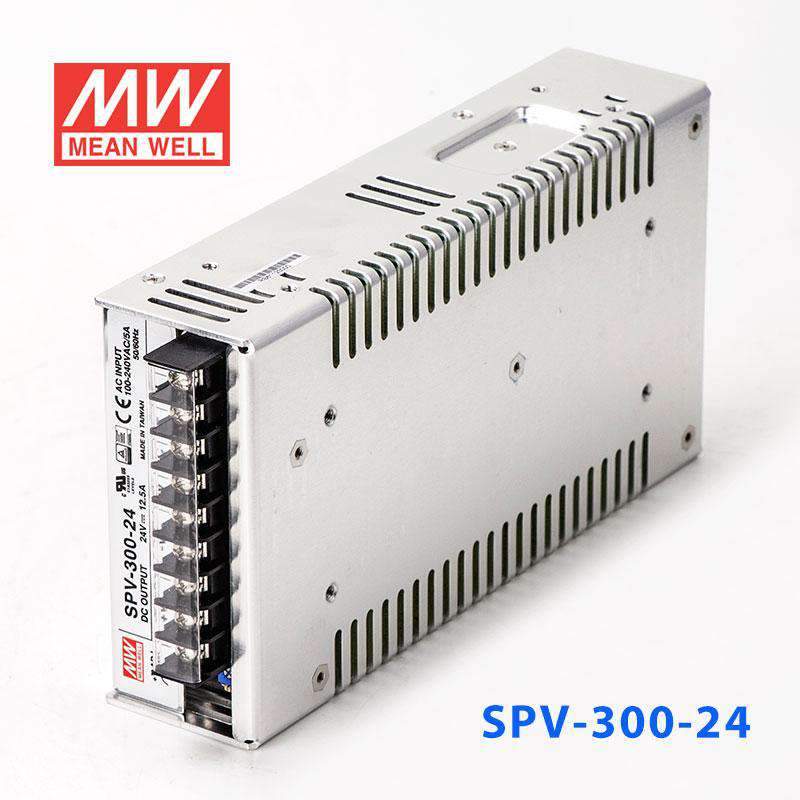

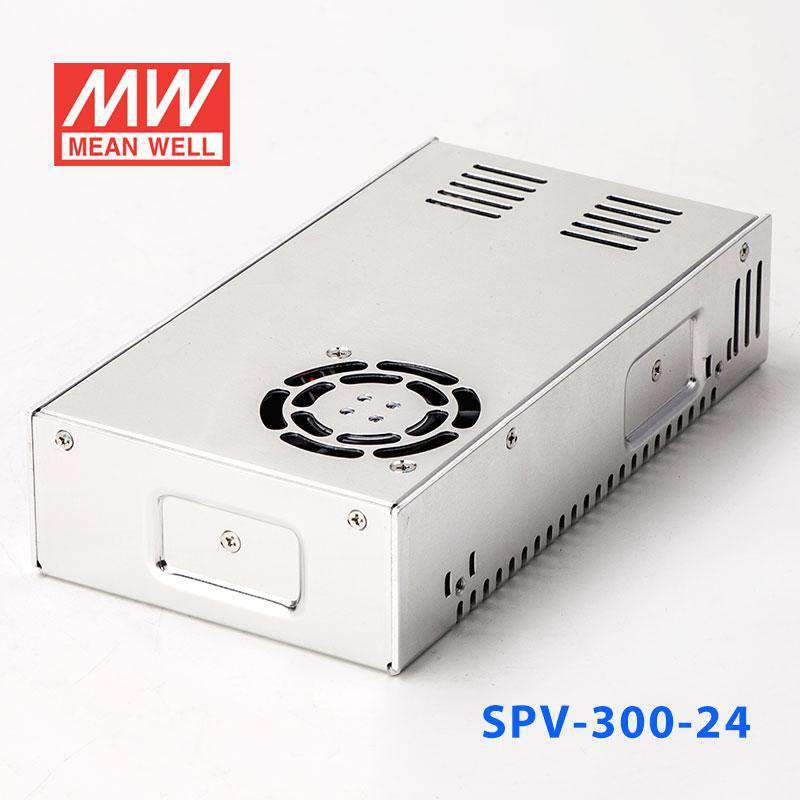

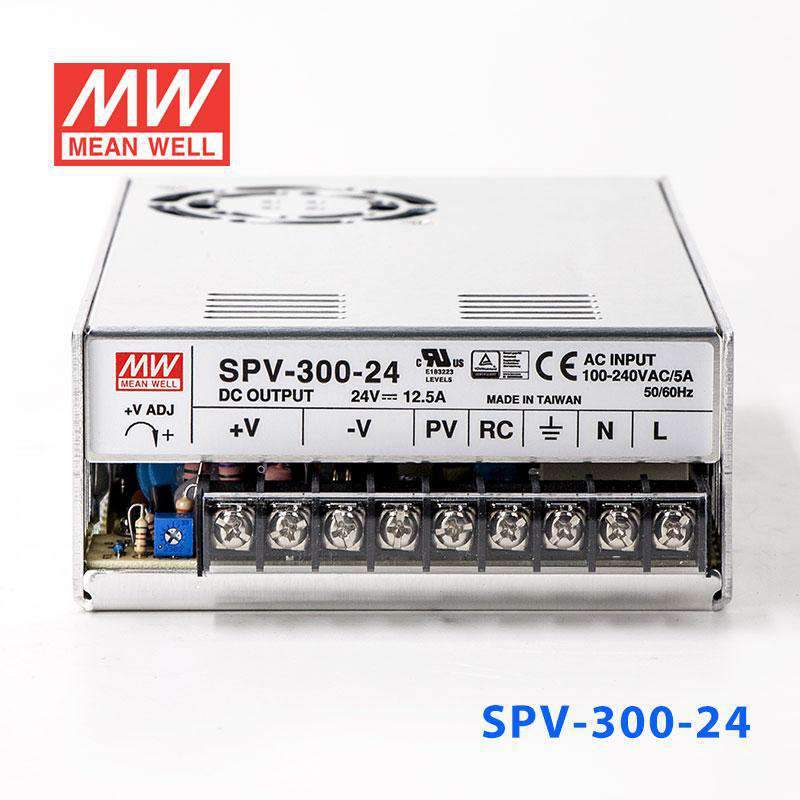

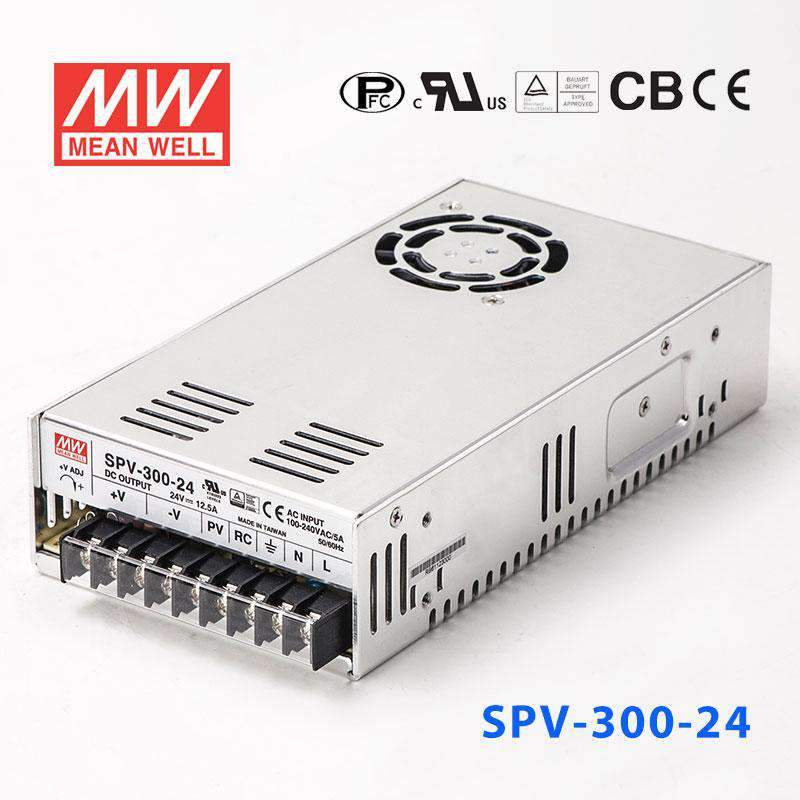

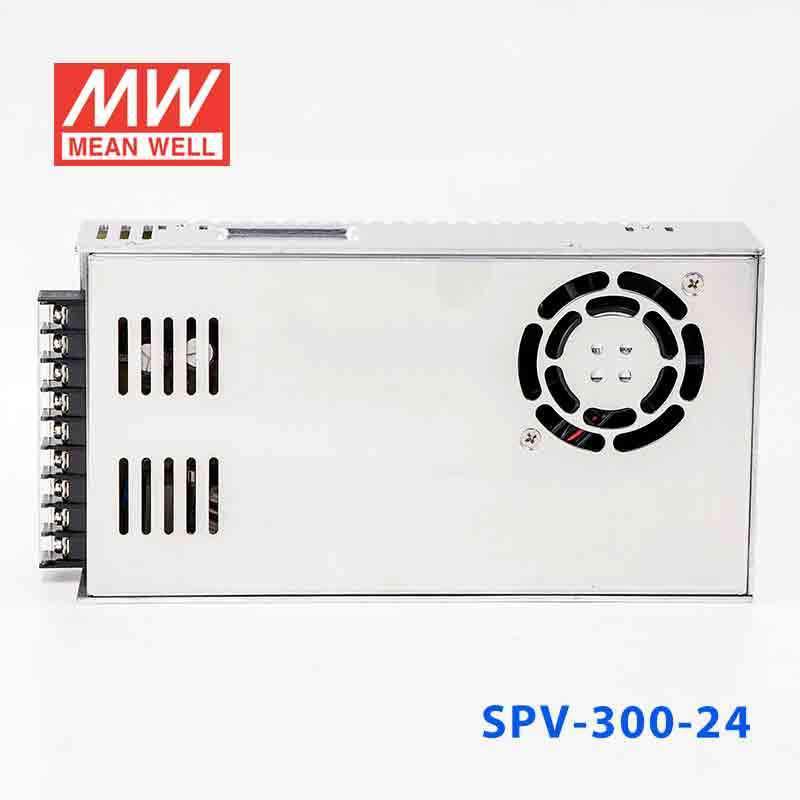

Mean Well SPV-300-24 power supply 300W 24V 12.5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SPV-300-24 power supply 300W 24V 12.5A
MEAN WELL SPV-300 Series Power Supplies are 300W switching power supplies with high efficiency, long life, and high reliability.
Key Features
- ✓Universal AC input / Full range
- ✓Built-in active PFC function
- ✓PF>0.95
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Forced air cooling by built-in DC Fan
- ✓Output voltage programmable from 20-110% by 1-5.5VDC external control signal
- ✓Built-in remote ON-OFF control
- ✓Built-in fan speed control
- ✓Fixed switching frequency at 100KHz
- ✓3 years warranty
-
BrandMean Well
-
SeriesSPV Series
-
Power Rating300 Watt
-
Output Voltage24 Volt
-
Rated Current12.5 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetCE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~65°C
-
Warranty3 Year
-
Length8.46 in
-
Width4.53 in
-
Height1.97 in
-
Weight2.43 lb
::specification::
Frequently Asked Questions
Can I use the SPV-300-24 for 24V PLC, sensor, or actuator power?
Yes, this is a constant-voltage 24V power supply rated for 300W and 12.5A, which fits many 24V industrial automation loads. It is intended for systems that need a regulated 24V DC source rather than current-controlled output.
Is the SPV-300-24 suitable for 24V industrial control panels?
It can be a good fit for 24V control cabinets where the total DC load stays within 300W and 12.5A. The 88-264VAC input also supports use in installations with a broad AC input range.
Can this model power 24V machine lighting or inspection lighting?
Yes, the SPV-300-24 provides constant 24V output with up to 12.5A, which is relevant for larger 24V lighting loads in industrial or automation settings. The 300W rating gives more headroom than smaller 24V supplies in the same family.
Is the SPV-300-24 appropriate for 24V embedded systems or test fixtures?
Yes, it is suitable where a fixture or embedded platform is designed around a constant 24V rail and needs up to 300W. The active PFC feature with PF>0.95 may also be relevant in systems where input power quality matters.
Can the SPV-300-24 be used indoors or outdoors?
The specified operating range is -20°C to +65°C, but no IP rating is listed in the provided product data. Based on these specs alone, it should be treated as a supply whose outdoor suitability depends on the enclosure and system-level protection.
