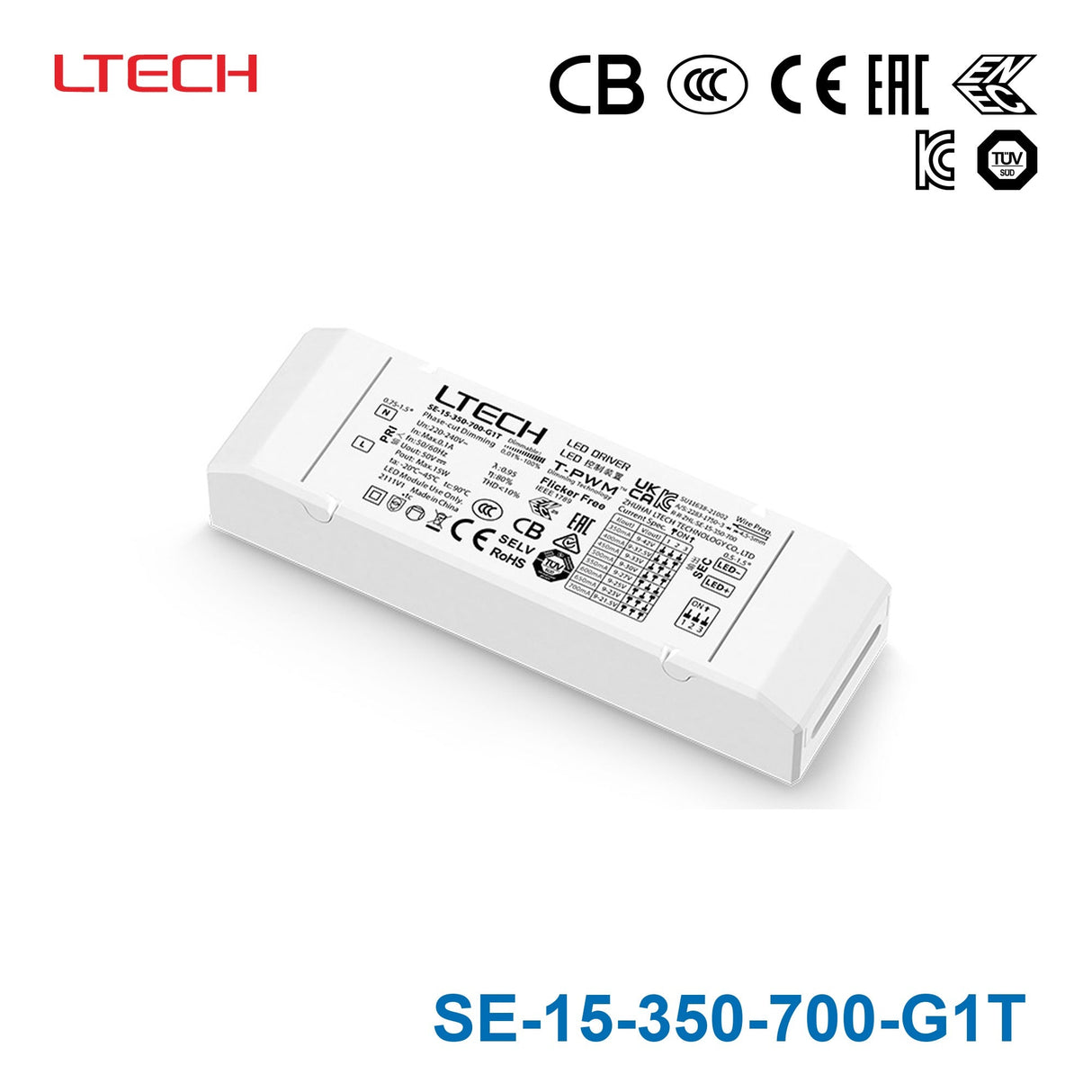

LTECH SE-15-350-700-G1T 15W 350mA ~ 700mA CC Triac LED Driver
Intelligent LED Driver
| Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight. |
| The clamshell design and screwless type for strain-relief, tensile strength of wires complies with the 0.5-1.5mm² wire diameter 60N tensile test,and complies with the tensile test standard GB7000.1-2015/IEC60598-1：2014. |
| Soft-on and fade-in dimming function enhances your visual comfort. |
| T-PWM dimming technology allows continuous and flicker-free images under high-speed shooting. |
| Dimming from 0~100%, down to 0.01%. |
| 0-100% flicker-free dimming with high frequency exemption level. |
| Innovative thermal management technology protects the power life intelligently. |
| Multiple current levels & wide voltage, suitable for different power LEDs. |
| Class 2 LED driver, full protective plastic housing. |
| Comply with Safety Extra Low Voltage standard |
| Over voltage, overload, shortcircuit protection and automatic recovery |
| Suitable for indoor light applications of I/II/III type. |
| Up to 50000-hour lifetime. |
| 5-year warranty (Rubycon capacitor) |
-
BrandLtech
-
SeriesLtech Triac Series
-
Power Rating15 Watt
-
Output Voltage50 Volt
-
Rated Current0.35 Ampere
-
Input Voltage220V~240V
-
No of Output1
-
Dimming ControlAC Phase Cut Dimming
-
Standards MetCB,CCC,CE,EAC,ENEC,KC,SELV,TUV
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~45°C
-
Warranty5 Year
-
Length4.37 in
-
Width1.38 in
-
Height0.79 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What type of LED load is the LTECH SE-15-350-700-G1T designed for?
This model is a constant-current Triac LED driver intended for LED applications that require a regulated output current rather than constant voltage. It is designed for use with compatible constant-current LED loads within its rated 15W power capacity and up to 50V output.
What are the main electrical ratings of the SE-15-350-700-G1T?
The SE-15-350-700-G1T is rated for 15W output power and a maximum output voltage of 50V. Its rated output current is 350mA, and the model name indicates a 350mA to 700mA constant-current range for this series.
Does this LED driver support phase-cut dimming?
Yes, this model uses AC phase-cut dimming control and is identified as a Triac LED driver. That makes it suitable for projects where phase-cut dimming compatibility is required at the driver level.
What temperature range is this driver rated for?
The specified operating temperature range is -20°C to 45°C. Buyers should make sure the installed environment stays within that range for normal performance and product longevity.
What makes this model different from a constant-voltage LED driver?
The SE-15-350-700-G1T is a constant-current driver, so it is intended for LED loads that are specified by drive current instead of a fixed output voltage. Unlike a constant-voltage driver, this model regulates current and provides up to 50V output as needed within its rated operating limits.
What build and durability features does this driver include?
According to the product description, it uses a V0 flame-resistant polycarbonate housing from SAMSUNG/COVESTRO and is built with a compact, lightweight form factor. It also carries a 5-year warranty, which is a useful indicator for commercial and professional buyers comparing long-term value.
