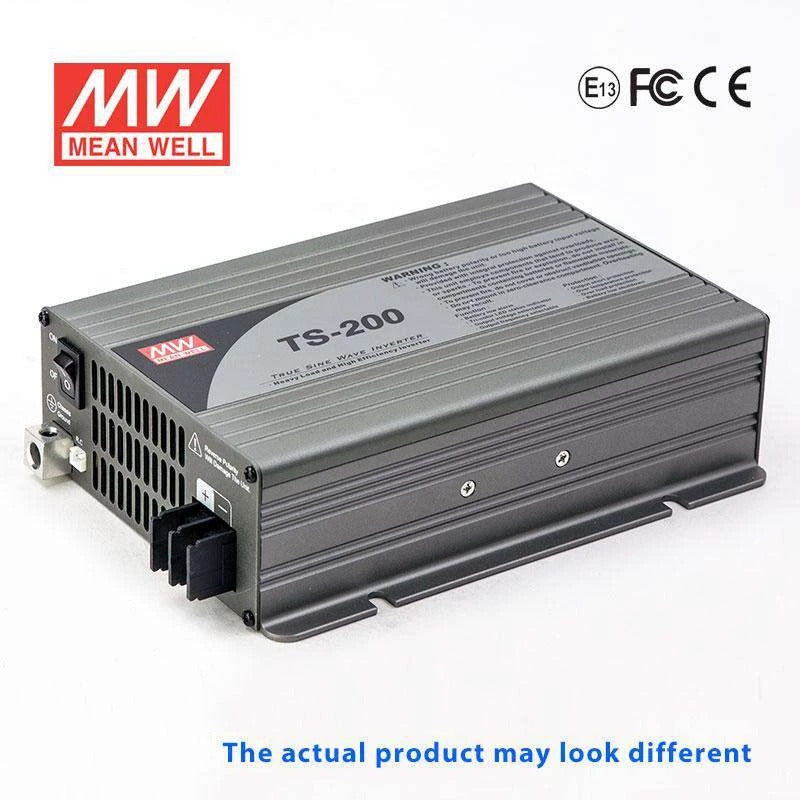

Mean Well TS-200-124A True Sine Wave 200W 230V 10A - DC-AC Power In...
The TS-200 is a 200W Mean Well power converter (input range: 10.5~15VDC).
Key Features
- ✓ Input voltage range: 10.5~15VDC
- ✓ Protections: Over temperature / Reverse polarity
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesTS Series
-
Power Rating200 Watt
-
Output Voltage230 Volt
-
Input Voltage21V~30V
-
No of Output1
-
Standards MetCB,CE,E13,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~35°C
-
Warranty3 Year
-
Length8.07 in
-
Width6.22 in
-
Height2.32 in
-
Weight3.59 lb
::specification::
Frequently Asked Questions
What is the Mean Well TS-200-124A designed for?
This model is a 200W DC-AC power inverter that provides a true sine wave AC output. It is suited to business and industrial applications where sensitive AC-powered equipment benefits from cleaner waveform quality than modified sine wave alternatives.
Why would a buyer choose this model over a modified sine wave inverter?
The TS-200-124A produces a true sine wave output with THD below 3%, which is a key differentiator for loads that are sensitive to output waveform quality. For buyers comparing inverter types, that makes this model a better fit where stable, cleaner AC output is important.
What are the main electrical specifications of this inverter?
This inverter is rated for 200W continuous output power and supports surge power up to 400W. The AC output is adjustable across 100/110/115/120VAC or 200/220/230/240VAC settings using the front-panel setting button.
Is the TS-200-124A fan-cooled?
No. This model uses a fanless design and is cooled by free air convection, which can be useful in applications where reduced moving parts and lower operating noise are preferred.
What operating environment is this inverter rated for?
The stated operating temperature range is -10°C to 35°C. Buyers should make sure their installation environment stays within that range for normal operation.
Does this inverter include protection features and remote control support?
Yes. The TS-200-124A includes short circuit, overload, and over voltage protection, and it also has built-in remote ON-OFF control. It also includes a front-panel status indicator and a power ON-OFF switch.
What warranty and physical considerations should buyers know about?
This model includes a 3-year warranty from the manufacturer. Its listed weight is 1.63 kg, which can be useful when comparing compact inverter options for enclosure or panel planning.
