Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

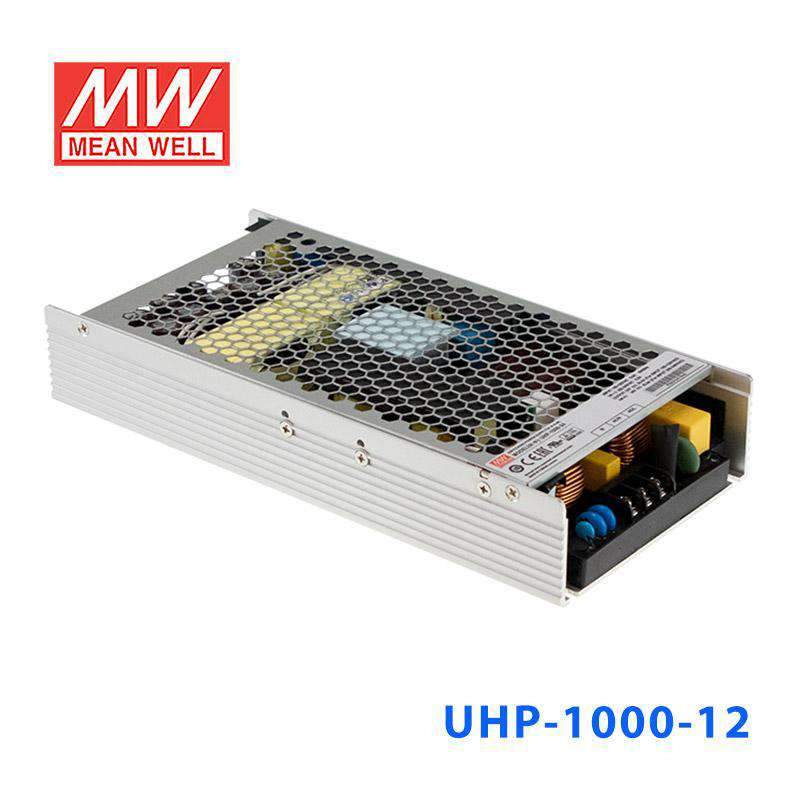

Mean Well UHP-1000-12 Power Supply 960W 12V
The UHP-1000 is a 1000W Mean Well power converter (input range: 12~14.4V).
Key Features
- ✓ Input voltage range: 12~14.4V
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating960 Watt
-
Output Voltage12 Volt
-
Rated Current80 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length9.45 in
-
Width4.53 in
-
Height1.61 in
-
Weight3.84 lb
::specification::
Frequently Asked Questions
Can I use the UHP-1000-12 for a high-current 12V industrial automation system?
This power supply provides 12V constant-voltage output at 960W with 80A available output current. That makes it suitable for 12V automation or control systems that need substantially more current than lower-power 12V supplies.
Is the UHP-1000-12 a fit for 12V IT or embedded equipment with heavy DC load demand?
It is positioned for high-load 12V applications because the output is 12V at up to 80A, with 960W total power. The wide 90-264VAC input range also helps when the AC source varies across common input conditions.
Can the UHP-1000-12 support a centralized 12V power architecture instead of multiple small supplies?
For systems built around a single 12V bus, this model offers 960W total capacity and 80A output current from one constant-voltage supply. Whether it is enough depends on the total 12V load staying within those stated limits.
What are the main differences between the UHP-1000-12, UHP-1000-24, UHP-1000-36, and UHP-1000-48?
Within the UHP-1000 group, UHP-1000-12 is 960W at 12V and 80A, UHP-1000-24 is 1008W at 24V and 42A, UHP-1000-36 is 1008W at 36V and 28A, and UHP-1000-48 is 1008W at 48V and 21A. The listed shared platform specs include 90-264VAC input, 240.0 x 115.0 x 41.0 mm dimensions, 1.74 kg weight, -30 C to +70 C operating temperature, CB/CE/EAC/TUV/UL certifications, 5-year warranty, and a slim low-profile fanless design.
Is the UHP-1000-12 suitable for outdoor cabinets or dusty industrial areas?
The operating temperature range is -30 C to +70 C, so the electrical spec supports a broad indoor temperature window. No IP rating is listed, so the provided data does not confirm outdoor, washdown, or dust-tight suitability.
