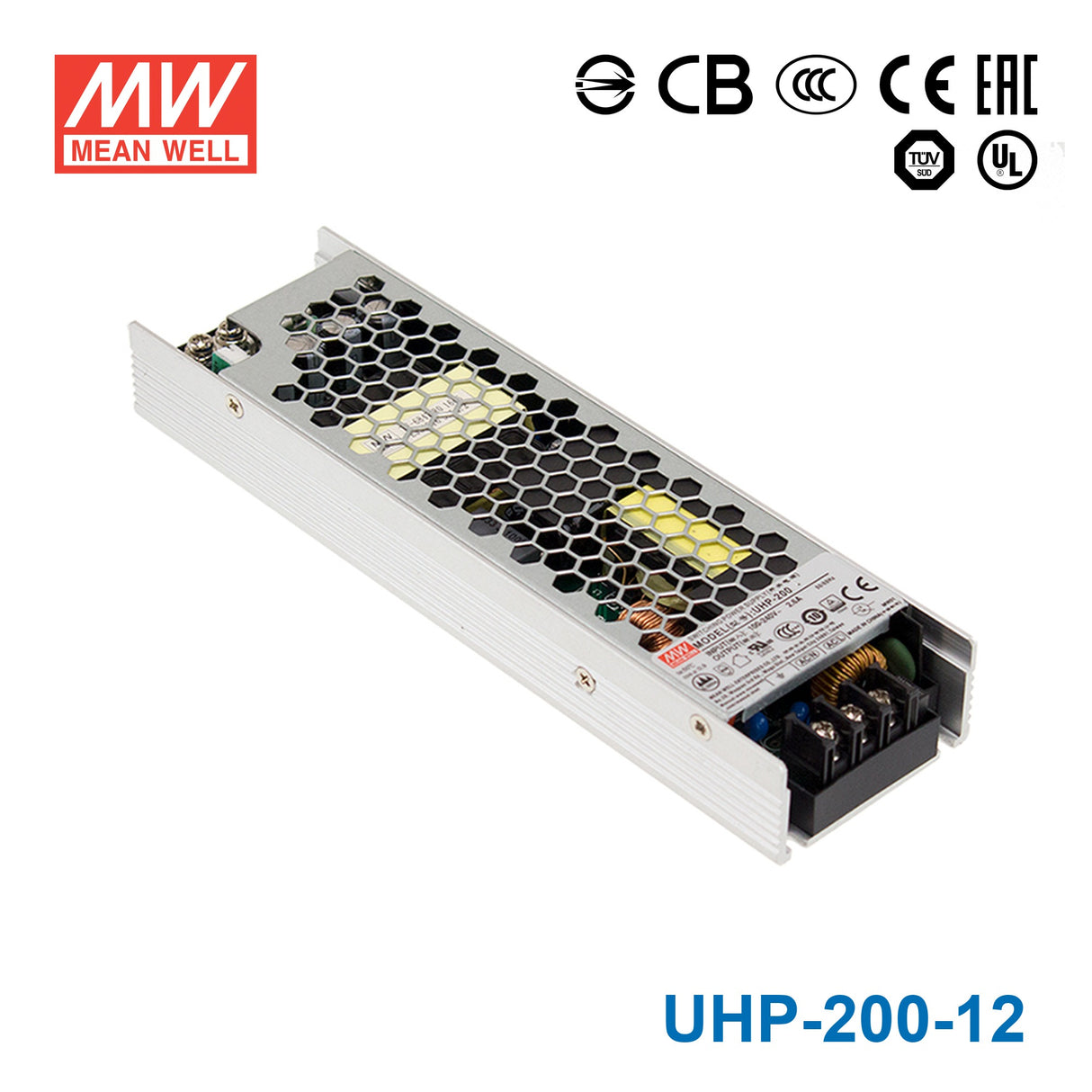

Mean Well UHP-200-12 Power Supply 200.4W 12V
The UHP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200-12 for a 12V PLC, relay panel, or sensor power bus?
Yes, it provides 12V constant voltage output at up to 16.7A with a total power rating of 200.4W. That makes it suitable for compact industrial panels and control assemblies that are standardized on 12V DC.
Is the UHP-200-12 suitable for embedded controllers or compact industrial electronics?
It can be a good match for embedded or industrial electronics that require 12V DC and remain within 200.4W and 16.7A. Its 194.0 × 55.0 × 26.0 mm size and fanless design also suit tighter enclosures.
Can this model power a 12V camera, access control, or low-voltage automation system?
It is appropriate for 12V DC devices and grouped low-voltage automation loads when total demand stays inside 16.7A. Because it is a constant voltage unit, it is intended for systems that call for a regulated 12V supply rather than a different output voltage.
Is the UHP-200-12 built for indoor or outdoor environments?
The specified operating temperature range is -30°C to +70°C, which supports use across varied ambient conditions. No IP rating is listed in the provided data, so protected indoor mounting or use inside an enclosure is the safer interpretation than exposed outdoor placement.
How does the UHP-200-12 compare with other 12V models in the UHP family?
The listed 12V siblings are UHP-200-12 at 200.4W and 16.7A, UHP-200R-12 at 200.4W and 16.7A, UHP-350-12 at 350.4W and 29.2A, UHP-350R-12 at 350.4W and 29.2A, UHP-500-12 at 500.4W and 41.7A, UHP-500R-12 at 500.4W and 41.7A, UHP-750-12 at 720W and 60A, and UHP-1000-12 at 960W and 80A. This makes the UHP-200-12 the entry-power 12V option in the listed non-rail UHP range.
