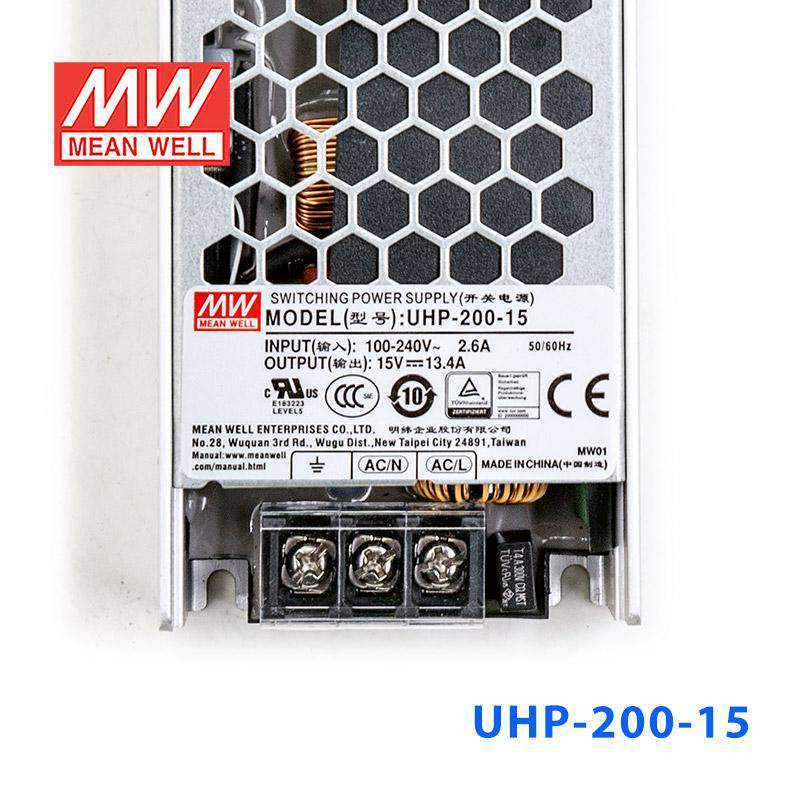

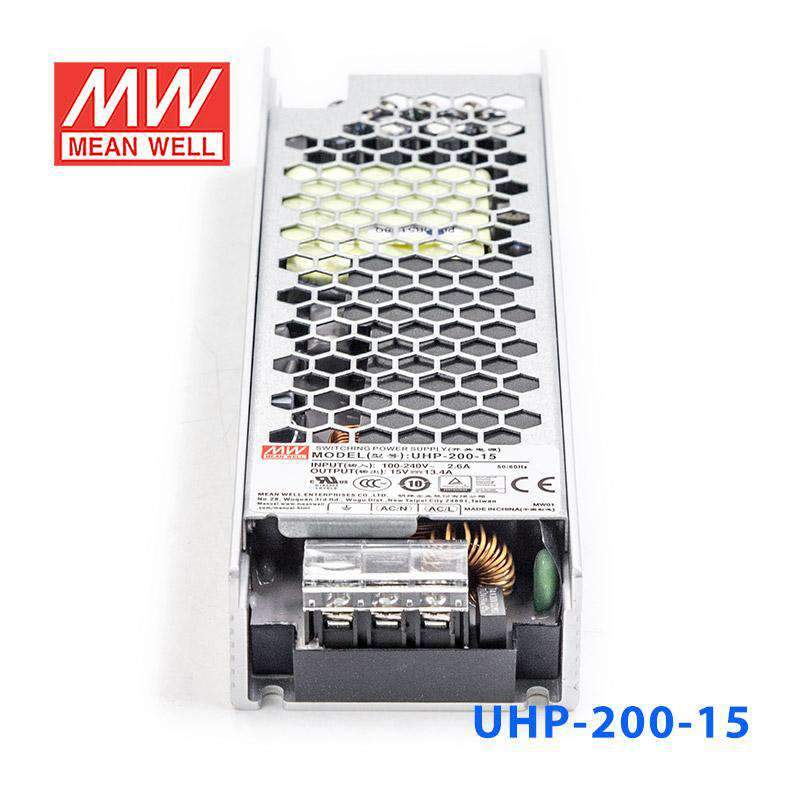

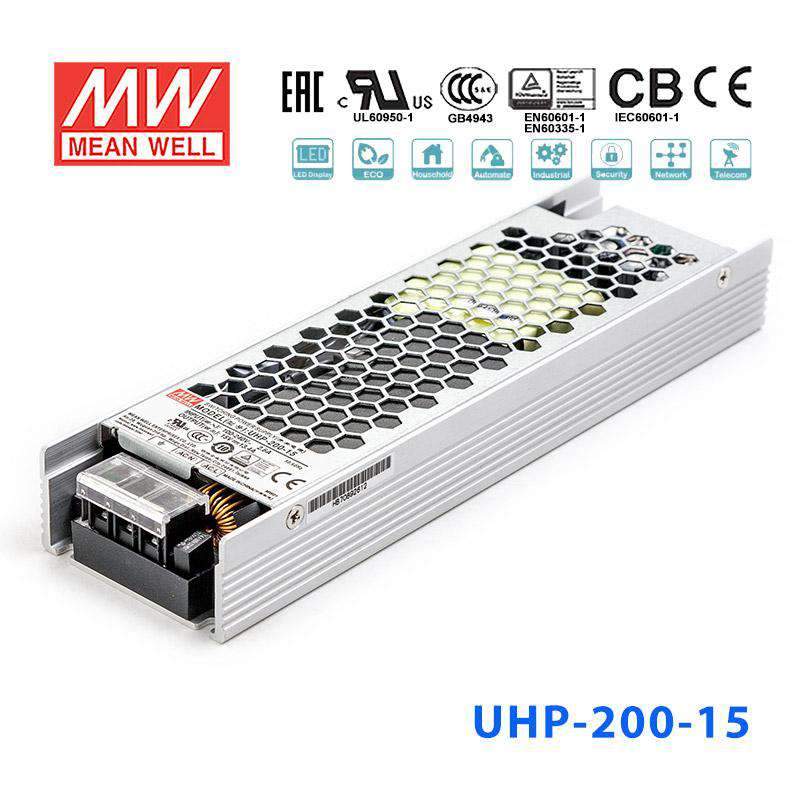

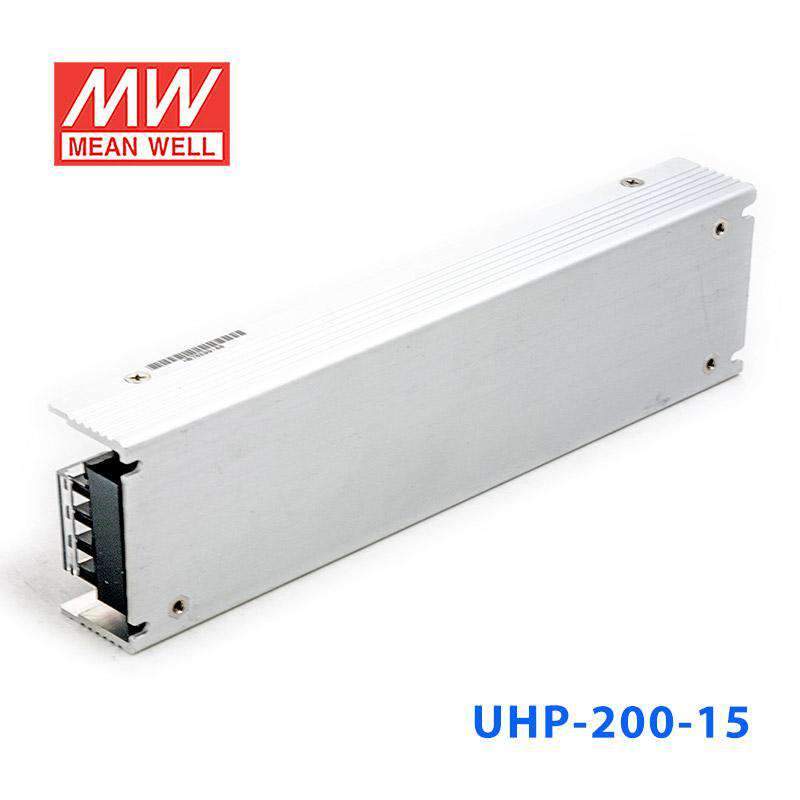

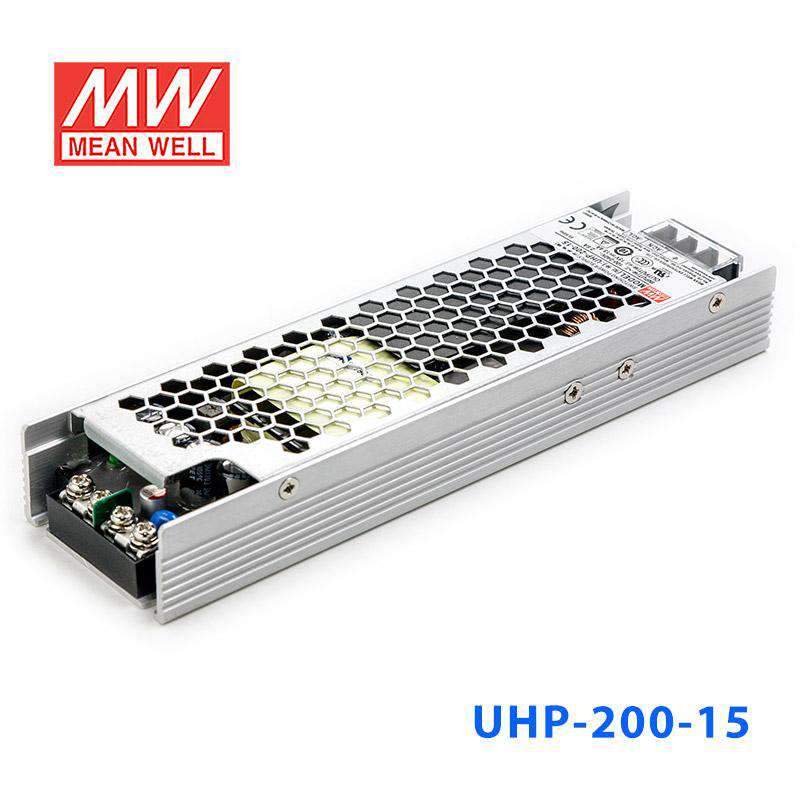

Mean Well UHP-200-15 Power Supply 201W 15V
The UHP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating201 Watt
-
Output Voltage15 Volt
-
Rated Current13.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200-15 for 15V industrial control or instrumentation equipment?
Yes, if the equipment is designed for 15V constant voltage input and stays within 201W and 13.4A. That output profile fits specialized control, instrumentation, and embedded systems that operate on 15V DC rather than the more common 12V or 24V rails.
Is the UHP-200-15 a fit for embedded boards or OEM electronics that need 15V DC?
It can be a good fit for OEM and embedded electronics that specifically call for 15V DC and draw no more than 13.4A. The slim 194.0 × 55.0 × 26.0 mm package and fanless design are useful where space is limited.
Can this 15V power supply be used in automation or bench-test systems?
Yes, for automation modules or test setups that require a regulated 15V constant voltage source, this model provides up to 201W. It is best matched to systems whose load profile stays within 13.4A at 15V.
Is the UHP-200-15 suitable for outdoor use or washdown areas?
The unit is rated for operation from -30°C to +70°C, so the temperature range itself is broad. However, no IP rating is provided in the listed specs, so it is better considered for protected indoor enclosures instead of exposed outdoor or washdown environments.
How does the UHP-200-15 compare with related 15V UHP models?
The provided 15V siblings are UHP-200-15 at 201W and 13.4A, UHP-200R-15 at 201W and 13.4A, UHP-350-15 at 351W and 23.4A, UHP-350R-15 at 351W and 23.4A, UHP-500-15 at 501W and 33.4A, and UHP-500R-15 at 501W and 33.4A. The UHP-200-15 is the lowest-power 15V option in that listed group.
