Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

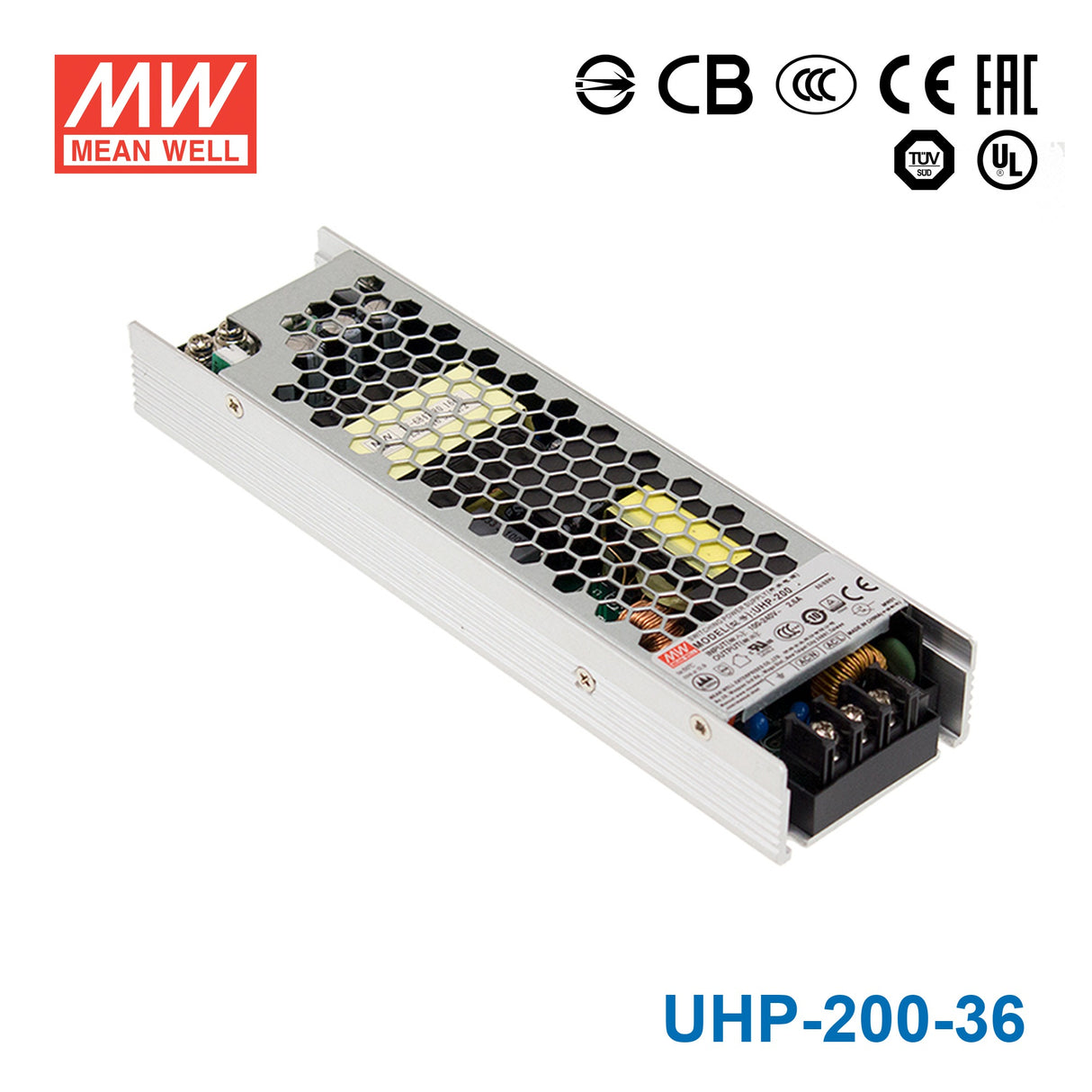

Mean Well UHP-200-36 Power Supply 201.6W 36V
The UHP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating201.6 Watt
-
Output Voltage36 Volt
-
Rated Current5.6 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200-36 for 36V industrial control or motion-related electronics?
Yes, it is a constant voltage 36V power supply rated for 201.6W and 5.6A. That makes it suitable for 36V industrial electronics that are designed for a regulated DC source within those output limits. The application fit depends on the equipment staying at or below 5.6A total draw.
Is the UHP-200-36 appropriate for 36V automation equipment in a compact enclosure?
It can be a practical choice where a 36V DC source is required and enclosure depth is limited. The housing measures 194.0 × 55.0 × 26.0 mm, and the unit is described as slim and low profile with a fanless design. Electrically, the load needs to remain within 201.6W and 5.6A.
Can this 36V model power industrial instrumentation or embedded hardware that runs on 36V DC?
Yes, if the equipment is specified for constant 36V input and the total demand does not exceed 201.6W. Compared with lower-voltage versions, this model provides less current at 5.6A because the output voltage is higher. It is therefore better aligned with 36V devices that prioritize voltage compatibility over high current.
Is the UHP-200-36 suitable for OEM machinery or panel equipment that accepts universal AC input?
This unit accepts 90-264VAC input, which supports use across a wide range of common AC mains conditions. On the output side it provides 36V constant voltage at up to 5.6A and 201.6W. That combination can suit OEM machinery or panel subassemblies designed around a 36V DC bus.
What are the key differences across the UHP-200 family outputs?
The standard UHP-200 models listed are 132W at 3.3V and 40A, 168W at 4.2V and 40A, 200W at 5V and 40A, 200.4W at 12V and 16.7A, 201W at 15V and 13.4A, 201.6W at 24V and 8.4A, 201.6W at 36V and 5.6A, and 201.6W at 48V and 4.2A. This 36V version sits near the high-voltage end of the range and correspondingly offers lower output current than the 24V, 15V, 12V, 5V, 4.2V, and 3.3V variants.
Is the UHP-200-36 intended for outdoor installations?
The operating temperature range is specified as -30°C to +70°C, so the temperature window is broad. However, no IP rating is included in the provided specifications, so outdoor suitability is not established from this data. For exposed environments, the absence of an IP rating means the enclosure protection level is not defined here.
