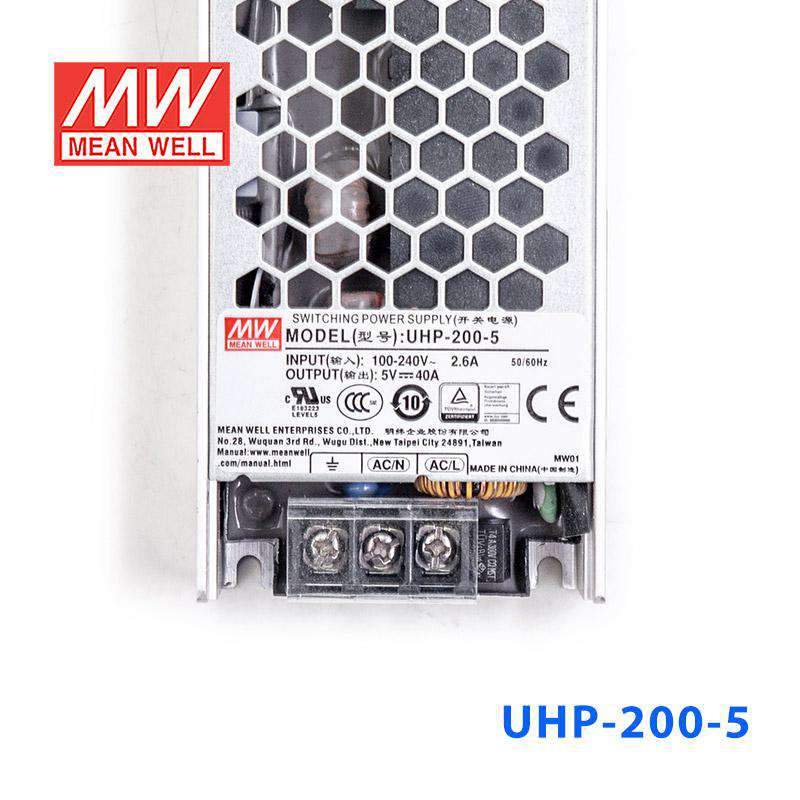

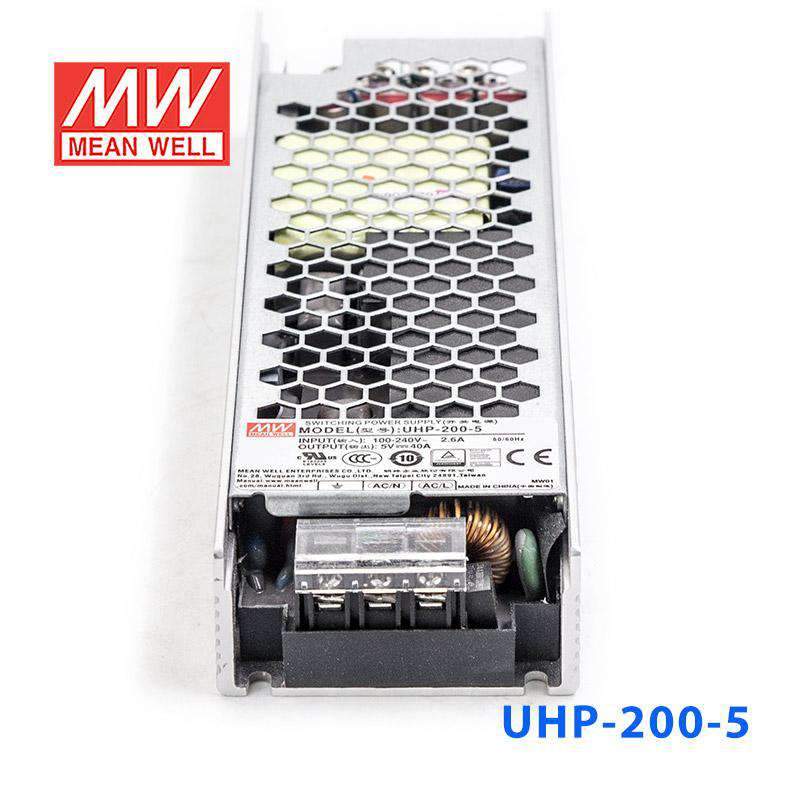

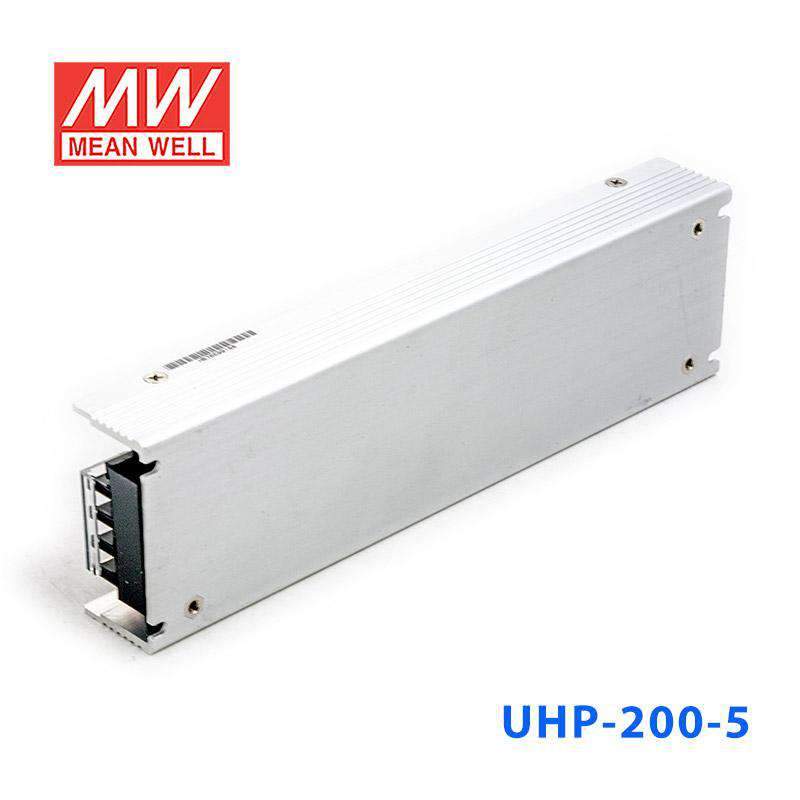

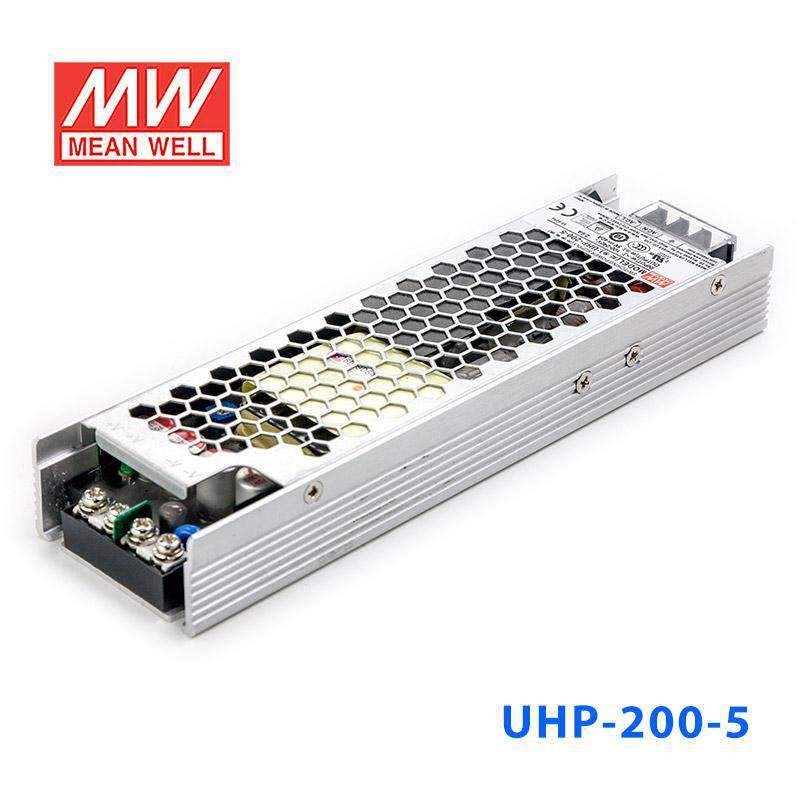

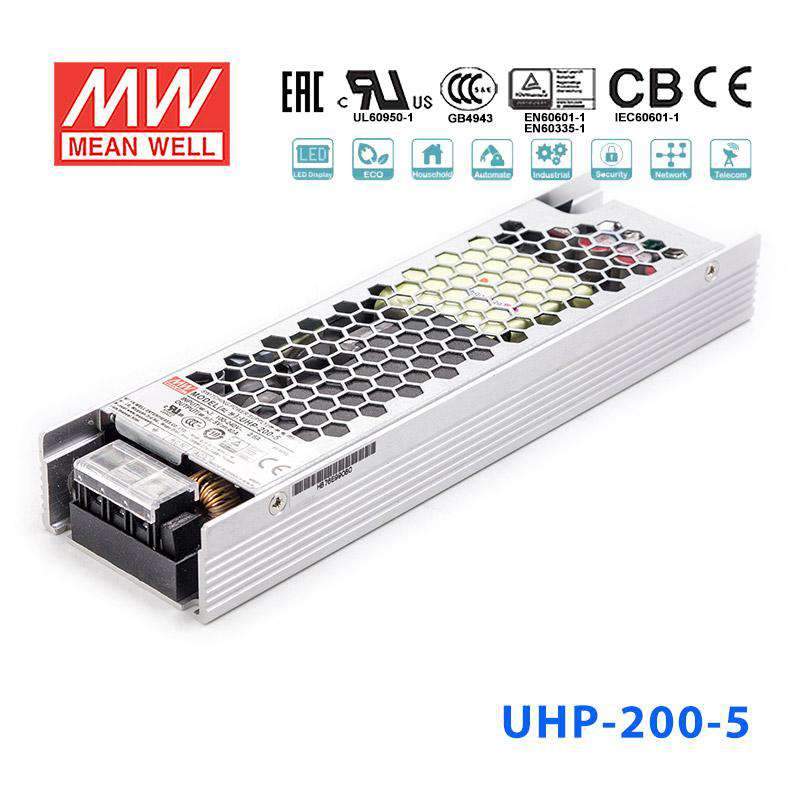

Mean Well UHP-200-5 Power Supply 200W 5V
The UHP-200 is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200-5 for a 5V industrial controller or embedded system?
Yes, this model is a constant voltage 5V power supply rated for 200W and 40A. That makes it suitable for 5V industrial controllers, embedded electronics, and other 5V DC loads that fit within those output limits.
Is the UHP-200-5 a good fit for powering multiple 5V devices in one control cabinet?
It can fit centralized 5V DC distribution in a protected cabinet when the combined load stays within 200W and 40A. The slim 194.0 × 55.0 × 26.0 mm housing and fanless design also suit installations where space is limited.
Can this 5V power supply be used for 5V industrial HMI, SBC, or logic-level equipment?
Yes, if the equipment requires a regulated 5V constant voltage source and the total demand does not exceed 200W or 40A. It is better matched to 5V logic, controller, and embedded loads than to equipment that requires 12V, 24V, 36V, or 48V.
Can I use the UHP-200-5 for a compact automation panel where low noise matters?
Yes, its fanless design is useful in compact automation panels where forced-air noise or fan wear is undesirable. The low-profile 26.0 mm height also helps when cabinet depth is tight.
Is the UHP-200-5 suitable for outdoor or harsh-environment use?
The operating temperature range is -30°C to +70°C, so it covers a wide temperature span. The provided specs do not list an IP rating, so outdoor or washdown suitability is not specified and it is better treated as a protected indoor power supply unless the enclosure provides that protection.
How does the UHP-200-5 compare with other UHP-200 voltage options?
Within the UHP-200 group, nearby base models include UHP-200-3.3 at 132W, 3.3V, 40A; UHP-200-4.2 at 168W, 4.2V, 40A; UHP-200-12 at 200.4W, 12V, 16.7A; UHP-200-15 at 201W, 15V, 13.4A; UHP-200-24 at 201.6W, 24V, 8.4A; UHP-200-36 at 201.6W, 36V, 5.6A; and UHP-200-48 at 201.6W, 48V, 4.2A. The UHP-200-5 is the 5V version rated at 200W and 40A.
