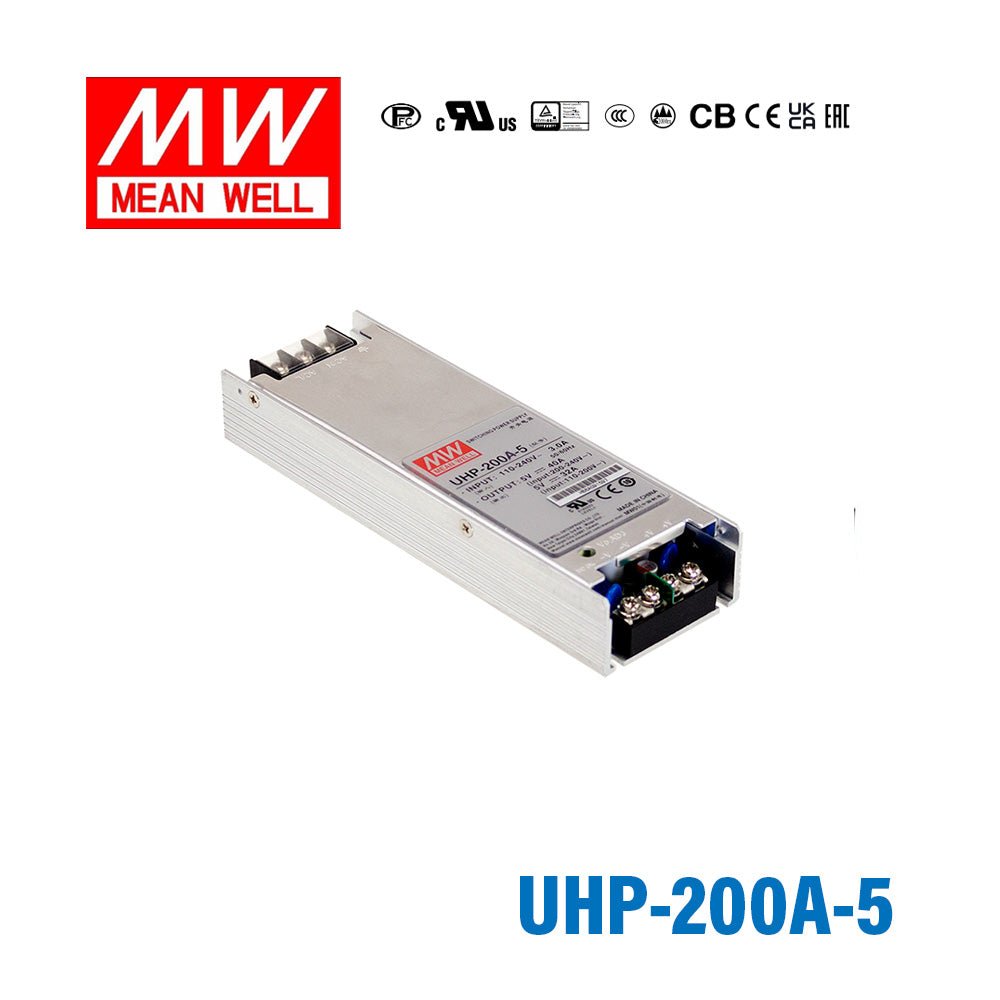

Mean Well UHP-200A-5 Power Supply 200W 5V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-200A-5 Power Supply 200W 5V
Features:⦁ Universal AC input / Full range⦁ Withstand 300VAC surge input for 5 seconds⦁ Low profile: 26mm⦁ Built-in active PFC function⦁ Fanless design, cooling by free air convection⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Low leakage current <1.0mA⦁ LED indicator for power on⦁ 3 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 85A/230VACOverload Protection110-140% rated output powerProtection type: Hiccup mode, recovers automatically after fault condition is removedShort CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removedOver-voltage Protection(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)Protection type: Hiccup mode, recovers automatically after fault condition is removedOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after fault condition is removedWithstand VoltageI/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVACWorking Temperature-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")Safety StandardsUL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approvedDimension (LxWxH)167x55x26mm
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.57 in
-
Width2.17 in
-
Height1.02 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
What is the Mean Well UHP-200A-5 used for?
The Mean Well UHP-200A-5 is a 200W enclosed AC-DC power supply that provides a 5V DC output. It is suited to industrial and commercial equipment that needs a high-current 5V supply, especially where a low-profile enclosed design is preferred.
What are the main output specifications of the UHP-200A-5?
This model is rated for 5V DC output with up to 40A of current. Its total power rating is 200W, which makes it appropriate for higher-current 5V applications that need a compact enclosed supply.
How compact is the Mean Well UHP-200A-5?
A key feature of the UHP-200A-5 is its low-profile 26mm design. That makes it useful in equipment with limited vertical clearance where a slimmer enclosed power supply is needed.
Does the UHP-200A-5 use a fan for cooling?
No, the UHP-200A-5 has a fanless design and uses free air convection for cooling. This can be beneficial in applications where lower noise and reduced moving-part maintenance are important.
What input range does the UHP-200A-5 support?
The UHP-200A-5 supports universal AC input across 90 to 264VAC, and it also accepts 127 to 370VDC. It is also specified to withstand a 300VAC surge input for 5 seconds.
What protections are included in the Mean Well UHP-200A-5?
This model includes protection for short circuit, overload, over voltage, and over temperature. These built-in protections help support more reliable operation in demanding equipment environments.
What operating temperature range is specified for the UHP-200A-5?
The specified operating temperature range is -30°C to 70°C. That gives the UHP-200A-5 flexibility for use in a wide range of indoor equipment environments, provided the overall system stays within the product's rated limits.
What warranty comes with the Mean Well UHP-200A-5?
The Mean Well UHP-200A-5 includes a 3-year warranty. This matches the product's positioning as an industrial-grade enclosed power supply for long-term equipment use.
