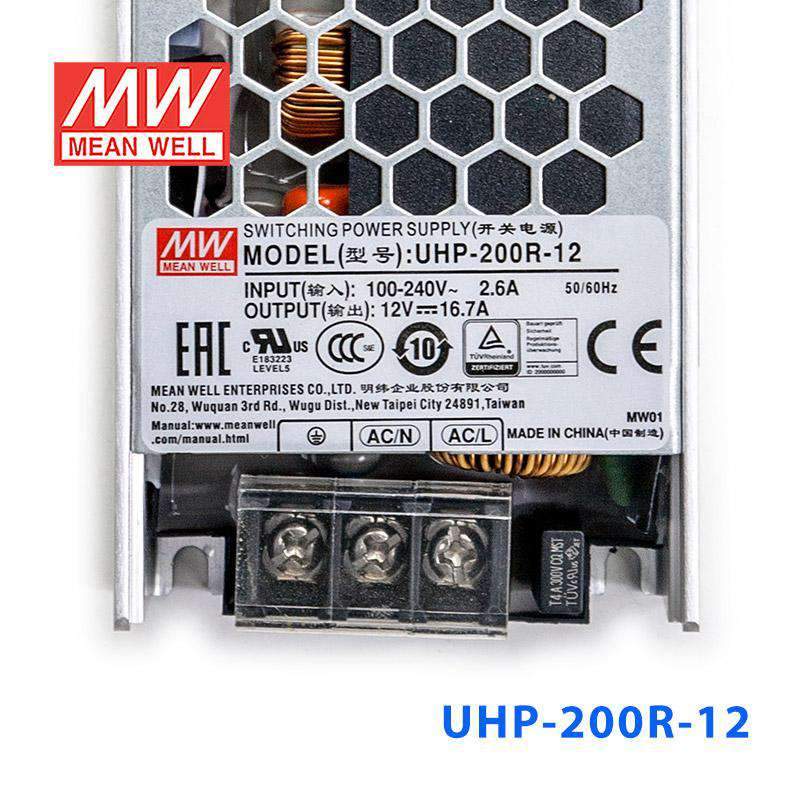

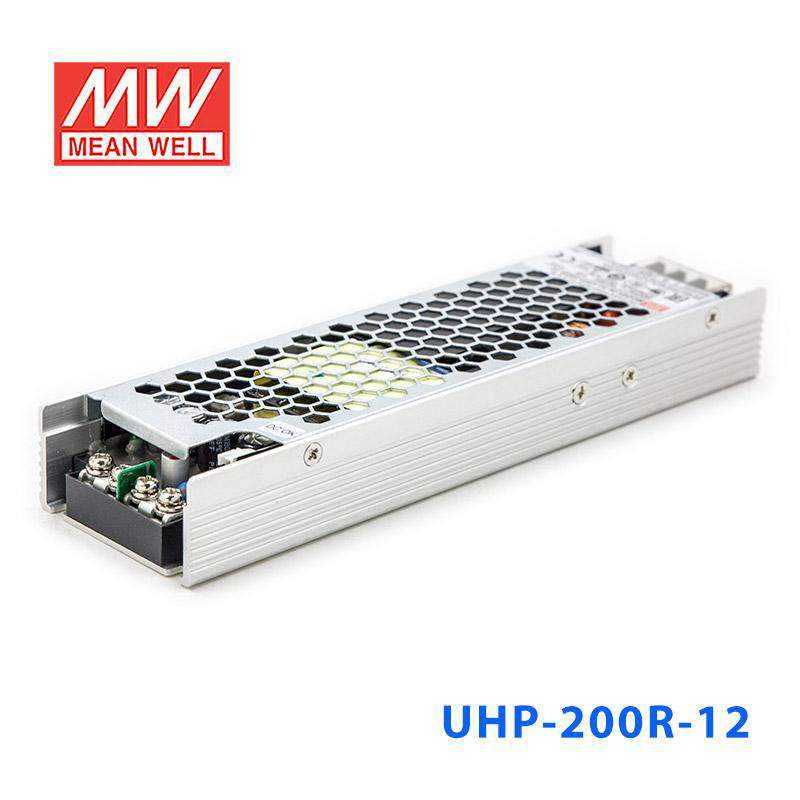

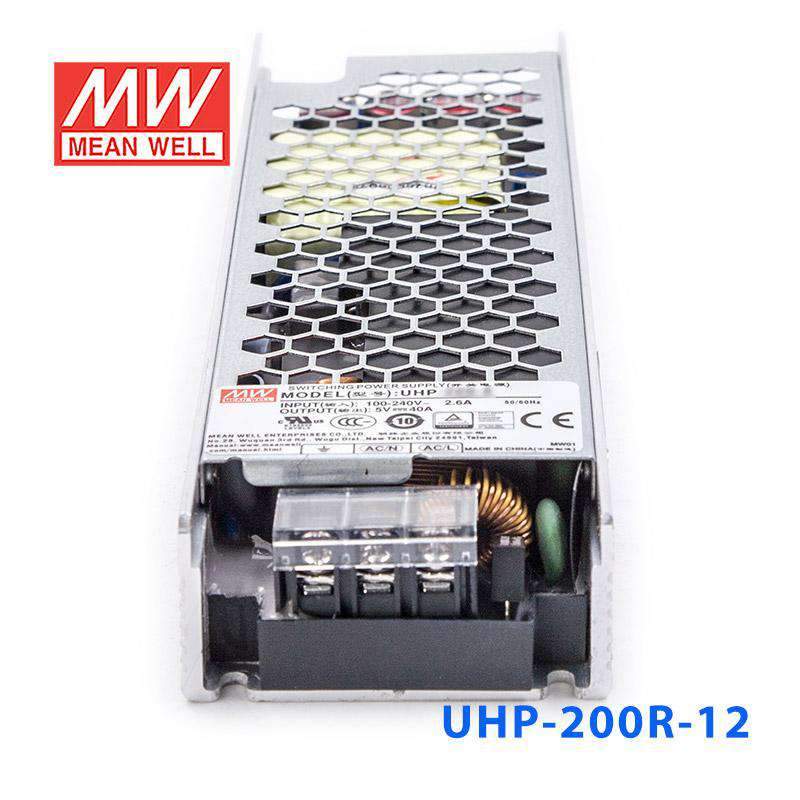

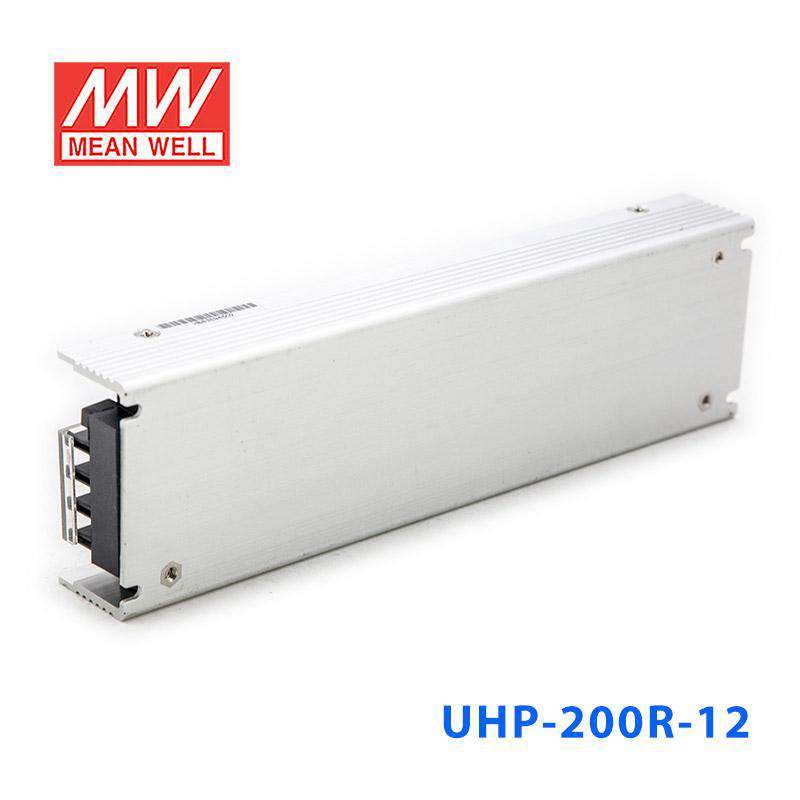

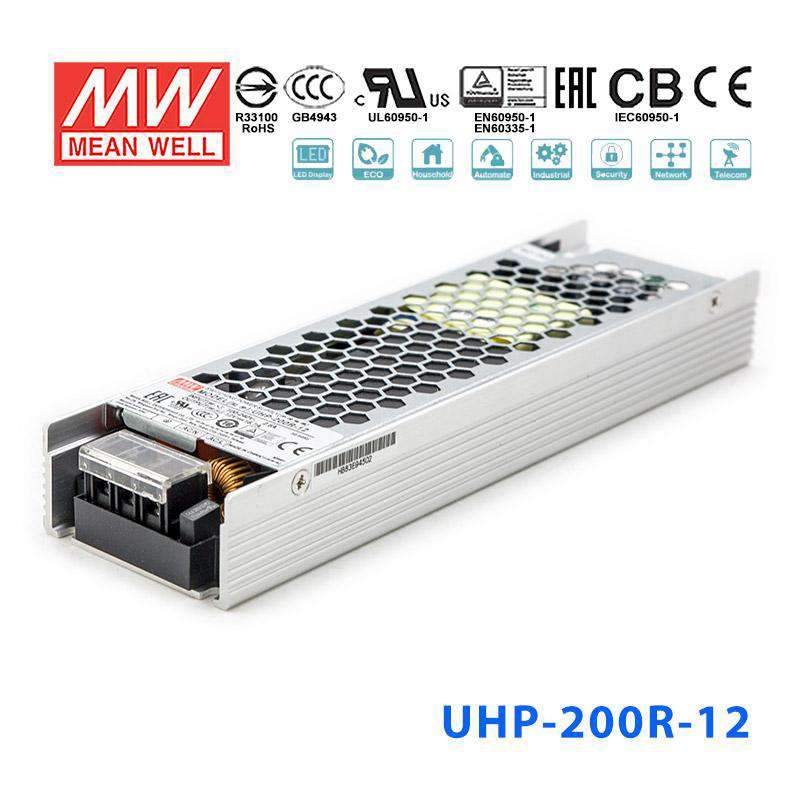

Mean Well UHP-200R-12 Power Supply 200.4W 12V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-200R-12 Power Supply 200.4W 12V - Redundant
The UHP-200R is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating200.4 Watt
-
Output Voltage12 Volt
-
Rated Current16.7 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200R-12 for a 12V PLC or automation control panel?
Yes, this is a constant voltage 12V model rated for 200.4W and 16.7A, which fits many 12V control and automation loads. The built-in DC OK and redundant function also make it more appropriate for systems where power status and continuity matter.
Is the UHP-200R-12 suitable for 12V security, telecom, or backup control equipment?
It can be used with 12V DC equipment in those categories when the total load stays within 200.4W and 16.7A. Because it includes DC OK and redundant function, it is better aligned with monitored 12V systems than a standard non-redundant supply.
Can this model power 12V relays, sensors, and panel accessories in an industrial enclosure?
Yes, if the combined 12V DC load does not exceed 16.7A or 200.4W. Its slim 194.0 × 55.0 × 26.0 mm form factor and fanless design are useful where enclosure space is limited.
Is the UHP-200R-12 a good choice when a 12V system needs power status monitoring?
Yes, that is one of the clearer fits for this version because the provided features include built-in DC OK and redundant function. Those features are relevant in 12V automation and control systems that need a monitored power source rather than only raw output power.
Can the UHP-200R-12 be used in outdoor equipment or unsealed areas?
Its operating temperature range is -30°C to +70°C, so the temperature specification is broad. The provided specs do not include an IP rating, so outdoor exposure or use in unsealed wet or dusty areas is not specified.
What are the other redundant UHP-200R voltage versions besides the 12V model?
Other UHP-200R variants listed are UHP-200R-3.3 at 132W, 3.3V, 40A; UHP-200R-4.2 at 168W, 4.2V, 40A; UHP-200R-5 at 200W, 5V, 40A; UHP-200R-15 at 201W, 15V, 13.4A; UHP-200R-24 at 201.6W, 24V, 8.4A; UHP-200R-36 at 201.6W, 36V, 5.6A; and UHP-200R-48 at 201.6W, 48V, 4.2A. The UHP-200R-12 itself is rated 200.4W at 12V and 16.7A.
