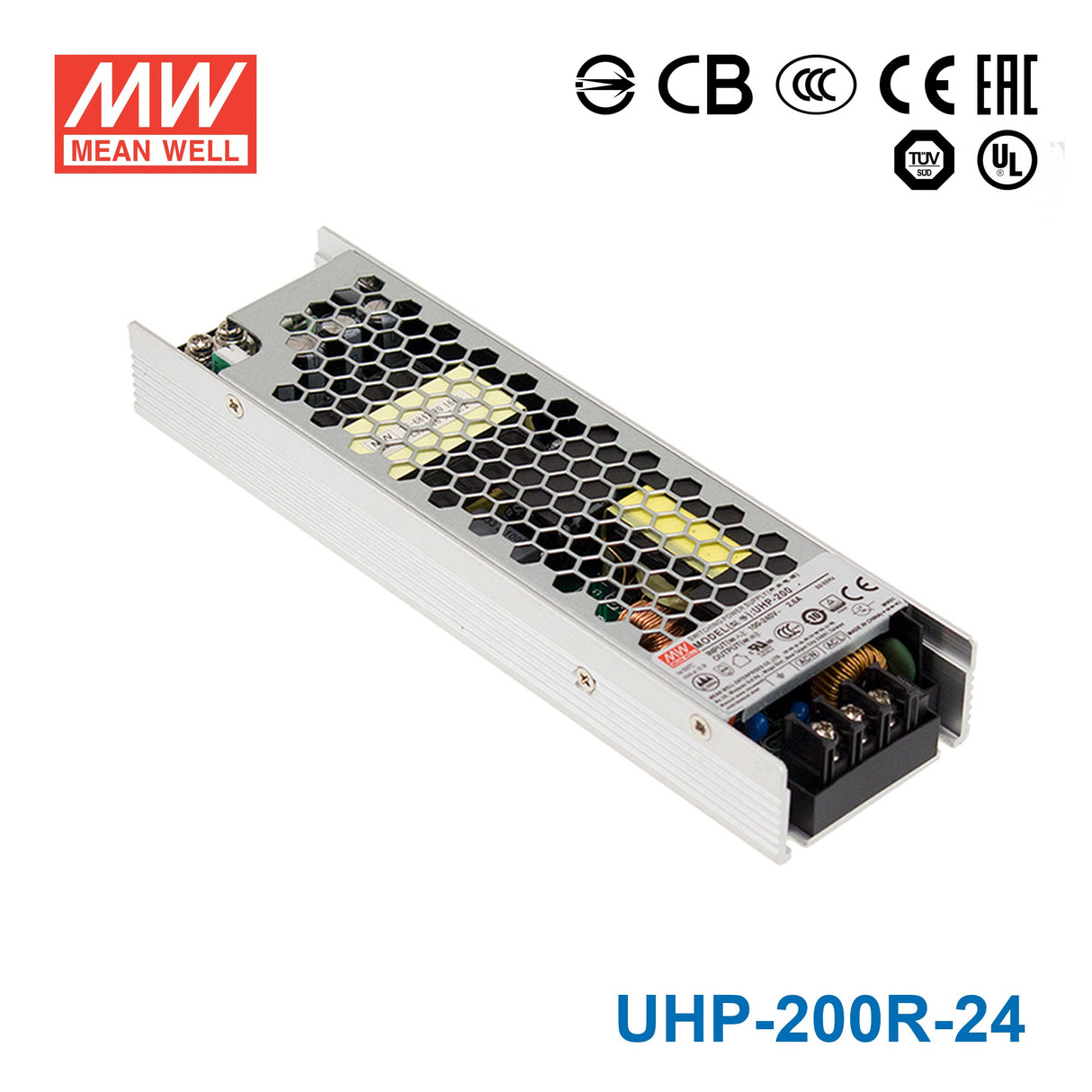

Mean Well UHP-200R-24 Power Supply 201.6W 24V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-200R-24 Power Supply 201.6W 24V - Redundant
The UHP-200R is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating201.6 Watt
-
Output Voltage24 Volt
-
Rated Current8.4 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200R-24 for a 24V PLC, I/O, or automation cabinet?
Yes, this model is a constant voltage 24V supply rated for 201.6W and 8.4A, which fits many 24V control loads. Its built-in DC OK and redundant function are also relevant in automation systems where power status and continuity are important.
Is the UHP-200R-24 suitable for 24V industrial sensors, actuators, and control accessories?
It can be used when the total 24V DC load remains within 8.4A and 201.6W. That makes it suitable for many 24V control subsystems, especially in protected industrial enclosures.
Can this redundant 24V power supply be used in DIN-cabinet style control builds where depth is limited?
It can fit compact control builds because the housing is only 26.0 mm high and measures 194.0 × 55.0 × 26.0 mm. The fanless design also helps in enclosed spaces where maintenance and airflow are concerns.
Would the UHP-200R-24 fit a 24V monitoring or alarm subsystem that needs a DC OK signal?
Yes, provided the subsystem needs a 24V constant voltage source and stays within 201.6W and 8.4A. The built-in DC OK and redundant function are useful where the power source needs to be monitored as part of the system design.
Can the UHP-200R-24 be used in outdoor control boxes?
The operating temperature range is -30°C to +70°C, which supports a broad temperature envelope. The listed specs do not provide an IP rating, so outdoor exposure is not established by the product data provided here.
What other redundant UHP-200R voltage options are available besides 24V?
The UHP-200R range also includes 3.3V at 132W and 40A, 4.2V at 168W and 40A, 5V at 200W and 40A, 12V at 200.4W and 16.7A, 15V at 201W and 13.4A, 36V at 201.6W and 5.6A, and 48V at 201.6W and 4.2A. The UHP-200R-24 is the 24V version rated 201.6W and 8.4A.
