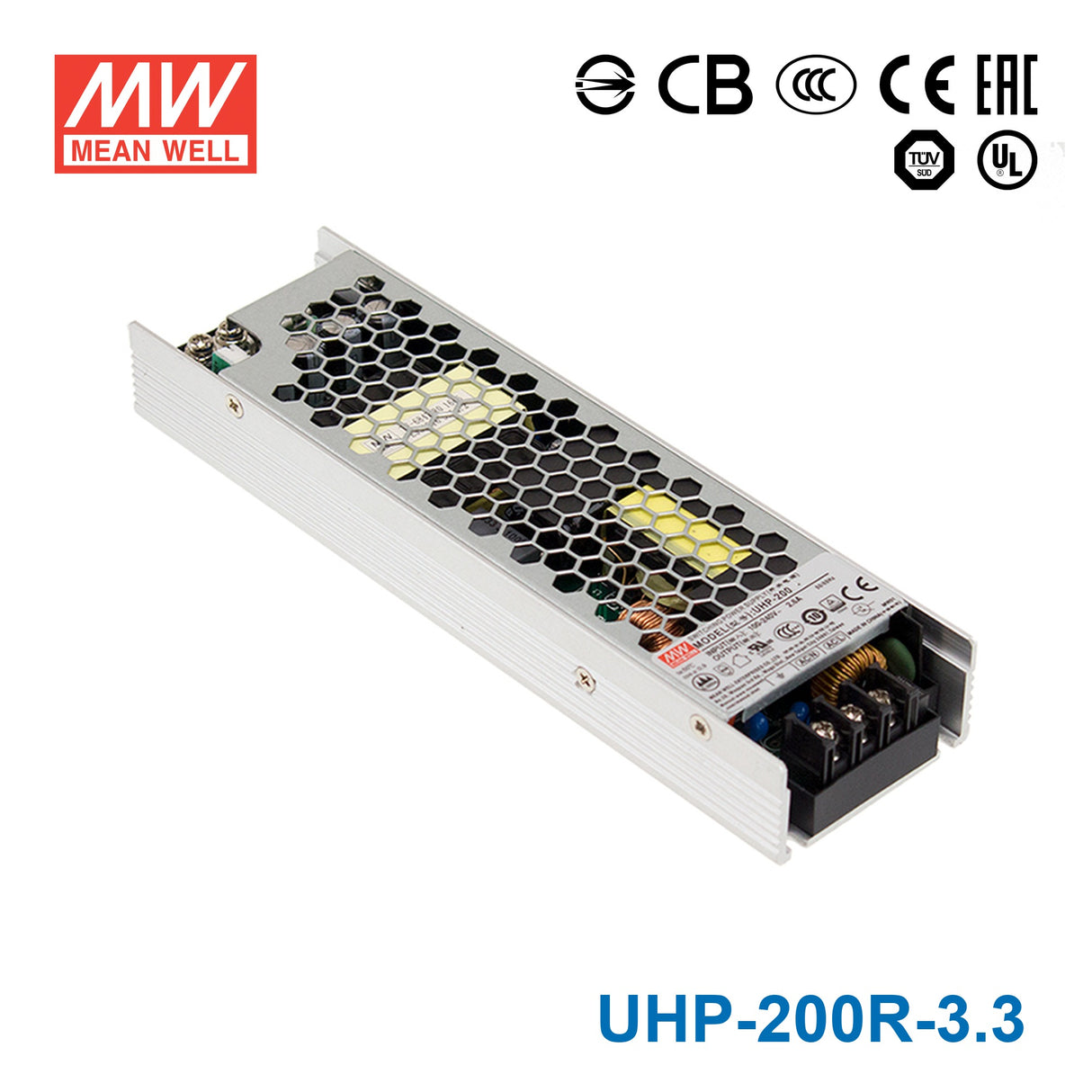

Mean Well UHP-200R-3.3 Power Supply 132W 3.3V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-200R-3.3 Power Supply 132W 3.3V - Redundant
The UHP-200R is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating132 Watt
-
Output Voltage3.3 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200R-3.3 for 3.3V logic rails in industrial or embedded equipment?
Yes, this model provides constant voltage 3.3V output rated for 132W and 40A. That makes it suitable for high-current 3.3V logic or embedded DC rails when the connected load matches those limits.
Is the UHP-200R-3.3 a good fit for FPGA, processor, or communication boards that run on 3.3V?
It can be, as long as the boards require a regulated 3.3V source and the total demand stays within 132W and 40A. Its redundant function and DC OK feature can also matter in systems where board power status must be monitored.
Can this power supply be used for 3.3V industrial computing or edge-control hardware?
Yes, if the hardware is designed for 3.3V constant voltage input and the load does not exceed 40A. The fanless design and 194.0 × 55.0 × 26.0 mm low-profile housing also support compact protected equipment layouts.
Would the UHP-200R-3.3 work in a redundant low-voltage electronics rack?
Yes, that is one of the more specific reasons to choose this model because it combines 3.3V output with built-in DC OK and redundant function. It is intended for low-voltage DC systems that need monitoring and continuity features, not for 5V, 12V, 24V, 36V, or 48V loads.
Is the UHP-200R-3.3 suitable for outdoor electronics enclosures?
The stated operating temperature range is -30°C to +70°C. The provided specifications do not list an IP rating, so outdoor or wet-location suitability is not defined by the available product data.
How does the UHP-200R-3.3 compare with the other voltage versions in the UHP-200R family?
Other listed UHP-200R models are 4.2V at 168W and 40A, 5V at 200W and 40A, 12V at 200.4W and 16.7A, 15V at 201W and 13.4A, 24V at 201.6W and 8.4A, 36V at 201.6W and 5.6A, and 48V at 201.6W and 4.2A. The UHP-200R-3.3 is the 3.3V version and is rated 132W at 40A.
