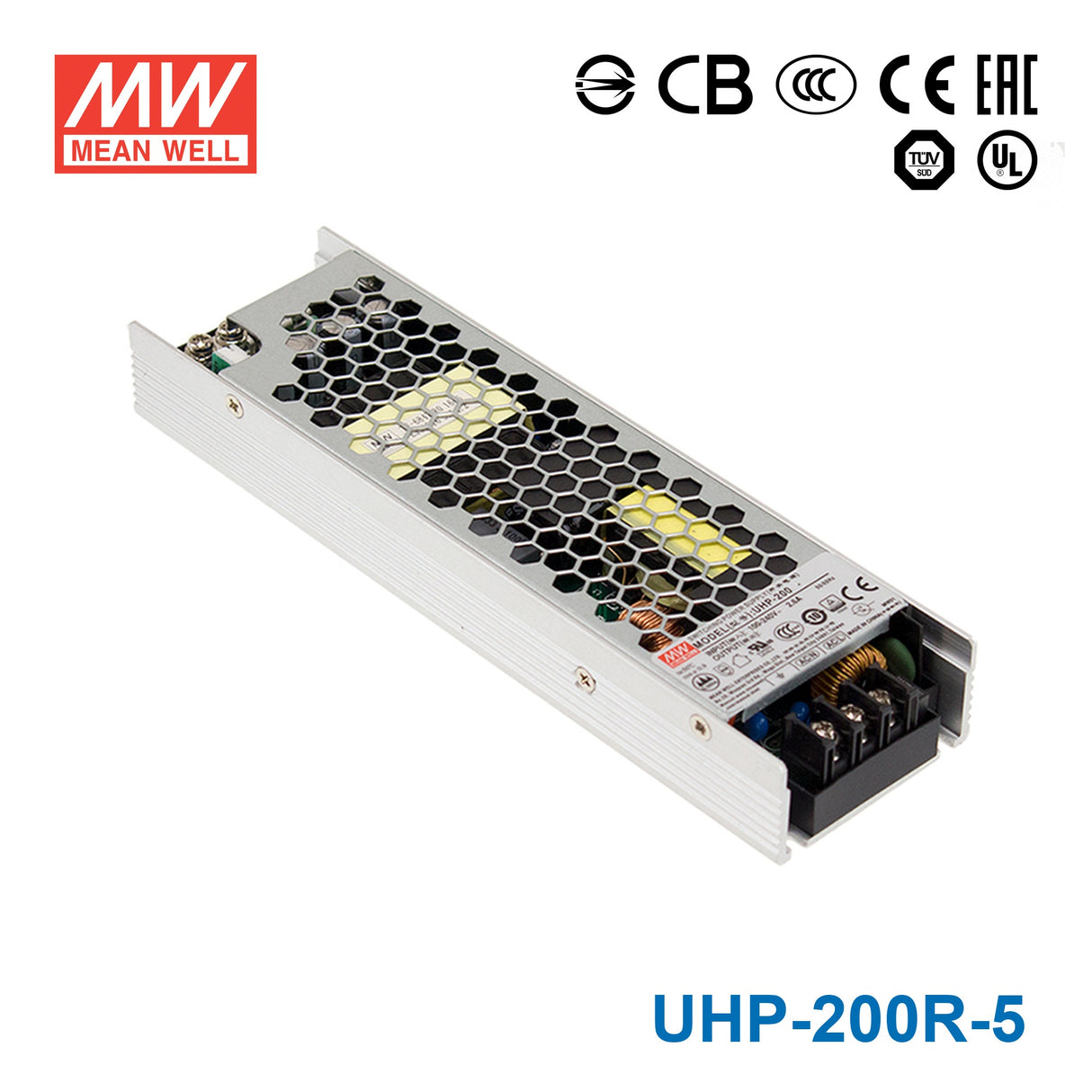

Mean Well UHP-200R-5 Power Supply 200W 5V - Redundant
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well UHP-200R-5 Power Supply 200W 5V - Redundant
The UHP-200R is a 200W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+70℃).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: UL60950-1,TUV EN60950-1,EN60335-1, CCC GB4943, EAC TP TC 004, BSMI CNS14336-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating200 Watt
-
Output Voltage5 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.64 in
-
Width2.17 in
-
Height1.02 in
-
Weight1.03 lb
::specification::
Frequently Asked Questions
Can I use the UHP-200R-5 for a 5V industrial controller or embedded computing load?
Yes, if the equipment needs a regulated 5V constant voltage supply and stays within 200W and 40A. That makes it relevant for high-current 5V electronics rather than higher-voltage industrial buses.
Is the UHP-200R-5 suitable for powering multiple 5V logic or processing boards from one supply?
It can be, because the output is 5V constant voltage with up to 40A available and a total rating of 200W. The exact fit depends on the combined 5V load remaining inside those limits.
Can this model be used for a redundant 5V DC rail in industrial electronics?
Yes, the built-in redundant function and DC OK feature make it suitable for monitored 5V DC architectures that require redundancy support. It is intended for 5V systems only, with maximum output of 40A and 200W.
Does the UHP-200R-5 make sense for compact low-profile equipment?
It is a slim unit at 194.0 × 55.0 × 26.0 mm and weighs 0.468 kg, so it works well where enclosure depth and weight matter. The fanless design also helps in applications where low-noise and low-profile hardware are preferred.
Is the UHP-200R-5 intended for indoor or outdoor conditions?
The operating temperature range is -30°C to +70°C, which supports demanding temperature conditions. No IP rating is listed, so it is best treated as a supply for protected environments rather than exposed outdoor use.
How does the UHP-200R-5 compare with the other UHP-200R redundant models?
The UHP-200R family includes 3.3V at 132W and 40A, 4.2V at 168W and 40A, 5V at 200W and 40A, 12V at 200.4W and 16.7A, 15V at 201W and 13.4A, 24V at 201.6W and 8.4A, 36V at 201.6W and 5.6A, and 48V at 201.6W and 4.2A. This version is the 5V high-current model in that redundant group.
