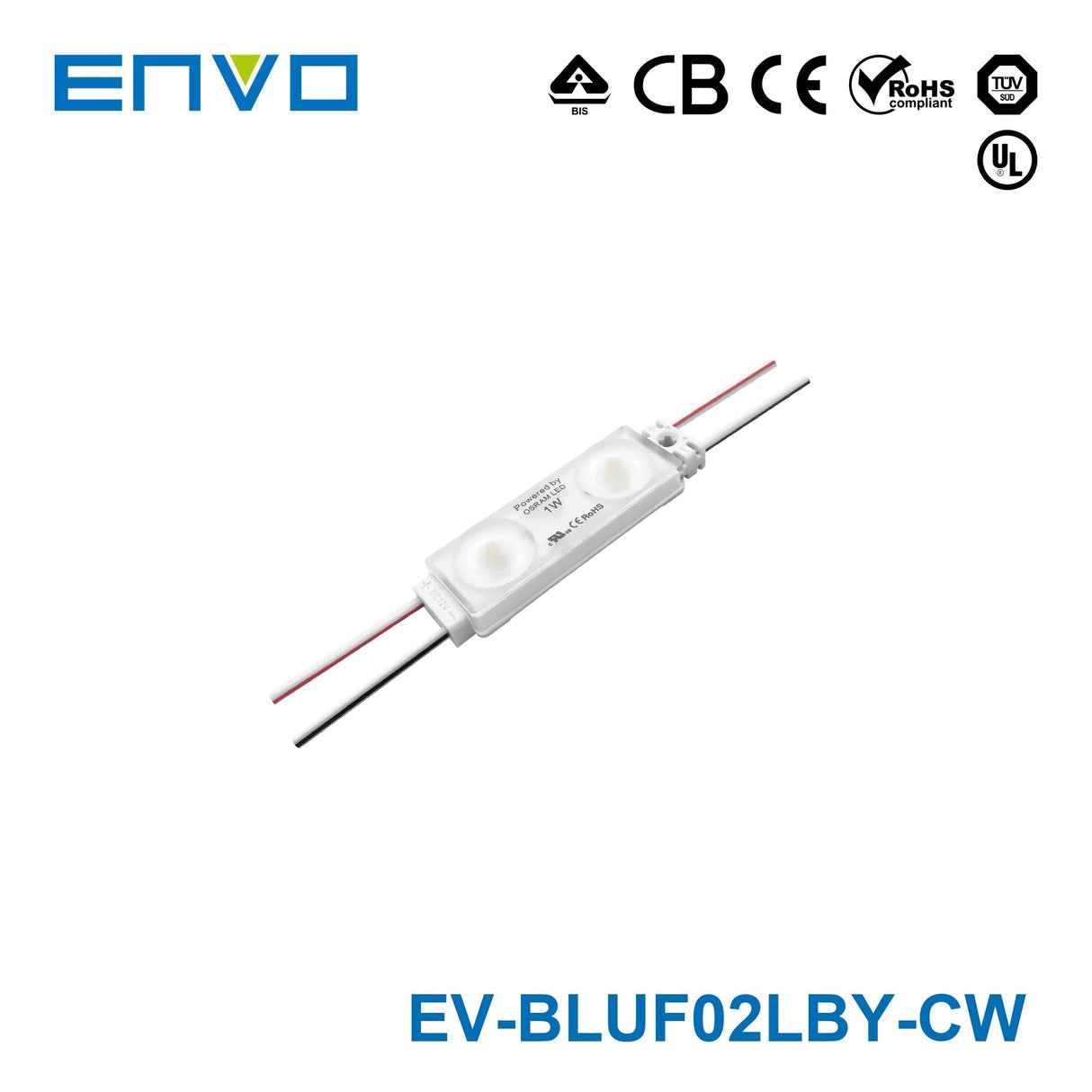

ENVO UltraFlare LED Module Backlit - Double LED
Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.
Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.
Effortless Brilliance with OSRAM Technology
The UltraFlare LED Modules by ENVO are designed to deliver superior lighting solutions for illuminated letters and light boxes, making them perfect for high-traffic environments such as airports, metros, banks, buildings, and shopping malls. With high-performance OSRAM 2835 LEDs, these modules ensure your displays shine with unparalleled clarity and brightness.
Key Features:
- Powered by High Output OSRAM 2835 LED: Experience exceptional brightness and efficiency with high-quality OSRAM LEDs, ensuring your signage is always eye-catching.
- Constant Current System: Offers stable and reliable lighting performance, enhancing the durability and longevity of the LED modules.(Constant Voltage Input)
- Integrated Transparent 170° Optic Lens: Provides a wide-angle light distribution for uniform and comprehensive coverage, maximizing visibility and minimizing shadows.
- Efficient String Configuration: Each string contains 50 modules, allowing for flexible installation tailored to various project needs.
- Certified Quality and Safety: The UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, underscoring ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.
Application:
These modules are ideal for illuminated letters and light boxes with depths ranging from 6-15 cm, providing effective illumination in various commercial and public settings.
Illuminate your signage with the UltraFlare LED Modules by ENVO, where advanced technology meets reliability to deliver superior lighting solutions tailored to your specific needs.
-
BrandEnvo
-
SeriesUltraFlare
-
Power Rating1 Watt
-
Rated Current0.08 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty7 Year
-
Length2.08 in
-
Width0.61 in
-
Height0.41 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What is the ENVO UltraFlare LED Module Backlit - Double LED designed for?
This LED module is designed for illuminated letters and light boxes in commercial and public environments. It is positioned for high-visibility signage applications such as airports, metros, banks, buildings, and shopping malls, and is suited to sign depths from 6-15 cm.
What light output and optical performance does this LED module family provide?
Across the family, each module is rated at 1 W and delivers 110 lumens. It also uses an integrated 170° optic lens to provide wide, even light distribution for backlit signage and light boxes.
What are the available color temperature options in this product family?
This parent family is available in three color temperature options: 3000K, 4000K, and 6500K. Those options let buyers choose a warmer, more neutral, or cooler appearance while keeping the same core module performance and form factor.
Is the ENVO UltraFlare Double LED module dimmable?
Yes, this product family is listed as dimmable. It also uses a constant current system with constant voltage input to support stable lighting performance across the range.
What durability and lifespan can buyers expect from this LED module?
The module is rated for a 50,000-hour lifetime and comes with a 7-year warranty. The product description also highlights 100% production testing and materials selected for durability and consistent performance.
What certifications does this LED module family have?
The UltraFlare LED Module family is described as CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate attention to product quality, safety, and environmental standards.
