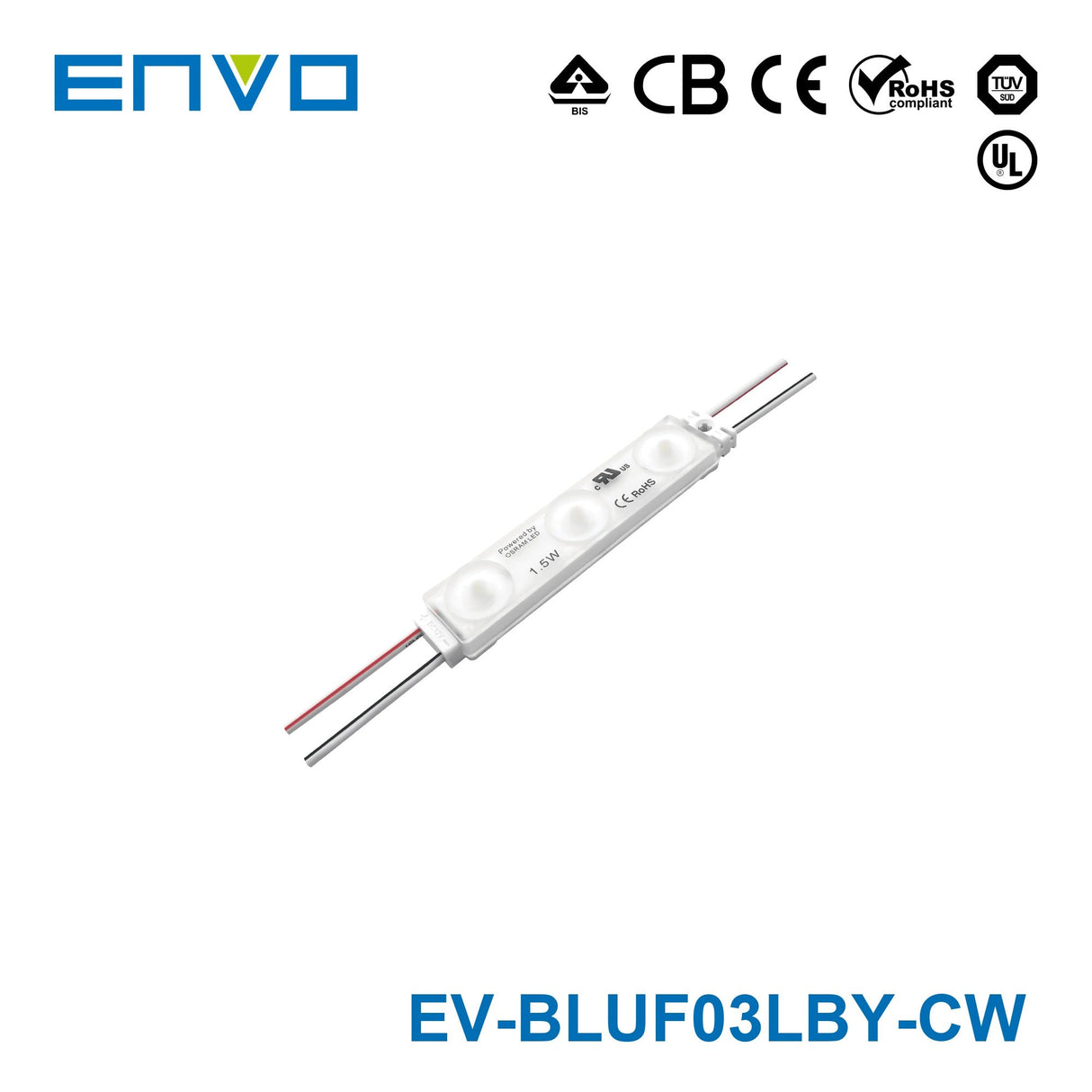

ENVO UltraFlare LED Module Backlit - Triple LED
Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.
Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.
Effortless Brilliance with OSRAM Technology
The UltraFlare LED Modules by ENVO are designed to deliver superior lighting solutions for illuminated letters and light boxes, making them perfect for high-traffic environments such as airports, metros, banks, buildings, and shopping malls. With high-performance OSRAM 2835 LEDs, these modules ensure your displays shine with unparalleled clarity and brightness.
Key Features:
- Powered by High Output OSRAM 2835 LED: Experience exceptional brightness and efficiency with high-quality OSRAM LEDs, ensuring your signage is always eye-catching.
- Constant Current System: Offers stable and reliable lighting performance, enhancing the durability and longevity of the LED modules.(Constant Voltage Input)
- Integrated Transparent 170° Optic Lens: Provides a wide-angle light distribution for uniform and comprehensive coverage, maximizing visibility and minimizing shadows.
- Efficient String Configuration: Each string contains 50 modules, allowing for flexible installation tailored to various project needs.
- Certified Quality and Safety: The UltraFlare LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, underscoring ENVO's commitment to maintaining high standards of quality, safety, and environmental responsibility.
Application:
These modules are ideal for illuminated letters and light boxes with depths ranging from 6-15 cm, providing effective illumination in various commercial and public settings.
Illuminate your signage with the UltraFlare LED Modules by ENVO, where advanced technology meets reliability to deliver superior lighting solutions tailored to your specific needs.
-
BrandEnvo
-
SeriesUltraFlare
-
Power Rating1.5 Watt
-
Rated Current0.13 Ampere
-
Dimming ControlDimmable
-
Standards MetBIS,CB,CE,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty7 Year
-
Length3.06 in
-
Width0.61 in
-
Height0.41 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What types of signage is the ENVO UltraFlare LED Module Backlit - Triple LED designed for?
This LED module family is intended for illuminated letters and light boxes in commercial and public-facing environments. The product description specifically positions it for high-traffic sites such as airports, metros, banks, buildings, and shopping malls. It is suited to sign depths from 6-15 cm.
How do the variants in this family differ?
The main difference across the family is color temperature: 3000K warm white, 4000K neutral white, and 6500K cool white. All listed variants keep the same 1.5W power rating, 165 lm output, 170° beam angle, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty. That means the selection is primarily about the lighting tone you want in the finished sign.
Is this LED module a good fit for shallow backlit letters or light boxes?
Yes. This family is specified for illuminated letters and light boxes with depths between 6 cm and 15 cm, which makes it suitable for many shallow to mid-depth sign builds. The integrated 170° optic lens is designed to help spread light broadly for more even face illumination.
What performance specifications are consistent across the UltraFlare Triple LED family?
Each variant in this family is rated at 1.5W and delivers 165 lumens with a 170° beam angle and CRI 80. The modules are dimmable, use 12V power input, and are built around high-output OSRAM 2835 LEDs. Physical size is 77.8 mm long, 15.4 mm wide, and 10.4 mm high, with a weight of 16 g per module.
Is this product family suitable for demanding commercial environments?
Yes. ENVO positions this family for demanding commercial signage applications, and the modules are described as fully tested during production for reliability. The product also carries CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications, which supports its use where quality and compliance matter. A 50,000-hour lifetime and 7-year warranty further reinforce its long-service commercial focus.
