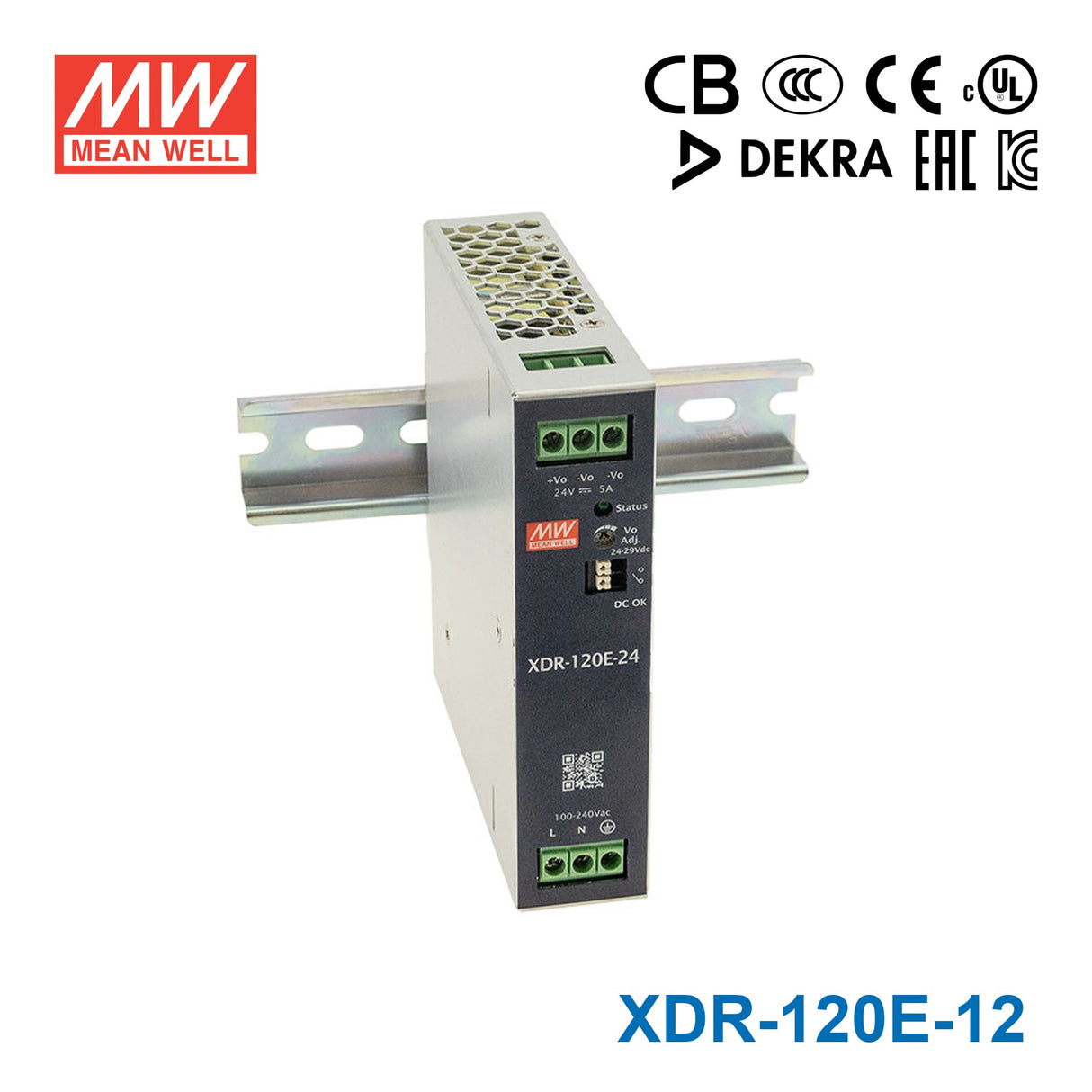

Mean Well XDR-120E-12 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating120 Watt
-
Output Voltage12 Volt
-
Rated Current10 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-120E-12?
The XDR-120E-12 is rated for 120 W output power with a 12 V DC output. Its rated output current is 10 A, making it suitable for 12 V DC loads within that power range.
What type of applications is the XDR-120E-12 intended for?
This model is an ultra slim DIN rail power supply for industrial and B2B power applications. Its 12 V, 120 W output and slim 30 mm width make it a good fit where panel space is limited and regulated DC power is required.
What makes the XDR-120E-12 different from wider DIN rail power supplies?
The XDR-120E-12 has a 30 mm slim-width design, which helps reduce space usage in DIN rail layouts. It still provides 120 W of output power at 12 V, so it is useful when both compact size and meaningful power capacity are important.
What operating temperature range does the XDR-120E-12 support?
The XDR-120E-12 is specified for operation from -40°C to +70°C. The product data notes derating above +50°C, so available output capacity may be reduced at higher ambient temperatures.
How efficient is the Mean Well XDR-120E-12?
The XDR-120E-12 has efficiency up to 91%. It also has no-load power dissipation below 1 W, which helps reduce standby energy use when the connected load is minimal.
What input voltage range does the XDR-120E-12 accept?
This model supports an 85 to 264 Vac input range. That wide AC input range makes it suitable for use across many standard AC supply environments, subject to the product's listed certifications and ratings.
What protections are included with the XDR-120E-12?
The XDR-120E-12 includes protection against short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
Does the XDR-120E-12 use a fan for cooling?
No, the XDR-120E-12 uses a fanless design. Cooling is by free air convection, which can be useful in applications where lower maintenance and reduced moving parts are preferred.
What warranty and weight are listed for the XDR-120E-12?
The XDR-120E-12 has a listed warranty period of 3 years. Its listed weight is 0.4200 kg.
