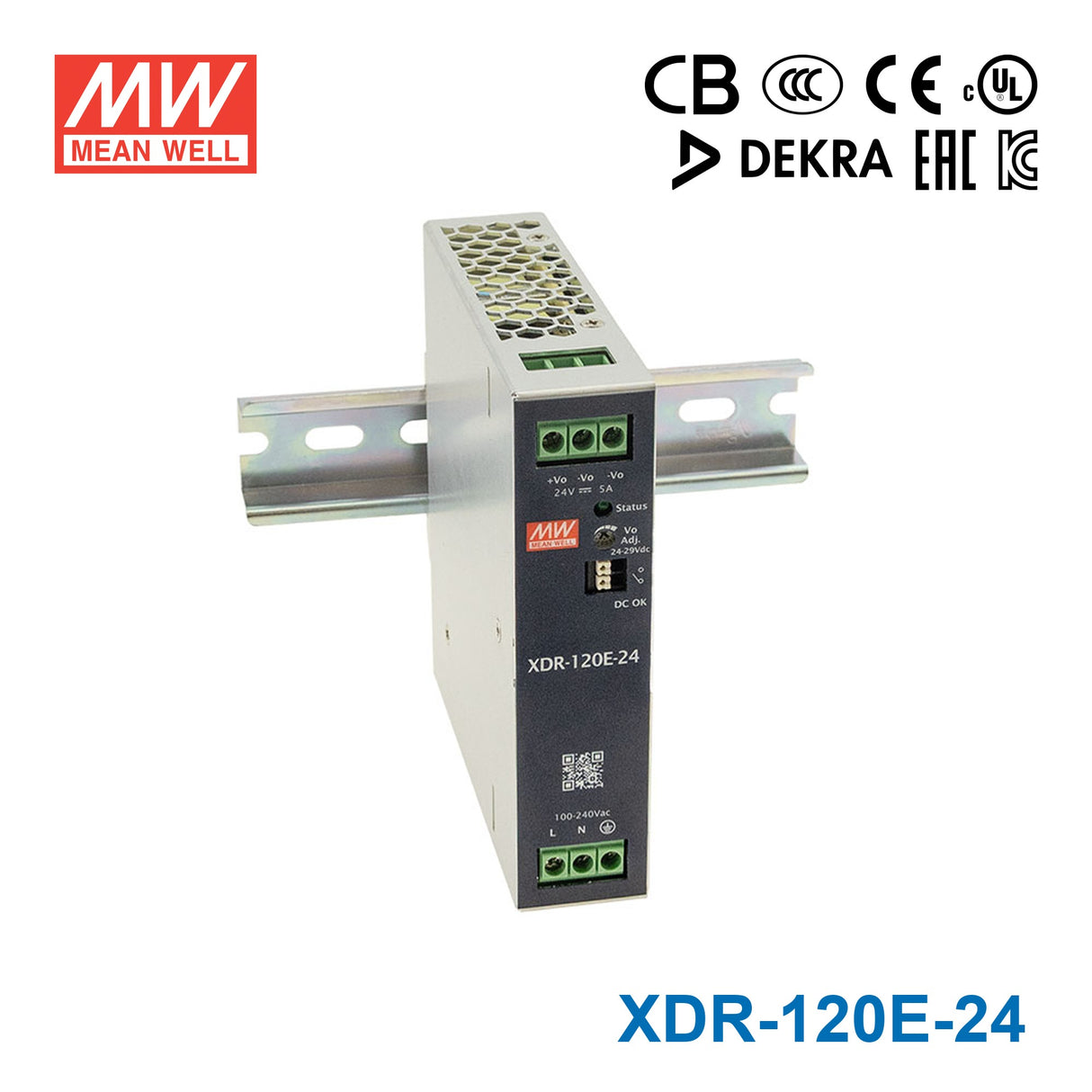

Mean Well XDR-120E-24 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
What are the output ratings of the Mean Well XDR-120E-24?
The Mean Well XDR-120E-24 is rated for 120W output power. It provides a 24V DC output with a rated current of 5A.
What input voltage range does the XDR-120E-24 support?
The XDR-120E-24 supports an 85 to 264Vac input range. This wide AC input range makes it suitable for use across many regions and industrial power environments.
What types of applications is the XDR-120E-24 intended for?
This model is an economical ultra slim DIN rail power supply for 24V DC systems. It is suited to industrial control panels, automation equipment, and other B2B power supply applications that require a compact 120W source.
What makes the XDR-120E-24 a slim DIN rail power supply?
The XDR-120E-24 has a 30mm slim width, which helps reduce space usage in DIN rail applications. That compact format is a key difference from wider 120W power supplies.
What operating temperature range does the XDR-120E-24 support?
The XDR-120E-24 is rated for operation from -40°C to +70°C. The product description notes derating above +50°C, so available output capacity may be reduced at higher ambient temperatures.
What protection features are included with the XDR-120E-24?
The XDR-120E-24 includes protection against short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
How efficient is the XDR-120E-24?
The XDR-120E-24 has high efficiency up to 91%. Its no-load power dissipation is listed as less than 1W.
What certifications are listed for the XDR-120E-24?
The listed certifications include ITE 62368-1, Industrial 61558-1/-2-16, and 61010. The product description also identifies it as having global certificates across multiple fields.
What warranty and weight are listed for the XDR-120E-24?
The XDR-120E-24 has a listed warranty period of 3 years. Its listed weight is 0.42 kg.
