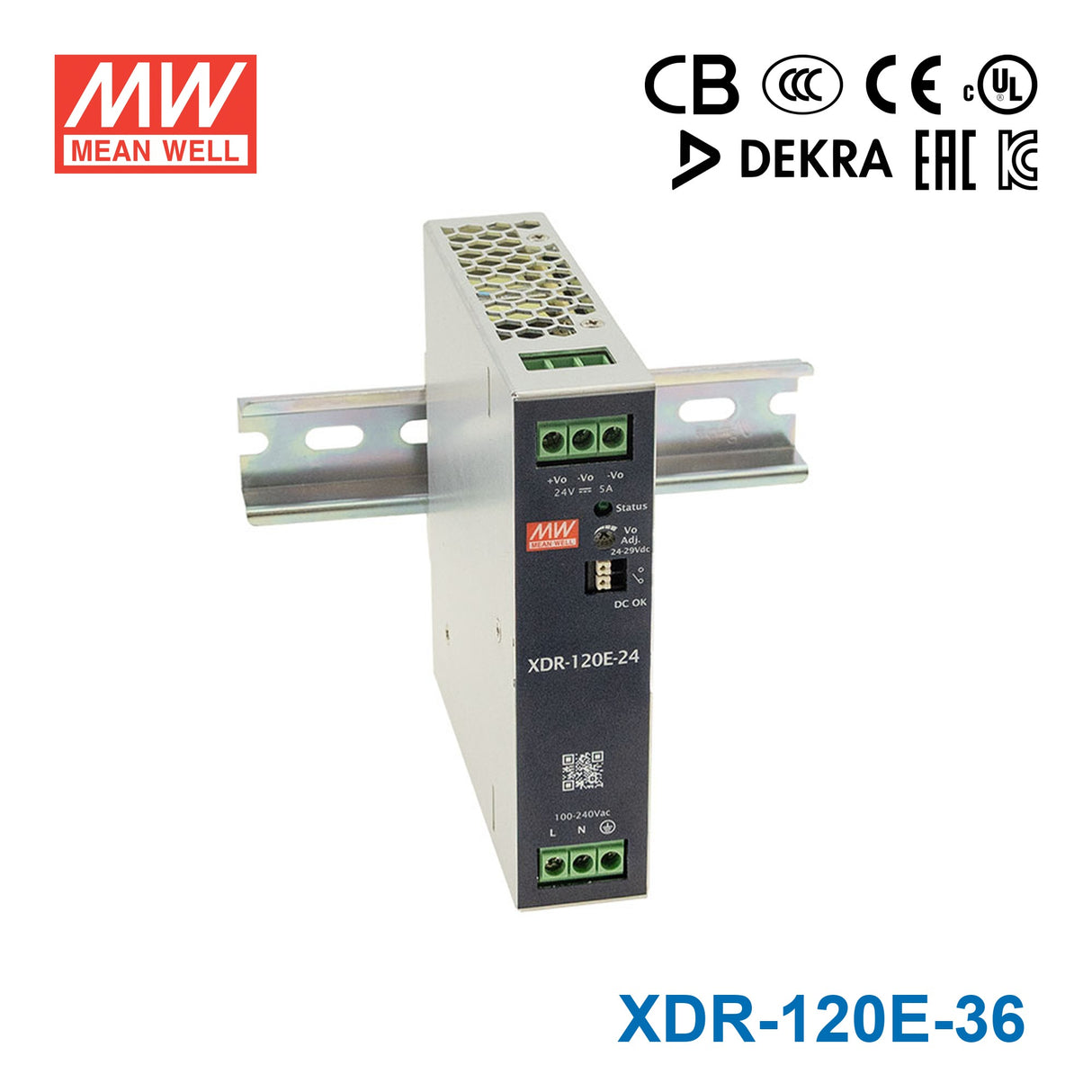

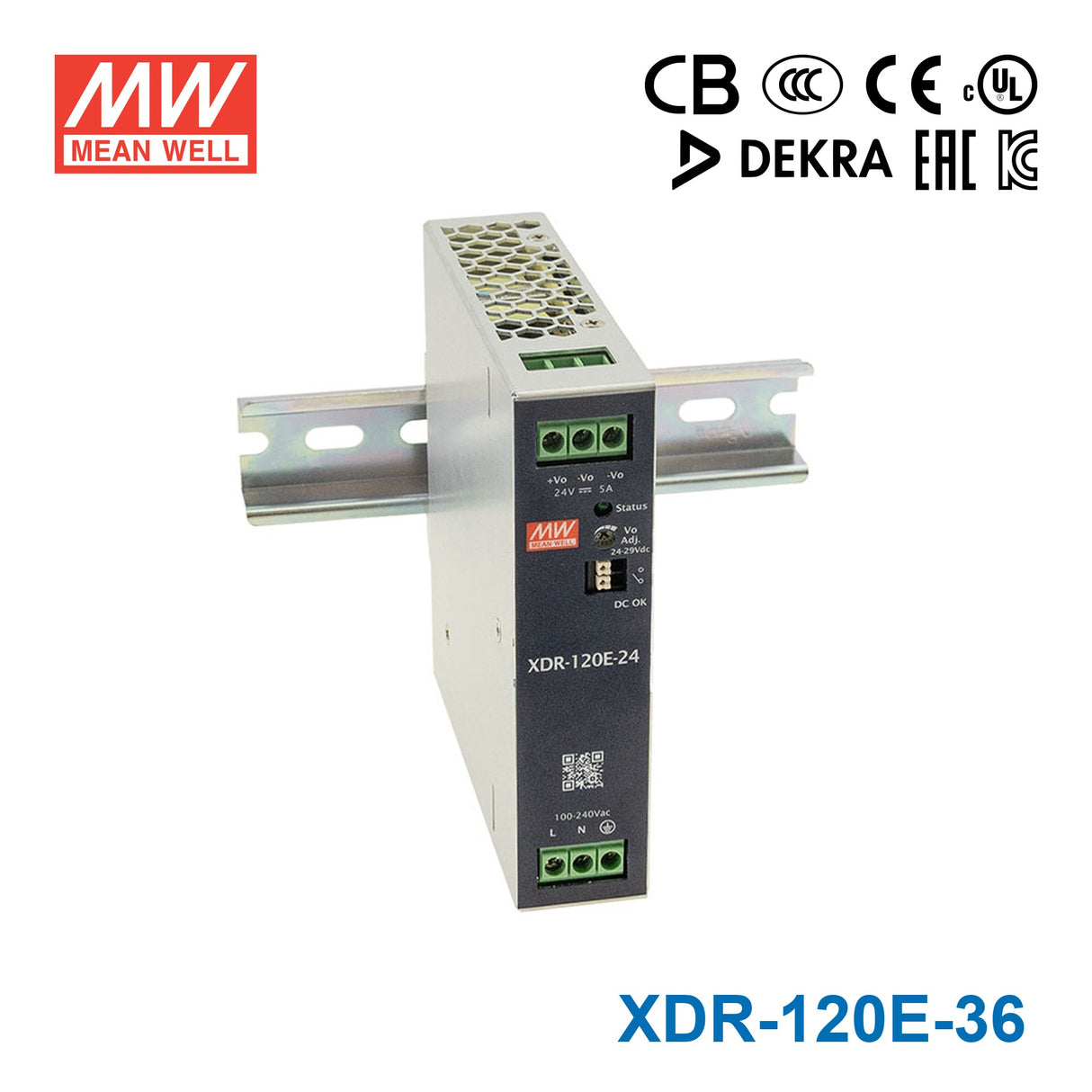

Mean Well XDR-120E-36 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width(30mm slim width)
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating120 Watt
-
Output Voltage36 Volt
-
Rated Current3.33 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.93 lb
::specification::
Frequently Asked Questions
What is the output rating of the Mean Well XDR-120E-36?
The XDR-120E-36 is rated for 119.88W of output power. It provides a 36V output with a rated current of 3.33A.
Is the XDR-120E-36 suitable for DIN rail power supply applications?
Yes, this model belongs to the DIN rail power supply family and is listed in DIN rail and slim DIN rail categories. Its 30mm slim width makes it suitable for applications where panel space is limited.
What input voltage range does the XDR-120E-36 support?
The XDR-120E-36 supports an 85 to 264Vac input range. This wide AC input range helps make it suitable for use across different mains environments where the product approvals and system requirements are appropriate.
What operating temperature range is specified for the XDR-120E-36?
This model is specified for operation from -40°C to +70°C. The product description notes derating above +50°C, so available output power may be reduced at higher ambient temperatures.
What protections are included with the XDR-120E-36?
The XDR-120E-36 includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
How efficient is the XDR-120E-36?
The XDR-120E-36 is specified with efficiency up to 91%. It also has no-load power dissipation of less than 1W.
What warranty period applies to the XDR-120E-36?
The XDR-120E-36 has a listed warranty period of 3 years. This applies to this specific 120W, 36V model as provided in the product data.
