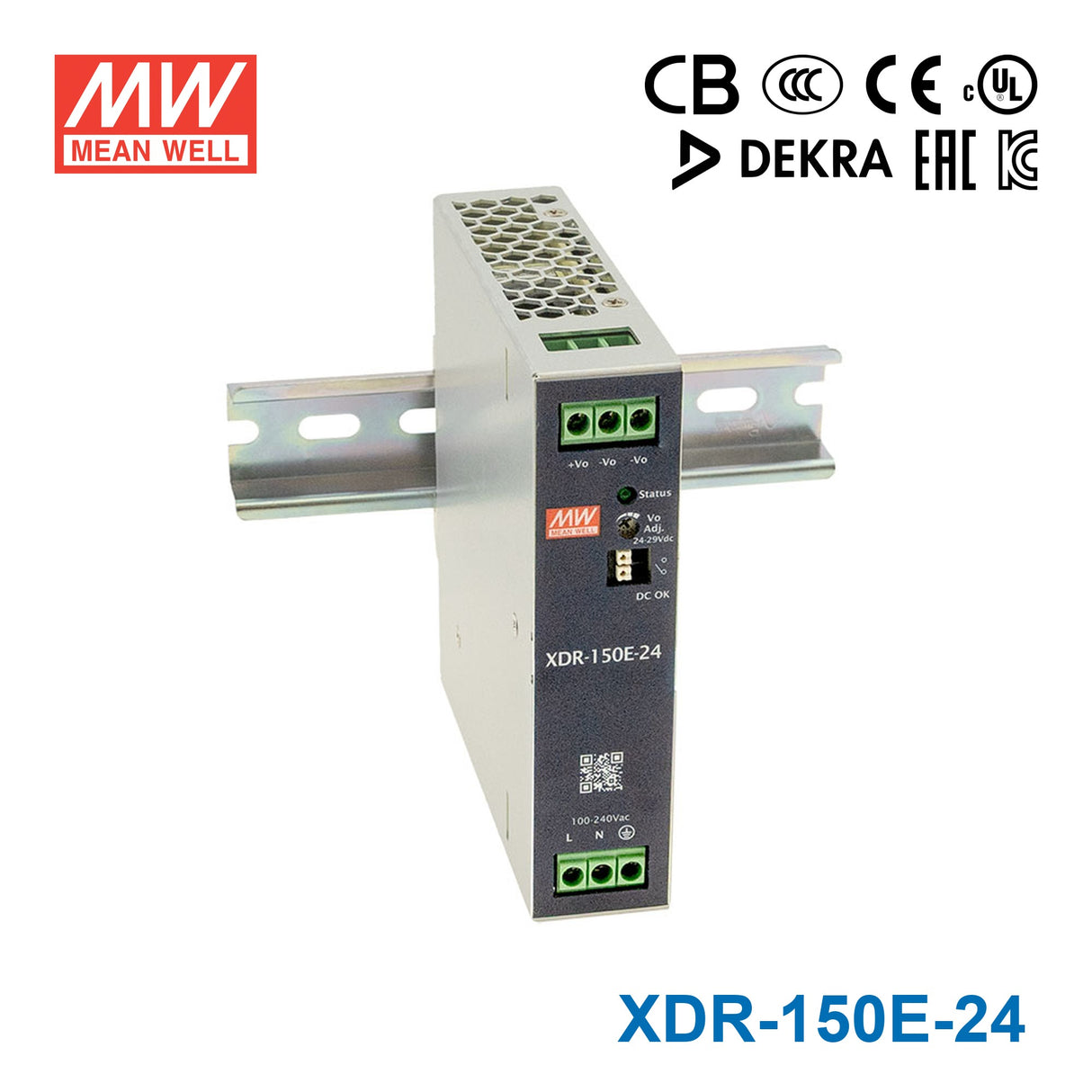

Mean Well XDR-150E-24 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating125 Watt
-
Output Voltage24 Volt
-
Rated Current5.2 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
What output does the Mean Well XDR-150E-24 provide?
The XDR-150E-24 is listed with a 24 V output and 5.2 A rated current. Based on those output values, the listed power rating is 125 W.
What type of applications is the XDR-150E-24 suited for?
This model is a DIN rail power supply for industrial and B2B power systems that need a compact 24 V DC source. Its slim 30 mm width makes it a practical choice where panel space is limited.
What temperature range can the XDR-150E-24 operate in?
The XDR-150E-24 is specified for operation from -40°C to +70°C. Operation above +50°C requires derating according to the product specifications.
How efficient is the XDR-150E-24?
The XDR-150E-24 has high efficiency listed up to 91%. It also has no-load power dissipation below 1 W, which helps reduce wasted energy when the load is light.
Does the XDR-150E-24 support global AC input?
Yes. The listed input range is 85 to 264 Vac, making it suitable for many global AC power environments where this input range is required.
Can the XDR-150E-24 be used at high altitude?
The XDR-150E-24 is specified for operating altitude up to 5000 meters. That makes it suitable for applications where high-altitude operation is part of the equipment requirement.
What protections are included with the XDR-150E-24?
The XDR-150E-24 includes protections for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
What makes the XDR-150E-24 different from larger DIN rail power supplies?
A key differentiator of this model is its 30 mm slim width. It is designed for buyers who need a 24 V DIN rail supply with compact physical size, fanless cooling, and industrial certificate coverage.
