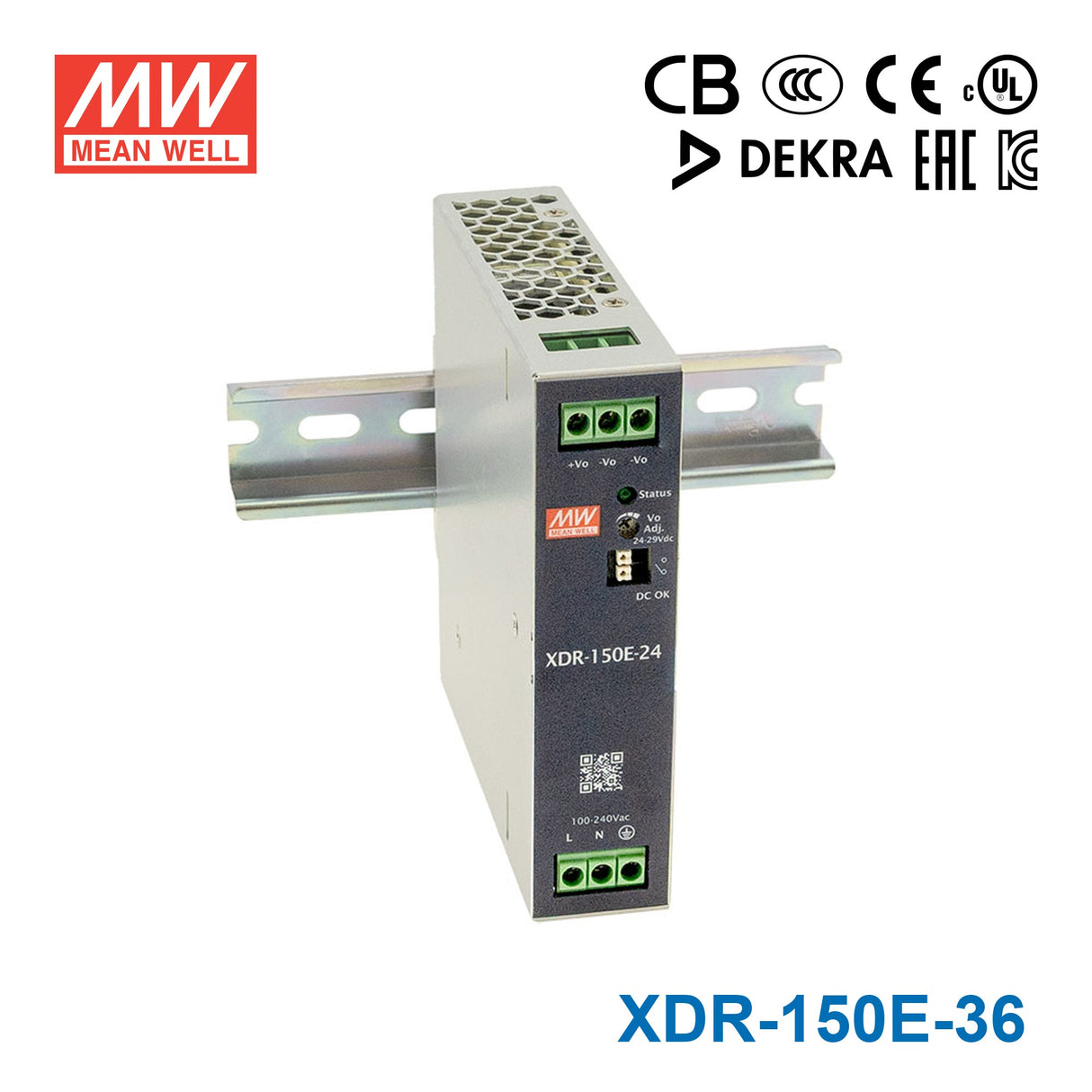

Mean Well XDR-150E-36 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating125 Watt
-
Output Voltage36 Volt
-
Rated Current3.47 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
What output does the Mean Well XDR-150E-36 provide?
The XDR-150E-36 provides a 36V DC output with a rated current of 3.47A. The listed power rating is 125W, making it suitable for 36V industrial loads within that power range.
Is the XDR-150E-36 suitable for compact control panels?
Yes. This model has a 30mm slim DIN rail form factor, which is useful where panel space is limited. Its fanless design also helps keep the unit simple for enclosed industrial environments where free air convection is available.
What input voltage range does this power supply support?
The XDR-150E-36 supports an 85~264Vac input range. This wide AC input range makes it practical for systems that may be used across different regions or facilities.
What operating temperature range is supported?
This model is rated for operation from -40°C to +70°C. The provided product data notes derating above +50°C, so buyers should account for reduced output capacity at higher ambient temperatures.
What protections are built into the XDR-150E-36?
The XDR-150E-36 includes protection against short circuit, overload, over voltage, and over temperature conditions. It also uses a built-in constant current limiting circuit.
How efficient is this model?
The XDR-150E-36 is listed with efficiency up to 91%. It also has no-load power dissipation below 1W, which can help reduce standby energy use in always-on industrial systems.
What certifications are listed for this power supply?
The provided specifications list global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. These certifications are useful for buyers evaluating the unit for industrial and equipment applications.
What warranty period applies to the XDR-150E-36?
The XDR-150E-36 is listed with a 3-year warranty period. This is useful for B2B buyers comparing lifecycle support across DIN rail power supply options.
