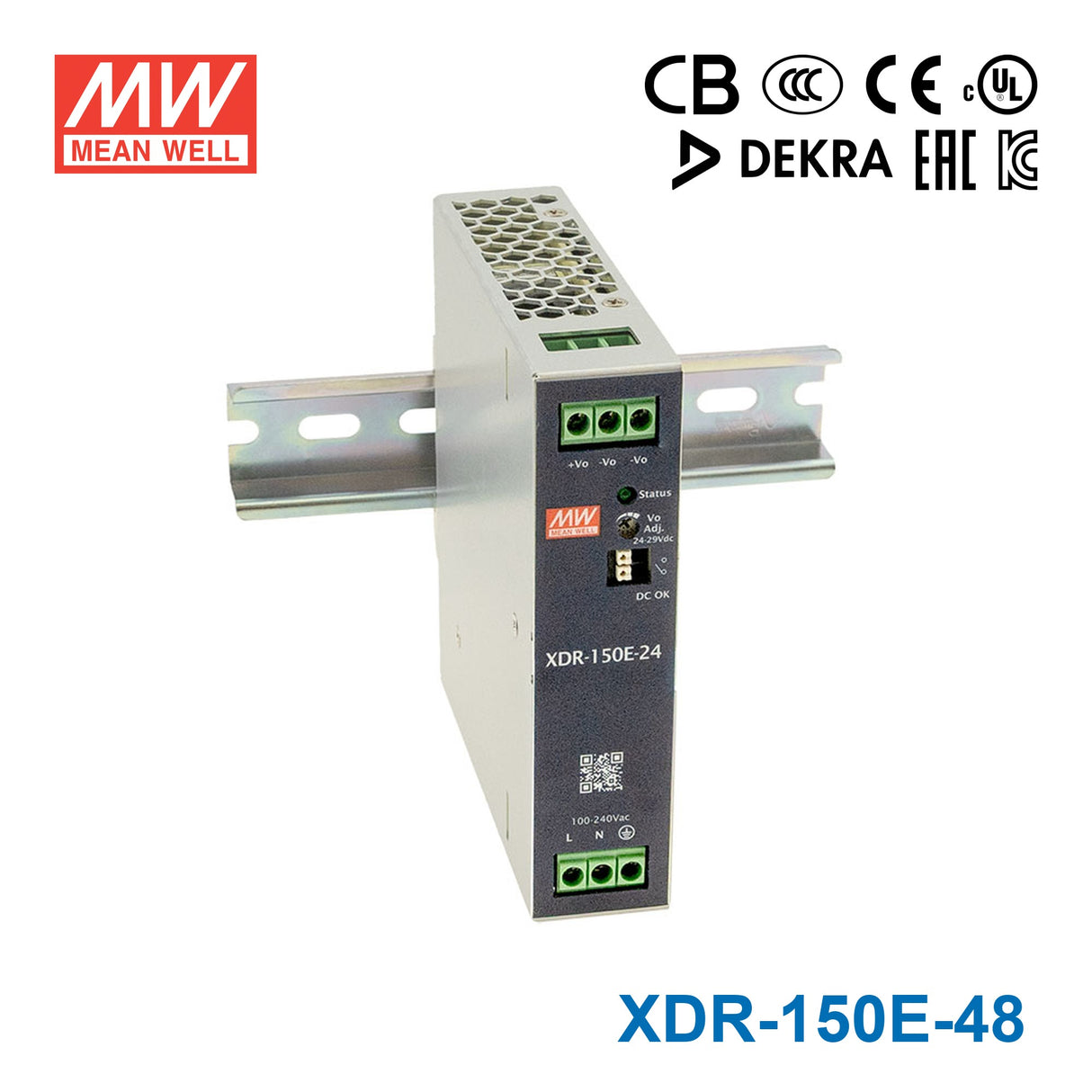

Mean Well XDR-150E-48 Economical Ultra Slim Din Rail Power Supply 1...
Key Features
- ✓85~264Vac input range
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓30mm slim width
- ✓High efficiency up to 91% and no-load power dissipation<1W
- ✓Built-in constant current limiting circuit
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating125 Watt
-
Output Voltage48 Volt
-
Rated Current2.6 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length4.57 in
-
Width1.18 in
-
Height4.93 in
-
Weight0.95 lb
::specification::
Frequently Asked Questions
What output does the Mean Well XDR-150E-48 provide?
The XDR-150E-48 provides a 48V DC output with a rated current of 2.6A. Based on the provided product data, its listed power rating is 125W.
What types of applications is the XDR-150E-48 suited for?
This model is a DIN rail DC power supply intended for industrial and B2B power applications where a 48V DC output is required. Its slim 30mm width makes it useful in control cabinets or equipment layouts where panel space is limited.
What temperature range can the XDR-150E-48 operate in?
The XDR-150E-48 is rated for operation from -40°C to +70°C. The product data notes derating above +50°C, so available output capacity may be reduced at higher ambient temperatures.
Why choose the XDR-150E-48 over a wider DIN rail power supply?
The XDR-150E-48 has an ultra slim 30mm width, which can help conserve DIN rail space. It also provides up to 91% efficiency and no-load power dissipation under 1W, making it a practical choice where compact size and efficient standby operation matter.
Does the XDR-150E-48 support global input voltage?
Yes. The XDR-150E-48 supports an 85 to 264Vac input range, which is suitable for many global AC mains environments when used within the product's specified ratings.
Is the XDR-150E-48 fanless?
Yes. The XDR-150E-48 uses a fanless design with cooling by free air convection, which helps reduce moving parts and fan noise in suitable operating conditions.
What protections are included with the XDR-150E-48?
The product data lists protection against short circuit, overload, over voltage, and over temperature conditions. It also includes a built-in constant current limiting circuit.
What certifications are listed for the XDR-150E-48?
The XDR-150E-48 is listed with global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It is also described as Overvoltage Category III, or OVC III.
