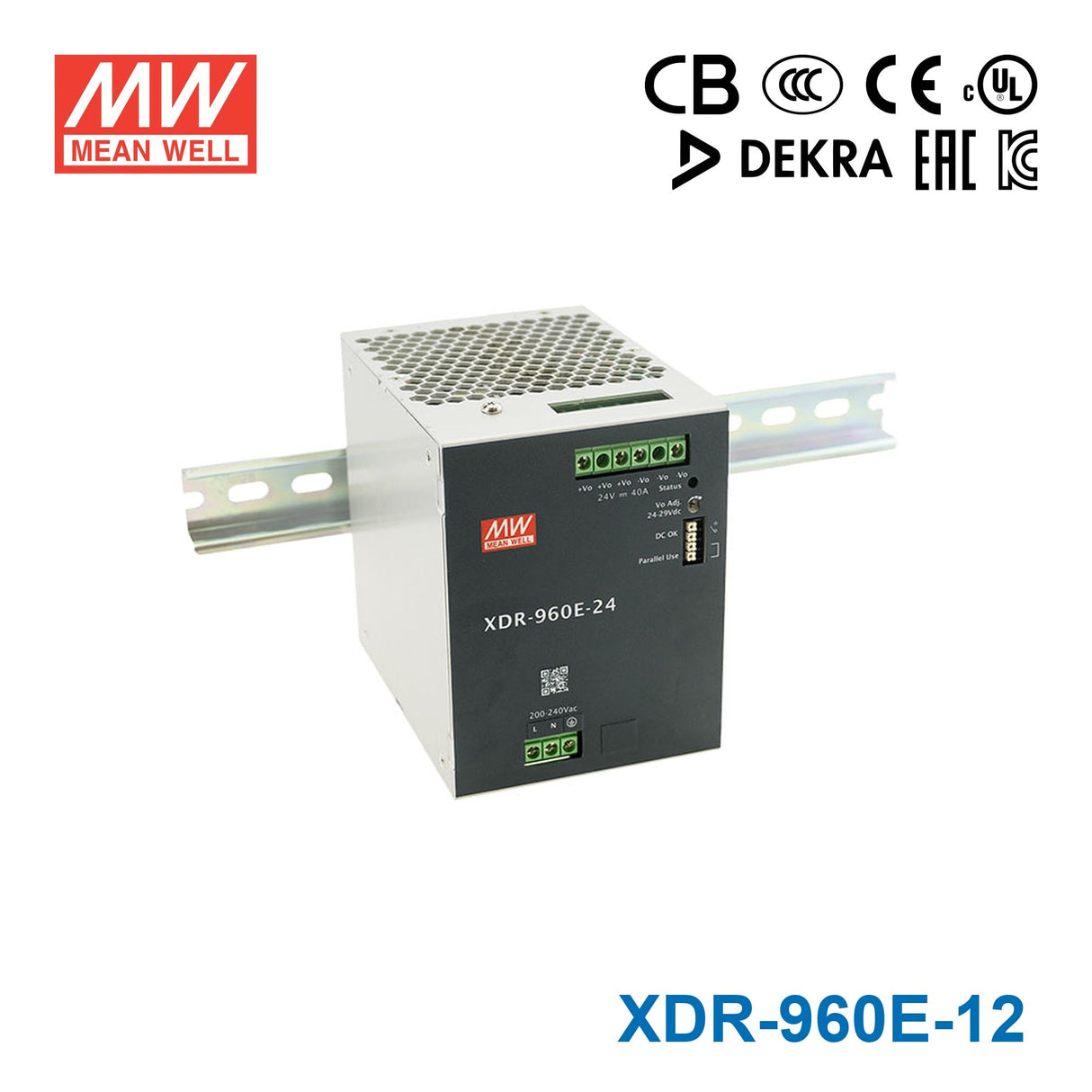

Mean Well XDR-960E-12 Economical Ultra Slim Din Rail Power Supply 9...
Key Features
- ✓180~264Vac input with PFC
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓96mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<3.6W
- ✓Built-in constant current limiting circuit
- ✓Current sharing up to 3840W (3+1) for parallel use
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
::specification::
Frequently Asked Questions
What is the power rating of the Mean Well XDR-960E-12?
The XDR-960E-12 is listed with a 960 W power rating. The provided specifications list 24 V output and 40 A rated current, although the product name references 12 V, so the voltage should be confirmed against the official product record before purchase.
Is the XDR-960E-12 suitable for DIN rail power supply applications?
Yes. This model is in the DIN rail power supply family and is described as an economical ultra slim DIN rail power supply. Its 96 mm slim width is useful where panel space is limited.
What input range does this power supply support?
The XDR-960E-12 is listed with a 180 to 264 Vac input range with PFC. That makes it a high-power AC input DIN rail supply for systems that match this input requirement.
Can this model be used in higher-power parallel systems?
The product description states that the XDR-960E-12 supports current sharing up to 3840 W in a 3+1 parallel configuration. This makes it relevant for buyers planning redundant or higher-capacity power architectures, subject to the system design requirements.
What operating temperature range is listed for the XDR-960E-12?
The listed operating temperature range is -40 °C to 70 °C. This wide range supports use in demanding industrial environments where temperature tolerance is important.
Does the XDR-960E-12 use a fan?
No. The description lists a fanless design with cooling by free air convection. This can be useful in applications where lower acoustic noise and fewer moving parts are preferred.
What protections are included with this power supply?
The XDR-960E-12 is listed with protection against short circuit, overload, over voltage, and over temperature conditions. These protections are important for industrial and B2B power supply applications.
What warranty period is listed for the XDR-960E-12?
The listed warranty period for this model is 3 years. Warranty coverage can be an important comparison point when selecting a DIN rail power supply for business or industrial use.
