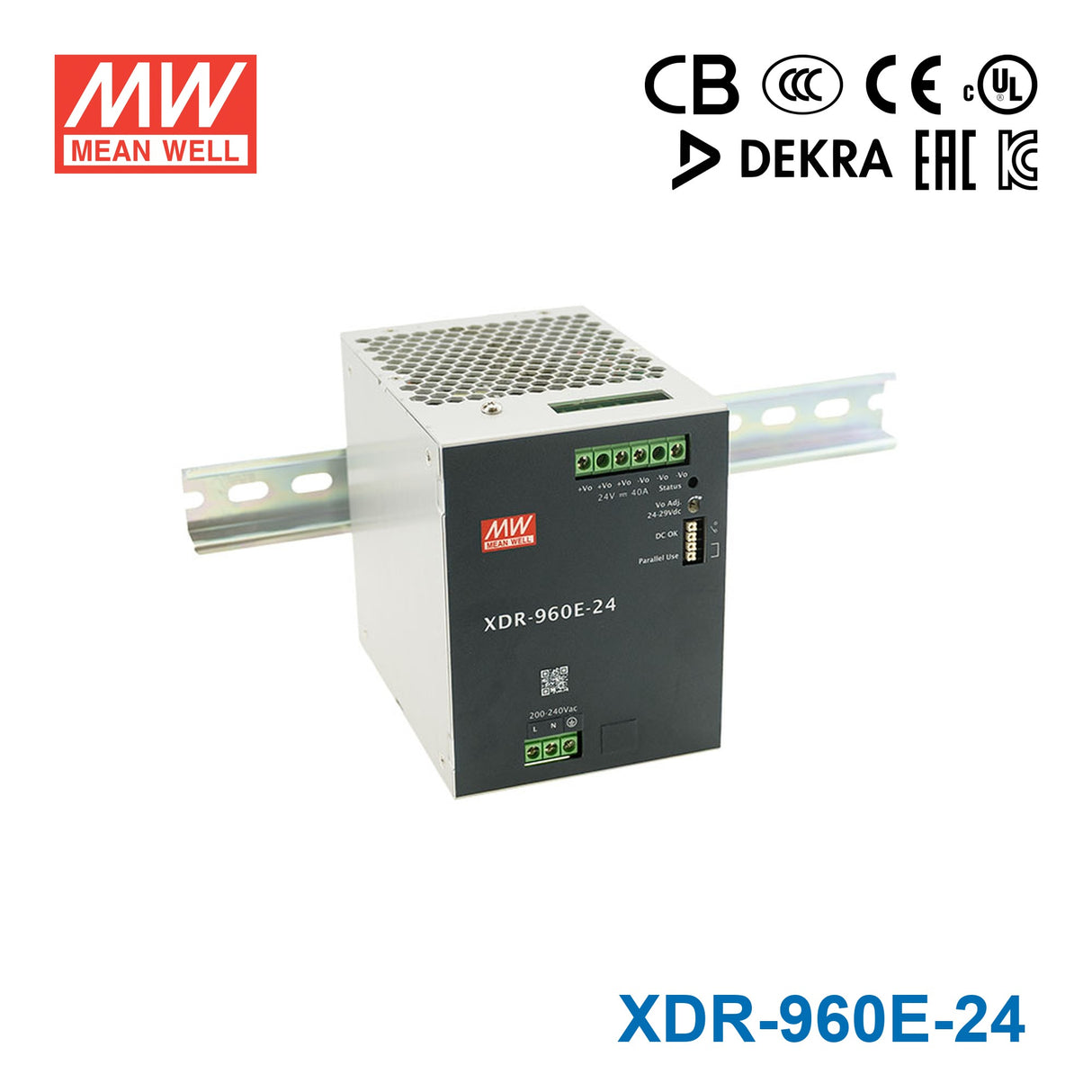

Mean Well XDR-960E-24 Economical Ultra Slim Din Rail Power Supply 9...
Key Features
- ✓180~264Vac input with PFC
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓96mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<3.6W
- ✓Built-in constant current limiting circuit
- ✓Current sharing up to 3840W (3+1) for parallel use
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating960 Watt
-
Output Voltage24 Volt
-
Rated Current40 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
::specification::
Frequently Asked Questions
What are the main output specifications of the Mean Well XDR-960E-24?
The XDR-960E-24 is a 960W DIN rail power supply with a 24V DC output. It is rated for 40A output current, making it suitable for higher-power 24V industrial power systems.
What types of applications is the XDR-960E-24 suited for?
This model is suited for 24V industrial and control-panel applications that need up to 960W of DC power. Its DIN rail format, slim 96mm width, and fanless convection cooling make it practical for space-constrained electrical cabinets.
Can the XDR-960E-24 operate in harsh temperature conditions?
Yes. The XDR-960E-24 is specified for operation from -40°C to 70°C, giving it a wide temperature range for industrial environments. Final usable power at elevated temperatures should be checked against the official derating information for the model.
What makes the XDR-960E-24 different from a standard-width DIN rail power supply?
The XDR-960E-24 provides 960W in a 96mm slim DIN rail package. That combination is useful when a buyer needs high 24V output power but has limited panel width available.
Can the XDR-960E-24 be used in parallel for higher power systems?
Yes. The product data lists current sharing for parallel use up to 3840W in a 3+1 configuration. This makes the XDR-960E-24 a candidate for larger 24V systems that require more total power than a single 960W unit.
What protections are included with the XDR-960E-24?
The XDR-960E-24 includes protection against short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
What input range does the XDR-960E-24 support?
The XDR-960E-24 supports a 180-264Vac input range and includes PFC. It is intended for AC-input systems that need a regulated 24V DC DIN rail power supply.
How efficient is the XDR-960E-24?
The XDR-960E-24 has efficiency up to 95.5%. Its listed no-load power dissipation is less than 3.6W, which is useful for buyers comparing power losses in high-output DIN rail supplies.
What warranty does the XDR-960E-24 include?
The XDR-960E-24 is listed with a 3-year warranty. That warranty period applies to this specific 960W, 24V Mean Well model.
