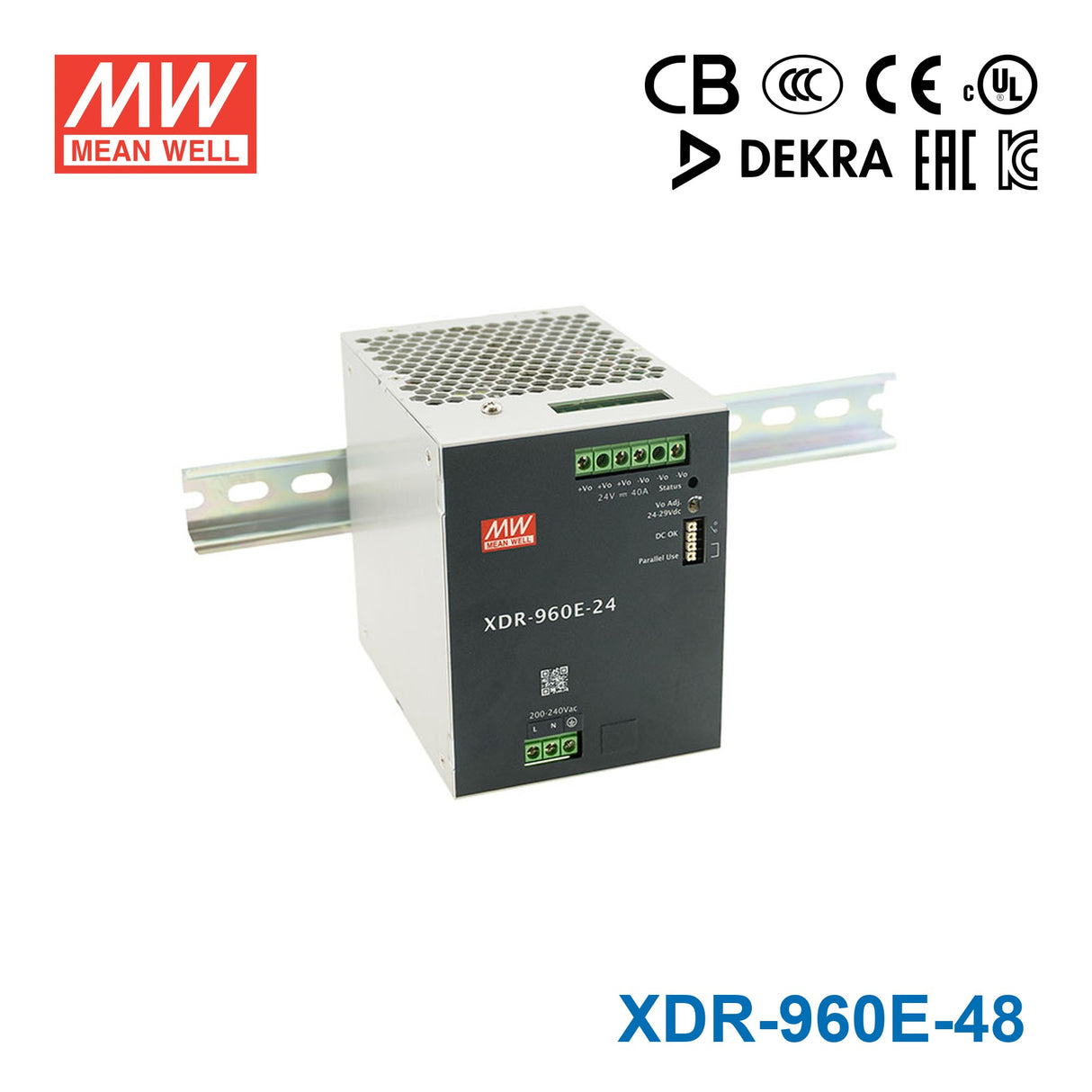

Mean Well XDR-960E-48 Economical Ultra Slim Din Rail Power Supply 9...
Key Features
- ✓180~264Vac input with PFC
- ✓Global certificates in multi-fields(ITE 62368-1, Industrial 61558-1/-2-16, 61010)
- ✓96mm slim width
- ✓High efficiency up to 95.5% and no-load power dissipation<3.6W
- ✓Built-in constant current limiting circuit
- ✓Current sharing up to 3840W (3+1) for parallel use
- ✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓Fanless design, cooling by free air convection
- ✓Overvoltage category III (OVC III)
- ✓-40°~+70°C wide range operation temperature (>+50°C derating)
- ✓Operating altitude up to 5000 meters
- ✓Built-in DC OK relay contact
- ✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓3 years warranty
-
BrandMean Well
-
SeriesMean Well XDR Series
-
Power Rating960 Watt
-
Output Voltage48 Volt
-
Rated Current20 Ampere
-
Input Voltage180V~264V
-
No of Output1
-
Standards MetCB,CCC,CE,cUL,DEKRA,EAC,KC
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.2 in
-
Width3.78 in
-
Height4.93 in
::specification::
Frequently Asked Questions
What output does the Mean Well XDR-960E-48 provide?
The XDR-960E-48 is rated for 960 W output power at 48 V. Its rated output current is 20 A, making it suitable for higher-power 48 V DC systems.
What types of applications is the XDR-960E-48 intended for?
This model is a DIN rail power supply for industrial and B2B power systems that need a 48 V DC supply. Its categories include DIN rail, slim DIN rail, power supply, and DC-DC converter product groupings.
Why choose the XDR-960E-48 over a wider DIN rail power supply?
The XDR-960E-48 has a 96 mm slim-width design while still providing 960 W of rated power. That makes it useful when panel space is limited but a high-power 48 V supply is required.
Does the XDR-960E-48 support high efficiency operation?
Yes. The product description lists efficiency up to 95.5%, along with no-load power dissipation below 3.6 W.
What operating temperature range is specified for the XDR-960E-48?
The listed operating temperature range is -40 °C to 70 °C. This wide range supports use in demanding industrial environments where temperature conditions can vary significantly.
What certifications are listed for the XDR-960E-48?
The product description lists global certificates across multiple fields, including ITE 62368-1, Industrial 61558-1/-2-16, and 61010. It also notes Overvoltage Category III, or OVC III.
What protections are included with the XDR-960E-48?
The XDR-960E-48 includes protection for short circuit, overload, over voltage, and over temperature conditions. It also has a built-in constant current limiting circuit.
What warranty period is listed for the XDR-960E-48?
The listed warranty period for this model is 3 years. This warranty applies to the Mean Well XDR-960E-48 product as specified in the provided product data.
