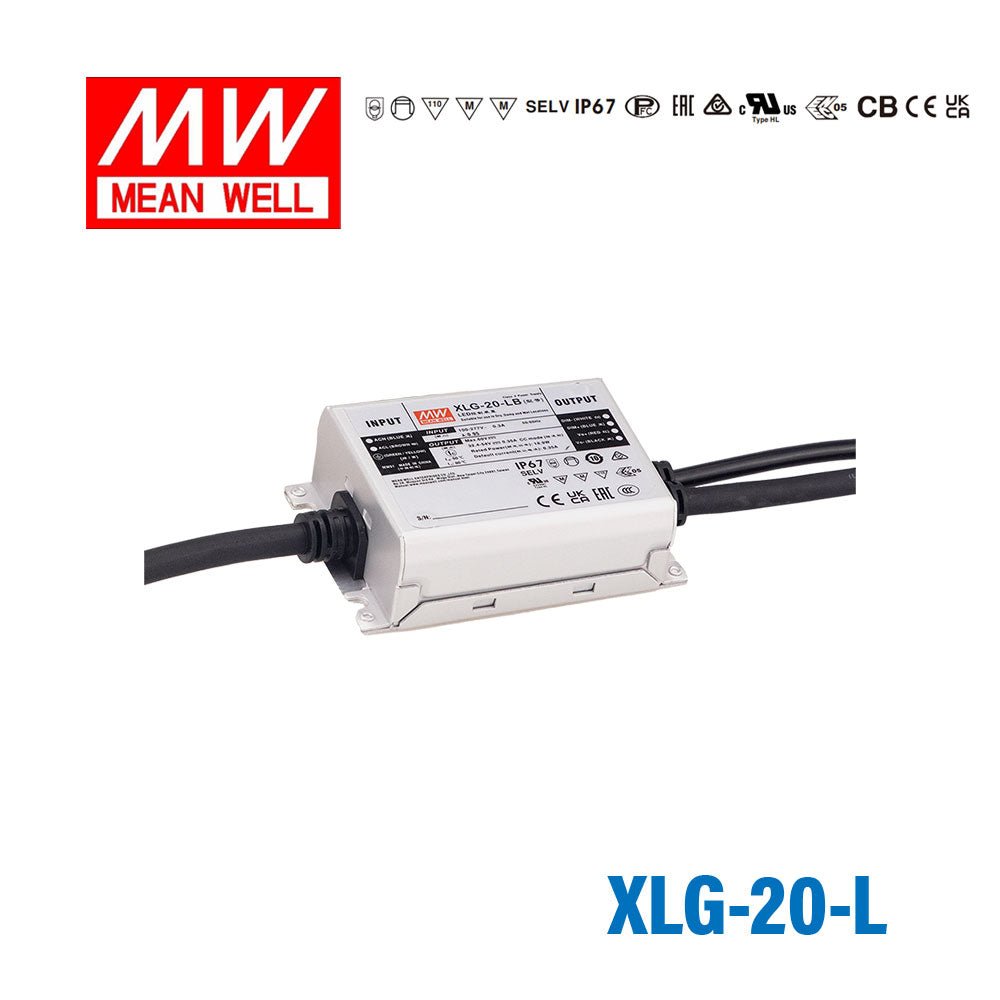

Mean Well XLG-20-L 18.9W 350mA 32.4-54V Constant Current LED Driver
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well XLG-20-L 18.9W 350mA 32.4-54V Constant Current LED Driver
The XLG-20-L is a 18.9W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 60V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 60V
- ✓ Rated output current: 350mA
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: CB, CCC, CE, EAC, ENEC, RCM, UL
- ✓ 5 year warranty
-
BrandMean Well
-
SeriesXLG Series
-
Power Rating18.9 Watt
-
Output Voltage60 Volt
-
Rated Current0.35 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,CE,EAC,ENEC,RCM,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length3.74 in
-
Width2.48 in
-
Height1.18 in
-
Weight0.75 lb
::specification::
Frequently Asked Questions
Can the XLG-20-L drive LED modules in a compact outdoor pathway or step light?
Yes. At 18.9W and 350mA constant current, the XLG-20-L is well suited for small outdoor pathway, step, or in-ground LED fixtures. Its IP67 rating and -40°C to +80°C operating range support year-round outdoor use.
Is the XLG-20-L appropriate for powering LED modules in architectural soffit or façade lighting?
Yes. The 350mA constant current output within a 32–54V range matches common mid-voltage LED modules used in architectural soffit or façade fixtures. The IP67 waterproof rating supports outdoor installation.
Can the XLG-20-L be installed in a marine or high-humidity environment?
The IP67 rating protects against dust and temporary water immersion, making the XLG-20-L suitable for high-humidity environments. For full marine submersion, a higher IP rating would be required.
How does the LED string voltage requirement for the XLG-20-L differ from the XLG-20-H?
The XLG-20-L operates in constant current mode across a 32–54V output range at 350mA, whereas the XLG-20-H operates across 18–30V at 700mA. The L variant suits longer or higher-voltage LED strings at lower current, while the H variant suits shorter strings at higher current.
How many LEDs can be placed in series on the XLG-20-L?
The XLG-20-L supplies 350mA constant current across a 32–54V output range. The number of LEDs in series depends on the forward voltage of each individual LED — the combined string voltage must fall within that 32–54V window.
Can the XLG-20-L power a small LED signage module for an illuminated address or room number sign?
Yes. At 18.9W and 350mA, the XLG-20-L can drive small LED signage modules used in illuminated address plates, room number signs, or similar low-wattage applications, provided the LED string voltage is within 32–54V.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other XLG-20 Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well XLG-20-M 21W 500mA 25.2-42V Constant Current LED Driver | 21W | 50V | 0.5A | IP67 | $17.87 | View |
| Mean Well XLG-20-H 21W 700mA 18-30V Constant Current LED Driver | 21W | 40V | 0.7A | IP67 | $17.87 | View |
