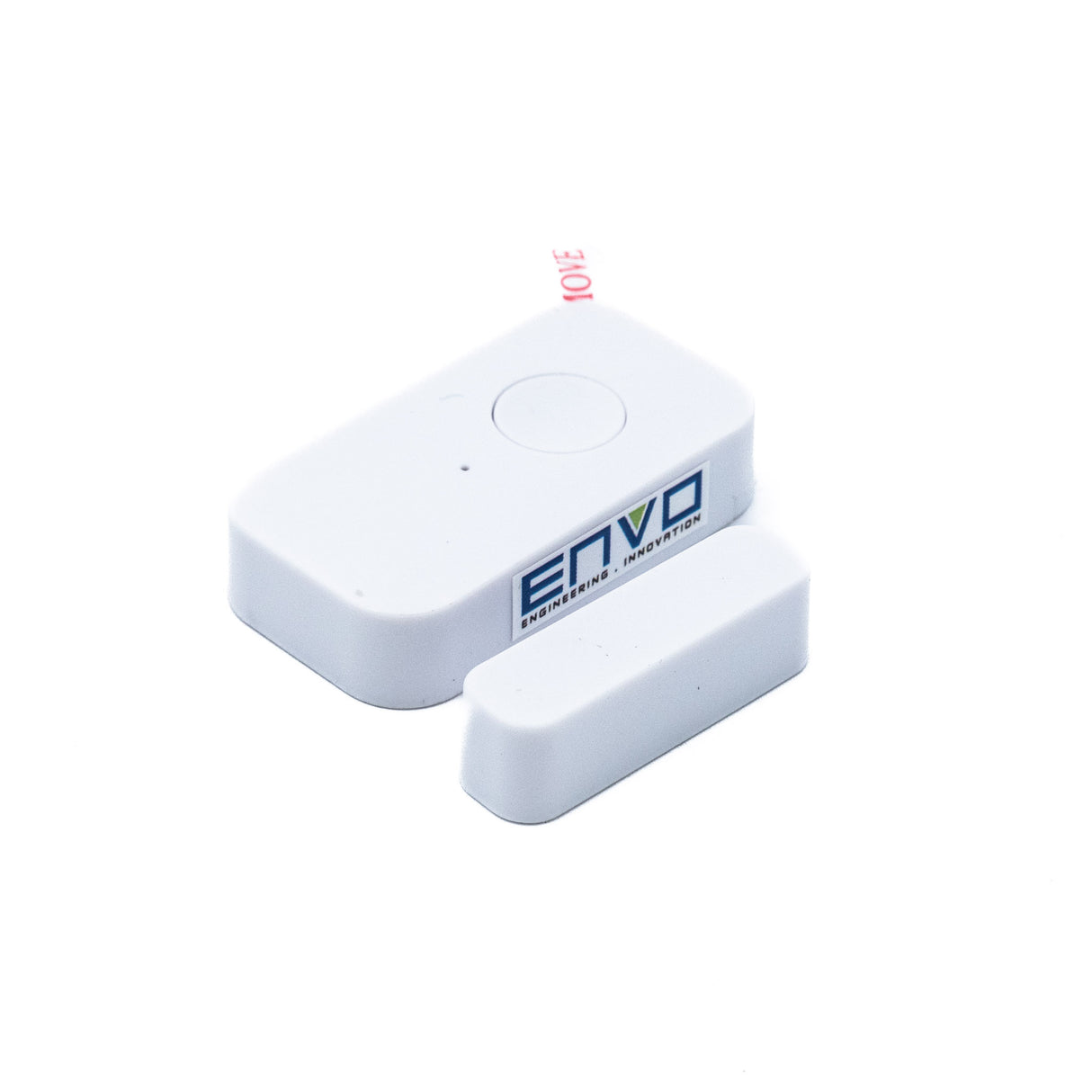

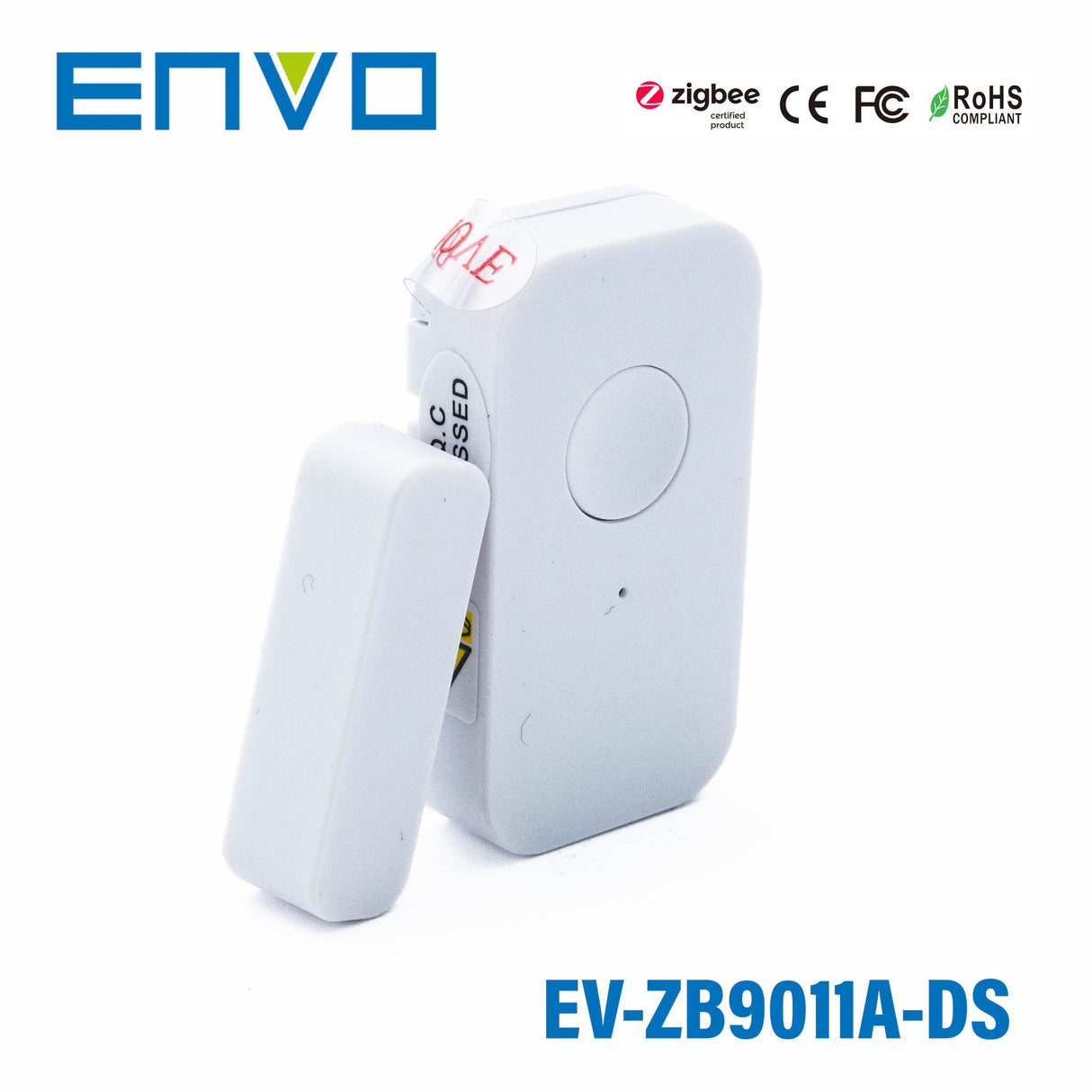

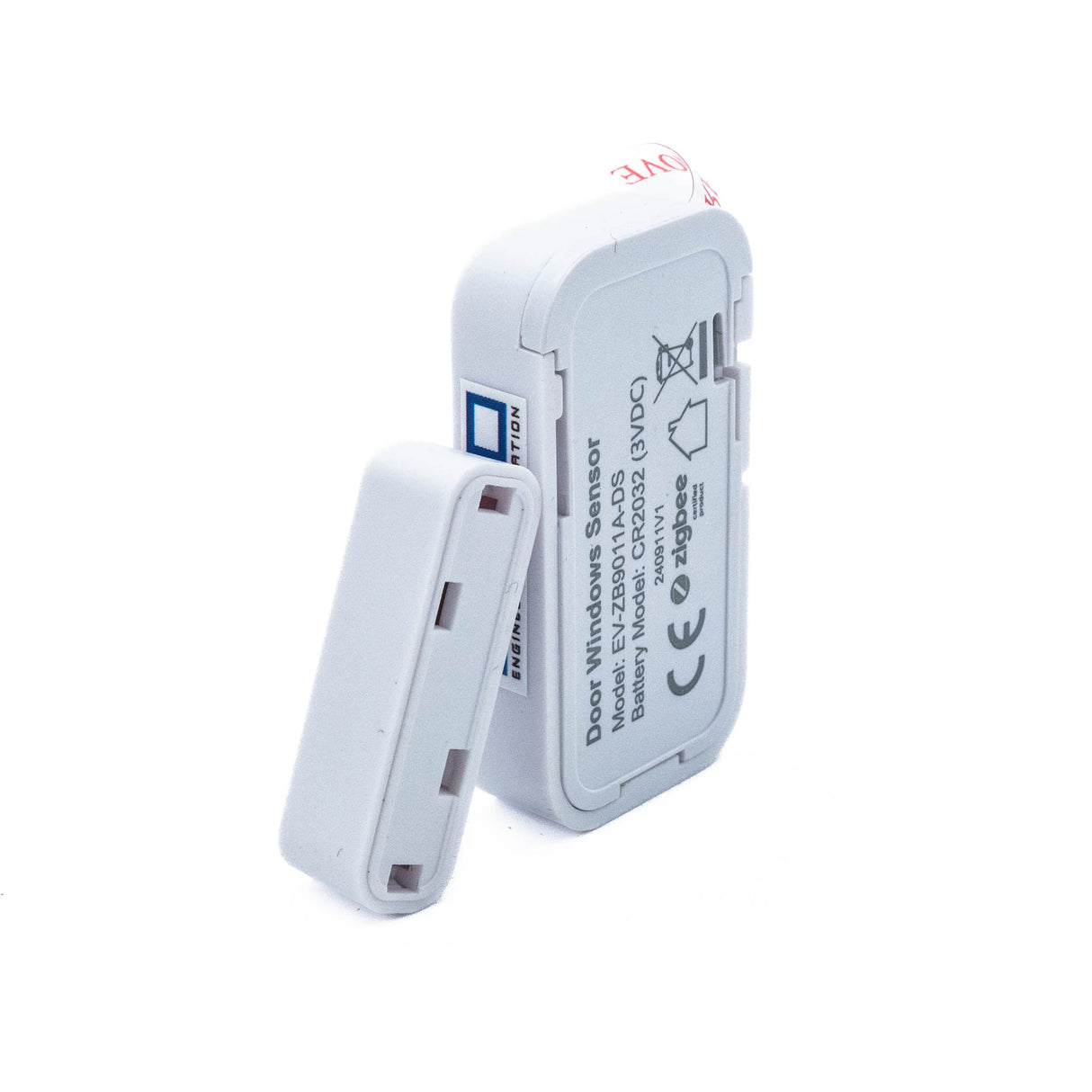

ENVO ZigBee Door/Window Sensor
Features:
- The Zigbee Door Window sensor is a wireless, battery powered contact sensor, compatible with the Zigbee 3.0 standard.
- The device can be operated intelligently via working with a Zigbee gateway to communicate with other devices.
- It is a zigbee low-energy wireless door/window sensor that makes you know the opening/closing status of door and window by separating the magnet from the transmitter.
- Connect it with the gateway which supports automation function and you can
- create a smart scene to trigger other devices.
General Specification
Zigbee Protocol
Zigbee 3.0
Radio Frequency
2.4GHz
Power Supply
3VDC (CR2032 Batteries)
Operating temperature
0 to 40°C
Relative humidity
8% to 80%
Dimension (LxWxH)
Transmitter: 49x26.5x10mm,
Magnet: 35.5x10.5x10mm
-
BrandEnvo
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length1.93 in
-
Width1.04 in
-
Height0.39 in
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Door/Window Sensor do?
The ENVO ZigBee Door/Window Sensor detects when a door or window opens or closes by sensing separation between the magnet and transmitter. It is designed as a low-energy wireless contact sensor for status monitoring in Zigbee-based smart systems.
Is this sensor compatible with Zigbee systems?
Yes, this model is compatible with the Zigbee 3.0 standard. It is intended to work with a Zigbee gateway so it can communicate with other supported devices and participate in smart scenes or automation.
What power source does this sensor use?
This sensor uses 3VDC supplied by CR2032 batteries. It is a battery-powered wireless device, which makes it suitable for locations where a compact sensor is needed.
What are the operating temperature limits for this model?
The ENVO ZigBee Door/Window Sensor is rated for operation from 0 to 40°C. The specified relative humidity range is 8% to 80%, which helps define the environments it is intended for.
What are the dimensions of the ENVO ZigBee Door/Window Sensor?
The transmitter measures 49 x 26.5 x 10 mm. The magnet measures 35.5 x 10.5 x 10 mm, giving the unit a compact form factor for door and window status sensing.
