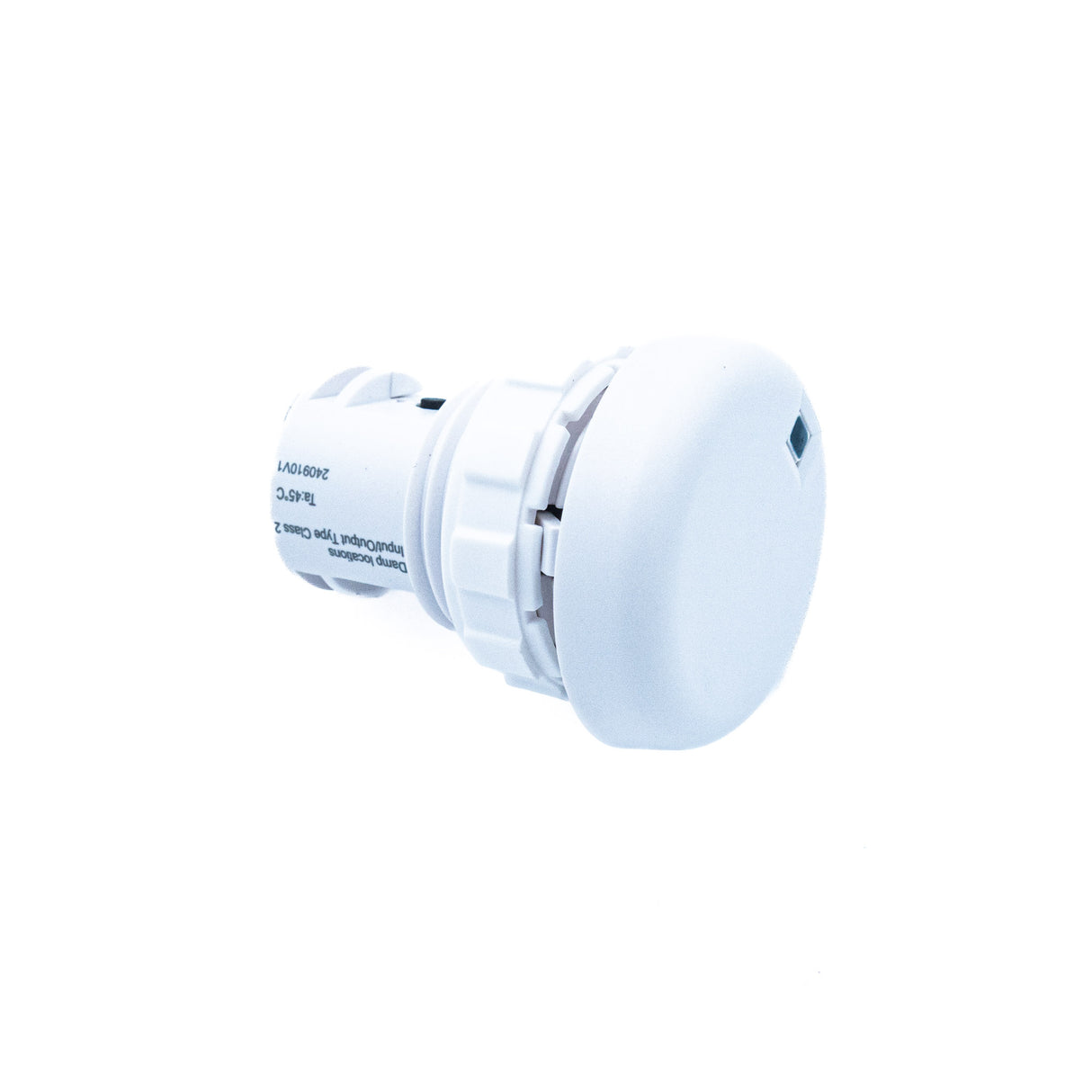

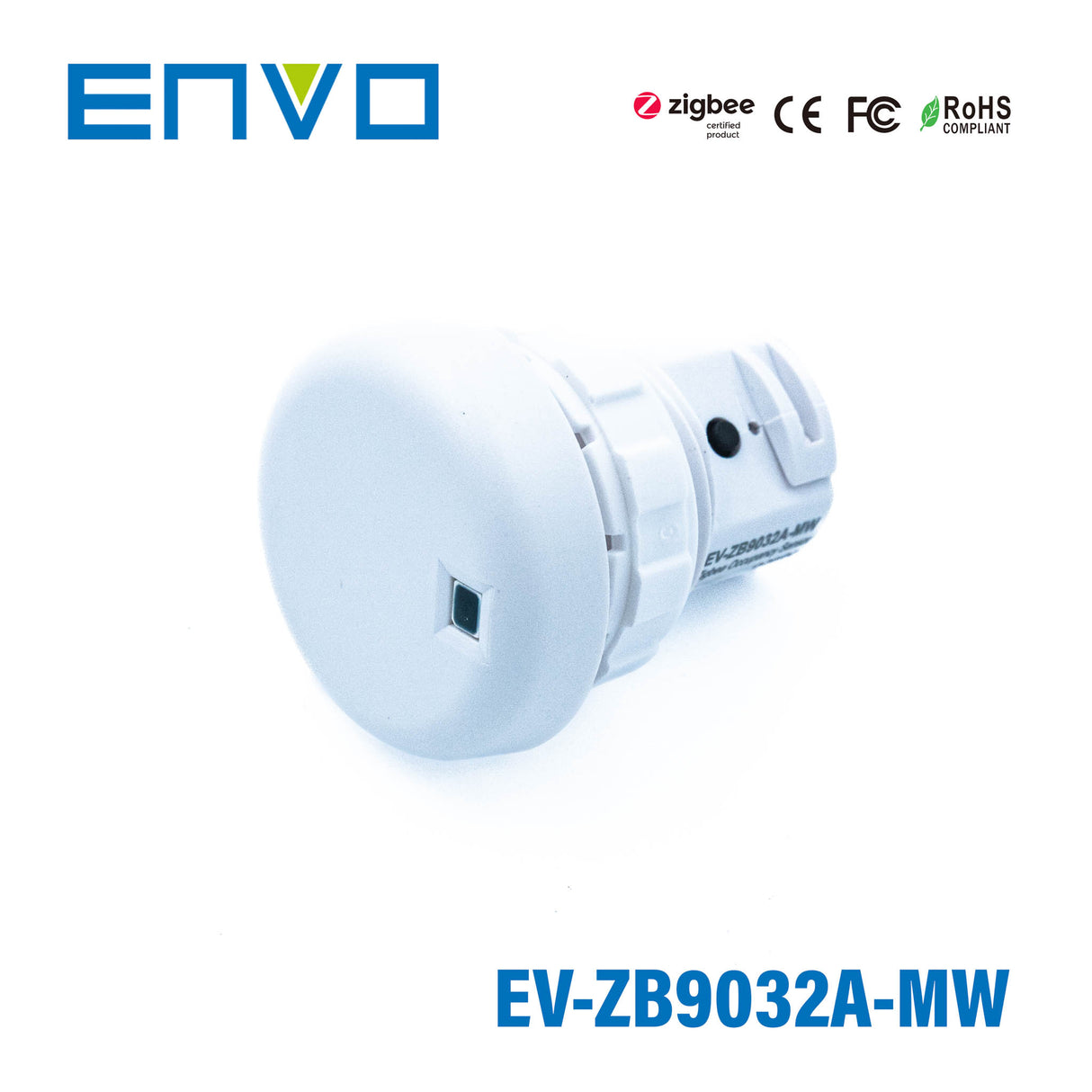

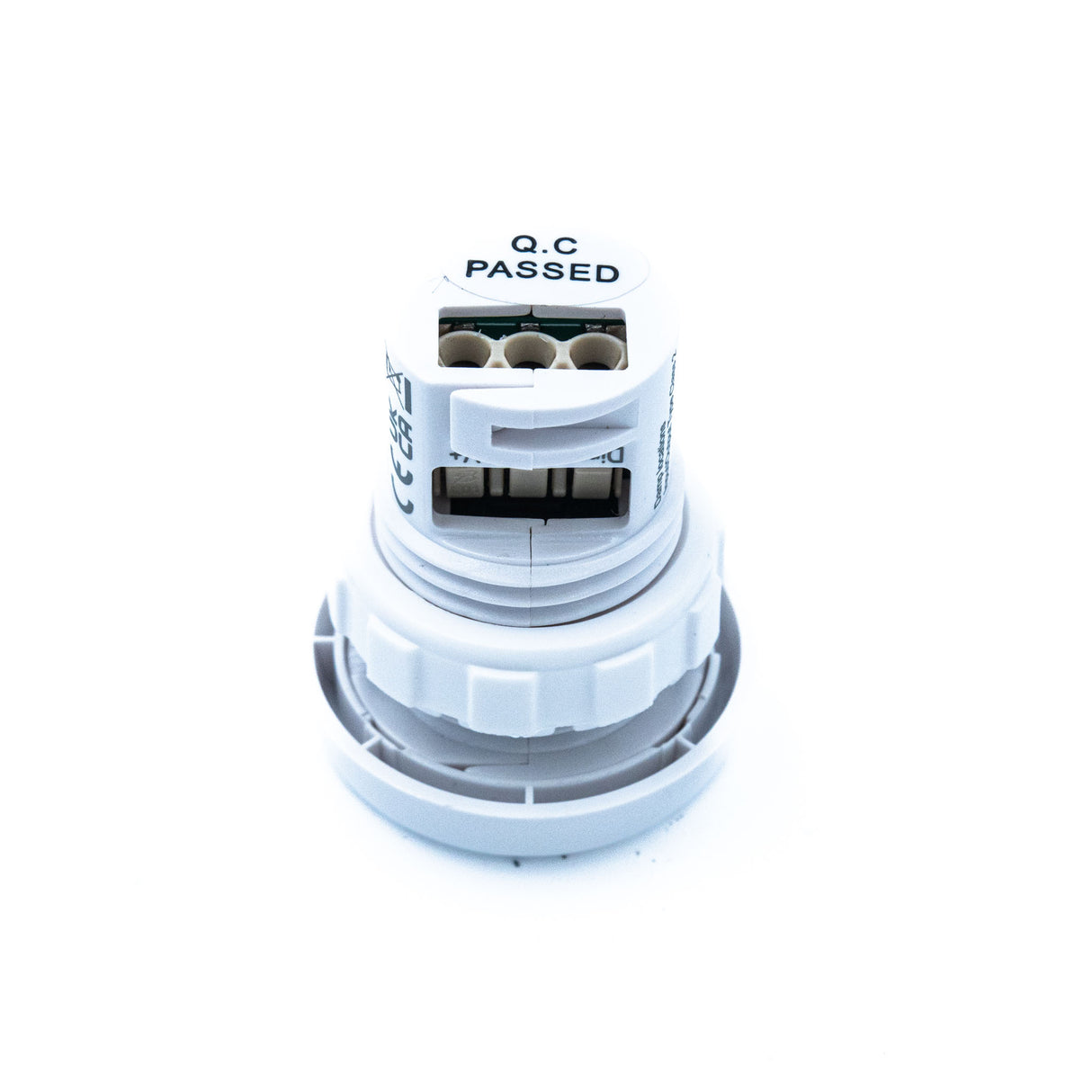

ENVO ZigBee Fixture Integrated Microwave+Photocell Sensor
Features:
- Zigbee 3.0 compliant
- Microwave motion detection
- Daylight harvesting
- Task tuning
- Compact form factor
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Cost-effective solution for energy savings
- Energy code compliance
- Fits into existing and new-design luminaires
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
12/24 VDC
Current Consumption
< 30mA (when dimming method = sink)
Dimming Control
Analog (0-10V)
Dimming Output
4mA (sink) / 20mA (source)
Status Indicators
Red (zigbee network status), Red (occupancy detection)
Radio Frequency
2.4 GHz
Wireless Range
100 feet (30m) Line of Sight
Radio Certification
FCC/IC, CE
Dimension (LxWxH)
Φ35xH30mm
-
BrandEnvo
-
Operating Temperature0°C~40°C
-
Warranty5 Year
-
Length1.26 in
-
Width1.26 in
-
Height1.43 in
-
Weight0.05 lb
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Fixture Integrated Microwave+Photocell Sensor do?
This model combines microwave motion detection and photocell-based daylight harvesting in one compact ZigBee 3.0 sensor. It is designed for autonomous sensor-based lighting control and works with 0-10V dim-to-off LED drivers. The integrated feature set helps reduce wasted lighting energy in occupied and unoccupied spaces.
Is this sensor compatible with ZigBee lighting control systems?
Yes, this sensor is ZigBee 3.0 compliant and is described as compatible with universal ZigBee platforms that support sensors. It also supports OTA firmware upgrade, which can help with long-term platform maintenance. Buyers should still confirm that their chosen platform supports this sensor class.
What type of LED dimming control does this sensor support?
The EV-ZB9032A-MW uses analog 0-10V dimming control and is intended to work with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA in sink mode or 20mA in source mode. That makes it suitable for fixtures designed around low-voltage dimming control.
Where is this ZigBee microwave and photocell sensor best suited for use?
This sensor is intended for fixture-integrated lighting control in luminaires, including both existing designs and new fixture builds. Its compact form factor and autonomous control features make it a fit for commercial or institutional lighting projects focused on energy savings and code compliance. It is positioned as a cost-effective smart lighting control option rather than a general-purpose standalone sensor.
What are the operating and environmental limits for this sensor?
The stated operating temperature range is 0°C to 40°C. It uses 2.4 GHz ZigBee radio communication with a listed wireless range of up to 100 feet (30 m) line of sight. These specs make it better suited to typical indoor controlled environments than extreme-temperature applications.
How compact is the EV-ZB9032A-MW compared with larger external sensor options?
This model has a compact fixture-integrated form factor with dimensions of 35 mm diameter by 30 mm height. That makes it easier to use where internal luminaire space is limited and where a low-profile control solution is preferred. Its design focus is built-in smart control rather than a larger external-mounted sensor approach.
