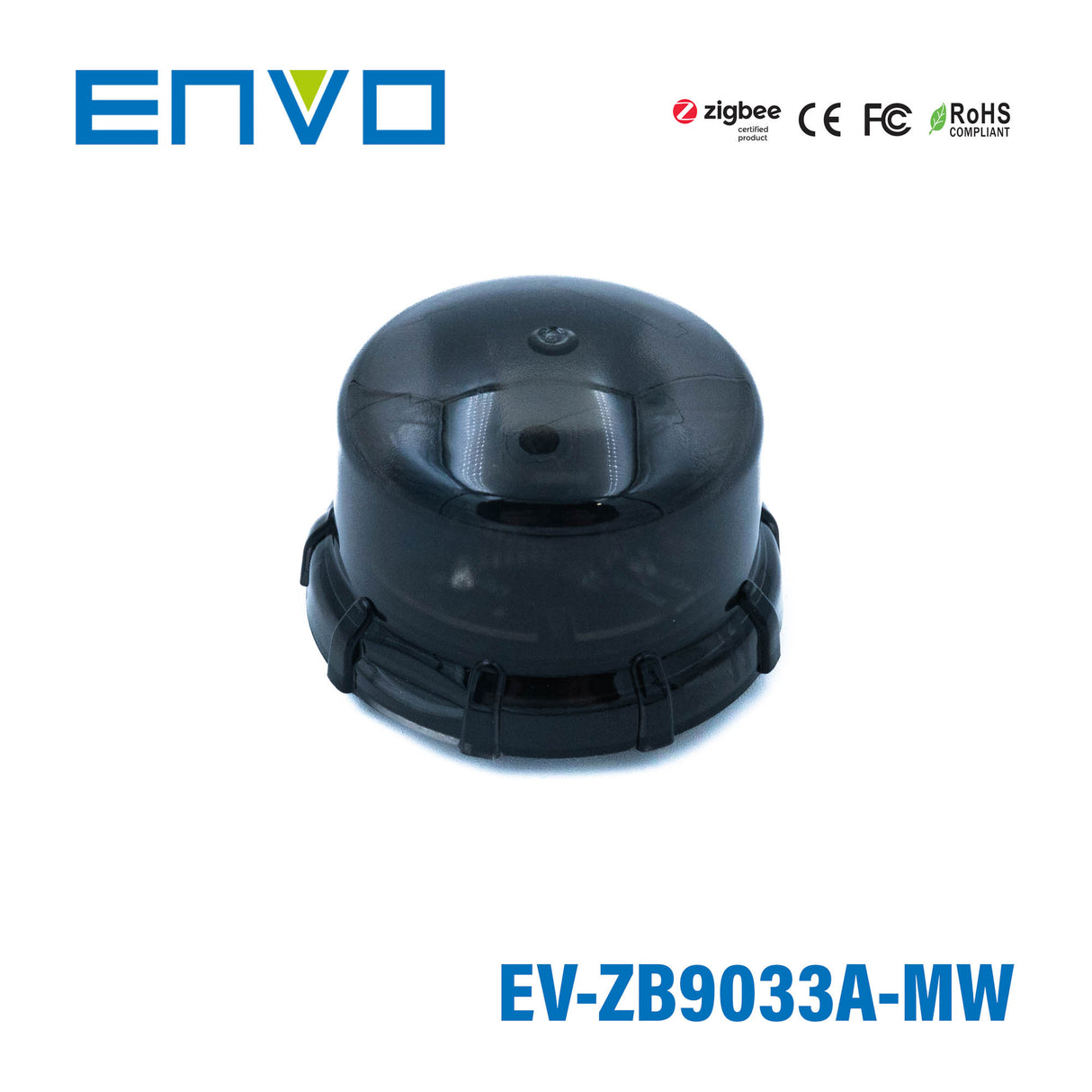

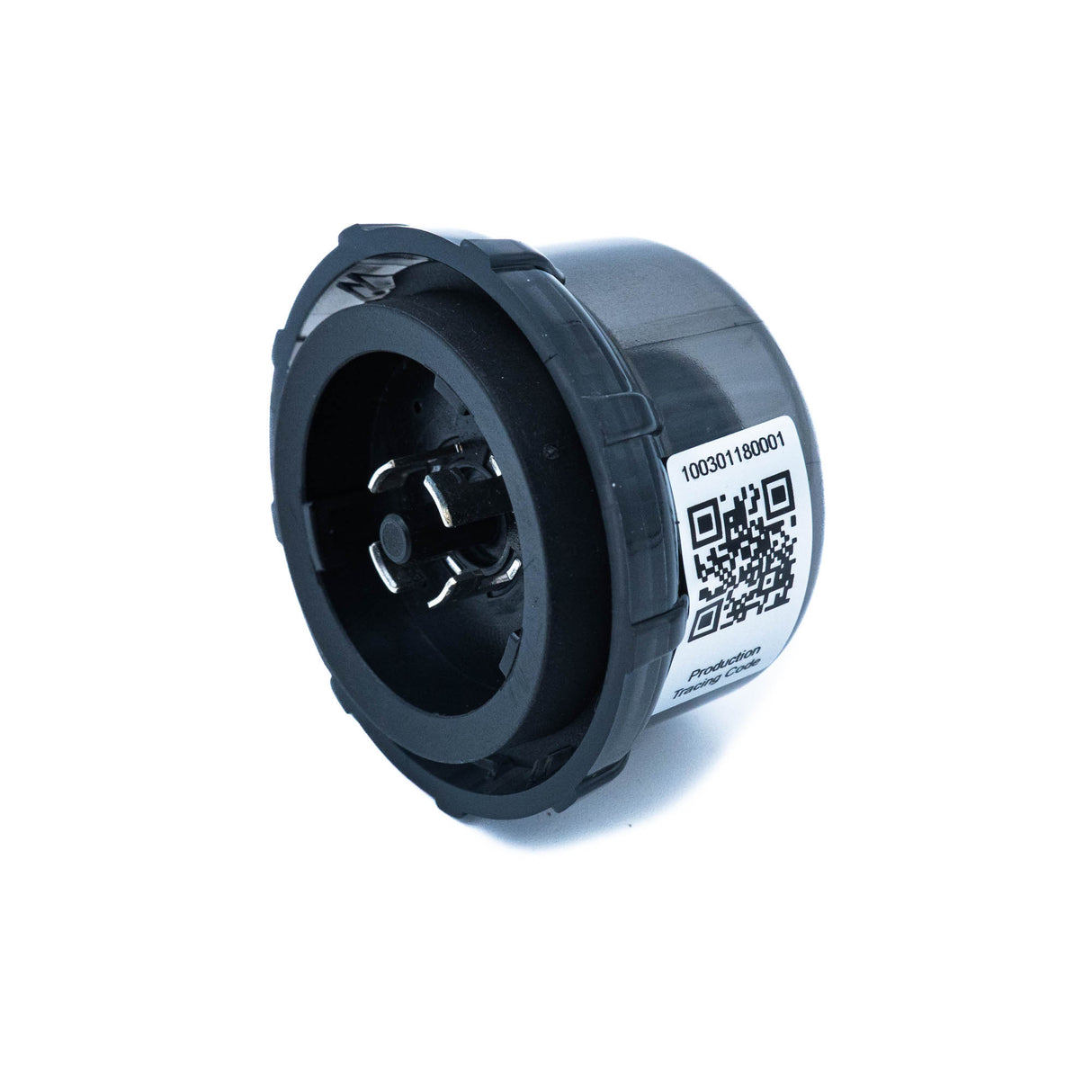

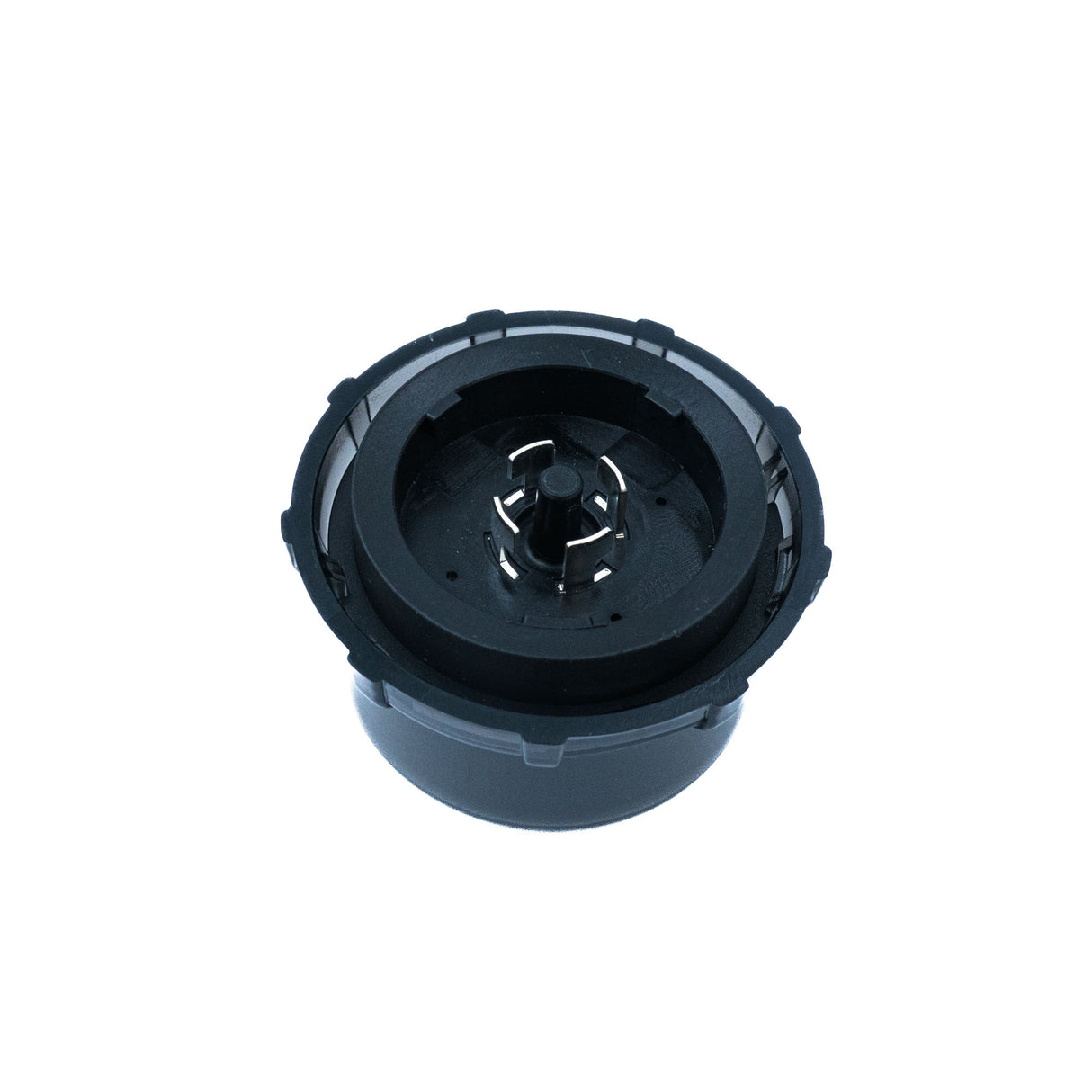

ENVO ZigBee Microwave Sensor IP65 with ZHAGA Interface Socket
Features:
- Zigbee 3.0 compliant
- Microwave motion detection, long detection range
- Daylight harvesting
- Works with 0-10V dim-to-off LED drivers
- Autonomous sensor-based control
- OTA firmware upgrade
- Zhaga book 18 socket
- Plug & Play
- IP65 rating, can be used for outdoor luminaires
- Easily fit into various luminaires with standard zhaga interface socket
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Compatible with universal Zigbee platforms that support sensor
General Specification
Zigbee Protocol
Zigbee 3.0
Input Voltage
12/24 VDC
Current Consumption
< 30mA
Dimming Control
Analog (0-10V)
Dimming Output
4mA (sink) / 20mA (source)
Status Indicators
Red (motion detection)
Radio Frequency
2.4 GHz
Wireless Range
100 feet (30m) Line of Sight
Radio Certification
FCC/IC, CE
Dimension (LxWxH)
Φ35xH30mm
-
BrandEnvo
-
Operating Temperature-40°C~70°C
-
Warranty5 Year
-
Length1.97 in
-
Width1.97 in
-
Height1.38 in
::specification::
Frequently Asked Questions
What is the ENVO ZigBee Microwave Sensor IP65 with ZHAGA Interface Socket used for?
This model is designed for sensor-based lighting control in luminaires that use a standard Zhaga Book 18 socket. It combines microwave motion detection and daylight harvesting to help automate dimming and support energy-saving lighting applications.
Is this sensor suitable for outdoor or harsh-environment lighting applications?
Yes. This sensor is rated IP65 and is specified for operation from -40°C to 70°C, which makes it suitable for demanding indoor or outdoor luminaire environments. Buyers commonly use this type of sensor where weather resistance and wide temperature tolerance matter.
Does this sensor support Zigbee networks?
Yes, this model is Zigbee 3.0 compliant and is designed to work on Zigbee platforms that support sensors. It also supports OTA firmware upgrades and is described as part of a robust mesh network.
What kind of dimming control does this sensor support?
This sensor supports analog 0-10V dimming and is intended for use with 0-10V dim-to-off LED drivers. Its dimming output is rated at 4mA sink or 20mA source.
How does this model differ from a basic motion sensor?
In addition to microwave motion detection, this model includes daylight harvesting and Zigbee 3.0 wireless capability. That makes it a stronger fit for smart lighting control projects that need autonomous response plus integration with compatible Zigbee platforms.
What are the key physical and wireless specifications of this sensor?
This model operates on 12/24 VDC with current consumption below 30mA. It uses 2.4 GHz radio, offers up to 100 feet (30m) line-of-sight wireless range, and measures Φ35 x H30 mm.
