Mean Well DPU-3200-24 power supply 3200W 24V 133A
Notify me when it's back in stock
Your order will be processed within 24 hours

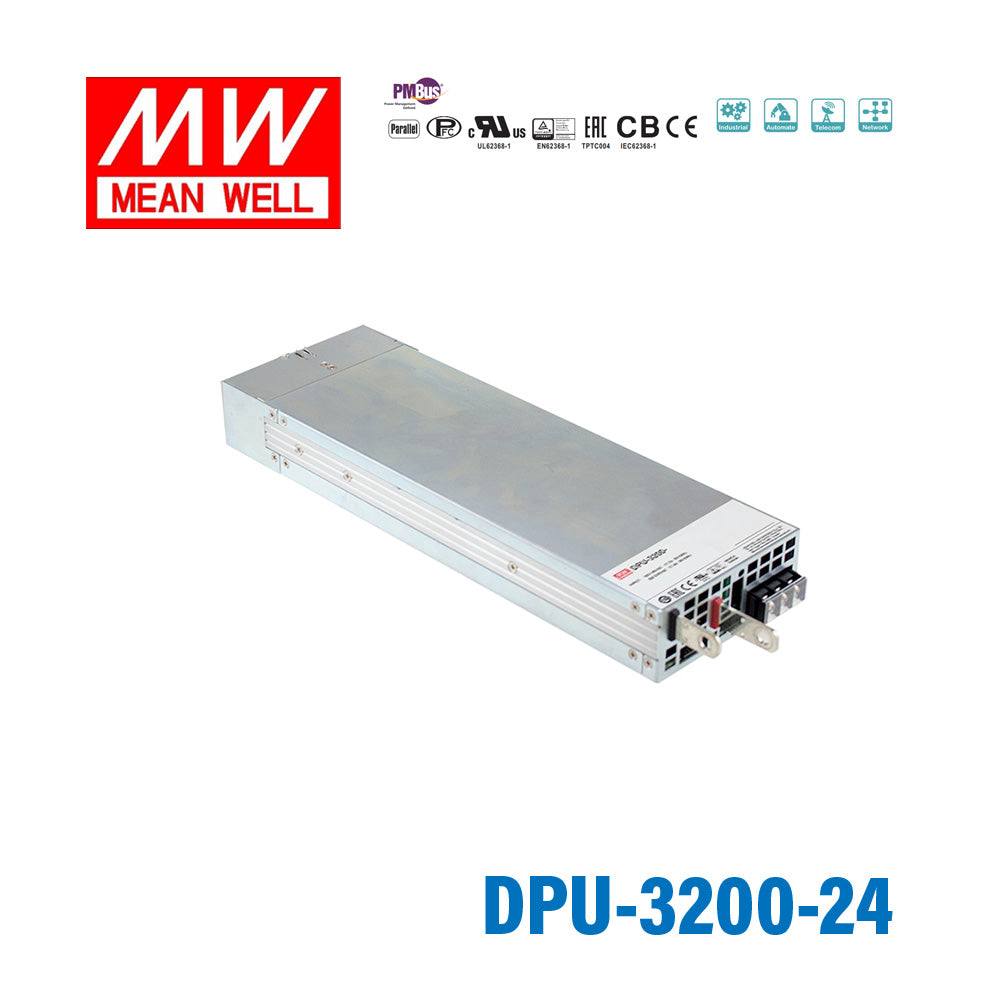

Mean Well DPU-3200-24 power supply 3200W 24V 133A
Description
Description
The DPU-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDPU Series
-
Power Rating3192 Watt
-
Output Voltage24 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.83 in
-
Width4.21 in
-
Height1.61 in
-
Weight6.08 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the DPU-3200-24 for a high-current 24V industrial control cabinet?
Yes, this model is a constant-voltage 24V supply rated for 3192W and 133A, which fits high-current 24V control and automation systems. Its programmable output voltage and current level can also help where system-level control is required.
Is the DPU-3200-24 suitable for 24V DC bus power in factory automation equipment?
It is designed for constant-voltage 24V output and can deliver up to 133A, so it fits large 24V DC bus applications that need substantial power. The wide 90-264VAC input range also supports use in varied AC supply environments.
Can this power supply be used for 24V industrial loads that need scalable power capacity?
Yes, the DPU-3200-24 supports active current sharing up to 16000W(4+1), which is relevant for systems that may need higher total capacity than a single unit provides. On its own, the unit is rated at 3192W with 24V constant-voltage output.
Would the DPU-3200-24 fit a 24V embedded or telecom-style rack power application?
It can be suitable where a compact, high-power 24V source is needed, since it provides 3192W in a 325.8 × 107.0 × 41.0 mm housing. The high efficiency up to 94.5% is also relevant in dense equipment environments where power loss matters.
How does the DPU-3200-24 compare with the DPU-3200-48?
The DPU-3200-24 is rated at 3192W with 24V output and 133A output current. The sibling DPU-3200-48 is rated at 3216W with 48V output and 67A output current.
Is the DPU-3200-24 appropriate for outdoor or harsh-temperature installations?
The operating temperature range is -30°C to +70°C, so it is intended for demanding temperature conditions within that range. No IP rating is listed in the provided specs, so the product data does not establish suitability for exposed outdoor or washdown environments.
Other DPU-3200 Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DPU-3200-48 power supply 3200W 48V 67A | 3216W | 48V | 67A | Indoor | $676.11 | View |
