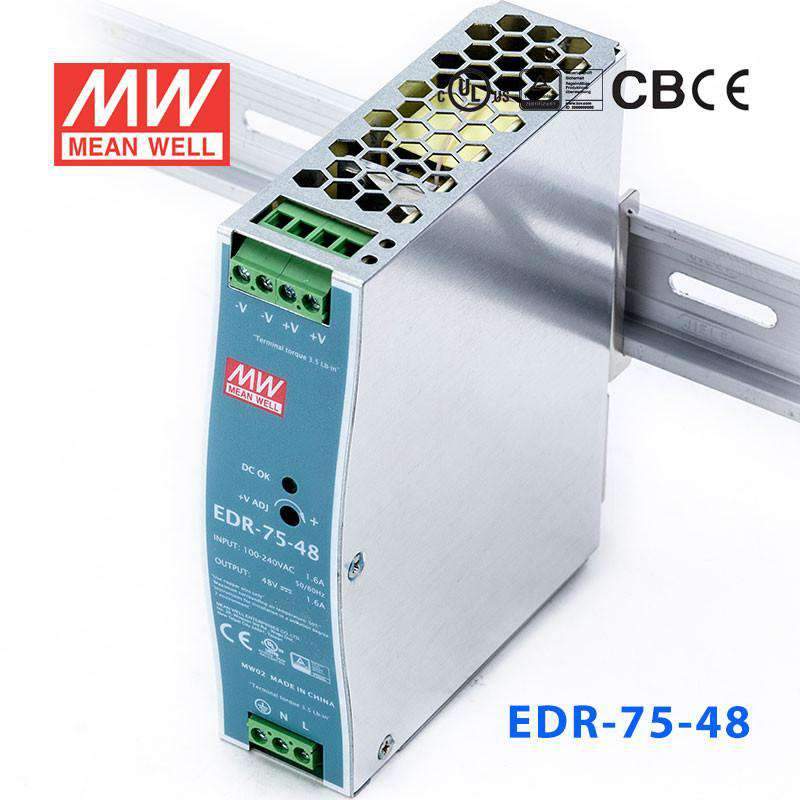

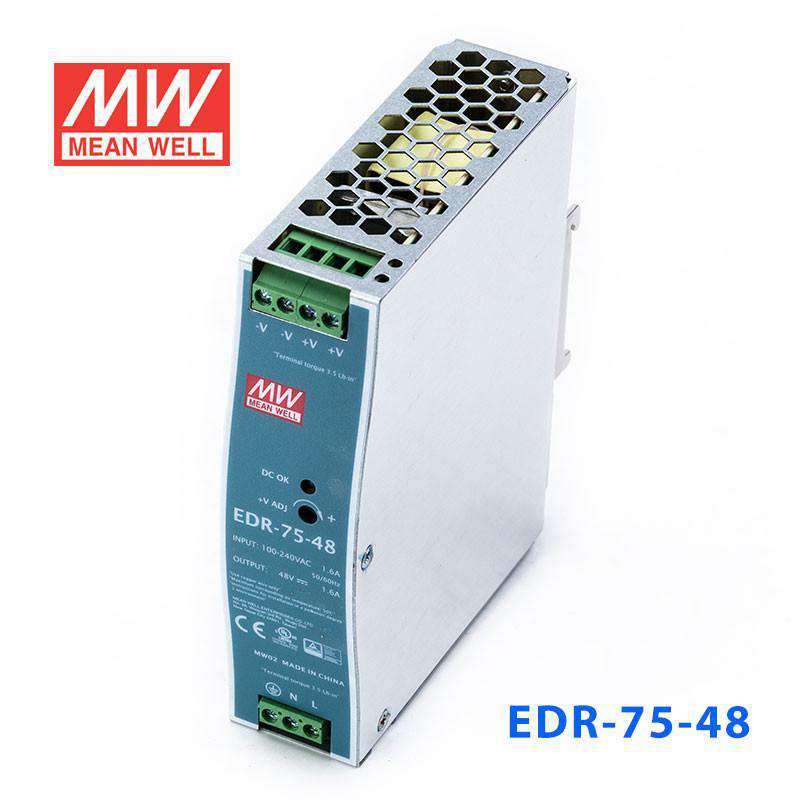

Mean Well EDR-75-48 Single Output Industrial Power Supply 75W 48V - DIN Rail

metal case, low cost, slim size, width:32~40mm, EMC EN55022 class A

SKU:

EDR-75-48

Model

75W 48V

$26.41 USD

SKU: EDR-75-48

120W 48V

$28.88 USD

SKU: EDR-120-48

Product variants

$26.41 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

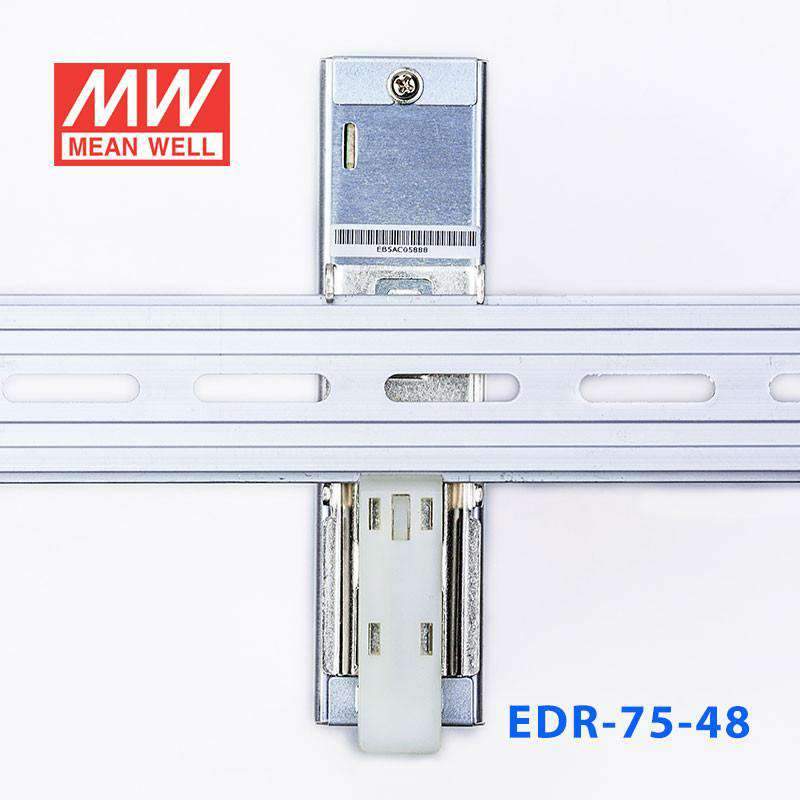

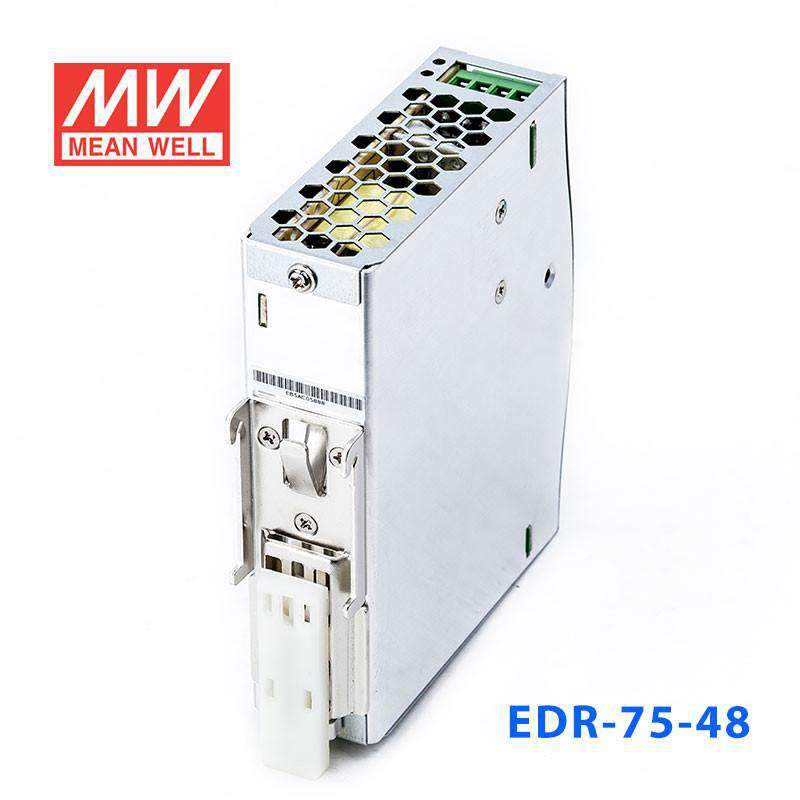

Can be installed on DIN rail TS35 / 7.5 or 15

UL508 (industrial control equipment) listed

EN61000-6-2 (EN50082-2) industrial immunity level

100% full load burn-in test

Low cost

3 years warranty for NDR series
2 years warranty for EDR series

General Specification

AC input voltage range	90~264VAC; 127~370VDC
AC inrush current (max.)	Cold start, 35A at 230VAC
DC adjustment range	12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Current adjustment range	10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
Overload protection	105%~130% Constant current limiting, auto-recovery
Over voltage protection	14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
Over temperature protection	Shut down o/p voltage, re-power on to recover
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature	-20~+60!aC (refer to output derating curve
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)

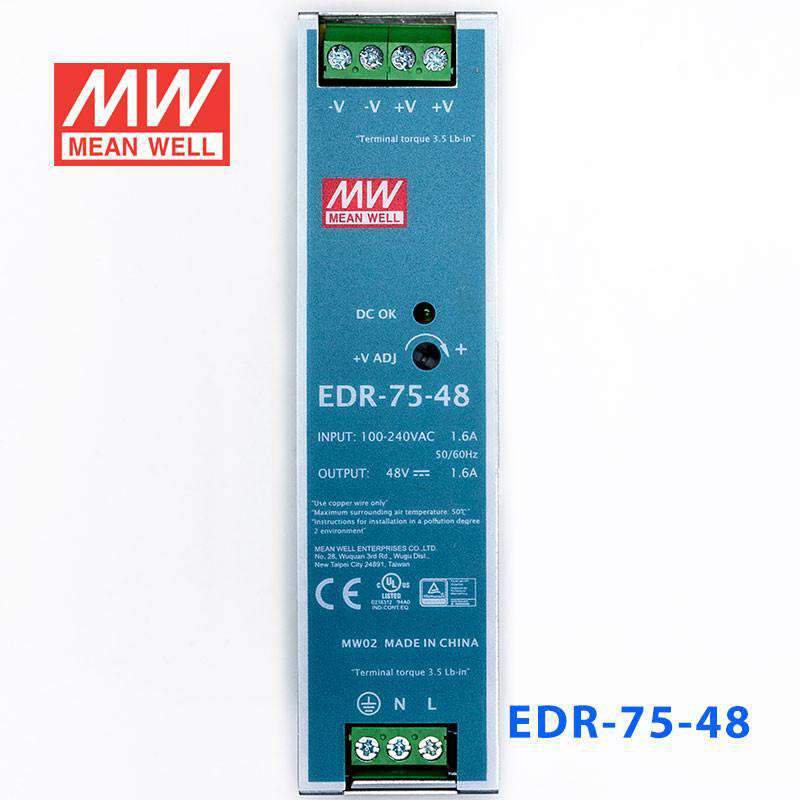

Connection (screw DIN terminal)	I/P: 3 poles, O/P: 4 poles
Dimension (LxWxH) (mm)	32x 125.2x 102

Specifications

Brand

Mean Well
Series

EDR Series
Power Rating

76.8 Watt
Output Voltage

48 Volt
Rated Current

1.6 Ampere
Input Voltage

90V~264V
No of Output

1
Standards Met

BSMI,CB,CE,cUL,EAC,RCM,TUV
Operating Temperature

-20°C~60°C
Warranty

2 Year
Length

4.93 in
Width

4.02 in
Height

1.26 in
Weight

1.12 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the EDR-75-48 for a 48V industrial automation or PLC panel?

Yes, this unit is intended for 48VDC systems and provides up to 76.8W with 1.6A output. Its DIN rail construction and 32.0 mm slim width make it suitable for compact industrial automation panels.

Is the EDR-75-48 a fit for 48V building automation or control cabinet equipment?

It can be used where the cabinet or panel requires a 48VDC supply and the load remains within 76.8W and 1.6A. The wide 90-264VAC input range also supports integration into panels fed from common AC sources.

Can this model work in a machine control enclosure where DIN rail space is limited?

Yes, the 125.2 × 102.0 × 32.0 mm housing is designed for DIN rail mounting and keeps width to 32.0 mm. That slim profile is useful when multiple devices must fit side by side in a control enclosure.

Is the EDR-75-48 meant for exposed environments or for enclosed control cabinets?

This product is better aligned with enclosed control cabinet use, based on its industrial DIN rail format and metal case construction. The provided specifications do not state an IP rating, so exposed or washdown environments are not defined by the listed data.

How does the EDR-75-48 compare to the other EDR series options listed here?

The EDR-75-48 is rated at 76.8W, 48V, and 1.6A. The listed related models are EDR-75-12 at 75.6W, 12V, 6.3A; EDR-75-24 at 76.8W, 24V, 3.2A; EDR-120-12 at 120W, 12V, 10A; EDR-120-24 at 120W, 24V, 5A; EDR-120-48 at 120W, 48V, 2.5A; and EDR-150-24 at 156W, 24V, 6.5A.
