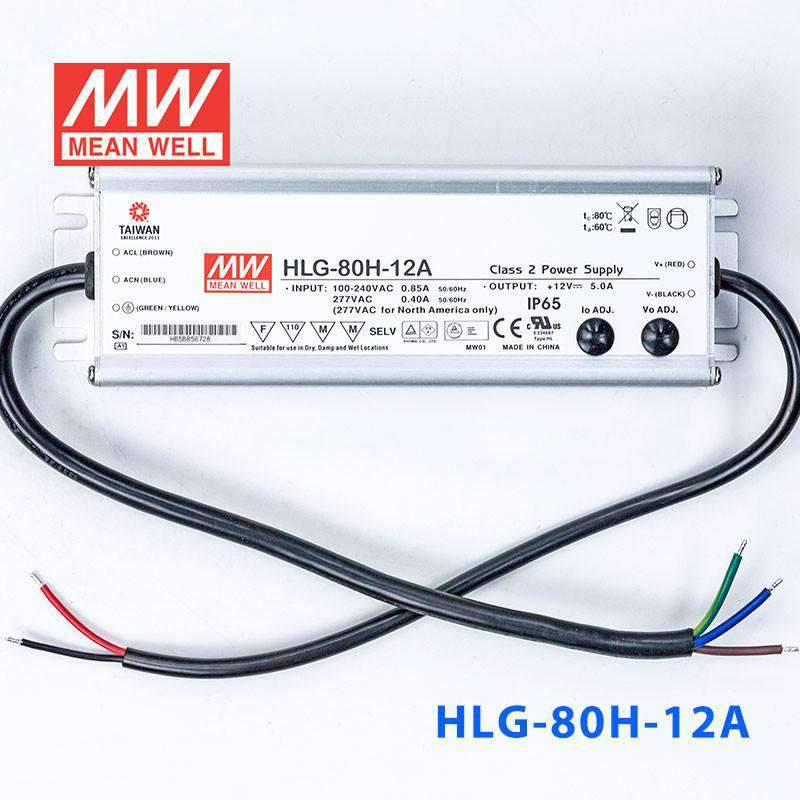

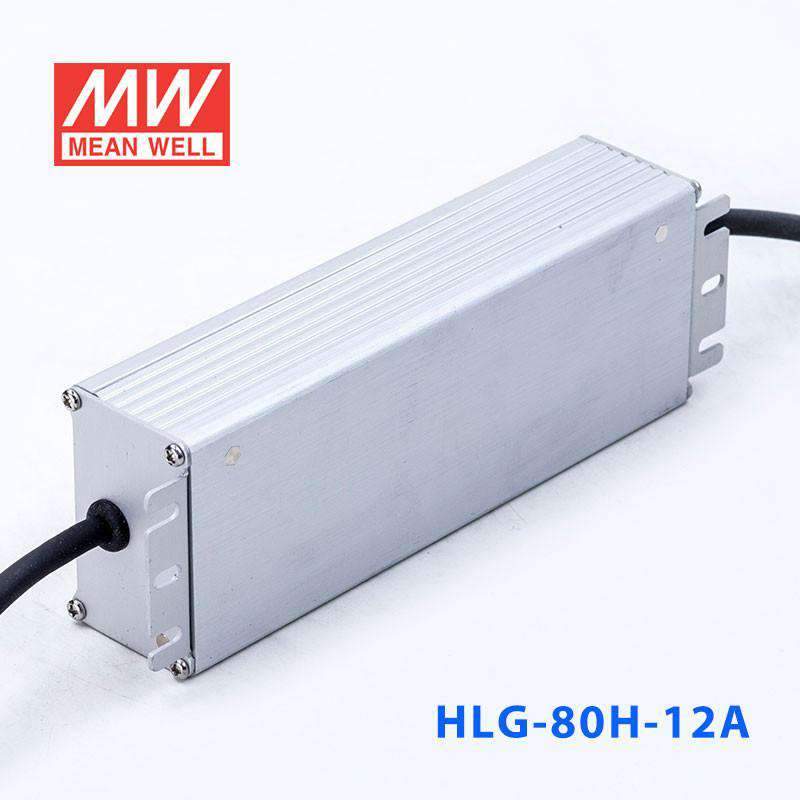

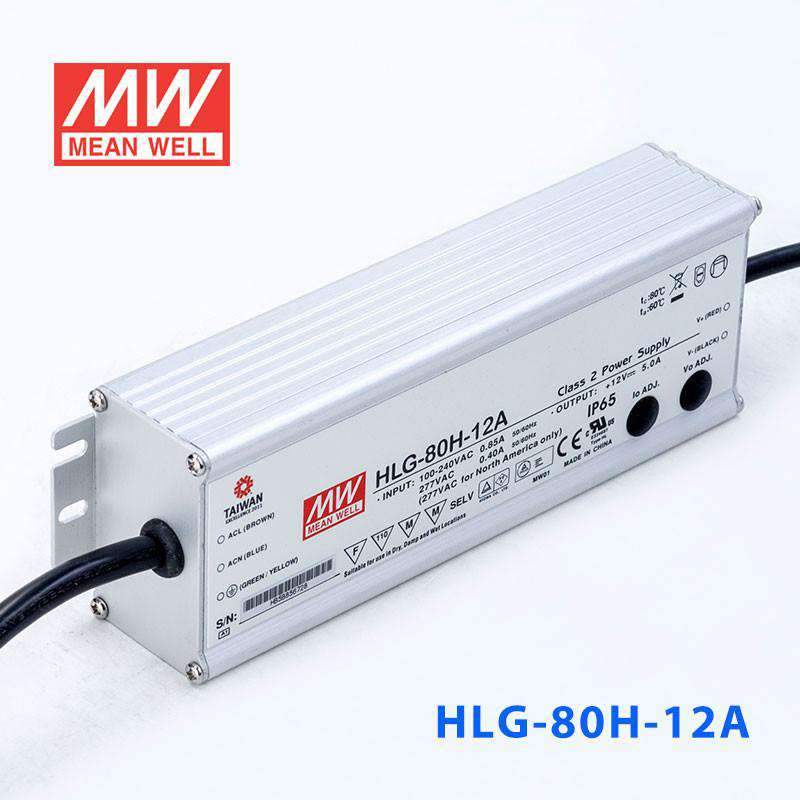

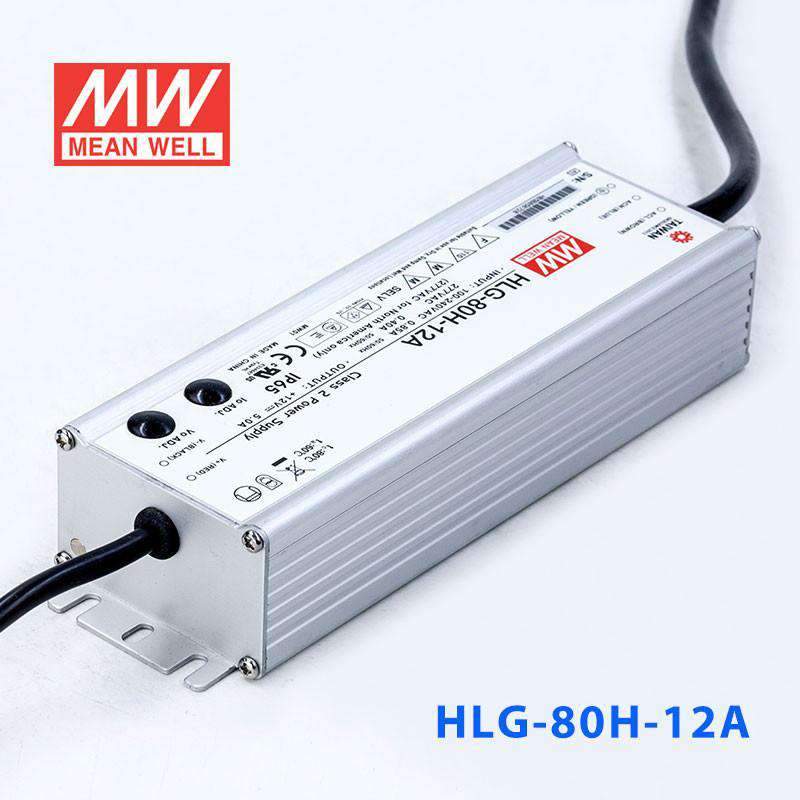

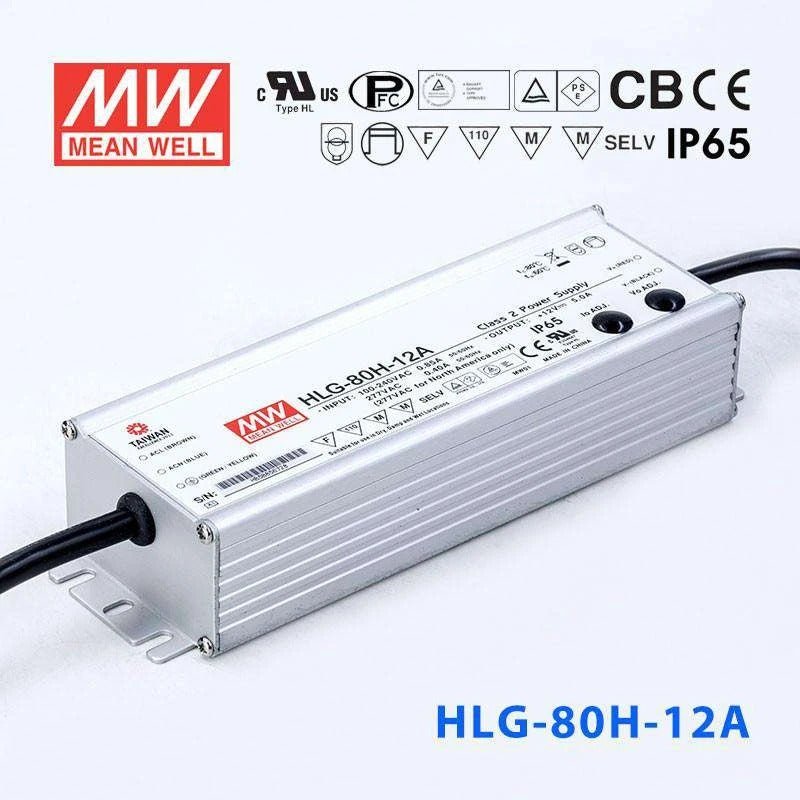

Mean Well HLG-80H-12A Power Supply 60W 12V - Adjustable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well HLG-80H-12A Power Supply 60W 12V - Adjustable
Description
Description
The HLG-80H is a 80W Mean Well power converter (input range: 90~305VAC).
Key Features
- ✓ Input voltage range: 90~305VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: Note.8 SAFETY &
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHLG Series
-
Power Rating60 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming ControlBuilt-in Potentiometer
-
Standards MetCB,CCC,CE,EAC,PSE,RCM,TUV,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty7 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.85 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HLG-80H-12A to power 12V LED strip lights in a sheltered outdoor area?
Yes. The HLG-80H-12A delivers 60W at 12V and carries an IP65 water-resistant rating, which protects against splashing water and dust. It is suitable for covered patios, soffits, or carports. For fully exposed rain locations, the IP67-rated HLG-80H-12 or HLG-80H-12B would be better choices.
Is the adjustable output on the HLG-80H-12A useful for matching different 12V LED loads?
Yes. The built-in potentiometer lets you trim the output voltage and current, which is helpful when your 12V LED strip or module draws slightly less than the full rated voltage. The CC voltage range of 7-12V gives room to lower the drive level without needing an external dimmer.
Can the HLG-80H-12A drive 12V LED modules in a retail display or light box?
Yes. At 60W and 12V, the HLG-80H-12A can power 12V LED modules commonly used in retail light boxes, menu boards, and display cases. The adjustable output lets you fine-tune brightness to match the display requirements, and the universal 90-305VAC input handles diverse commercial power supplies.
How many meters of 12V LED strip can the HLG-80H-12A handle?
Divide 60W by your strip's power per meter. For a strip rated at 8W/m, you could run up to 7.5 meters (60W / 8W per meter = 7.5m). A denser strip at 14.4W/m would allow about 4.1 meters. Always check your strip's rated power per meter and keep total load at or below 60W.
Is the HLG-80H-12A suitable for a damp garage or basement workshop?
Yes. Its IP65 rating protects against low-pressure water jets and dust ingress, which is more than adequate for damp indoor spaces like garages, basements, or utility rooms. For wet locations with standing water or direct hose-down, an IP67-rated variant like the HLG-80H-12 is preferable.
Other HLG-80H Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well HLG-80H-12B Power Supply 60W 12V - Dimmable | 60W | 12V | 5A | IP67 | $42.68 | View |
| Mean Well HLG-80H-48 Power Supply 80W 48V | 80W | 48V | 1.7A | IP67 | $41.54 | View |
| Mean Well HLG-80H-42B Power Supply 80W 42V - Dimmable | 80W | 42V | 1.95A | IP67 | $44.11 | View |
