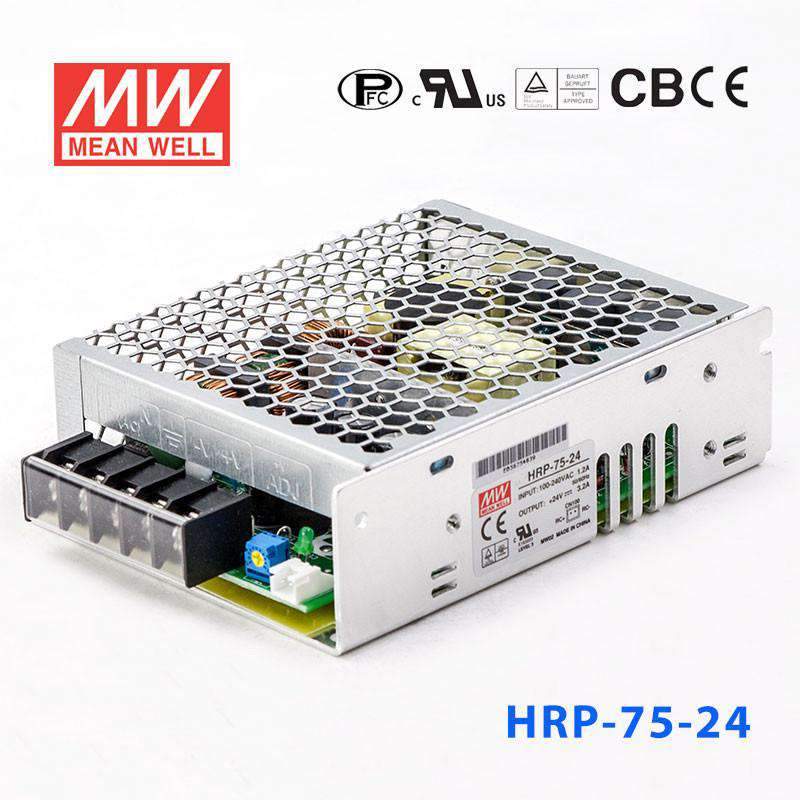

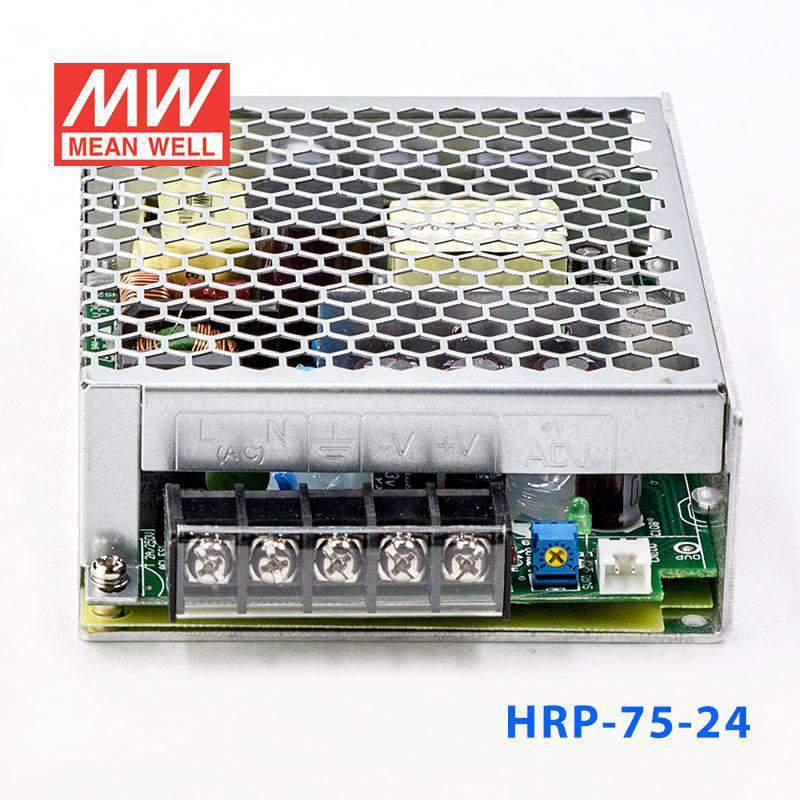

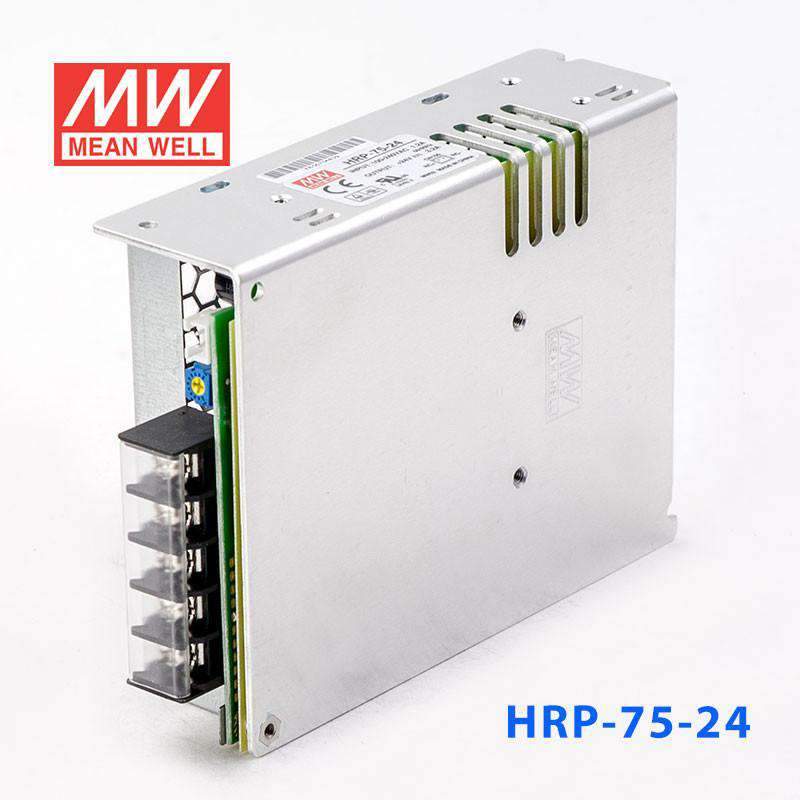

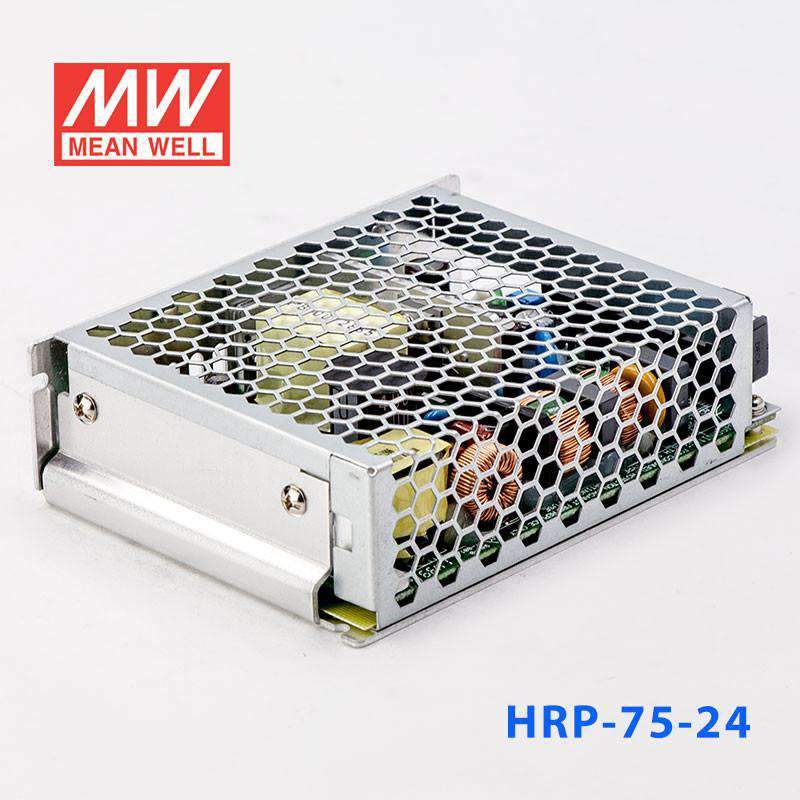

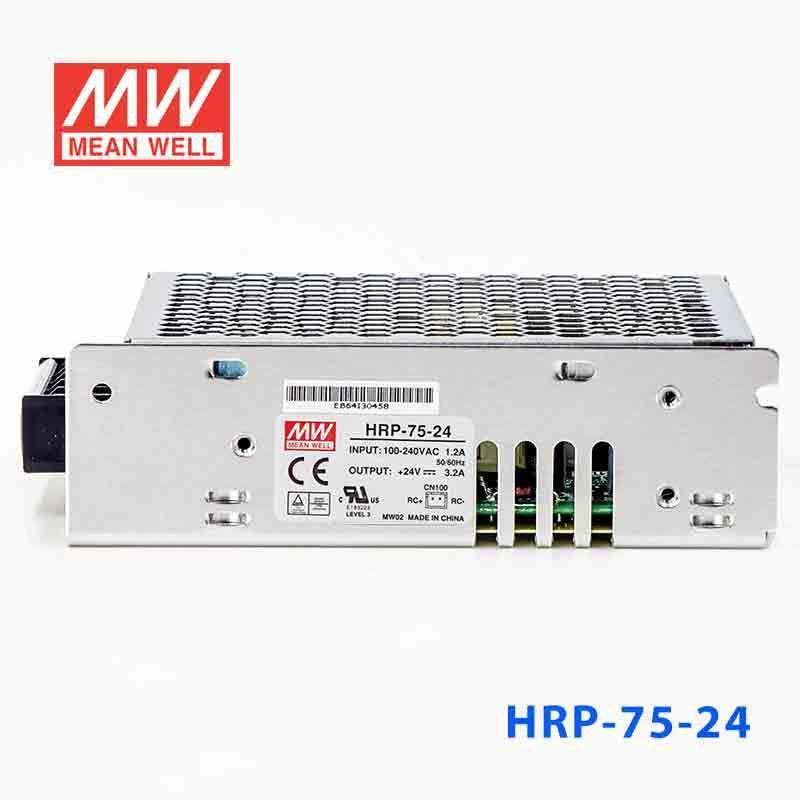

Mean Well HRP-75-24 Power Supply 76.8W 24V

built-in active PFC, high efficiency up to 90%, no load power consumption

SKU:

HRP-75-24

Model

75W 24V

$42.80 USD

SKU: HRP-75-24

100W 24V

$49.61 USD

SKU: HRP-100-24

150W 24V

$60.17 USD

SKU: HRP-150-24

200W 24V

$76.82 USD

SKU: HRP-200-24

300W 24V

$85.79 USD

SKU: HRP-300-24

450W 24V

$142.51 USD

SKU: HRP-450-24

600W 24V

$144.03 USD

SKU: HRP-600-24

Product variants

$42.80 USD ~~$43.00~~

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

Features

Universal AC input / Full range

Withstand 300VAC surge input for 5 seconds

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage / Over temperature (optional for HRP-75 / HRP-100)

Built-in constant current limiting circuit

Cooling by free air convection

1U low profile

LED indicator for power on

100% full load burn-in test

5 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 65A at 230VAC
DC adjustment range	-5%~+10% rated output voltage
Overload protection Range	105%~135%
Overload protection Type	Constant current limiting, auto-recovery
Over voltage protection	115%~145%
Withstand voltage	I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P-FG: 0.5kVAC, 1 minute
Working temperature	-40~+70°C (refer to output derating curve)
Safety standards	UL60950-1, TUV EN60950-1 approved
EMC standards	EN55022 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, EN61000-6-2 heavy industry level
Connection	5P/9.5mm pitch terminal block with cover
Dimension (LxWxH)	129x98x38
Case No.	903D

Specifications

Brand

Mean Well
Series

HRP Series
Power Rating

76.8 Watt
Output Voltage

24 Volt
Rated Current

3.2 Ampere
Input Voltage

85V~264V
No of Output

1
Standards Met

CB,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-40°C~70°C
Warranty

5 Year
Length

5.08 in
Width

3.86 in
Height

1.5 in
Weight

1.04 lb

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HRP-75-24 for a 24V PLC, sensor, or small automation load?

Yes, if the 24V DC load stays within 3.2A and 76.8W, this constant voltage supply can fit PLC-related accessories, sensors, and smaller automation loads. Its 85-264VAC input range also supports deployment across common AC supply conditions.

Is the HRP-75-24 suitable for 24V industrial networking or control interfaces?

It can be used for 24V networking or control interface hardware that needs regulated constant voltage and remains within 3.2A output current. This makes it a lower-power option for 24V equipment rather than a high-load cabinet supply.

Would the HRP-75-24 work for 24V embedded systems or industrial edge devices?

It is suitable for embedded or edge devices designed for 24V DC input when the total power draw does not exceed 76.8W. The supply also offers high efficiency up to 90% and no load power consumption below 0.5W to 0.75W.

Can this model power a low-power 24V HMI or monitoring device?

Yes, for a 24V HMI or monitoring device that stays within 3.2A and 76.8W, this model is in the correct output range. Its compact 129.0 × 98.0 × 38.0 mm dimensions can help in smaller control enclosures.

How does the HRP-75-24 compare with other 24V HRP supplies?

The listed 24V HRP models are HRP-75-24 at 76.8W and 3.2A, HRP-100-24 at 108W and 4.5A, HRP-150-24 and HRP-150N-24 and HRP-150N3-24 at 150W or 156W and 6.5A, HRP-200-24 at 201.6W and 8.4A, HRP-300-24 and HRP-300N-24 and HRP-300N3-24 at 300W or 336W and 14A, HRP-450-24 at 451.2W and 18.8A, and HRP-600-24 and HRP-600N-24 and HRP-600N3-24 at 600W or 648W and 27A. HRP-75-24 is the smallest 24V model in that set.

Can the HRP-75-24 handle cold and hot operating conditions?

The published operating temperature range is -40°C to +70°C, which supports use in a broad range of indoor industrial conditions. No IP rating is listed, so weather exposure or direct outdoor use cannot be verified from the provided specs.
