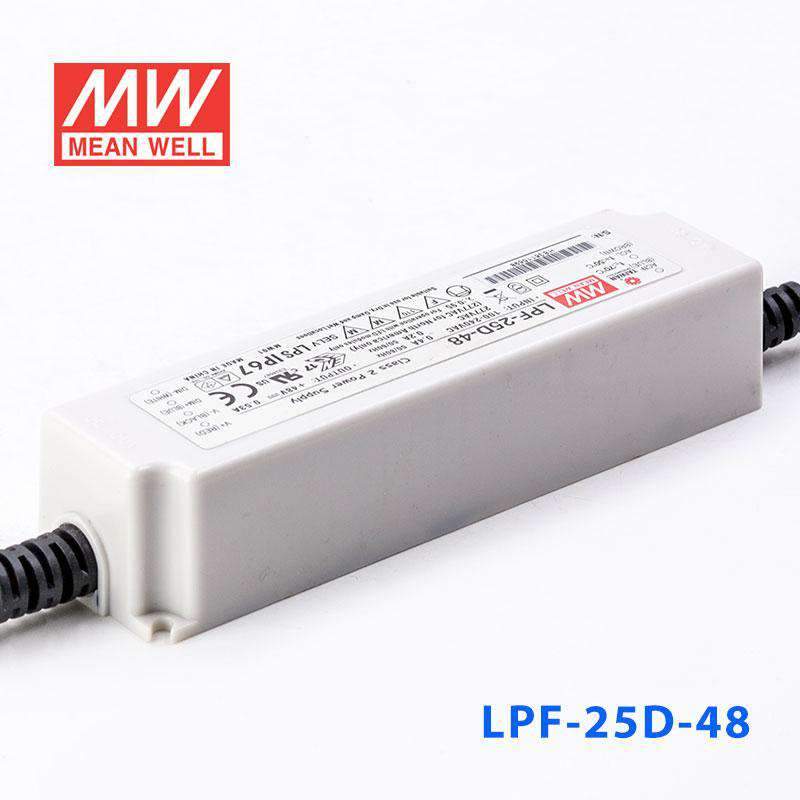

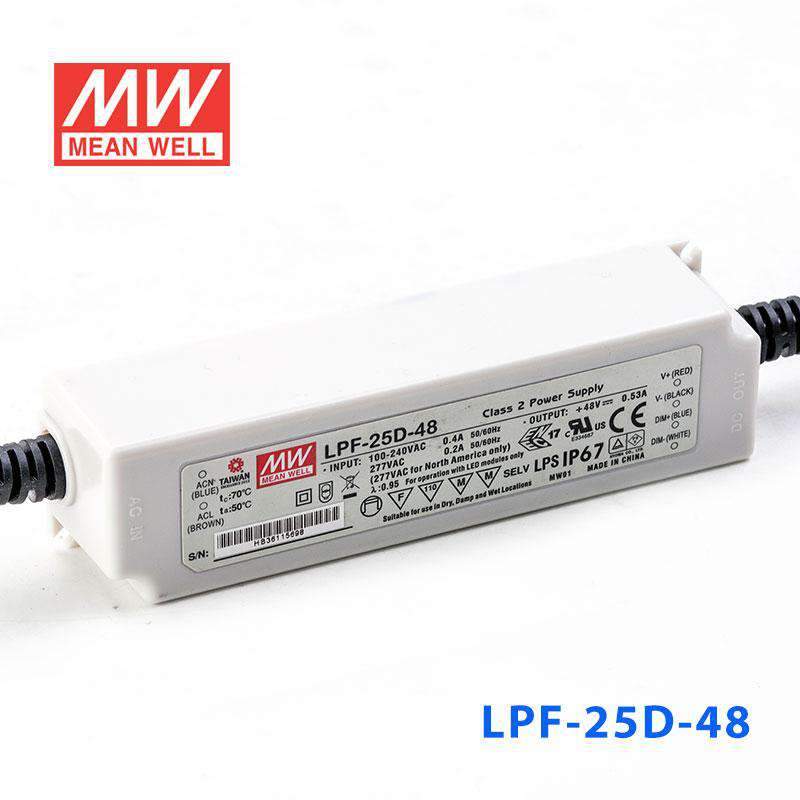

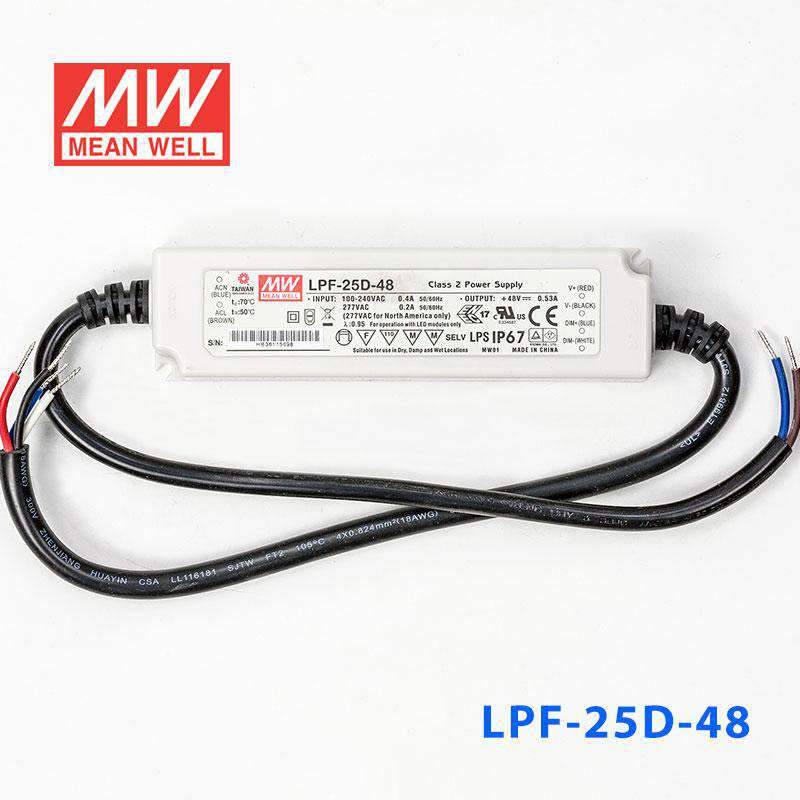

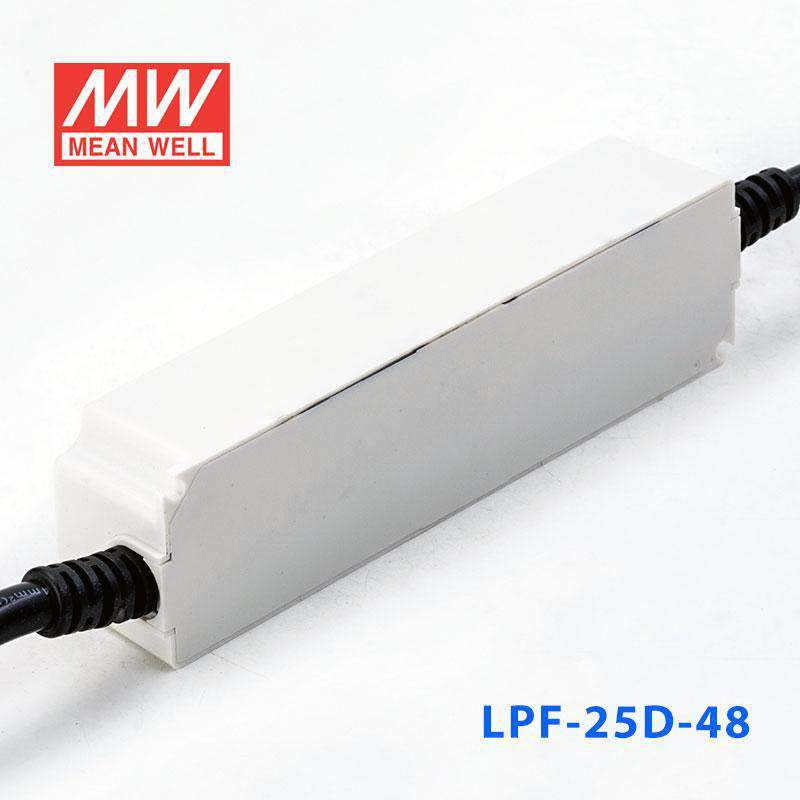

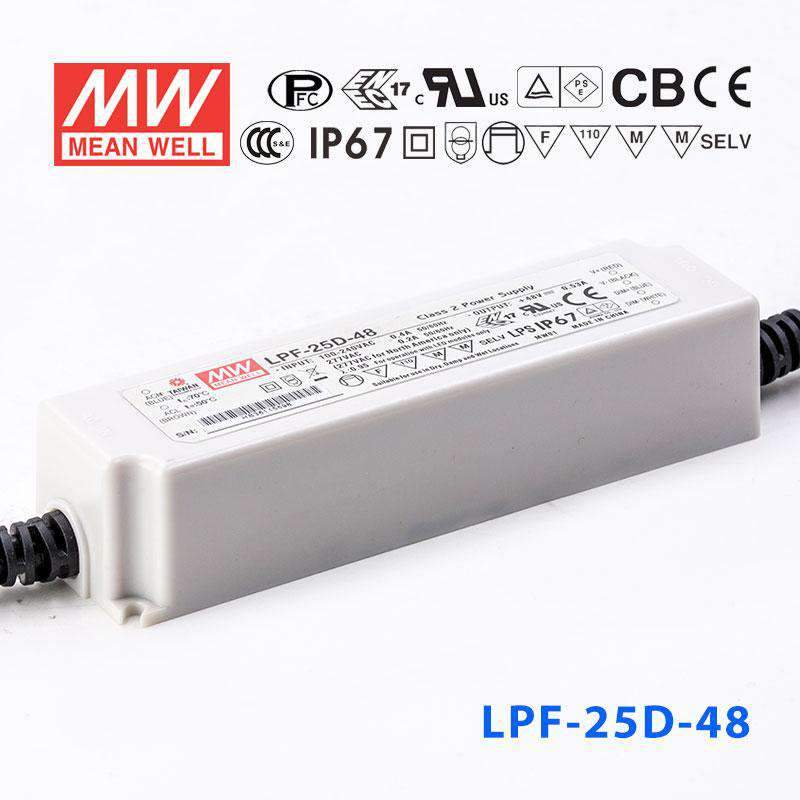

Mean Well LPF-25D-48 Power Supply 25W 48V - Dimmable
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well LPF-25D-48 Power Supply 25W 48V - Dimmable
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Built-in active PFC function |
| Fully isolated plastic case |
| Built-in 3 in 1 dimming function (1~10VDC, PWM signal or resistance) for D type |
| Fully encapsulated with IP67 level |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| Suitable for LED lighting and moving sign applications |
| Suitable for dry, damp, and wet location |
| Cooling by free air convection |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A |
| Over current protection | 95% ~108% constant current, auto-recovery |
| Over voltage protection | 110%~150% rated output voltage |
| Withstand voltage | I/P - O/P: 3.75kVAC |
| Working temperature | -35~+70ºC |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384, PSE J61347-1, J61347-2-13 approved for LPF-16(D)/25(D); UL8750, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved for LPF-40(D)/60(D)/90(D) |
| EMC standards | EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11 |
| Connection Input | UL rated, SJTW 18AWGx2C (30cm) |
| Connection Output | UL rated, SJTW 18AWGx4C (30cm) |
| Dimension (LxWxH)(mm) | 148x 40x 32 |
Specifications
Specifications
-
BrandMean Well
-
SeriesLPF Series
-
Power Rating25.44 Watt
-
Output Voltage48 Volt
-
Rated Current0.53 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Dimming Control10V PWM,1-10V,Resistance
-
Standards MetCB,CE,EAC,ENEC,PSE,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-35°C~70°C
-
Warranty5 Year
-
Length5.83 in
-
Width1.57 in
-
Height1.26 in
-
Weight0.79 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the LPF-25D-48 with a 48V constant-current LED fixture?
Yes, if the fixture is rated for constant-current operation at 0.53A and works within the 26-48V constant-current range. This model delivers up to 25.44W at 48V, so the connected load needs to stay within that power limit.
Is this driver suitable for sealed outdoor lighting applications?
It can be suitable for sealed outdoor lighting when the LED load requires 0.53A constant current and operates from 26V to 48V. The IP67 waterproof rating supports wet-location use, and the driver provides up to 25.44W.
Can this power supply be used for dimmable display or accent lighting?
Yes, for display or accent lighting products that are designed for constant-current input at 0.53A and a 26-48V operating range. The driver includes built-in 3 in 1 dimming and has a maximum output of 25.44W.
How do I calculate the maximum LED strip length for the LPF-25D-48?
Use this formula: 25.44W divided by the strip's rated watts per meter equals the maximum length. The driver can supply 25.44W total at 48V and 0.53A, but check your strip rated power per meter and confirm it is a constant-current 48V load within the 26-48V range.
Is the LPF-25D-48 okay for wet environments?
Yes, it is rated IP67 waterproof for wet and outdoor locations. It is also specified for operating temperatures from -35°C to +70°C, so the environment should remain inside that range.
